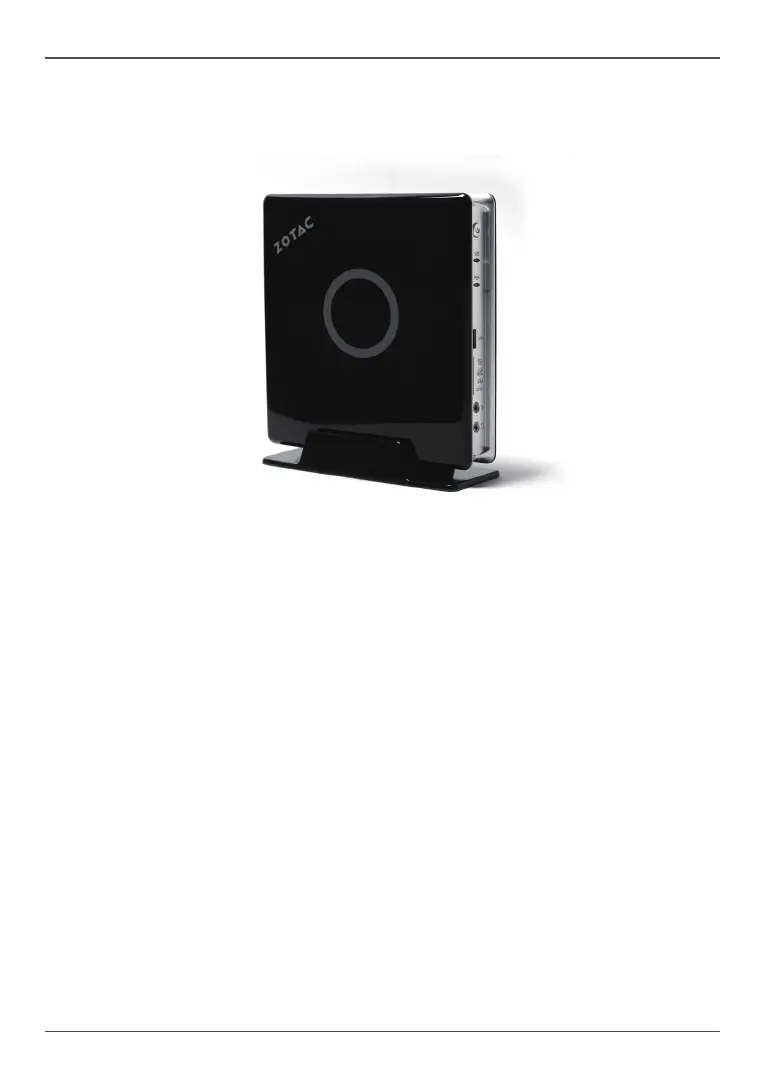

Sida 1/26

ZOTAC ZBOX

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language in any form or by any means,except documenta-

tion kept by the purchaser for backup purposes, without the express written

permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX

Table of Contents

Product Specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

BIOS settings of specic functions --------------------------------------------------------- 8

How to disable the ring LED indicator ---------------------------------------------------- 8

How to enable USB2.0 charge (for S3/S4/S5 status) --------------------------------- 10

High Current/Fast Charging USB ports ---------------------------------------------- 12

Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 13

Installing a memory module ----------------------------------------------------------------- 13

Removing the memory module ------------------------------------------------------------- 14

Installing a hard disk -------------------------------------------------------------------------- 15

Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 16

Positioning your ZOTAC ZBOX --------------------------------------------------------------- 18

Installing the stand ----------------------------------------------------------------------------- 18

Installing your ZOTAC ZBOX to a monitor ----------------------------------------------- 18

IR receiver --------------------------------------------------------------------------------------- 19

Remote control --------------------------------------------------------------------------------- 19

Function keys ------------------------------------------------------------------------------- 19

Lithium cell installation -------------------------------------------------------------------- 20

Installing drivers and software --------------------------------------------------------------- 21

Installing an operating system -------------------------------------------------------------- 21

Installing system drivers ---------------------------------------------------------------------- 21

Using your ZOTAC ZBOX ----------------------------------------------------------------------- 22

Conguring wireless connection ----------------------------------------------------------- 22

Conguring wired connection --------------------------------------------------------------- 22

Using a static IP ---------------------------------------------------------------------------- 22

Using a dynamic IP (PPPoE connection) -------------------------------------------- 23

Conguring audio output via an HDMI device ------------------------------------------ 23

Produktspecifikationer

Varumärke:	ZOTAC
Kategori:	Skrivbord
Modell:	ZBOX ID82 Plus
Produkttyp:	Mini-PC
Färg på produkten:	Wit
Bredd:	123.82 mm
Djup:	22.2 mm
Höjd:	123.82 mm
Strömförsörjning:	100-240V
Processorfrekvens:	2.2 GHz
Processorfamilj:	Intel® Core™ i3
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth-version:	3.0+HS
Plattform:	PC
Monteringsmetod:	Opbouwmontage
Antal HDMI-portar:	1
DVI-port:	Ja
Hörlursutgångar:	1
Certifiering:	UL, CSFM, MEA 284-91-E Vol. III
Internminne:	2 GB
HDMI:	Ja
Inspänning:	32 V
Kabelteknik:	10/100/1000Base-T(X)
Intel® Wireless Display (Intel® WiDi):	Ja
Processorns cache:	3 MB
Maximalt internminne:	16 GB
Total lagringskapacitet:	320 GB
Intel® Smart Response Technology:	Nej
Intel® Hyper Threading Technology (Intel® HT Technology):	Ja
Intel® InTru™ 3D-teknik:	Ja
Intel® Insider™:	Ja
Intel® Small Business Advantage (Intel® SBA):	Nej
Intel® Identity Protection Technology (Intel® IPT):	Ja
Kompatibla operativsystem:	Windows XP, Vista, 7, Linux
Minneslayout:	- GB
Minnesplatser:	2x SO-DIMM
Antalet installerade hårddiskar:	1
S/PDIF-utgång:	Ja
Fjärrkontroll ingår:	Ja
LightScribe:	Nej
Drifttemperatur (TT):	0 - 49 °C
Relativ luftfuktighet i drift (VV):	10 - 85 procent
Typ av minneskort:	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD
Produktens färg:	Black, White
Inbyggd kortläsare:	Ja
Formfaktor:	mini-PC
processortillverkare:	Intel
Installerat operativsystem:	Nej
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Numeriskt tangentbord:	Nej
Processorns cachetyp:	L3
Hårddiskkapacitet:	320 GB
Typ av internminne:	DDR3-SDRAM
Kabel inkluderad:	AC
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
Hårddiskens rotationshastighet:	5400 RPM
Antal USB 2.0 anslutningar:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Moderkortets chipset:	Intel® HM65 Express
Processorkärnor:	2
Bluetooth:	Ja
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Trådlös kommunikationsteknologi:	WiFi
Nätaggregatstyp:	AC/DC
Systembuss, hastighet:	5 GT/s
Processortrådar:	4
Minne klockhastighet:	1333 MHz
Lagringsmedia:	HDD
Optisk enhetstyp:	Nej
Grafikadapterfamilj:	Intel
Ombord grafikkort modell:	Intel® HD Graphics 3000
Diskret grafikkortsmodell:	Ej tillgänglig
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	Intel® HD Graphics
Uttag för mikrofon/linje in:	Ja
Slot för SmartCard:	Nej
Intel® Turbo Boost Technology:	Nej
Förstärkt Intel Speedstep Technology:	Ja
Intel® Clear Video HD Technology (Intel® CVT HD):	Ja
Intel® Quick Sync Video Technology:	Ja
Display inkluderad:	Nej
Windowstangent:	Nej
Combo hörlurar / mikrofon-port:	Nej
Chassityp:	Liten stationär dator
Antal processorer installerade:	1
Open GL stött grafikkort:	Ja
Förberedd för Wake-on-Ring:	Ja
