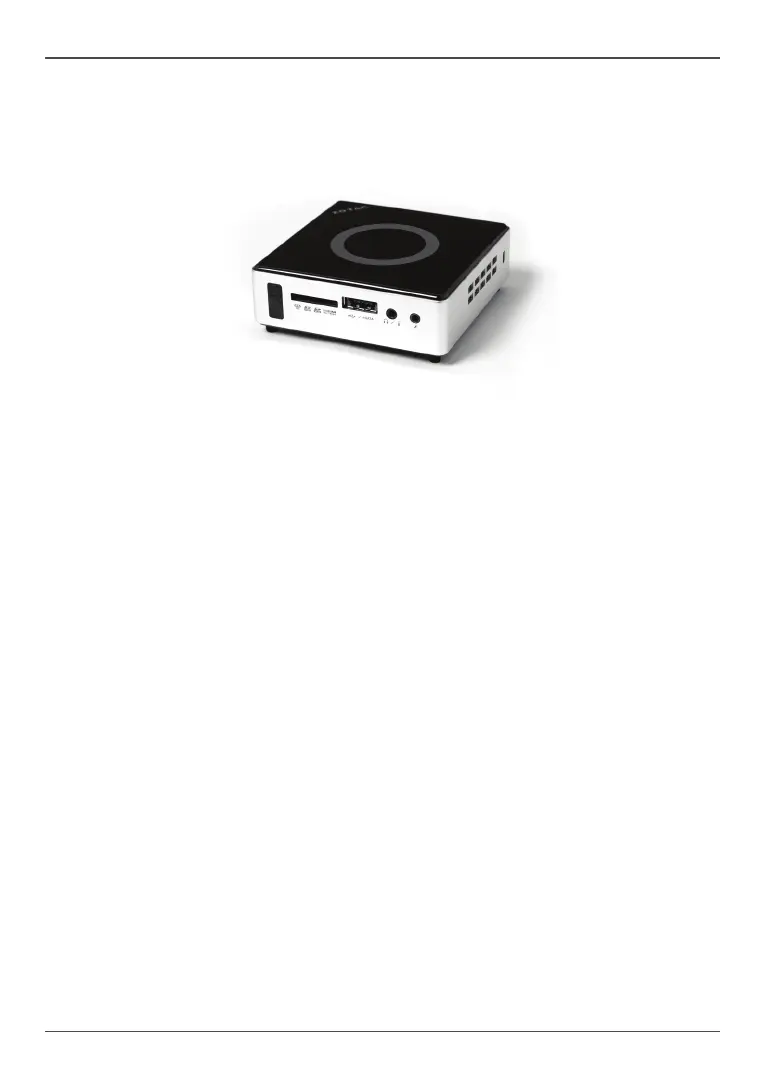

ZOTAC ZBOX nano XS

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX nano XS

Table of Contents

Product specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX nano XS-------------------------------------------- 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

BIOS settings of specic functions --------------------------------------------------------- 8

How to disable the ring LED indicator ---------------------------------------------------- 8

How to enable USB2.0 hotplug charge (for S3/S4/S5 status) ---------------------- 10

High Current/Fast Charging USB ports ---------------------------------------------- 11

How to disable CIR controller (for internal IR receiver) ------------------------------- 11

Customizing the ZOTAC ZBOX nano XS -------------------------------------------------- 13

Installing a memory module ----------------------------------------------------------------- 14

Installing an mSATA --------------------------------------------------------------------------- 15

Connecting a SPDIF cable ------------------------------------------------------------------ 16

Setting up the ZOTAC ZBOX nano XS ------------------------------------------------------ 17

Positioning the ZOTAC ZBOX nano XS ---------------------------------------------------- 18

Mounting the ZOTAC ZBOX nano XS to a LCD monitor ----------------------------- 18

IR receiver --------------------------------------------------------------------------------------- 19

Remote control (optional) -------------------------------------------------------------------- 20

Function keys ------------------------------------------------------------------------------- 20

Lithium cell installation -------------------------------------------------------------------- 21

Installing drivers and software --------------------------------------------------------------- 22

Installing an operating system -------------------------------------------------------------- 22

Installing system drivers ---------------------------------------------------------------------- 22

Using your ZOTAC ZBOX nano XS ---------------------------------------------------------- 23

Conguring wireless connection ----------------------------------------------------------- 23

Conguring wired connection --------------------------------------------------------------- 23

Using a static IP ---------------------------------------------------------------------------- 23

Using a dynamic IP (PPPoE connection) -------------------------------------------- 24

Conguring audio output via an HDMI device ------------------------------------------ 24

Produktspecifikationer

Varumärke:	ZOTAC
Kategori:	Skrivbord
Modell:	ZBOX nano XS AD11 Plus
Produkttyp:	Mini-PC
Bredd:	106 mm
Djup:	106 mm
Höjd:	37 mm
Strömförsörjning:	100-240V
Processorfrekvens:	1.65 GHz
Processorfamilj:	AMD E
Wi-Fi:	Ja
Wi-Fi-standarder:	Wi-Fi 4 (802.11n)
Plattform:	PC
Antal HDMI-portar:	1
DVI-port:	Nej
Hörlursutgångar:	1
Internminne:	2 GB
HDMI:	Ja
Kabelteknik:	10/100/1000Base-T(X)
Processor:	E-450
Intel® Wireless Display (Intel® WiDi):	Nej
Processorns cache:	1 MB
Maximalt internminne:	4 GB
Total lagringskapacitet:	64 GB
Intel® Smart Response Technology:	Nej
Intel® Hyper Threading Technology (Intel® HT Technology):	Nej
Intel® Small Business Advantage (Intel® SBA):	Nej
Intel® Identity Protection Technology (Intel® IPT):	Nej
Minneslayout:	- GB
Minnesplatser:	1x SO-DIMM
S/PDIF-utgång:	Ja
Typ av minneskort:	Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC
Produktens färg:	Black, White
Inbyggd kortläsare:	Ja
Formfaktor:	Nettop
processortillverkare:	AMD
Installerat operativsystem:	Nej
Typ av ethernet-gränssnitt:	Gigabit Ethernet
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Typ av internminne:	DDR3-SDRAM
Kabel inkluderad:	Ja
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
Antal USB 2.0 anslutningar:	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Moderkortets chipset:	AMD M1
Processorkärnor:	2
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Trådlös kommunikationsteknologi:	WiFi
Nätaggregatstyp:	AC/DC
Minne klockhastighet:	1333 MHz
Lagringsmedia:	SSD
Solid-state drive kapacitet:	64 GB
Optisk enhetstyp:	Nej
Grafikadapterfamilj:	AMD
Ombord grafikkort modell:	AMD Radeon HD 6320
Diskret grafikkortsmodell:	Ej tillgänglig
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	AMD Radeon HD 6000
Uttag för mikrofon/linje in:	Ja
Slot för SmartCard:	Nej
Intel® Turbo Boost Technology:	Nej
Förstärkt Intel Speedstep Technology:	Nej
Display inkluderad:	Nej
Solid-state drive-gränssnitt:	mSATA
Combo hörlurar / mikrofon-port:	Nej
Chassityp:	Liten stationär dator
Antal processorer installerade:	1
eSATA / USB 2.0 anslutningar:	1
