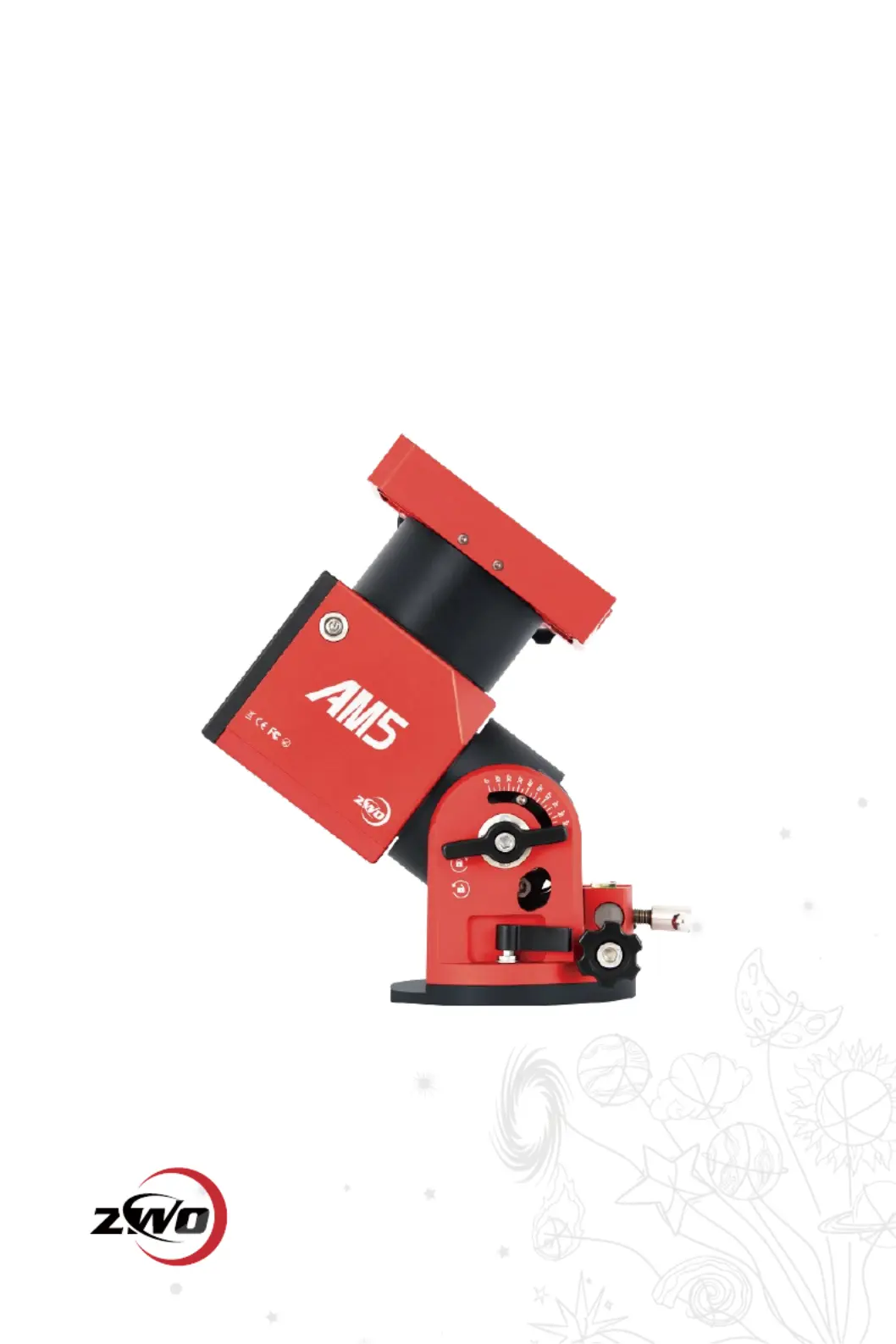

ZWO-AM5
User Manual
Table of Contents
Preface
Tips
Included Items
1. Product Introduction
2. Performance Parameters
3. How to Use
4. Structural Dimensions
5. After Sales
6. Warranty
3.1 Introduction to the Equatorial Mount
3.2 Mounting the Equatorial Mount
3.2 AM5 Mount Installation
3.2.1 Body installation
3.2.2 Handle Controller Connection
3.2.3 Installation of height -increasing section (optional)
3.2. 4 Counterweight (optional) Installation
3.2. 5 ASIAIR (optional) installation --------OLD DESIGN
3.3 Use of Equatorial Mount
3.3.1 How to adjust the pitch angle from the first gear to the second gear?
3.3.2 How to adjust the azimuth?
3.3.3 How to switch the equatorial mode to alt-azimuth mode?
3.4 How to Connect the Computer to Control the Equatorial Mount?
3.5 How to Use ASIAIR to Control the Equatorial Mount?
Preface
Thank you for purchasing the ZWO AM5 Strain Wave Gear Mount. (Hereinafter referred to as AM5)
After years of research, ZWO has developed the new AM5 with its customized strain wave gears
to meet the desire of the modern astrophotographer for a mount with low periodic error,
accurate tracking and high torque in a small and portable unit.
The AM5 is built using the latest Computer Aided Design and Manufacturing (CAD/CAM)
techniques, with a modern industrial design interface combined with the aircraft grade
aluminum which keeps a good balance between portability and reliability. The internal
structure of the mount body is optimized with the harmonic drive speed reducer and synchro-
nous belt, bringing accurate control with an amazing reduction ratio of 300:1. To ensure the
quality, ZWO also measures each mount and equip it with the exclusive PE curve before it
proudly leaves our factory. With your purchase, you can rest assured knowing that you will
receive a top-of-the-line product, service and support.
ZWO AM5 software is compatible with ASIAIR, ASCOM, INDI and other platforms.
The purpose of this manual is to support the user in the operation of the AM5 mount. Please
read this manual carefully before using your AM5 and follow the instructions carefully.
Any equipment damage or personal injury caused by improper operation are the responsibility
of the user.
The AM5 design, associated software and operating features are the intellectual property of
ZWO and may not be reproduced without permission.
Tips
Before Using the AM5 Mount, Please Read the Following Tips Carefully and Follow
the Instructions In This Manual During Use.
1. When using the AM5, DO NOT directly observe or image the sun with naked eyes through
telescopes or finder glasses, without using specially designed solar filters. This will cause
permanent and irreversible damage to the observer's eyes, and potentially damage property
and equipment or create a fire hazard.
2. Carefully select a suitable tripod according to the size and weight of your telescope and
determine if a counterweight is required. The use of heavy loads without a counterweight
installed may cause the tripod and telescope to tip over. Always test the center of gravity of the
telescope in all directions prior to use to avoid the mount from falling and causing equipment
damage or personal injury.
3. After use, set the mount to the home position, and power down the mount. Failure to follow
this step may cause the home position to be inaccurate at the next start up and the use of the
GOTO function at this point may cause equipment damage or personal injury. If the mount is
not at home position at start up, return the mount to its home position immediately after
power up and before use of any GOTO command. Normal operation can commence when the
mount is at the home position.
