CCS-XB
CCS-XB
Quick Start
Self adhesive
rubber feet
CCS-XB controller
Four LED monitor indicators
Adder P/N: CCS-LED
(Also available separately when
more than four are required)
CATx link cable
Adder P/N: VSC46

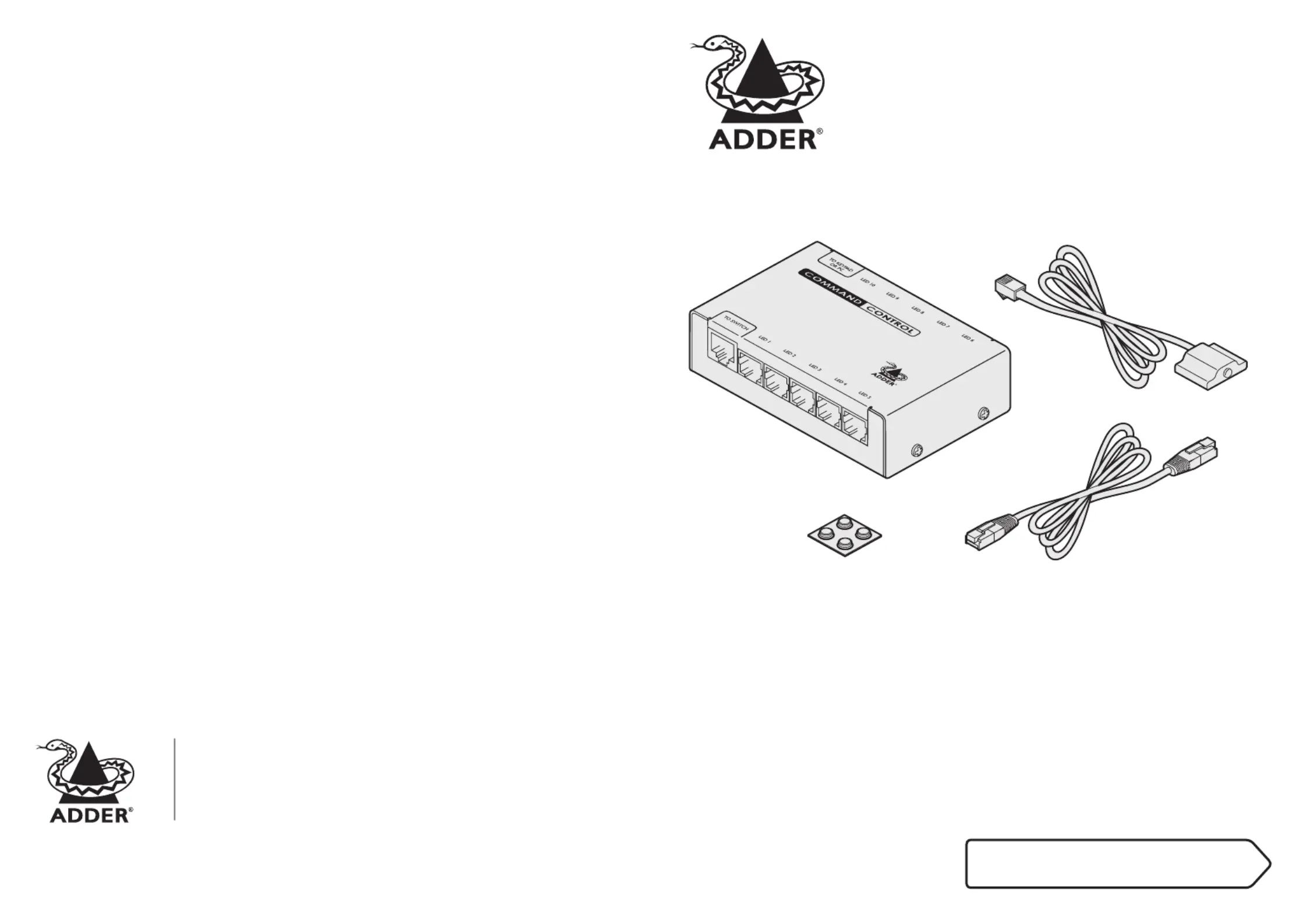

What’s in the box

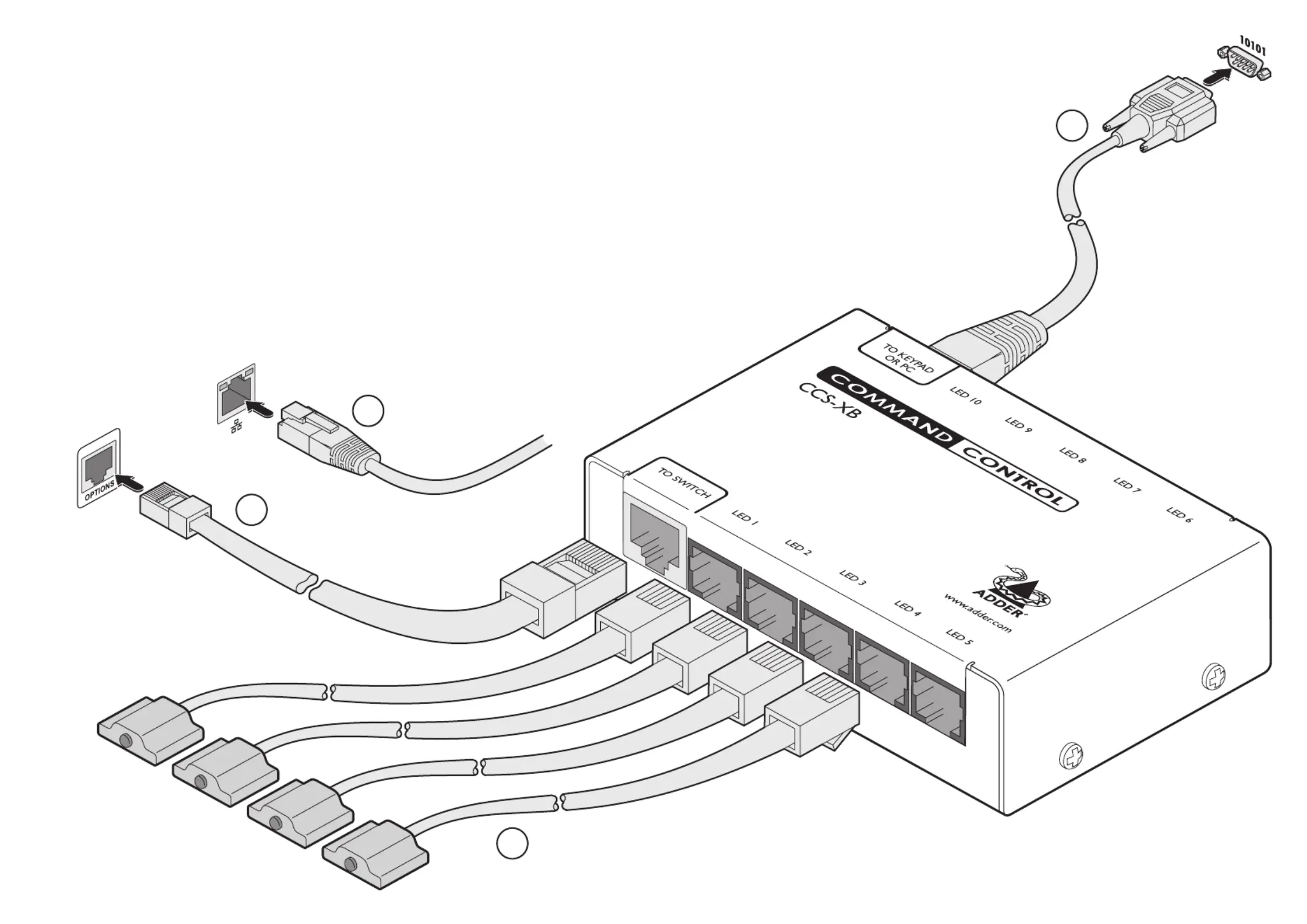

Connection overview inside
Full user guide available at www.adder.com
© 2019 Adder Technology Limited • All trademarks are acknowledged.
Part No. MAN-CCS-XB-QS • Release 2.1
The CCS-XB module works together with either the Adder CCS4-USB or CCS-PRO4 switches to provide LED
indicators for each of your video display screens. As the switch activates a screen, the CCS-XB module activates
the corresponding indicator (which can be attached to the screen) to provide extra clarity for the operator.
Checking the firmware version (CCS4-USB switches only)
When using the CCS-XB module with a CCS4-USB switch, it is important that the switch has rmware version
2.0 (or greater) installed. If in doubt you can check the rmware version of your CCS4-USB switch as follows:
1 With your CCS4-USB switch powered on and with a USB keyboard attached, press and hold the
COMPUTER button for roughly six seconds until the display shows .C
2 On the connected keyboard, press . The digits of the rmware F1 Enter followed by and then press
version will be shown in sequence with a short pause between each. For instance,102 > > means that
the rmware version is and requires an upgrade. 1.02
3 Press EEnter and then press to return the CCS4-USB to normal operation.
If your CCS4-USB switch does require a rmware upgrade, please refer to the Performing upgrades
section of the CCS4-USB user guide.
Part numbers
CCS-XB Controller with CATx link cable and 4 LED monitor indicators
CCS-XB0 Controller with CATx link cable
CCS-XB8 Controller with CATx link cable and 8 LED monitor indicators
CCS-LED LED monitor indicator with 3m cable
CCS-LED-5M LED monitor indicator with 5m cable
Produktspecifikationer
| Varumärke: | Adder |
| Kategori: | Inte kategoriserad |
| Modell: | CCS-XB |
| Produkttyp: | Enhet för matrisorganisation |
| Vikt: | 220 g |
| Bredd: | 95 mm |
| Djup: | 65 mm |
| Höjd: | 30 mm |
| Kompatibilitet: | ADDER CCS4-USB |
| Produktens färg: | Svart |
