Sida 1/48

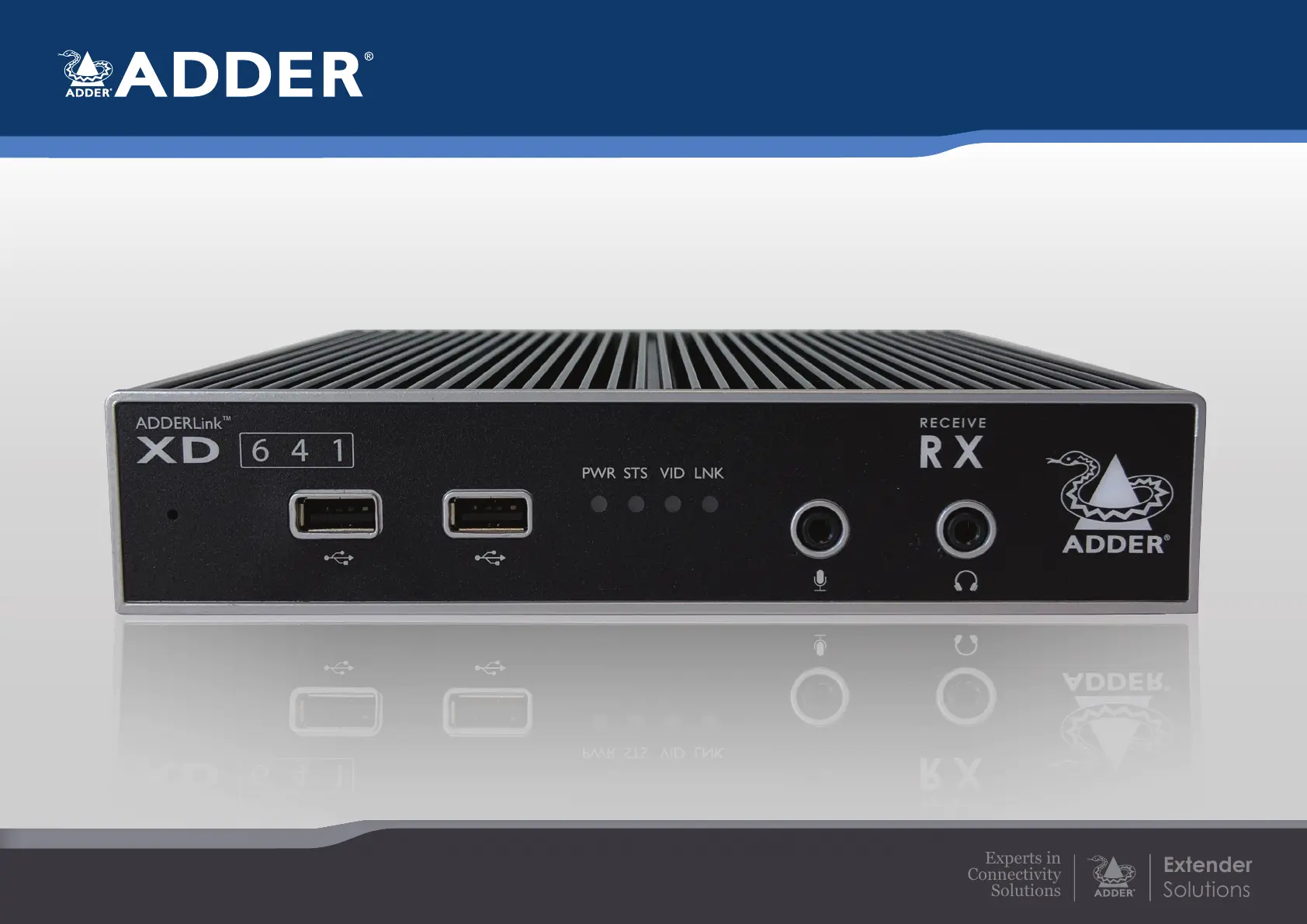

ADDERLink
™
XD641 and XD642
User Guide
Experts in
Connectivity
Solutions
Extender
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
AdderLink XD641 features ................................................................................3
AdderLink XD642 features ................................................................................4
Technical specications .......................................................................................5
Supplied items ....................................................................................................... 6
Optional extras .....................................................................................................7
Installation
Locations ................................................................................................................ 8
Connections ..........................................................................................................8
Transmitter video link(s)...............................................................................9
Transmitter audio links .................................................................................9
Transmitter USB links ..................................................................................10
Transmitter Remote port ...........................................................................10
Transmitter power connection .................................................................11
Linking .............................................................................................................12
CATx link .......................................................................................................12
Fiber optic link ..............................................................................................13
Receiver video display(s) ............................................................................14
EDID management .................................................................................14
Receiver audio devices ................................................................................14
Receiver USB devices ..................................................................................15
Receiver Remote port ................................................................................15
Receiver power connection .......................................................................16
Conguration
Accessing the Dashboard .................................................................................17
Choosing the dual head mode (XD642 models only) ...............................17
Resetting a module ............................................................................................18
Upgrading Firmware ..........................................................................................18
Operation
Indicators .............................................................................................................19
Further information
Getting assistance ..............................................................................................20
Appendix 1 - Remote port pin-out ..................................................... ...........21
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

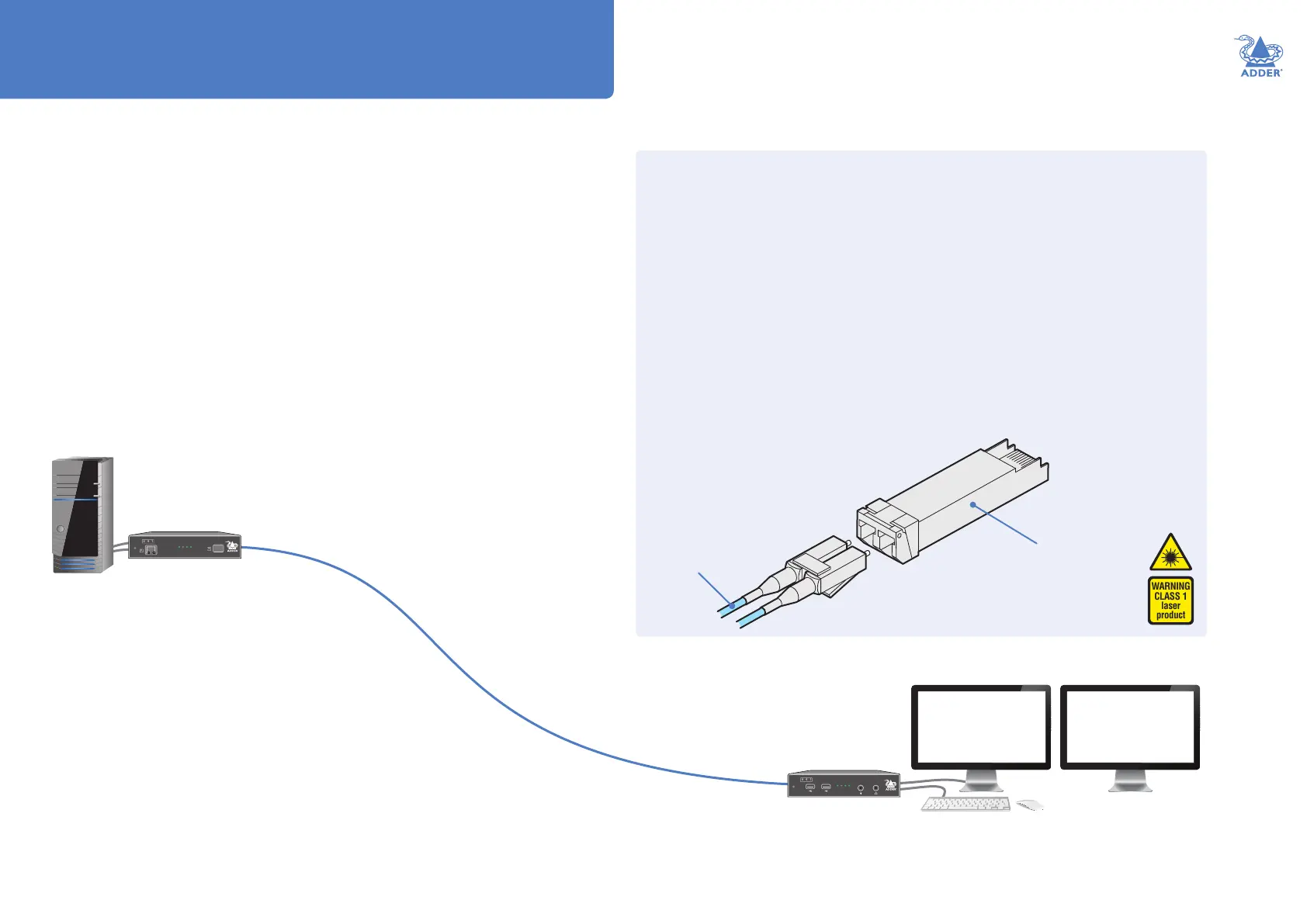

ADDERLink XD
Transmitter
module
ADDERLink XD
Receiver
module
Single or dual (XD642 models) DisplayPort video displays
®
Four USB devices
One RS232 serial device
Stereo speakers plus microphone
Fiber optic link
(up to 4km)
OR
CATx link
(CAT5e up to 50m)
(CAT6 up to 100m)
ADDERLink
™
XD
641
PWRSTS VIDLNK
RX
RECEIVE
ADDERLink
™
XD
641
PWR
LINK
LINK
A
B
STS VID LNK
TX
TRANSMIT
Introduction
WELCOME
Thank you for choosing the ADDERLink
®
XD641 (single head) or XD642 (dual head)
extender modules. Using either ber optic or CATx links, these compact modules
allow you to extend KVM connections over long distances from a host computer (see
Transmission distances when using ber on the right).
The high-grade screening employed within the metal cased enclosures, particularly when
combined with the immunity from interference of the ber optic links.
AdderLink XD extender modules provide support for:
• High quality single- or dual- digital video (up to 4K 4096 x 2160 @60Hz),
• USB keyboard and mouse plus two other USB devices (up to USB 2.0),
• An RS232 serial device at speeds up to 115200 baud,
• Mono microphone,
• Stereo speakers,
• Line-level audio in/out connections.
Transmission distances when using ber
The choice of ber used with the ADDERLink XD modules has a considerable effect
on the distance over which operation can take place. Using multi-mode ber you can
achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and
accompanying SFP modules), the achievable maximum distance is increased to 4km (2.5
miles):
Distance Fibertype Fibercolorcode SFPmodule
70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-10G
150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-10G
380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-10G
400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-10G
4km OS1 (TIA-492C000) Yellow SFP-SM-LC-10G
OS2 (TIA-492E000) Yellow SFP-SM-LC-10G
The ADDERLink extender modules are
totally transparent in operation, leaving you
free to use your computer as though you’re
still sitting next to it.
SFP
module
Fiber
color
WARNING
CLASS 1
laser
product
