AdderLink DV104T
User Guide
Experts in
Connectivity
Solutions
Video Extension
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
Operating modes .................................................................................................3
Single source mode ........................................................................................3
Dual source mode ..........................................................................................3
AdderLink DV104T features ..............................................................................4
Supplied items ....................................................................................................... 5
Optional extras .....................................................................................................6
Installation
Connections ..........................................................................................................7
Mounting ................................................................................................................7
Using the rear mounting slot ....................................................................... 7
HDMI connections .........................................................................................8
Using Adder locking HDMI connectors ..............................................8
Network connection .....................................................................................9
Receiver connections ..................................................................................10
Power adapter connection .........................................................................11
Conguration
Initial conguration ............................................................................................12
Accessing the AdderLink POD Manager .................................................12
Using the AdderLink POD Manager ........................................................13
System Overview elements..................................................................13
Receiver conguration ..........................................................................14
Transmitter conguration .....................................................................15
System conguration .............................................................................17
Operation
Managing the installation ..................................................................................19
Rescanning the System Overview ............................................................19
Changing to an alternative input source .................................................19
Enabling and disabling all screens ..............................................................20
Further information
Getting assistance ..............................................................................................21
Troubleshooting .................................................................................................. 22
Appendix A - Cables for use with digital extenders ..................................23
Appendix B - Management API specication ...............................................25
Warranty ..............................................................................................................29
Safety information ..............................................................................................29
Radio frequency energy ....................................................................................30
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
WELCOME
The AdderLink DV104T transmitter is a high performance video/audio switch and
extender that can drive between one and four HDMI (or DVI-D) screens located up to
50 meters away. The intelligent switch within allows you to choose exactly how two video
inputs should be shared between up to four screens. The AdderLink DV104T transmitter
is supplied as part of a kit that also includes four AdderLink DV100R receivers.
Links to the AdderLink DV100R (or optional AdderLink DV120R) receivers are made
using screened twisted pair cables (Category 6 FTP or higher). Each receiver converts
the long distance transmission signals back into high quality video/audio signals for each
screen.
Display management is made very straightforward thanks to the integrated AdderLink
POD Manager web interface that allows full control and monitoring of all aspects from
any location. A management API is also available to allow full integration with other
control systems. For mission-critical display applications, an automated
failover mode also enables the AdderLink DV104T transmitter to
actively switch between inputs if one video source suddenly
fails.

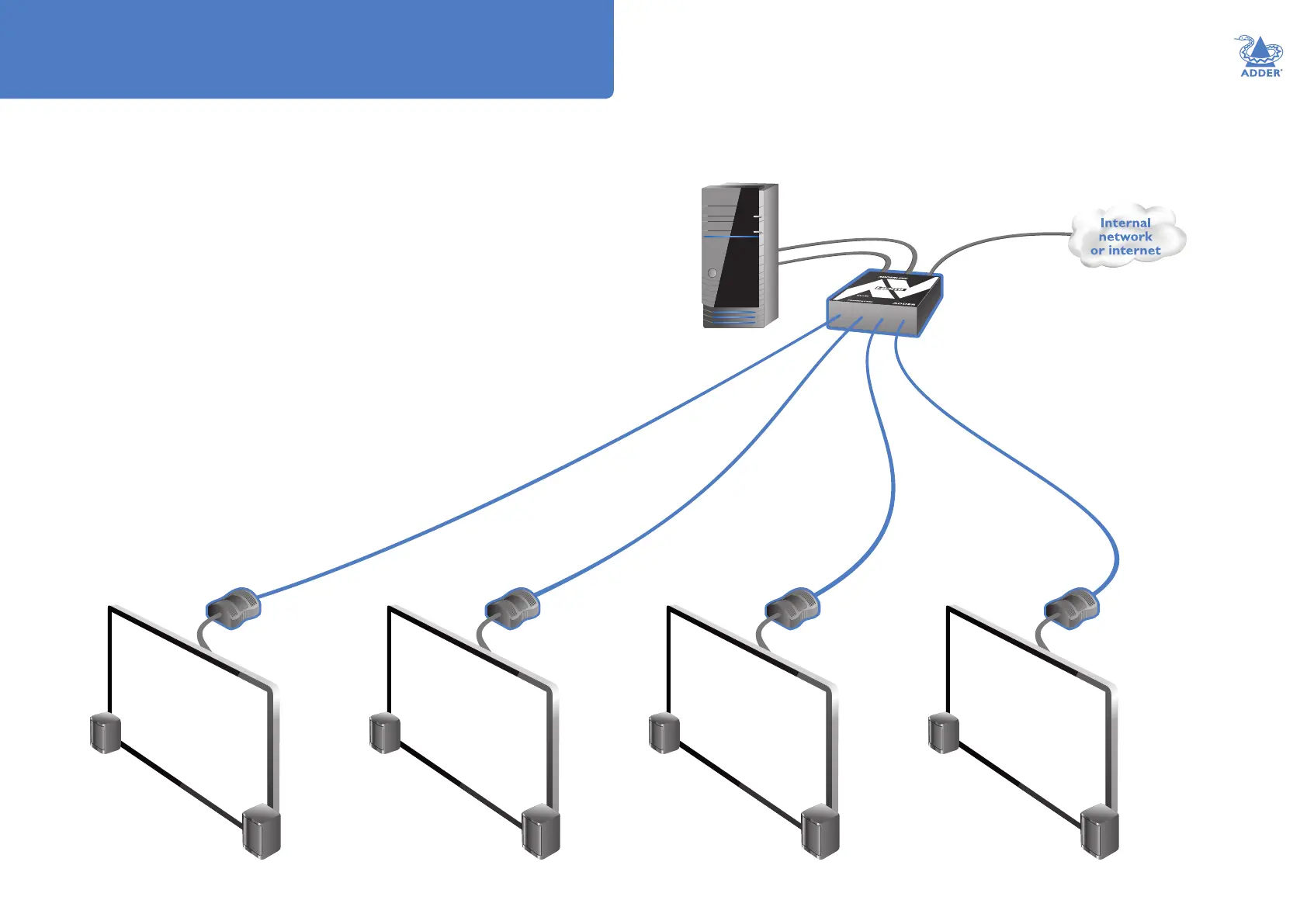

One or two
HDMI feeds
Ethernet
connection for
conguration and
monitoring
ALDV100R (HDMI)
or
ALDV120R (DVI-D)
receiver
HDMI or DVI-D
screen
and speakers
Up to 50m
(160 feet)
AdderLink DV104T
Note: Audio is not
supported by the
optional ALDV120R
(DVI-D) modules
