User Instructions

2/17

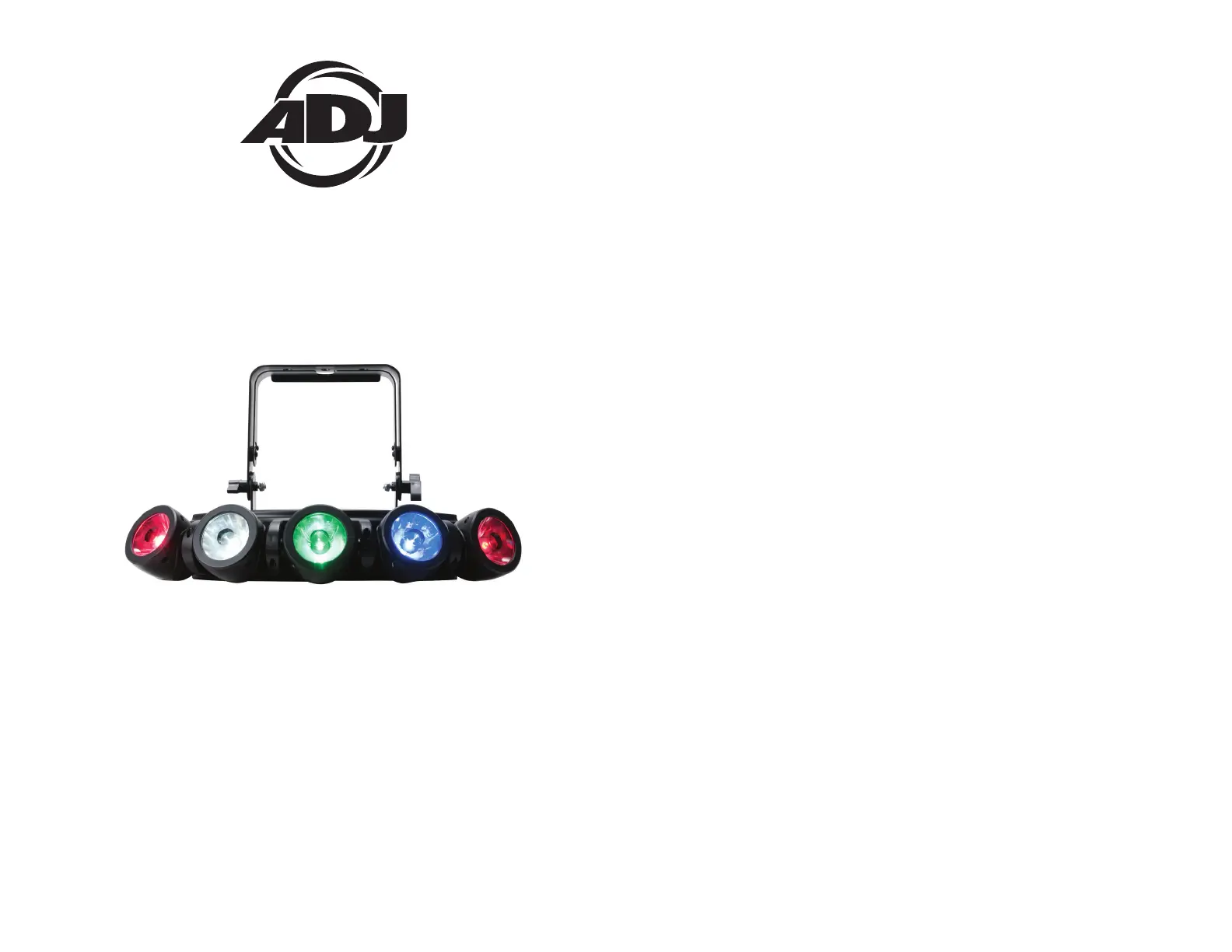

Penta Pix

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 3

• Built in Microphone

• 5 DMX Channel Modes: 4/8/11/20/27

• 63 Color Macros

• 4 Show Modes

• 5 Operational modes: Sound Active, Auto Run, RGBW Dimmer

Mode, Color Macro Mode, & DMX Control

• Sound Sensitivity Adjustable

• Power Cord Daisy Chaining. See page 23.

Penta Pix Warranty Registration

Penta Pix Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

Penta Pix General Instructions

The Penta Pix carries a 3 year (1095 days) limited warranty. Please fill

out the enclosed warranty card to validate your purchase and war-

ranty. You may also register your product online at www.adj.com. All

returned service items whether under warranty or not, must be freight

pre-paid and accompany a return authorization (R.A.) number. If the

unit is under warranty you must provide a copy of your proof of pur-

chase invoice. Please contact ADJ Products, LLC customer support

for a R.A. number.

Penta Pix Installation

The unit should be mounted using a mounting clamp (not provided),

axing it to the mounting bracket that is provided with the unit.

Always ensure that the unit is rmly xed to avoid vibration and slip-

ping while operating. Always ensure that the structure to which you

are attaching the unit is secure and is able to support a weight of 10

times the unit’s weight. Also, always use a safety cable that can hold

12 times the weight of the unit when installing the xture.

The equipment must be installed by a professional, and it must be

installed in a place where it is out of the reach of people’s grasp.

Penta Pix Introduction

ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 2

Unpacking: Thank you for purchasing the Penta Pix by ADJ Prod-

ucts, LLC. Every Penta Pix has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping

carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without rst contact-

ing customer support.

Introduction: The Penta Pix is part of ADJ’s continuing pursuit for

creating high quality affordable intelligent fixtures. The ADJ Penta Pix

is a 5-head beam effect with pixel zone control. Create quick chas-

ing beam effects from its five 15W 4-IN-1 RGBW LEDs with new ACL

lens (Advanced Collimator Optic Lens) for crisp, sharp beams. Each

head may be manual positioned on an x-axis. The unit has 3 operating

modes; Sound Active Mode, Show Mode, and DMX Control. This unit

can be used as a stand alone xture, or in a Master/Slave congura-

tion. This fixture is suitable for theaters, studios, retail stores, and other

similar locations.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question

should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments

or suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Produktspecifikationer

Varumärke:	Adj
Kategori:	Effektmaskin
Modell:	Penta Pix
Produkttyp:	Discostrålkastare
Inbyggd display:	Ja
Vikt:	5400 g
Bredd:	280 mm
Djup:	530 mm
Höjd:	260 mm
Antal lampor:	5 lamp(or)
Spänning:	100 - 240 V
Ljuslägen:	Auto, DMX, Sound activated
Ljusstyrningsprotokoll:	DMX
Inbyggda makron:	Ja
DMX-ingång:	Ja
DMX-utgång:	Ja
Antal DMX-kanaler:	5 kanaler
Produktens färg:	Svart
Skärmtyp:	LED
Kontrolltyp:	Knappar
ljus färg:	Blue, Green, Red, White
Ingångsfrekvens:	50 - 60 hz
Strömförbrukning (vanlig):	77 W
Lamptyp:	LED
Strömkälla:	AC
Lampor:	15 W
Antal:	1
Kuldiameter:	- "
Dimbart område:	0 - 100 %
