ASMB-807 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-807 startup manual
• 2 x SATA data cables
• 2 x SATA power cables
• 2 x CPU carrier (E1A & E1B)
• 1 x I/O port bracket
• 2 x M.2 screws
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard M/B Functions
• CPU: LGA4677 Intel Xeon® W-3500/2500 series and
Xeon® W-3400/2400 series processors
• BIOS: AMI 512 Mbit SPI BIOS
• Chipset: Intel
®
W790 PCH
• System Memory: 8* DDR5 4400/4800
Registered ECC DIMM, Max. Capacity 2TB
Note1: Due to the inherent limitations of older PC archi-
tectures, the system may not fully detect 512 GB
RAM when 512 GB RAM is installed.
Note2: Max speed of 4800 MT/s can only be supported
with1DIMMperchannelconguration(Total4
DIMMs installed on DIMMA1/B1/E1/F1 slots)
ASMB-807 Series LGA 4677 Intel® Xeon® W
Processors ATX Server Board with 8 x DDR5, 3 x PCIe
x16, 8 x SATA 3.0, 9 x USB 3.2, 2 x M.2, Dual 10GbE,
and IPMI
•
SATA Interface: 8 x SATA3 6Gb/s ports Intel Rapid
Storage (for Windows only) (SATA0-SATA7 supports
software RAID 0, 1, 10 & 5)
• Serial Ports: One external serial port and one onboard
header, RS-232 only
• Keyboard/Mouse Header (KBMS1): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable.
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 6 x USB 3.2 Gen2x1 ports, 2 x
USB 3.2 Gen1x1 (onboard 20-pin header), 3 x USB 2.0 (2
ports from onboard 10-pin header + 1 x onboard Type A),
and 1 x USB 3.2 Gen2x2 ports (onboard Type-E A-Key
header)
VGA Interface
• Chipset: ASPEED AST2500/2510
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I226; LAN3/4: Intel X710
CPU Carrier Information
• E1A: Intel Xeon® W-3500/3400 series processors
• E1B: Intel Xeon® W-2500/2400 series processors
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)
• Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power Consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 2.94A, +5 V@ 1.81A,
+12 V @ 0.03A,+5 Vsb @ 0.14A, 12 V_8P @ 19.36A
• Operating Temperature: 0 ~ 60°C (depending on CPU
speed and cooler solution)
• Net Weight: 0.97 kg

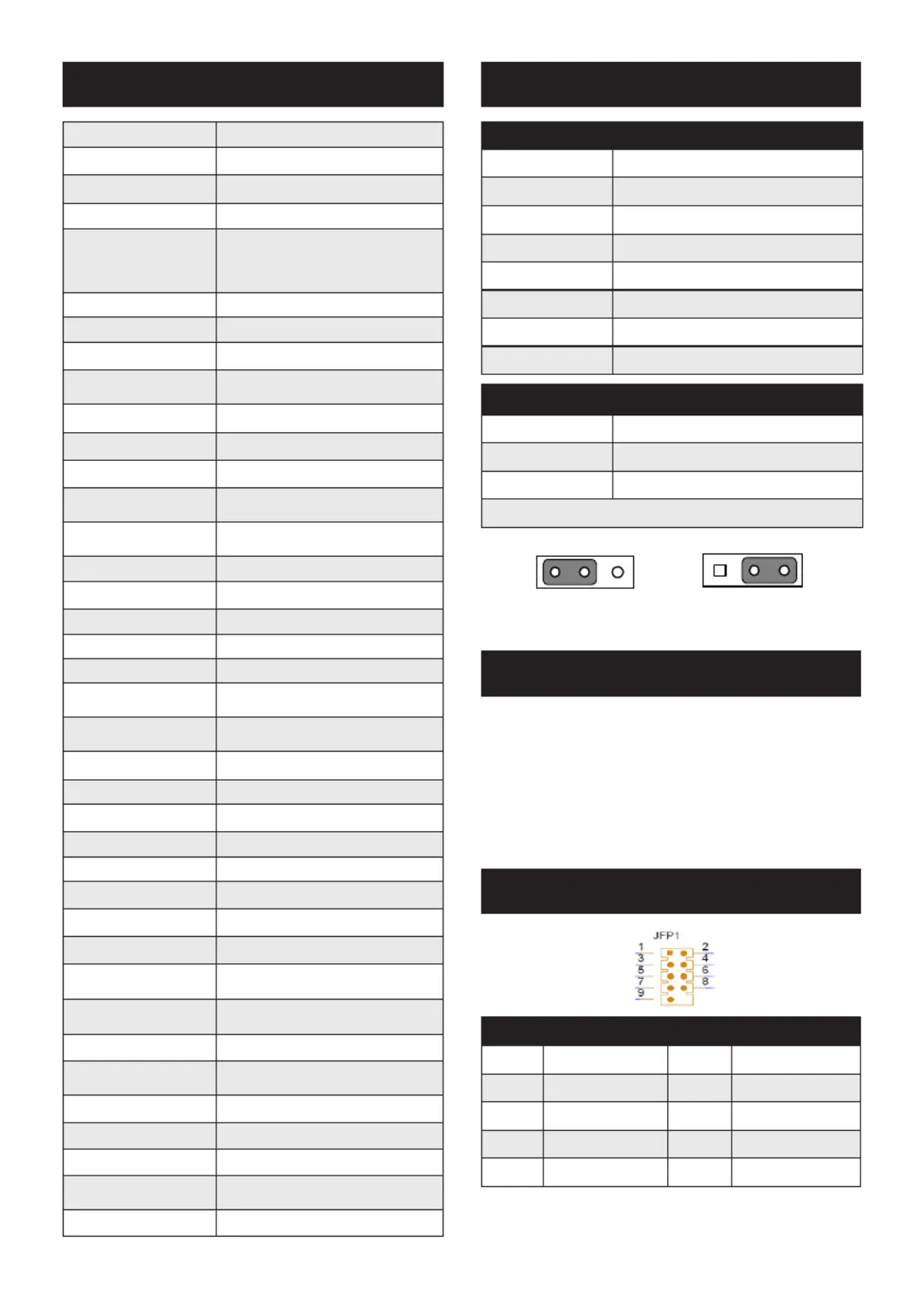

The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each of the jumpers and connectors.
Connectors
Label Function
ATXPWR1 ATX 24-pin main power connector
ATX12V1, ATX12V2 Processor power connector
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for Free at:
http://www.register.advantech.com
This manual is for the ASMB-807 series Rev. A1.
Part No. 2042080700
Printed in China
1st Edition
Oct 2024
Specications(Cont.)

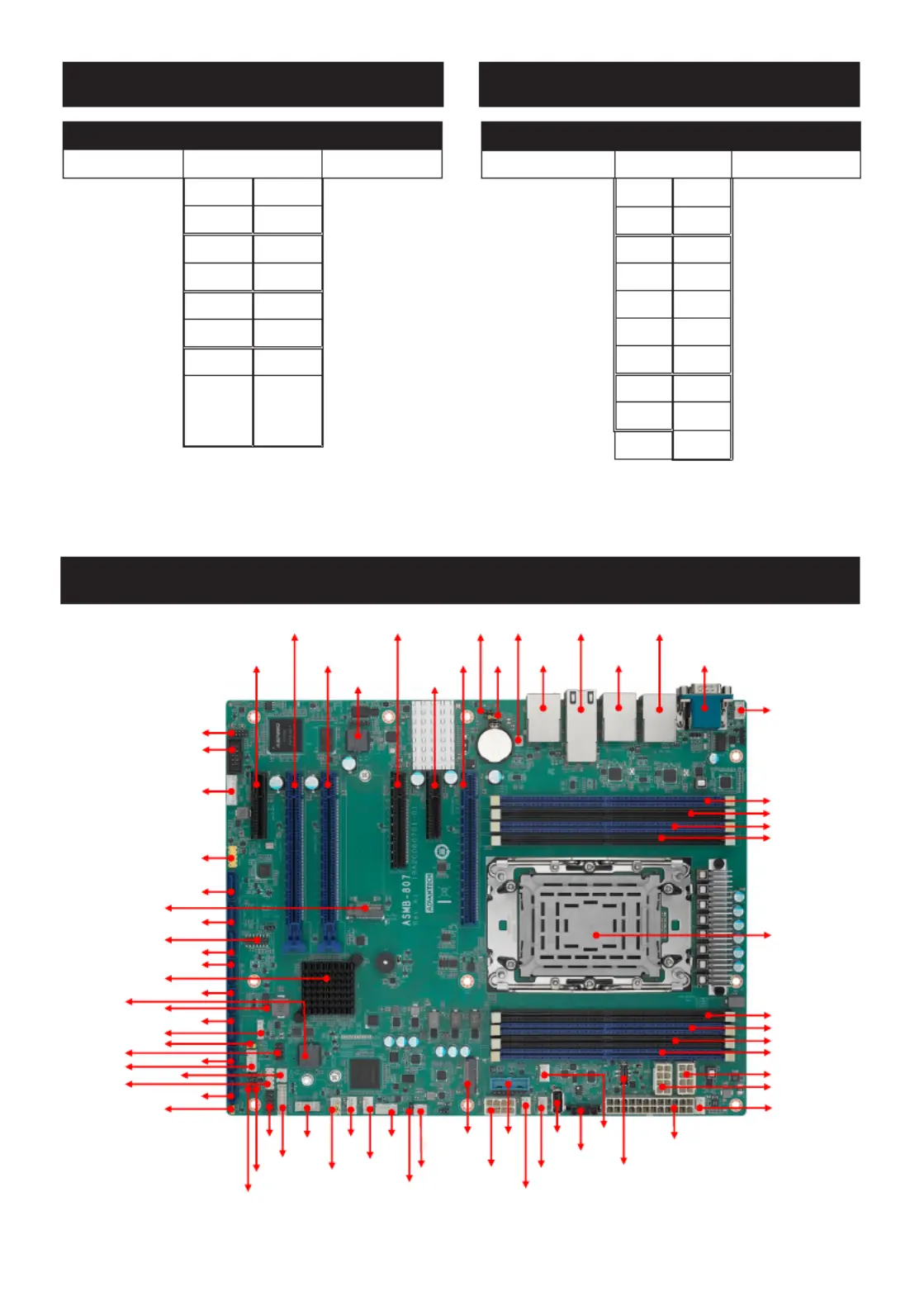

Jumpers and Connectors
Startup Manual
