EAI-3101 Startup Manual 1
Before you start installing your card, please make sure that
the following items have been shipped:
• 1 x EAI-3101 GPU card with active fan and full-height
PCIe bracket installed
• 1 x Startup Manual
• 1 x China RoHS
Note: Regarding OpenVINO, you can go to:
https://www.intel.com/content/www/us/en/devel-
oper/tools/openvino-toolkit/overview.html
to download the latest version.
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
EAI-3101
PCIe x16 Intel® Arc™ A380E Embedded GPU Card
Startup Manual
Product EAI-3101-41A1
Form Factor PCI Express x16
GPU Intel® Arc™ A380E
Memory GDDR6 6GB
Dimensions
(W x H x D)
152 x 110 x 34.8 mm, Dual Slots
Signal Interface PCI Express Gen 4.0 x8
Temperature
0~60 °C (Depending on the GPU
and cooler solution)
Max. Power
Consumption
Up to 85 watts
Thermal Solution Single Active Fan
Power Connector 8-pin power input (required)
Power Range DC 12V input
Dislay
I/O Ports
DP
4 x DisplayPort 1.4a,
7680 x 4320 @ 60Hz, 8K
Graphics Engine
DirectX 12, OpenGL 4.6, OpenCL
3.0
HW Encode: H.264/H.265 (HEVC)/
AV1
HW Decode: H.264/H.265 (HEVC)/
AV1/VP9
• Above 4G Decoding enabled
• Resizable (Re-Size) BAR support enabled
• Compatibility Support Module (CSM) or Legacy Mode
must be disabled and UEFI boot mode must be Enabled.
Notes: The procedure to enable the resizable BAR
maybedierentforeachsystemmanufacturer.
Please check with your system manufacturer for
specicinstructionsasnecessary.
The Resizable BAR option may be described as
Re-Size BAR, Smart Access Memory, or Clever
Access Memory.
Visit the Intel website to get more information:
https://www.intel.com/content/www/us/en/sup-
port/articles/000091128/graphics.html
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for EAI-3101.
Part No. 2046310100
Printed in Taiwan
Edition 1
May 2024
Product Picture
Motherboard Requirements
2 EAI-3101 Startup Manual

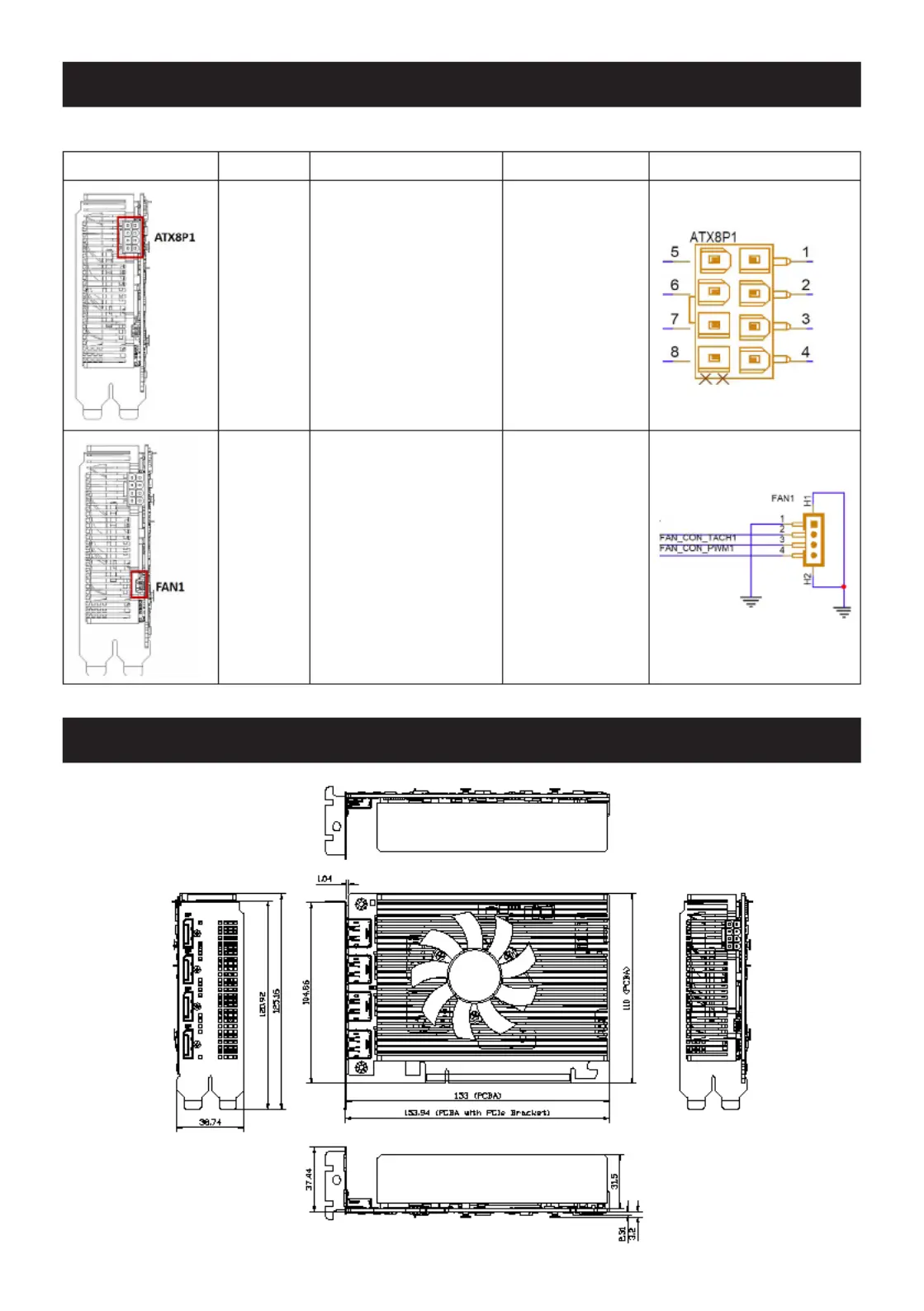

Connectors
Below are the connectors for EAI-3101:
Connector Location Connector Description Pin Denitions Symbol
ATX8P1
PCIe Card Power from ATX
power supply
PIN1: +12V
DC
PIN2: +12V
DC
PIN3: +12V
DC
PIN4: GND
PIN5: GND
PIN6: GND
PIN7: GND
PIN8: GND
FAN1 4-Pin Fan Connector
PIN1: GND
PIN2: +12V
DC
PIN3: FAN TACH
PIN4: FAN PWM
Dimensions
