Sida 1/3

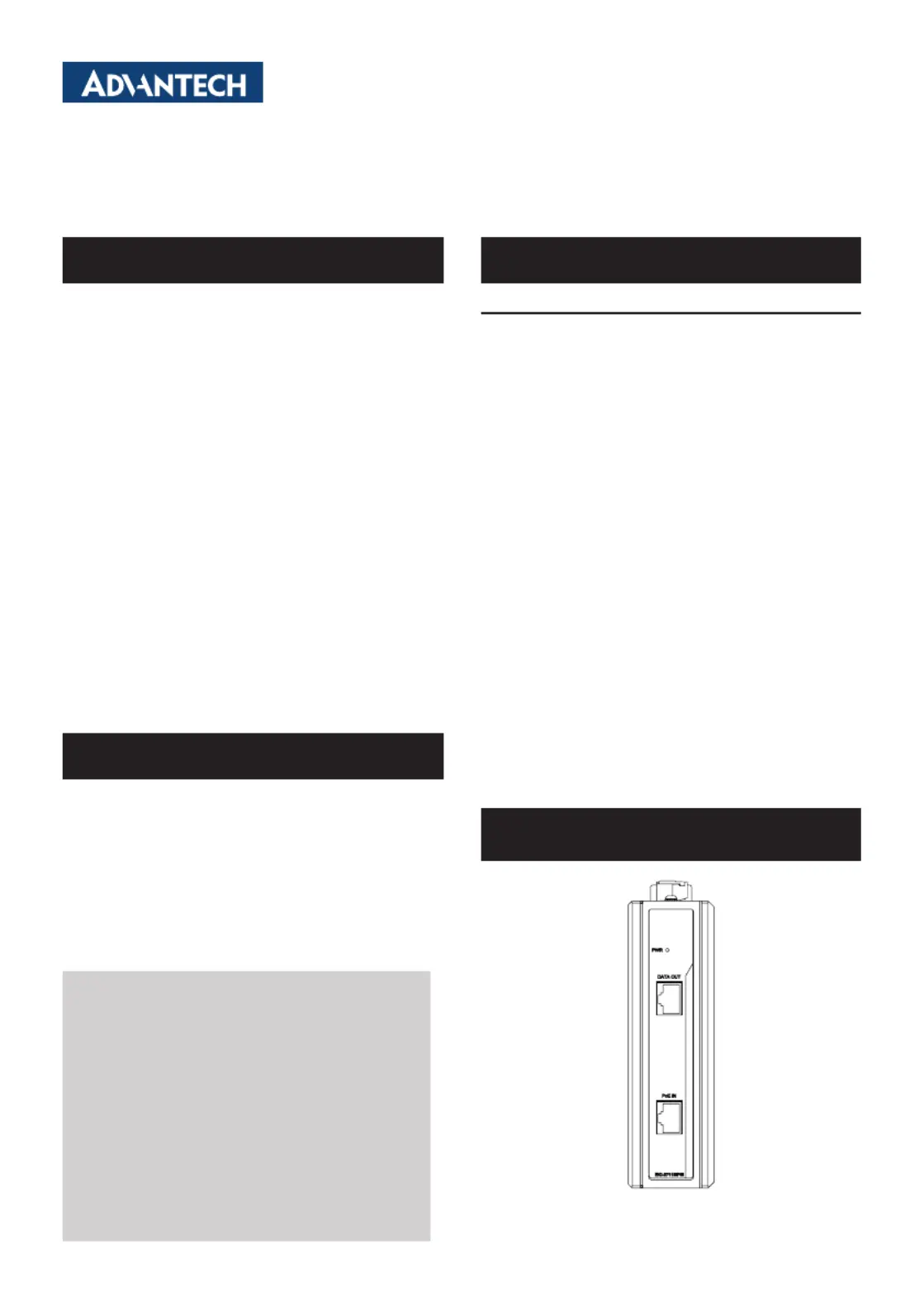

EKI-2711MPSI Startup Manual 1
EKI-2711MPSI
Industrial Multi-Speed 802.3af/at/bt PoE
Splitter
Startup Manual
Specications
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for EKI-2711MPSI.
Part No. 2049271100 1st Edition
May 2025
General
• Compatibility: IEEE 802.3, 802.3u, 802.3ab, 802.3bz,
802.3af/at/bt
• LAN: 2 x 10/100/1000/2.5GBASE-T
• Transmission Distance: Up to 100 m
• Connectors:
- 2 x RJ45 (PoE IN p1-x1 + DATA OUT x1)
- 3-pin removable screw terminal for power output
• Power Input: 41.1~57VDC
• Power Output: Max. Up to 70W, selectable 12VDC or
24VDC via DIP switch
• Power Consumption: Max. 80.6W @12VDC
• Dimensions (W x H x D): 42 x 140 x 95 mm (1.65” x
5.51” x 3.74”)
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: LVD EN62368
• EMC: CE, FCC Class A, BSMI
• Warranty: 5 year
Note: Switch the output voltage only when the unit is
powered o.
EKI-2711MPSI Overview
E KI-2525/I
The EKI-2711MPSI is an 802.3bt PoE splitter designed to
power non-PoE devices such as IP cameras, Wi-Fi access
points, and access control systems. By extracting power
from a PoE network, it eliminates the need for separate
power adapters, reducing cabling complexity and deploy-
ment costs.
Supporting both data and power transmission over a single
Ethernet cable, the EKI-2711MPSI can deliver up to 70W
from a PoE Power Source Equipment (PSE) and provides
selectable 12VDC or 24VDC output via a DIP switch. It sup-
ports distances up to 328 feet (100m) using CAT5 cables for
1G connections or CAT6 cables for 2.5G speeds*.
This PoE splitter is ideal for two common applications:
When used with a PoE switch, it provides direct power to
non-PoE devices, simplifying installation.
When combined with a PoE injector and a non-PoE switch,
it enables long-distance power transmission while maintain-
ing compatibility with existing network infrastructure.
*Note: The maximum transmission distance stated above is
based on tests using CAT6 cables with a DCR of 6.66Ω per
100 meters and a 95W PSE. Actual performance may vary
depending on cable quality and environmental conditions.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2711MPSI PoE Splitter
• 1 x DlN-rail mounting brackets with screws (M3 x 5L)
• 2 x Wall-mounting brackets with screws (M3 x 5L)
• 1 x EKI-2711MPSI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
2 EKI-2711MPSI Startup Manual

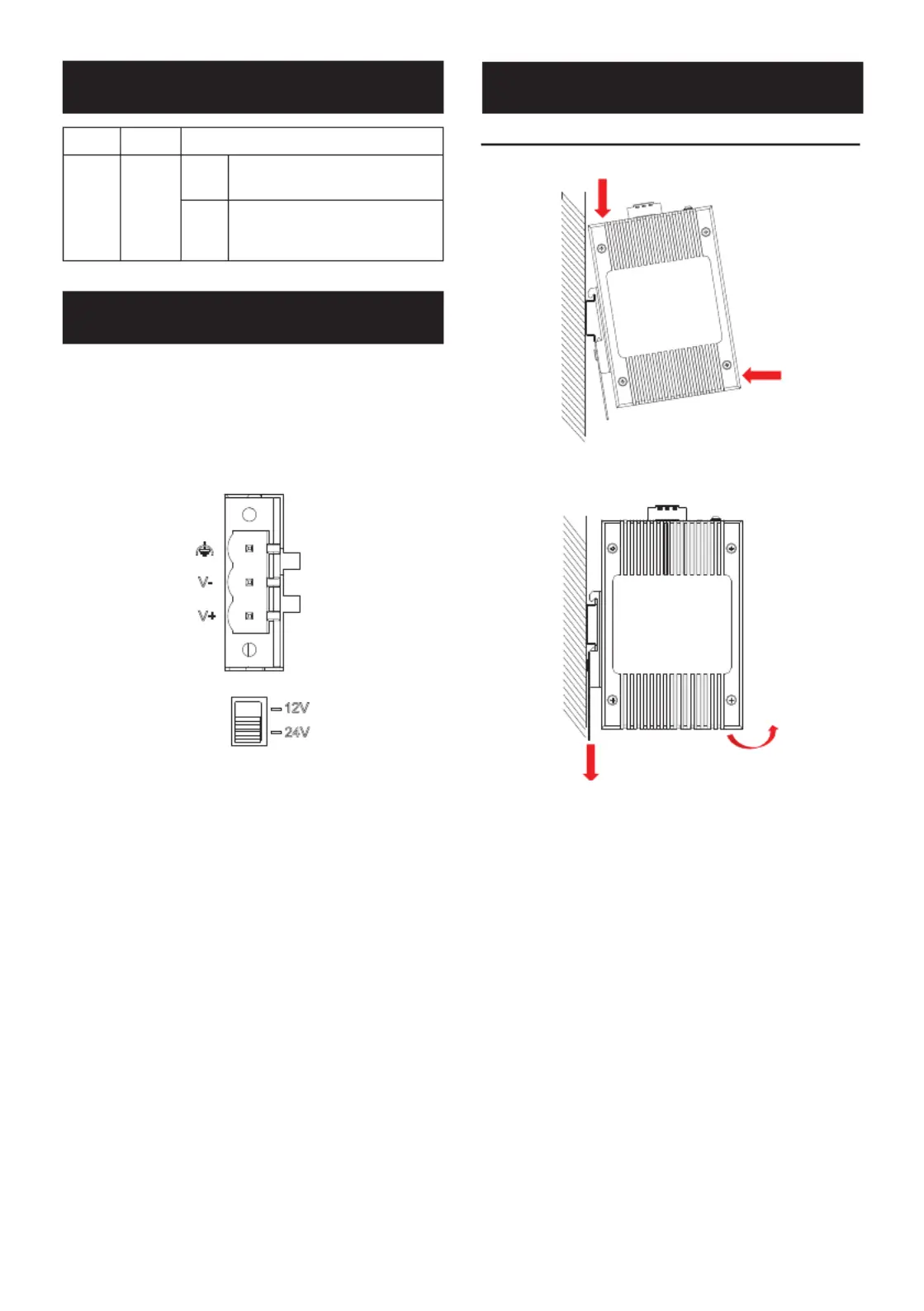

LED Color Description
Power Green
On
Power is being supplied to
power input.
O
Power is not being supplied to
power input.
Power Connection
The EKI-2711MPSI PoE Splitter supports 12 or 24 VDC
power output.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a power outlet.
The power outlet socket should have grounded connection.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by qualied skilled
person.
DIN-Rail Mounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
DIN rail mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm.
LED Denition
Mounting
EKI-2711MPSI Startup Manual 3

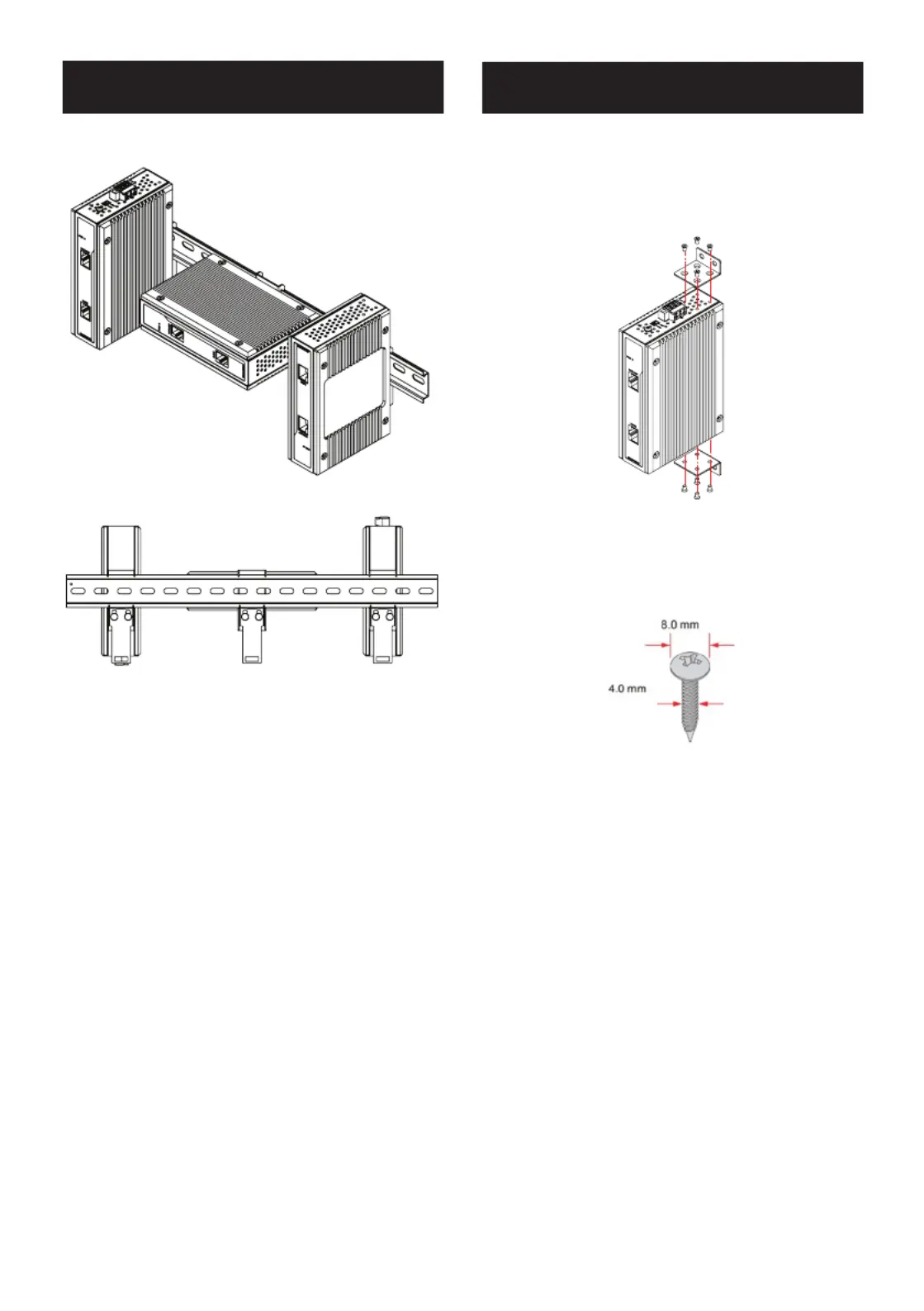

Mounting (Cont.)
Wall Mounting
3. 1. Secure the wall brackets to the device with M3 screws, Supports exible installation angles with the Din-rail kit.
see the following gure.
Wall-mounting screws (8 pcs, M3 x 5L): Diameter 2.9 mm,
Length 5 mm.
2. To mount the wall plate to the wall, please use screws
of the size indicated in the illustration below (users must
provide their own screws).
Wall Mounting Screw Dimensions
