ITA-5831 Startup Manual 1
The ITA-5831 series of compact fanless systems are
powered by a 6th generation Intel® Core i processor and
fully compliant with the EN 50155 standards for railway and
industrial applications. These powerful computing platforms
can withstand 24/7 operation under harsh conditions.
Before card installation, ensure that the following items
have been shipped:
2. 1 x ITA-5831 accessory box
3. 1 x ITA-5831 warranty card
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: FordetailedITA-5831specications,refertothe
Advantech website http://www.advantech.com.
Note 2: Acrobat Reader is required to view any PDF
le.AcrobatReadercanbedownloadedfrom
http://get.adobe.com/reader/ (Acrobat is a trade-
mark of Adobe)
ITA-5831 Series of Compact Fanless Systems with
6th Generation Intel® Core i Processor and
EN 50155 Certication for Railway Applications
Startup Manual
Standard Functions
• Chip and Chipset: Intel® Core i BGA1023 processor
with QM170, CPU frequency 2.8 GHz max.
• BIOS: AMISPI128MBash
• Memory: Onboard 8 GB/16 GB DDR4, 2133 MHz
• Display: Intel Integrated Graphics GT2
Up to 512 MB shared memory, supports Direct x11
• Display Mode:
- DVI: 1920x1200 @ 60 Hz
- VGA: 1920x1200 @ 60 Hz (optional)
• Storage: Supports 3 x 2.5 SSD (hot-pluggable, RAID
0,1,5,10), 1 x internal mSATA slot
• Expansion: 3 x Mini PCIe slots (2 with SIM slot)
SystemSpecications
• Ethernet: 3 x 10/100/1000M Ethernet, M12 x-coded,
8-pin, Female
• USB:
1 x USB 2.0, M12 A-coded, 4-pin, Female
2 x USB 3.0, Type A
• Display: 1 x DVI-I connector
• Serial Port:2xDB9withRS-232/422/485automaticow
control
• Digital I/O: 4 x DI and 4 x DO with 2kV isolation, DB9/
Female
• Audio: 1xAudioOut(supports2-ch4W4Ωspeaker),
1 x Line In, DB9/Female
Mechanical and Environmental
• Dimensions (W x H x D):
- 220 x 88 x 197.2 mm (8.66 x 3.46 x 7.76 in)
- 256 x 93.5 x 197.2 mm (10.0 x 3.68 x 7.76 in) with mount kit
• Input Voltage: Compliant with EN 50155/EN 50121-3-2
24V
DC
, 4.16A
48V
DC
, 3.18A
72V
DC
, 2.12A
110V
DC
, 1A
• Operating Temperature: -40 ~ 70 °C (-40 ~ 158 °F) with
wide-temperature SSD, EN50155 Tx level
• Safe Operating Temperature: 50 °C (122 °F) max.
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Weight: 4.5 kg (9.92 lb)
Specications Packing List
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for the ITA-5831 series.
Part No. 2041583111
Printed in China
Edition 2
June 2021
2 ITA-5831 Startup Manual

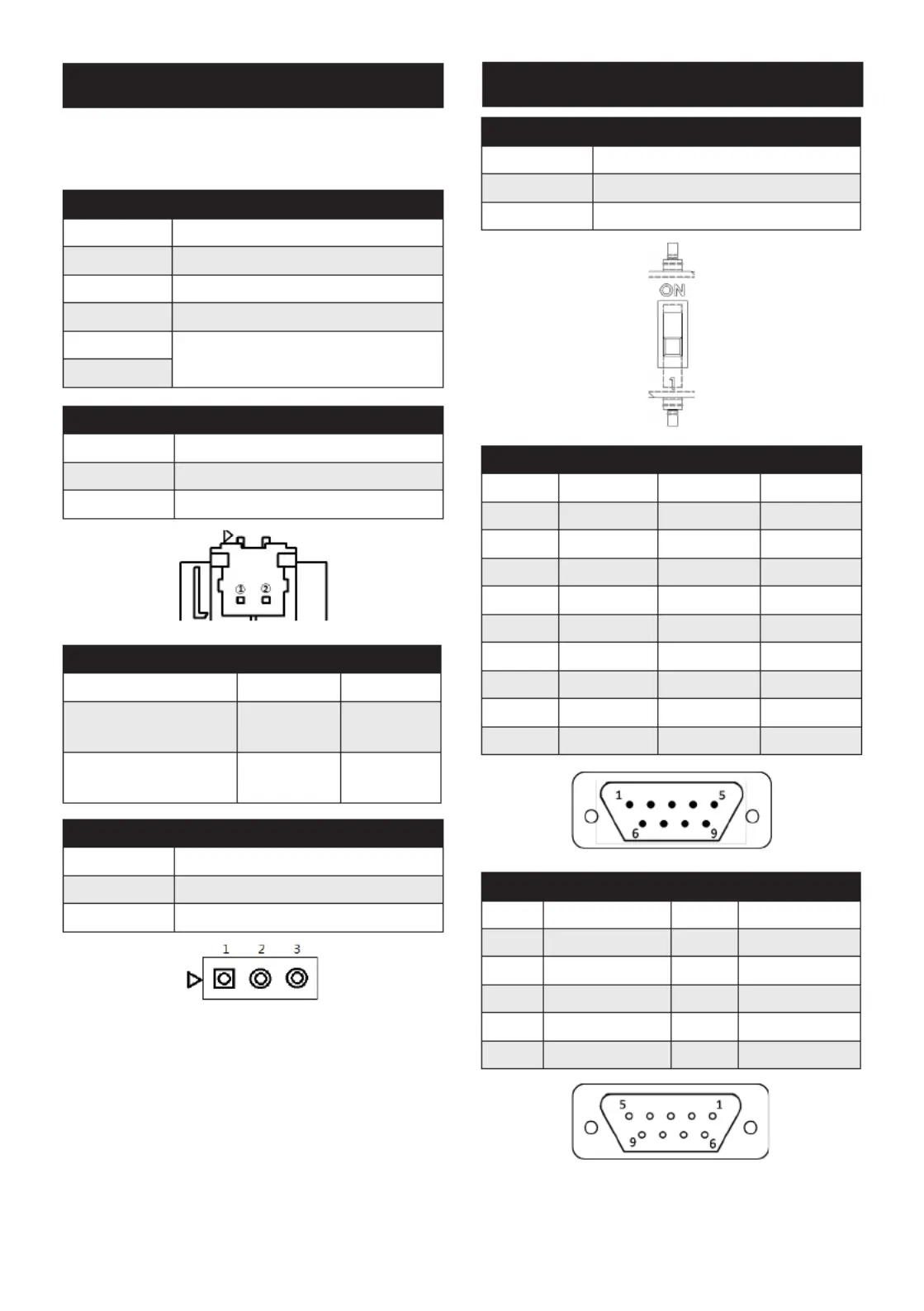

PMODE1: ATX, AT Mode Switch
Pin Setting
ON AT
OFF ATX (default)
COM: RS232/422/485, DB9/Male
Pin RS232 RS422 RS485
1 DCD TXD(-) DATA(-)
2 RXD TXD(+) DATA(+)
3 TXD RXD(+) /
4 DTR RXD(-) /
5 GND GND GND
6 DSR / /
7 / /RTS
8 CTS / /
9 RI
Audio: Mic In and Audio Out, DB9/Female
Pin Signal Name Pin Signal Name
1 MICR 6 LOUTR
2 GND_AUD 7 GND_AUD
3 GND_AUD 8 Front_JD
4 MIC_JD 9 LOUTL
5 MICL
The
ITA-5831
board features several jumpers that allow the
systemtobeconguredaccordingtospecicapplication
requirements. The function of each jumper and connector is
listed in the tables below.
Interfaces (ITB-231R_CPU Board)
Name Function
BAT1 RTC battery pin header
JCMOS1 Clear CMOS setting
PMODE1 ATX, AT Mode switch
AMPR1
Audioampliersetting
AMPL1
BAT1: RTC Battery Pin Header
Pin Setting
1 Power (3.3V)
2 GND
AMPR1/AMPL1:AudioAmplierSetting
Conn AMPL1 AMPR1
Withamplier(default)
(1-2)
(4-5)
(1-2)
(4-5)
Withoutamplier
(2-3)
(5-6)
(2-3)
(5-6)
JCMOS1: Clear CMOS Setting
Pin Setting
1-2 Default
2-3 Clear CMOS
Jumpers and Connectors
Jumpers and Connectors (Cont.)
ITA-5831 Startup Manual 3

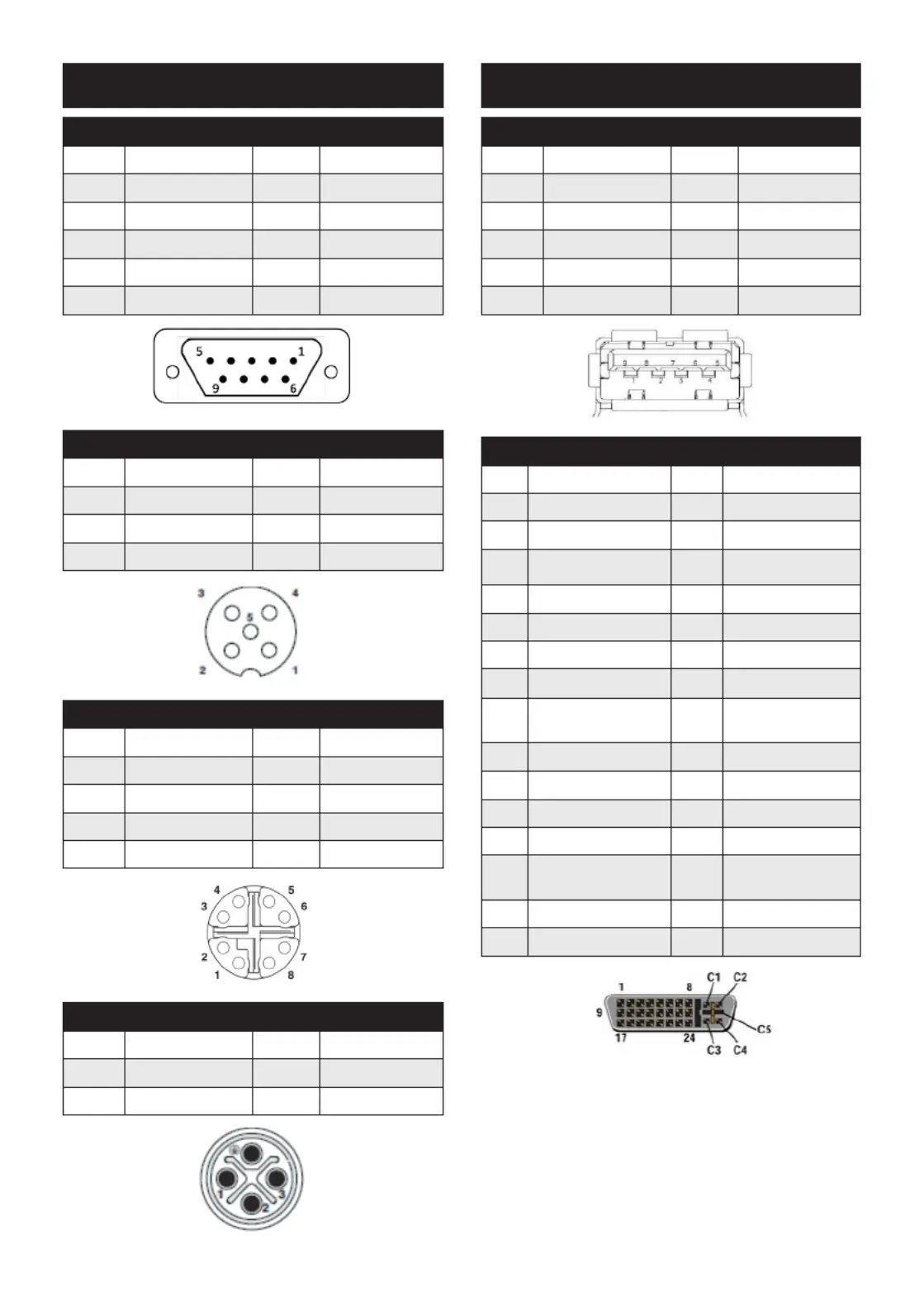

GPIO: DB9/Male
Pin Signal Name Pin Signal Name
1 GIP1 6 GPO1
2 GIP2 7 GPO2
3 GIP3 8 GPO3
4 GIP4 9 GPO4
5 GND
USB: USB 2.0, M12-A/Female
Pin Signal Name Pin Signal Name
1 +5V 4 NC
2 D- 5 GND
3 D+
Ethernet: 10/100/1000Mbps,M12-X/Female
Pin Signal Name Pin Signal Name
1 MDI0+ 5 MDI3+
2 MDI0- 6 MDI3-
3 MDI1+ 7 MDI2-
4 MDI1- 8 MDI2+
Power Input: DC-In, M12-S/Male
Pin Signal Name Pin Signal Name
1 Power 3 GND
2 Power 4 DC
USB 3.0 Connector
Pin Signal Name Pin Signal Name
1 +V5(VCC) 6 StdA_SSRX+
2 D- 7 GND_DRAIN
3 D+ 8 StdA_SSTX-
4 GND 9 StdA_SSTX+
5 StdA_SSRX-
DVI-I
Pin Signal Name Pin Signal Name
1 T.M.D.S. Data2- 16 Hot Plug Detect
2 T.M.D.S. Data2+ 17 T.M.D.S. Data0-
3 Ground 18 T.M.D.S. Data0+
4 VGA DCC Clock 19 Ground
5 VGA DCC Data 20 Ground
6 DDC Clock 21 Ground
7 DDC Data 22 DVI Detect
8
Analog Vertical
Sync
23 T.M.D.S. Clock+
9 T.M.D.S. Data1- 24 T.M.D.S. Clock-
10 T.M.D.S. Data1+ C1 Analog Red
11 Ground C2 Analog Green
12 Ground C3 Analog Blue
13 Ground C4
Analog Horizontal
Sync
14 +5V Power C5 Ground
15 Ground
Jumpers and Connectors (Cont.)
Jumpers and Connectors (Cont.)
