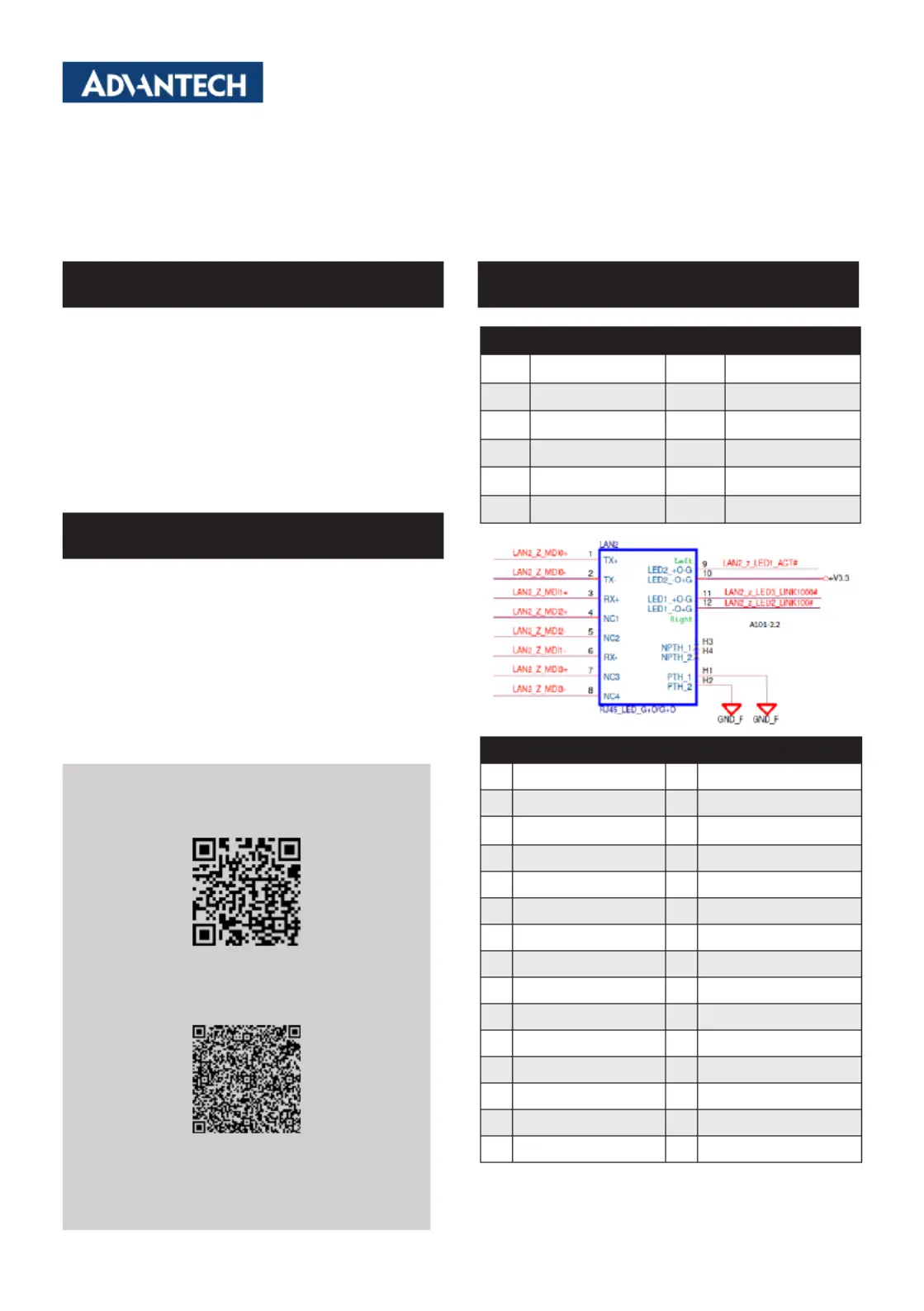

PCM-34R2GL Startup Manual 1

Before installation, please make sure that you have:

1. 1 x M.2 B+M key card with controller

2. 1 x 2-Port RJ45 I/O plate with iDoor bracket

3. 1 x Wired cable

4. 1 x Startup manual

5. 1 x Warranty card

If anything is missing or damaged, contact your distributor

or sales representative immediately.

The support documentation and drivers can be accessed

from Advantech website.

•Documentation

- Datasheet

- StartUp

•Drivers

PCM-34R2GL

Intel

®

I350, RJ45*2, M.2 B+M Key (2242, PCIe*1)

Startup Manual

PIN Assignment of RJ45 Connector

PIN1MDI0+PIN7MDI3+

PIN2MDI0-PIN8MDI3-

PIN3MDI1+PIN9LINK1000#

PIN4MDI2+PIN10LINK100#

PIN5MDI2-PIN11+V3.3_LAN

PIN6MDI1-PIN12ACT#

CN1 - IO Board to M.2 B+M Key Cabling

13.3V16LAN2_LED3_LINK1000#

2X17LAN1_LED1_ACT#

3LAN2_MDI0+18LAN1_LED2_LINK100#

4LAN2_MDI0-19LAN1_LED3_LINK1000#

5GND20LAN1_MDI0+

6LAN2_MDI1+21LAN1_MDI0-

7LAN2_MDI1-22GND

8GND23LAN1_MDI1+

9LAN2_MDI2+24LAN1_MDI1-

10LAN2_MDI2-25GND

11GND26LAN1_MDI2+

12LAN2_MDI3+27LAN1_MDI2-

13LAN2_MDI3-28GND

14LAN2_LED1_ACT#29LAN1_MDI3+

15LAN2_LED2_LINK100#30LAN1_MDI3-

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/

This manual is for the PCM-34R2GL.

Part No. 204334R200

Printed in China

1st Edition

May 2024

Documentation/Software Support

PIN Assignment
