Sida 1/3
SKY-MXM-2000A Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. SKY-MXM-2000A GPU card x 1
2. China RoHS Doc x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: AcrobatReaderisrequiredtoviewanyPDFle.
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2. html
(Acrobat is a trademark of Adobe).
The SKY-MXM-2000A supports 3 x DP 1.4, with display
options port as shown below.
MXM Port DP_A DP_B DP_C
Advantech Link A Link B Link C
Link Display
Link A DisplayPort (DP++)*
Link B DisplayPort (DP++)*
Link C DisplayPort (DP++)*, HDMI (optional)
Link D Not supported
Link E N/A
* Dual-mode DP (DP++) support requires one of the follow
external DP-AUX device when driving an external connector
directly.
- DIODES PI3AUX221ZTAEX
- ANPEC APL3585
SKY-MXM-2000A
MXM 3.1 Type A NVIDIA ® Quadro® Embedded
2000 Ada with DP 1.4a
Startup Manual
Processor System
• GPU: Quadro
®
2000 Ada
• Graphic architecture: NVIDIA
®
Ada-Lovelace AD107-
975-A1
• CUDA parallel-processing cores: 3072 CUDA
®
cores
• RT cores: 24
• Tensor cores: 96
• GPU base/boost clock: 1635 MHZ/2115 MHZ
• FP32 performance: 12.99TFLOPS
• Bus: MXM3.1, PCI Express Gen4 x 8 support
• Max power consumption: 60 W
Memory
• Technology: GDDR6 8GB memory
• Interface width: 128-bit
• Bandwidth: 256 GB/s
Physical
• Dimensions: 82(W) x 70(D) mm
• Form factor: MXM 3.1 Type A
Environment
• Operating: 0 ~ 55° C
(Depend on CPU and cooler solution)
• Non-operating: -40° C ~ 85° C
Operating Systems
• Microsoft: Windows 10/11, 64-bit
• Linux: Linux Drivers, 64 bit
• Software support:
- CUDA toolkit 11.8 and higher
- CUDA compute version 8.9
- Direct3D 12 Ultimate supporting feature level 12.2
- Shader Model 8.9
- OpenCL™ 3.0
- OpenGL 4.6
- Vulkan 1.3
• Display port: 3 x 1.4a
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the SKY-MXM-2000A series Rev.
A1.
Part No. 2041M20000
Printed in China
1st Edition
March 2024
Packing List Standard Functions
Graphics Options

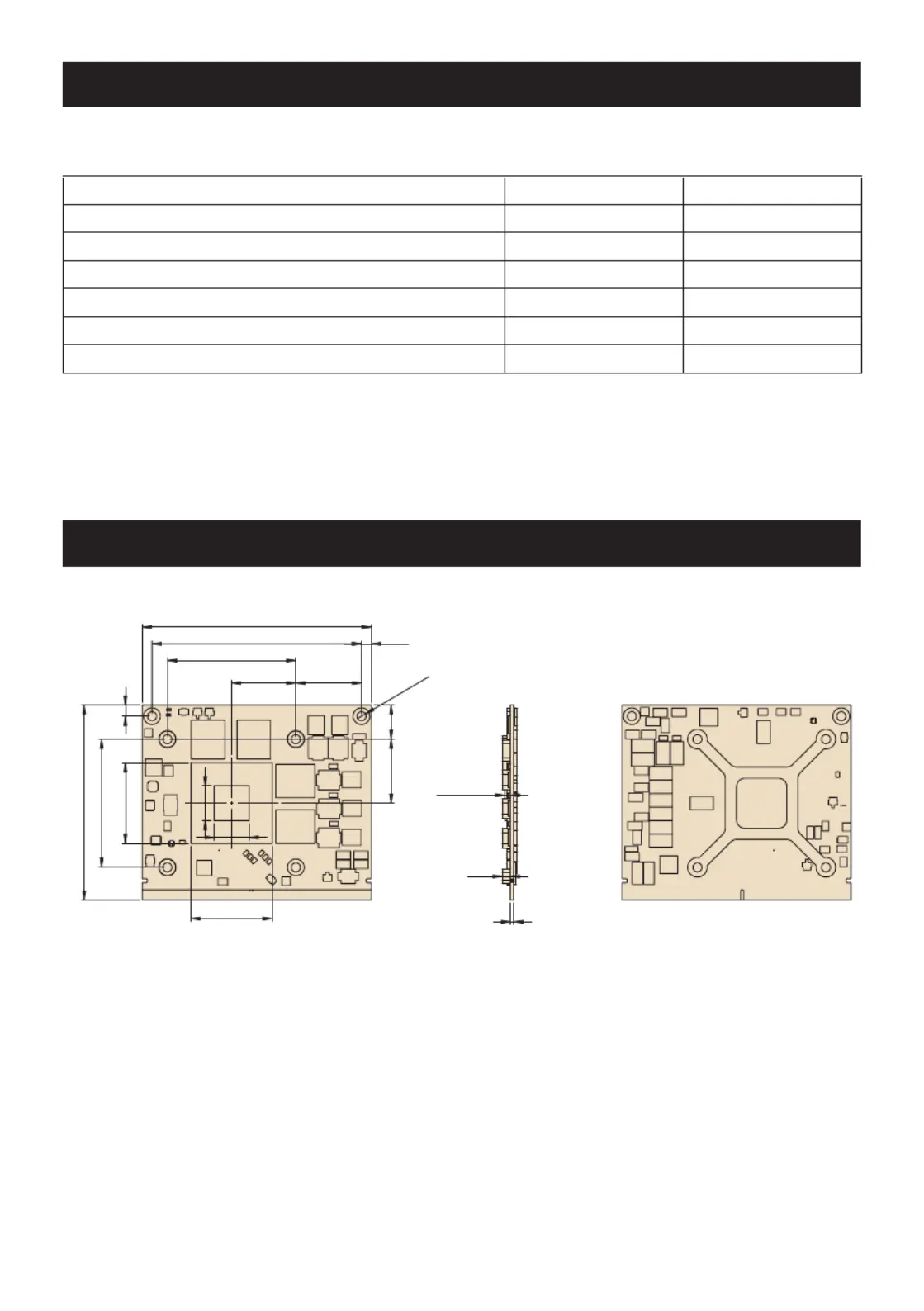

2 SKY-MXM-2000A Startup Manual
GPU Core Clock throttles at temperatures(Tj) higher than those listed in below table, which lists the throttling temperature
and behavior. Thermal throttling is necessary to ensure that the hottest temperature on the die does not exceed the sense
temperature for prolonged periods of time.
Parameter SKY-MXM-2000A Units
Thermal Resistance (Junction to Case, RJC) 0.048 °C/W
Thermal Resistance (Junction to PCB Board, RJB) 1.450 °C/W
GPU Shutdown Temperature(OVERT)* 101 °C
GPU Slowdown Temperature (THERM_ALERT)** 91 °C
GPU Maximum Operating Temperature*** 89 °C
GPU Target Temperature 87 °C
Notes:
* OVERT assertion results in an 87.5% (÷8) hardware clock slowdown.
** THERM_ALERT assertion results in a 50%(÷2) hardware clock slowdown.
*** The GPU maximum operating temperature is the maximum GPU temperature at which the GPU is guaranteed to operate
at the target performance (Base Clock) under the total board power level.
Unit: mm
82.00
75.00
4.00
3.50
Ø3.25
70.00
12.52
12.58
29.00
29.00
46.00
46.00
12.25
23.00
23.00
23.50
3.00
1.20
2.05 ±0.15
Dimensions
GPU Thermal Policy
SKY-MXM-2000A Startup Manual 3
Block Diagram
Item UnitsTc
1 85 °C
2 125 °C
3 125 °C
4 Refer to GPU Thermal Policy -
NVIDIA
Quadro RTX 2000 Ada
EN21-X4
GDDR6 x16/2ch
memory down
GDDR6 memory, 128-bit
Channel A/B
16Mb
+VPWR_SRC (7~20V)
+5V
+3.3V
PCI Express X8
DP_A: Display Port
DP_B: Display Port
DP_C: Display Port
DP_D: Display Port
PCIe p3-x8 Gen4
DP 1.4a
SPI
DP 1.4a
DP 1.4a
DP 1.4a
Power Management (PWR_EN, PWR_GOOD)
(reserved)
(reserved)
GDDR6
GDDR6 x16/2ch
memory down
GDDR6 x16/2ch
memory down
Channel A/B
GDDR6
GDDR6 x16/2ch
memory down
SPI - VBIOS
VBIOS GDDR6
PWM
NVIDIA
Quadro RTX 2000 Ada
MXM V3.1 G/F
MXM V3.1 Gold Finger
P_+3.3V
P_+12V
PCIe X8 gen4
IFPA
IFPB
IFPC
IFPD
DP_A
DP_B
DP_C
DP_D
PCIe
IFPA
IFPB
IFPC
IFPD
FBB
FBA
I2CS
PM
SPI
P_+5V
1 1
1
1
2
2
2
2
2
3
3
3
3
3
4
SKY-MXM-2000A Thermal Info
