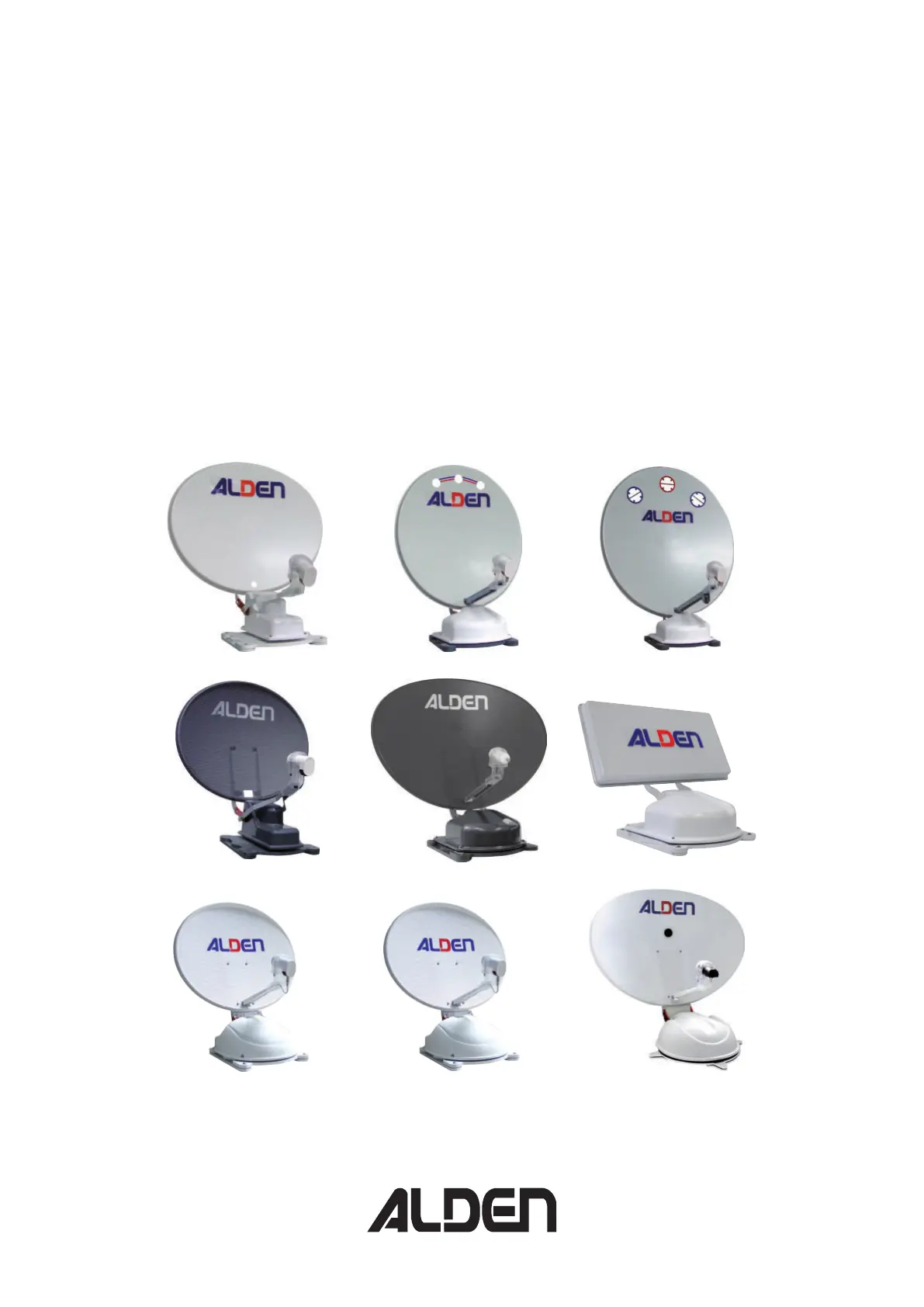

Antennes satellites automatiques ALDEN
ALDEN automatische Sat-Anlagen
ALDEN automatic satellite systems
Guide d’installation
Aufbau-Anleitung
Installation guide
131017ALD-10764
Z.A. du Hairy F-67230 HUTTENHEIM www.alden.fr
Onelight 65 Orbiter 65 Orbiter 85
Onelight 60 Platinium
Orbiter 80 Platinium
AS3® AS4®
Planar®
AS2®
ALD-1076432
The reproduction of whole or part of this guide is strictly forbidden without Aldens agreement.
Alden draws your attention to the risks that may occur if the mounting is not correct.
Alden declines all responsability if the product is not mounted in the correct way and especially if it is installed by
a non professional person.
The retailer is ment to know installation rules and to apply them. He will especially respect the installation location,
the cable connection, the gluing and screwing of the Alden satellite system.
By selling and installing an Alden product, the retailer is obliged to inform his customer on how the product works
and perhaps how to install the product in some cases. He will also give his customer the user’s guide.
The retailer must inform the customer about security matters.
The retailer must inform the customer that the product can only be used for the intended matter.
The retailer must also inform the end user about the current laws applicable in the country where the product is
going to be used.
Each product with electronic components has to be protected from undervoltage (under 10.5 volts) and overvoltage
(over 15 volts).
It is strictly forbidden to open, interfer, repair and/or modify the product without Aldens agreement. The warranty
will become void if you undertake such an action.
If any changes occur concerning the emission frequencies or the power of emission from the satellites, neither the
salesperson nor the manufacturer can be held for responsible
Neither the salesperson nor the manufacturer can be held for responsible if a satellite or a programme come to
disappear, if a free-to-air channel becomes scrambled or for any other modification that may affect the emission.
Unpredictable events can not lead to any exchange, refund or compensation from the salesperson nor the
manufacturer.The reception areas of the satellites are given as a guidance.
Alden declines all responsibility in the event of incidents or accidents if they are due to a non observation of the
installation instructions or the way the product is used.
It is strictly forbidden to open a product. The warranty will be come void if you do so.
Do not use the + after ignition, which means starting the vehicle, to close the system down. Before starting the
vehicle, make sure the satellite system is folded down in the folding down position.
Remove the fuse from the electric circuit board of the satellite system and receiver/AIO before interfering on the
general circuit board, or changing or connecting the battery. If the vehicle is equipped with a solar panel, also
remove the fuse.
If the wind gets up or by gale force, we recommend to fold the satellite system down. Refer to page 44 of this
manual. You must therefore fold the satellite system down when the wind is above 50 km per hour.
Never unfold the satellite system when it has snowed or by freezing rainfalls. Always make sure nothing will block
the opening of the satellite system (nor ice, nor snow...). Remove if this is the case.
Always switch the receiver/AIO off before unplugging the power supply.
You must ALWAYS fold the satellite system down before starting the engine of the vehicle. Go through the folding
down procedure. Before starting the engine, make sure the satellite system is completely down. .
We advise to withdraw the fuse supplying the receiver in case of long periods without driving or to disconnect the
power supply.
If you leave the vehicle, never leave the satellite system open.
Warning
ALD-10764 33
For a good quality picture, do not use the existing coax. cable circuits. Generally, it is recommanded to avoid all
connections.
You must provide a separate power supply equipped with a 5 Amp. fuse directly from the board battery to the
S.S.C
®
/receiver/A.I.O
®
.
You must provide a separate power supply equipped with a 3 Amp. fuse directly from the main electric board to
the S.S.C
®
/receiver/A.I.O
®
for the
Plus after ignition
connection (only with Alden automatic satellite systems).
You must protect the ends of the motor and coax. cables with paper tape during installation (especially when
threading the cables through furniture).
Only connect the LNB when the system is not connected to the power supply: the receiver/S.S.C
®
must be unplugged
before being connected to the LNB (low noise block converter). If not this could cause serious dammage to the LNB
circuit.
The warranty will become void if original or certified parts are not used. All repairs must be made by qualified
technicians.
When connecting the cables, make sure the satellite system and S.S.C
®
/receiver/A.I.O
®
are not connected to the
power supply. Wait a few seconds after having switched the systems off before moving them or disconnecting
them.
After having followed the instructions, if the system does not work, contact your dealer.
• If you accept to install the equipment, you also accept the above rules. •
WEEE Directive (European Union and EEA only).
This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive
(2002/96/EC) and your national law. This product should be handed over to a designated collection point, E.G., on an authorized
one-for-one basis when you buy a new similar product, or to an authorized collection site that recycles waste electrical and
electronic equipment (EEE). Improper handling of this type of waste can have a negative impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. By respecting this directive, you will
contribute to the effective usage of natural ressources. For more information about where you can dispose of your equipment for
recycling, please contact your local city office, or other authority, approved WEEE scheme or your household waste disposal service.
(EEA : Norway, Iceland and Liechtenstein)
