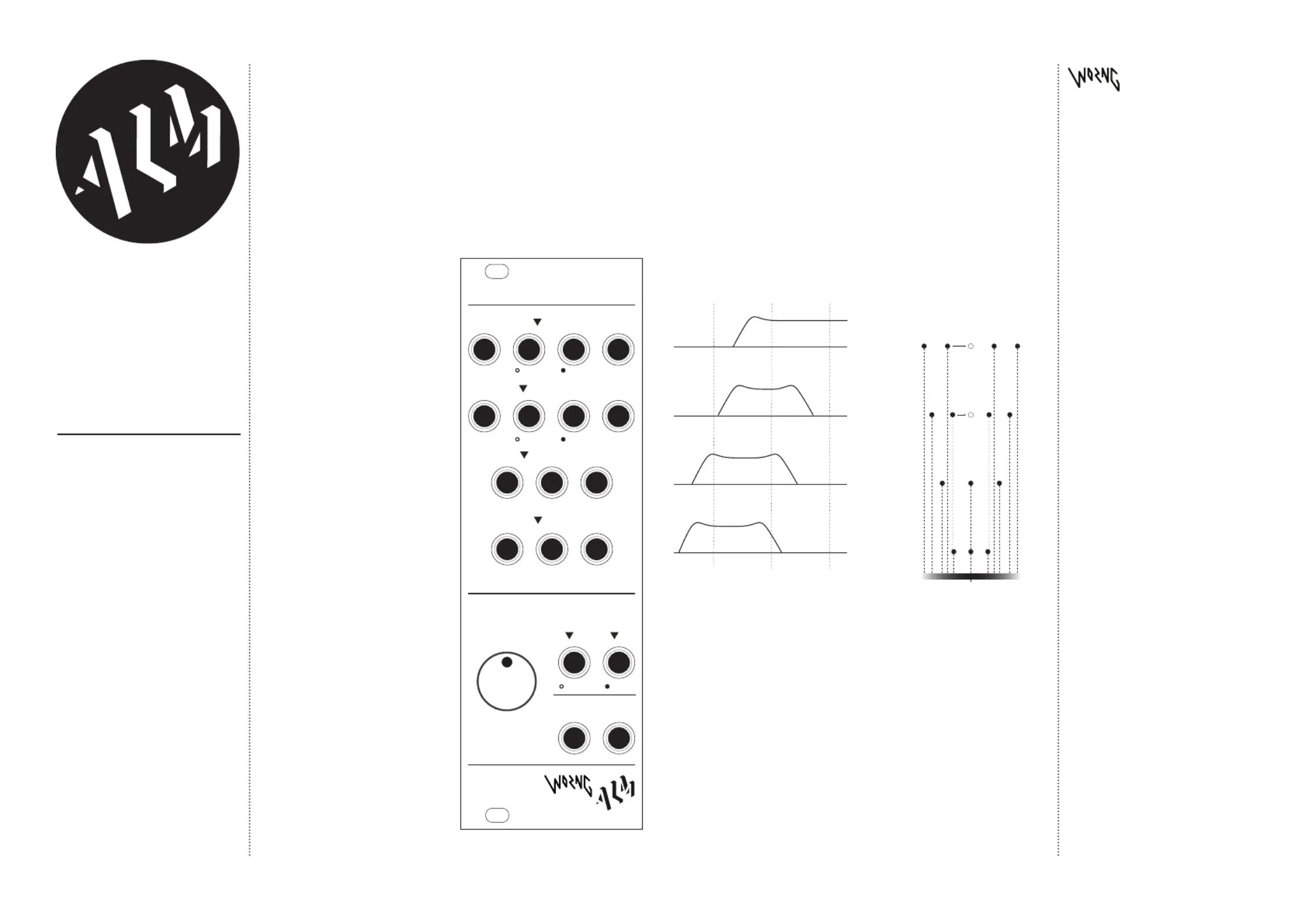

The Jumble Henge is a 16 input stereo spectral mixer with a unique patch-based mixing interface in a compact space. Each input has a
carefully tuned resonant analog filter and a unique fixed pan value, providing each sound its own space within the mix. There is a Mix control
to adjust the depth of the filtering and a clean external stereo input for chaining with another mixer or extra sound source. Jumble Henge is a
space efficient solution for creating rich stereo mixes from a number of both mono and stereo sources.
INPUTS
Vertical and horizontal patch
position determines a source’s
spectral and stereo placement
in the mix respectively.
Aside from centred inputs, every
input sits in its own unique
pan position, helping to keep
a separation between sounds
but building a complete stereo
image when combined.
The centre right inputs of the
top two rows are normalised to
the centre left inputs. - i.e if just
a left input is patched it will be
effectively panned center.
Towards the highs the panning
becomes wider – as the human
ear better pinpoints direction at
higher frequencies, whereas the
lows remain more centred for a
tighter, more focused sound.
MIX CONTROL
Mix control for the overall depth
of the filters applied to the
inputs. Note: a slight volume
increase occurs near the centre
of the dial.
EXTERNAL INPUT
An additional clean stereo input pair for chaining with another
mixer or additional source. Right input normalised to left input to
accomodate mono sources.
APPROX FREQUENCY RESPONSE PANNING
OUTPUTS
Stereo mix output, the sum of all 16 inputs.
Note that equal-power panning is used for consistency in perceived
level across all inputs.
http://busycircuits.com/alm029
TECHNICAL SPECIFICATIONS
Power: +12V 70ma / -12V 70ma
Size: 8HP
Depth: 38mm
ALM029 /
Jumble Henge
Limited Warranty
From the date of manufacture this
device is guaranteed for a period of 2
years against any manufacturing or
material defects. Any such defects
will be repaired or replaced at the
discretion of ALM. This does not
apply to;
•Physical damage arising for mis
treating (i,e dropping, submerging
etc).
•Damage caused by incorrect power
connections.
•Overexposure to heat or direct
sunlight.
•Damage caused by inappropriate or
misuse.
•Use of incorrect or non official
firmware
No responsibility is implied or
accepted for harm to person or
apparatus caused through operation
of this product. By using this product
you agree to these terms.
Support
Need help? Email your questions
to help@busycircuits.com
For additional info, downloads
and firmware updates please
visit the ALM website at
busycircuits.com
Follow @busycircuits on Twitter
and Instagram for news, tips and
ideas.
Visit ‘ALM TV’ on youtube.com
for module video tuorials and
demos.
Module Installation
With your modular synth
powered connect the 10 pin off
end of the supplied standard
eurorack power connector cable
to the 10 pin power connector on
the rear of the module.
The red stripe on the cable
should be orientated to match
the text ‘RED’ marked on the
rear of the module near the
power connector (this is -12V).
Connect the other 16 pin end of
the cable to your eurorack bus
board (Refer to your bus board
documentation for the correct
orientation).
You are now safe to power up
your modular synth. If the mod-
ule fails to power up check you
have the power cable correctly
orientated and have carefully
read this manual.
Jumble Henge was designed in
collaboration with Worng Electronics
and is based on the ‘SoundStage’.
For more information about Worng’s
products and the ‘SoundStage’ visit
http://worngelectronics.com
ALM029 manual version: 0.1
