MobileMount Vehicle Weather Station Mount Instruction Guide Page 1
Ambient Weather MOBILEMOUNT
Instruction Guide
SKU: MOBILEMOUNT (weather station not included).
The MobileMount vehicle weather station mounting system is
an easy to install, portable mounting solution ideal for storm
chasers, hazmat, first responders and racing enthusiasts.
Whether operating in severe weather or responding to hazmat
incidents, you can receive on-scene weather data immediately
and simultaneously with Ambient Weather's Vehicle-Mount
Weather Station.
Designed for storm chaser vehicles, mobile home vehicles,
incident command and mobile communications vehicles, the
14" x 18" base plate provides a thermal barrier (shields heat
transfer from the vehicle's rooftop) and includes four powerful
mounting magnets (requires a metal roof), to rapidly deploy or
detach the weather station mount. Tie downs provide
additional security.
This instruction manual will take you step-by-step through the
process of assembling and mounting Ambient Weather
MobileMount.
Do not operate the MobileMount with the Warning:
vehicle in motion.
Do not install the weather station while the vehicle is in
motion.
Four point tie down (tie downs included) prevent movement of
the MOBILEMOUNT.
Failure to do so may result in
damage,
injury or death.
Components
The MobileMount ( ) component list is shown in Figure 1
Table 1.
MobileMount Vehicle Weather Station Mount Instruction Guide Page 2
Quantity Description
1
MobileMount Assembly
4
Bungee Cable Ropes with hooks and
clasps
Table 1
Figure 1
Dimensions
18 x 14 x 16” (L x W x H)
Tools and Materials Needed
½” wrench
Safety Goggles
Assembly Steps
Connect the Weather Station
1. Connect the U-Bolt assembly (sold with the weather
station) to the weather station, as shown on Figure
2. Do not tighten.
2. Position the Lock Bolt ( Figure 1) in the 3 o’clock
position.
Figure 2
3. Connect the weather station to the MobileMount
mast as shown in . Position the U-Bolt Figure 3
below the Lock Bolt at a 45 degree angle and slide
over the top of the mast assembly.
MobileMount Vehicle Weather Station Mount Instruction Guide Page 3

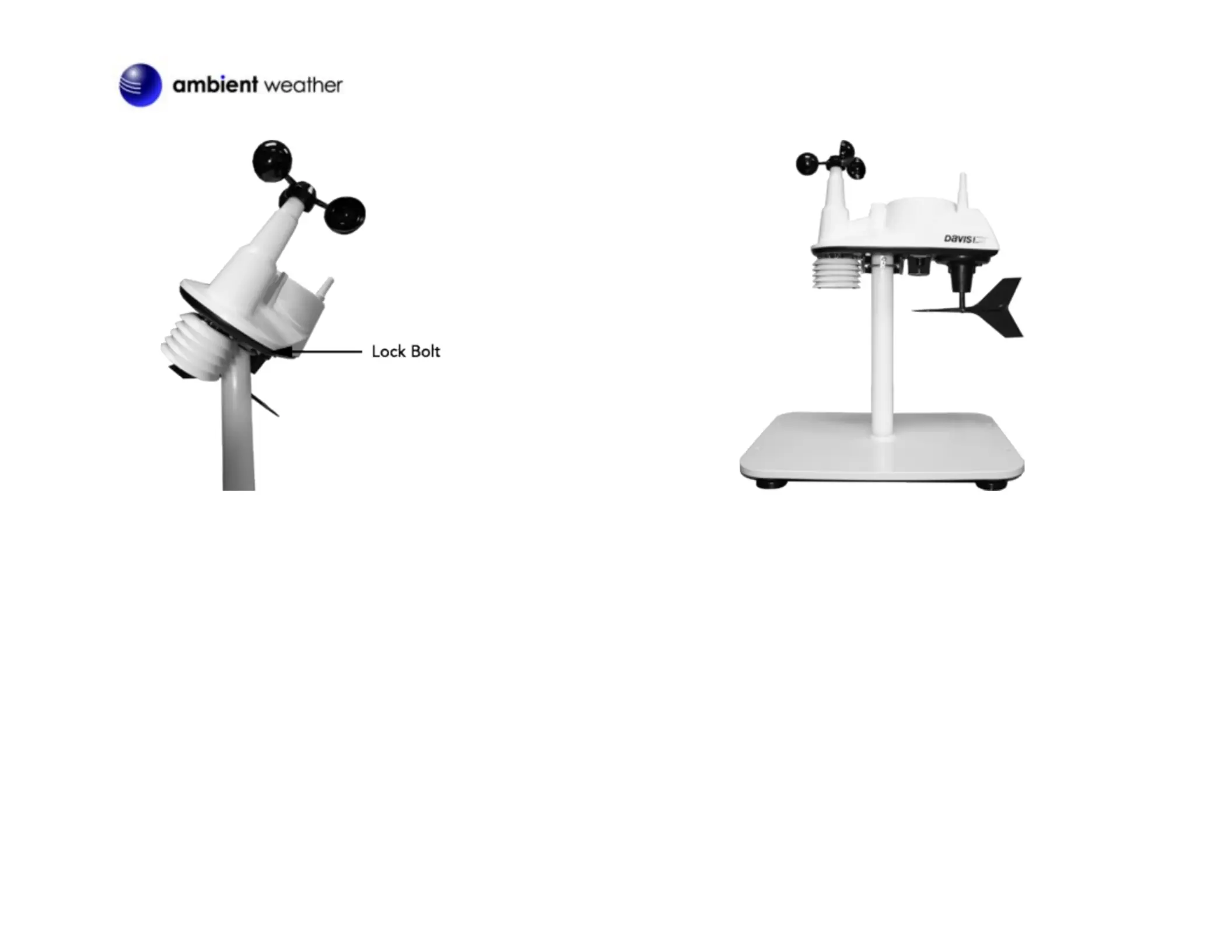

Figure 3
4. Make sure the weather station is level. Tighten the
U-Bolt assembly to the mast and position the lock
bolt in the 6 o’clock position, as shown in . Figure 4
There should be no movement in the weather station
assembly when twisted.
Figure 4
Attach the MobileMount
Attach the MobileMount and assembly to the metal roof of the
vehicle or structure, as shown in Figure 5. Adjust the position
on the roof by slowly lifting one corner of the assembly. Do
not attempt to lift all corners at the same time. Do not lift the
mount from the vehicle by using the vertical pole. The force of
the magnets can damage or deflect the vehicle roof.
