Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 1
EZ-NPP Weather Station Mounting Tripod and Mast with
Platform User Manual
Table of Contents
1. Introduction ..................................................................................................................................... 1
2. Parts................................................................................................................................................. 2
3. Warnings ......................................................................................................................................... 2
4. Recommended Tools and Materials ................................................................................................ 3
5. Installation ....................................................................................................................................... 3
5.1 Platform .................................................................................................................................. 3
5.2 Tripod ..................................................................................................................................... 4
5.3 Mast ........................................................................................................................................ 5
5.4 Ballast ..................................................................................................................................... 6
6. Optional Mounting Equipment ....................................................................................................... 6
EZ-125-35M 35” Mast Extension (Optional) ..................................................................................... 6
8. Liability Disclaimer ........................................................................................................................ 7
7. Warranty Information ...................................................................................................................... 7
9. California Prop 65 ........................................................................................................................... 7
1. Introduction
Avoid drilling lag screws into your flat roof top or concrete pad, the EZ-NPP is
recommended for high wind installations, providing a strong platform with cinder blocks
for ballast (cinder blocks are not included).
Ideal for non-penetrating flat roof and ground installations, the EZ-NPP tripod and mast
assembly includes a sturdy, galvonized steel mounting platform. The platform is sized for
four standard concrete cinder blocks as ballast.
The EZ-NPP Tripod assembly is constructed of 18 gauge 1008-10 steel tubing, galvanized
using the Flo-Coat (zinc-chromate-polymer) process for excellent corrosion protection.
Ungalvanized mast collars, & connecting components are gold irridited for corrosion
protection.
Mast collars feature a captive "stop-nut" design, to eliminate lock nut spin when tightened;
and a mast supporting cup for additional stability.
Tripod height 33 inches (85.8 cm). Supplied with one mast for an assembly height of 53"
inches (150.8 cm).
Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 2
Add up to two mast extensions (EZ-125-35M) to extend the height of 31" per mast
extension.
2. Parts
The EZ-NPP assembly includes the following components.
QTY Description Image
2
34.5” Steel
Angle
4
28.5” Steel
Angle
1
Tripod
Assembly
1
31” Lower
Mast
1
35” Swaged
Upper Mast
12
¾” Bolt
1
2 ¼” Bolt
12
½” Lock Nut
Figure 1
3. Warnings
WARNING: Improper installation of the mounting kit to your home or building may result in
leaks. We recommend a licensed roofing specialist for invasive installations.
WARNING: Any metal object may attract a lightning strike, including your weather station and
mount. Never install your weather station in a thunderstorm.
WARNING: We recommend properly grounding the mount to avoid extensive damage to the
weather station and structure. Consult a licensed electrician or local lightning detection expert prior to
installing a ground wire.
WARNING: Installing your weather station in a high location may result in injury or death.
Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 3
4. Recommended Tools and Materials
Adjustable Wrench
Level or Plumb
5. Installation
5.1 Platform

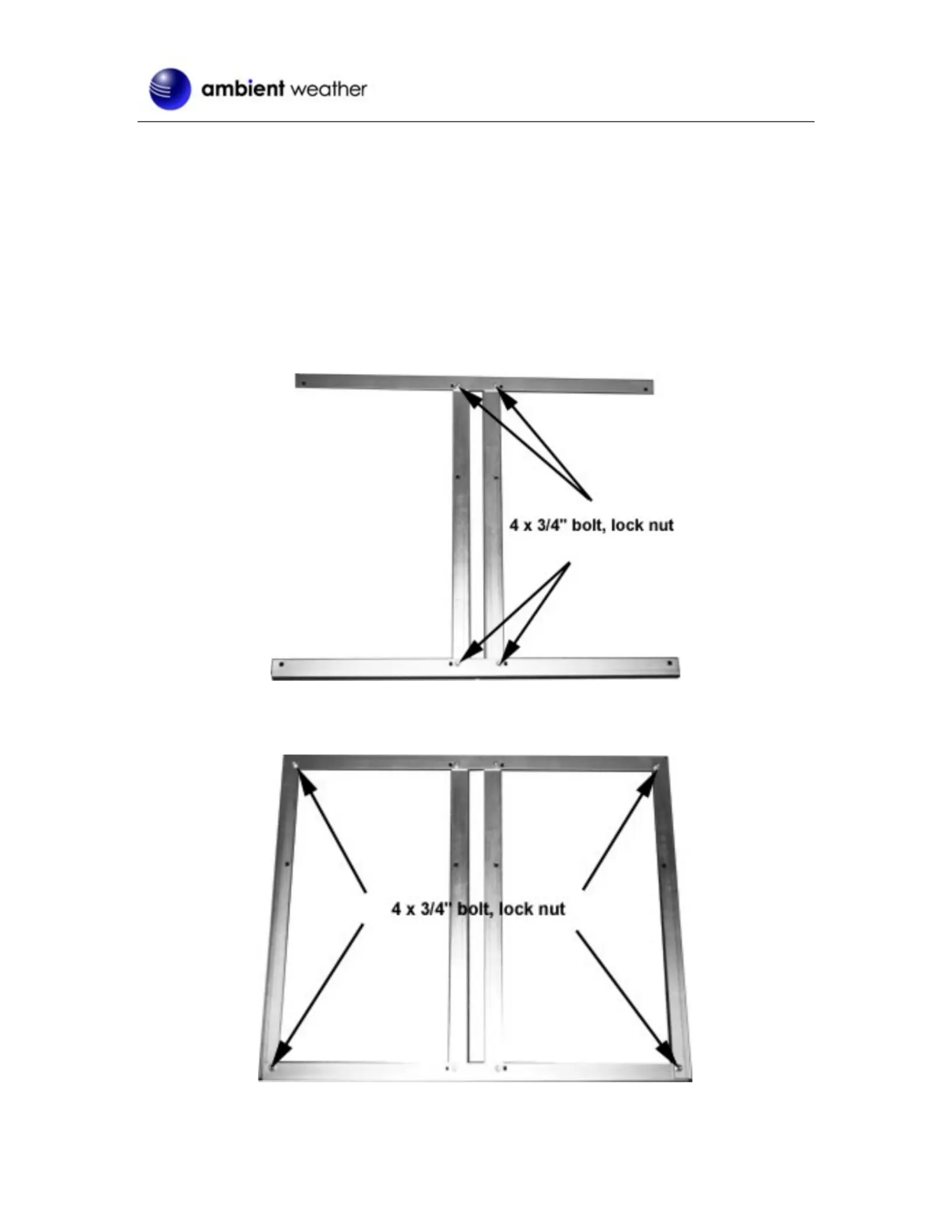

Connect the two 34.5” steel angle brackets with two 28.5” steel angle brackets with four ¾” bolts and
tighten with four lock nuts using ½” wrench, as shown in Figure 1.
Complete the platform by connecting the remaining two 28.5” steel angle brackets to the two 34.5” steel
angle brackets with four ¾” bolts and tighten with four lock nuts using ½” wrench, as shown in Figure 2.
Figure 2
