Sida 1/8
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380 FAX 480-346-3381
www.AmbientWeather.com
Page 1
Ambient Weather WeatherMount Installation Manual
Table of Contents
Introduction .......................................................................................................................................... 1
Components .......................................................................................................................................... 2
Tools and Materials Needed ................................................................................................................. 3
Important Installation Instructions ....................................................................................................... 3
WeatherMount Installation ................................................................................................................... 3
EZ-125-35M 35” Mast Extension (Optional) ....................................................................................... 5
Mast Extension Installation .................................................................................................................. 5
Liability Disclaimer .............................................................................................................................. 6
Warranty Information ........................................................................................................................... 6
California Prop 65 ................................................................................................................................ 7
Introduction

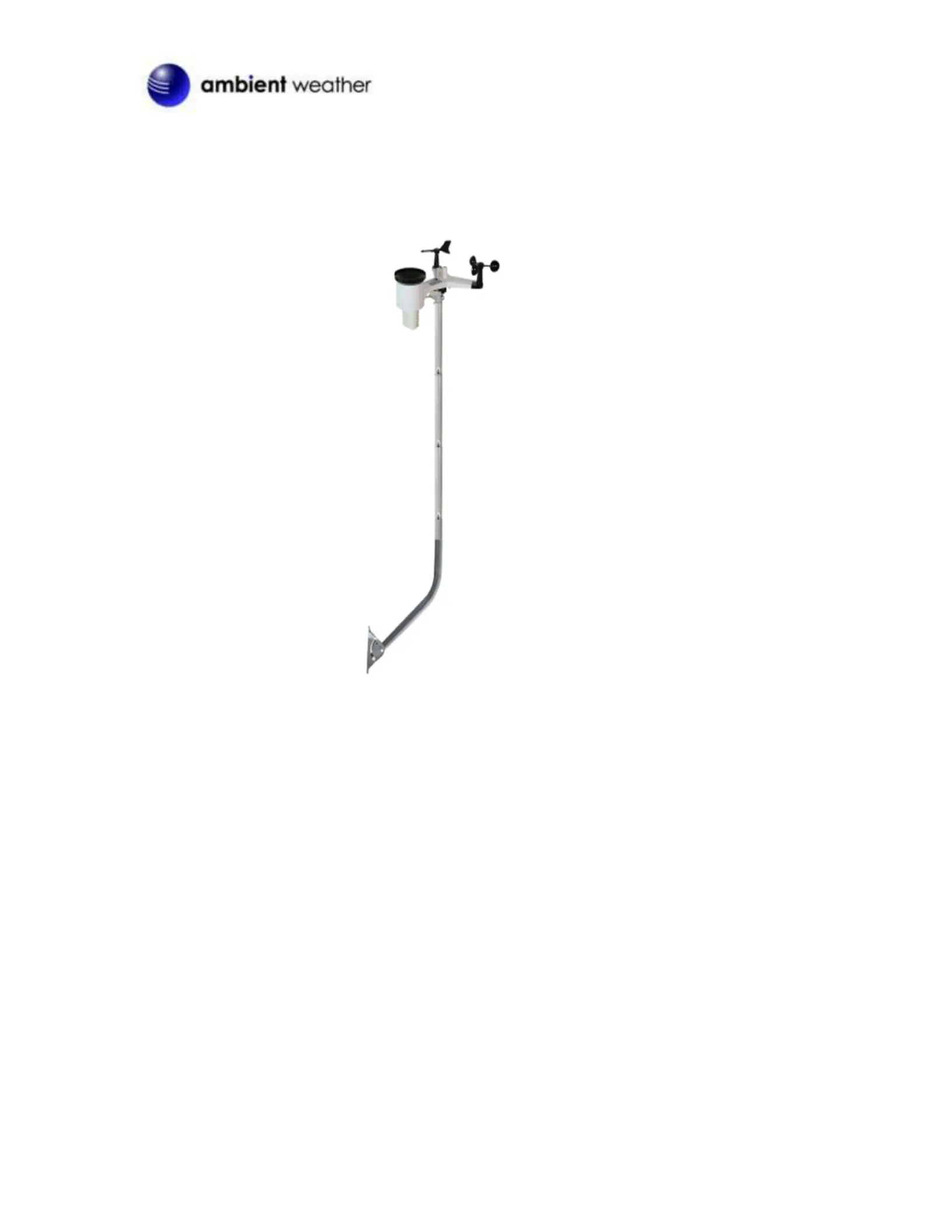

The Ambient Weather WeatherMount is a flexible mounting alternative to a mounting pole or
tripod. The mounting plate provides a fast and easy installation, and can be mounted on a pitched
surface, flat roof, or vertical surface, such as a gable.
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380 FAX 480-346-3381
www.AmbientWeather.com
Page 2
The WeatherMount is constructed from powder coated steel and includes a galvanized aluminum
mast. This mounting system is strong, durable, and stable. The slender design is simple,
unobtrusive, and aesthetically pleasing. The mounting bracket can be adjusted to mount on any
pitched roof.
Works great with any weather station.
The small mounting bracket footprint 4-3/4" W x 7" H (mounting point footprint 3.75" x 6") allows
four lag screws (included) to be easily mounted at the apex of your gable. The bend in the J-pipe
gives 11" in the horizontal direction to allow clearance of eve or roof overhangs. Out of the box, the
overall height is approx. 49”.
Add one or more mast extensions (EZ-125- 35M) to increase the height of the mounting assembly
by 35" per mast (reference the "May we also suggest" section below).
Components
The WeatherMount assembly includes the following components:
Name
Quantity
J-pipe 1
Mounting bracket 1
Carriage bolt 1
7/16” Hex bolt 1
7/16” Hex lock nuts 2
Lag Screws 4
Tar Pads 2
11.6 in. mast
Extensions
3
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380 FAX 480-346-3381
www.AmbientWeather.com
Page 3
Tools and Materials Needed
Level or Plumb
Drill
Adjustable wrench
Important Installation Instructions
CAUTION: Improper installation of the WeatherMount to your roof top may result in leaks. We
recommend a licensed roofing specialist for evasive installations.
CAUTION: Any metal object may attract a lightning strike, including your weather station and tripod.
Never install your weather station in a thunderstorm.
We recommend properly grounding the tripod to avoid extensive damage to the weather station and
structure. Consult a licensed electrician or local lightning detection expert prior to installing a ground wire.
WeatherMount Installation

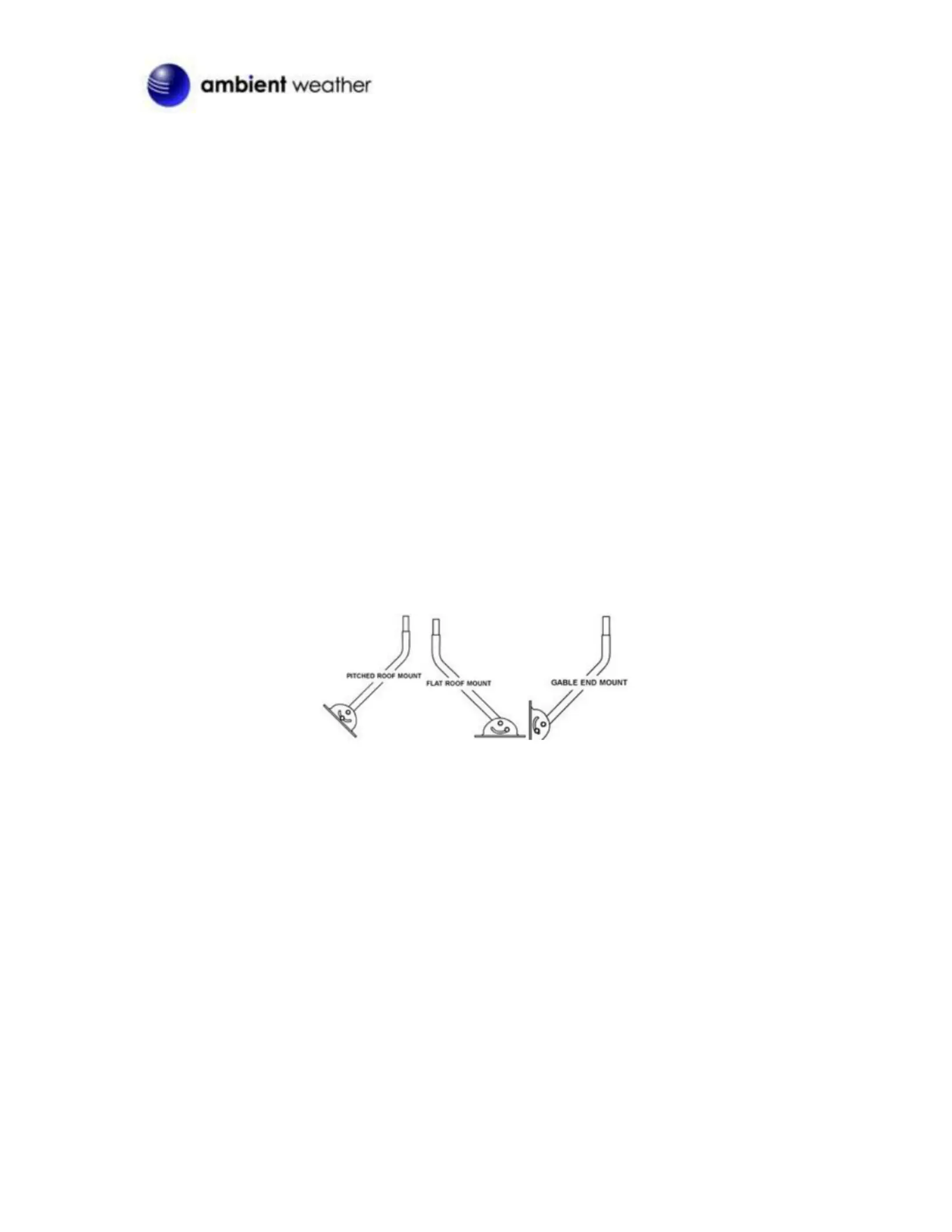

Reference Figure 3. There are three typical mounting configurations (1) pitched roof mount (2) flat roof
mount (3) gable end mount (horizontal).
Figure 3
Step 1. Fasten the WeatherMount mounting bracket to the building, home, or structure (Figure 4). Use the
enclosed lag screws to drill into the structure. If drilling into a non-masonry structure, use the included tar
pad kits (tar pad kits are not intended to be used when mounting using the optional accessory U-bolts).
