American Standard Reliant 3 T385501.295 Bruksanvisning
Sidor 3 Duschsystem
Läs bruksanvisningen för American Standard Reliant 3 T385501.295 gratis online eller ladda ner PDF:en. 7 personer har tyckt att guiden var hjälpsam. Fråga om modellen? Ställ en fråga
Certified to comply with ANSI A112.18.1
BATH AND SHOWER TRIM KITS
Reliant 3
®
Installation
Instructions
T385.5XX
THREADED INLETS (STOPS)
INLETS
1/2" NPT
5-7/8"
OUTLETS
1/2" NPT
3-3/8"
INLETS 1/2" NPT
OUTLETS
1/2" NPT
3-3/8"
3-3/8"
THREADED INLETS
INLETS
4-1/16"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
2"
SWEAT
INLETS
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
4-1/16"
5-7/8"
SWEAT
INLETS (STOPS)
INLETS
1/2" NOM.
COPPER
SWEAT
M968898 Rev. 1.2 (4/18)
Required Tools
Teflon Tape
Channel Locks
Flat Blade Screwdriver
Plumbers' Putty or Caulking
Phillips Screwdriver
To assure proper positioning in relation to wall, note
roughing-in dimensions.

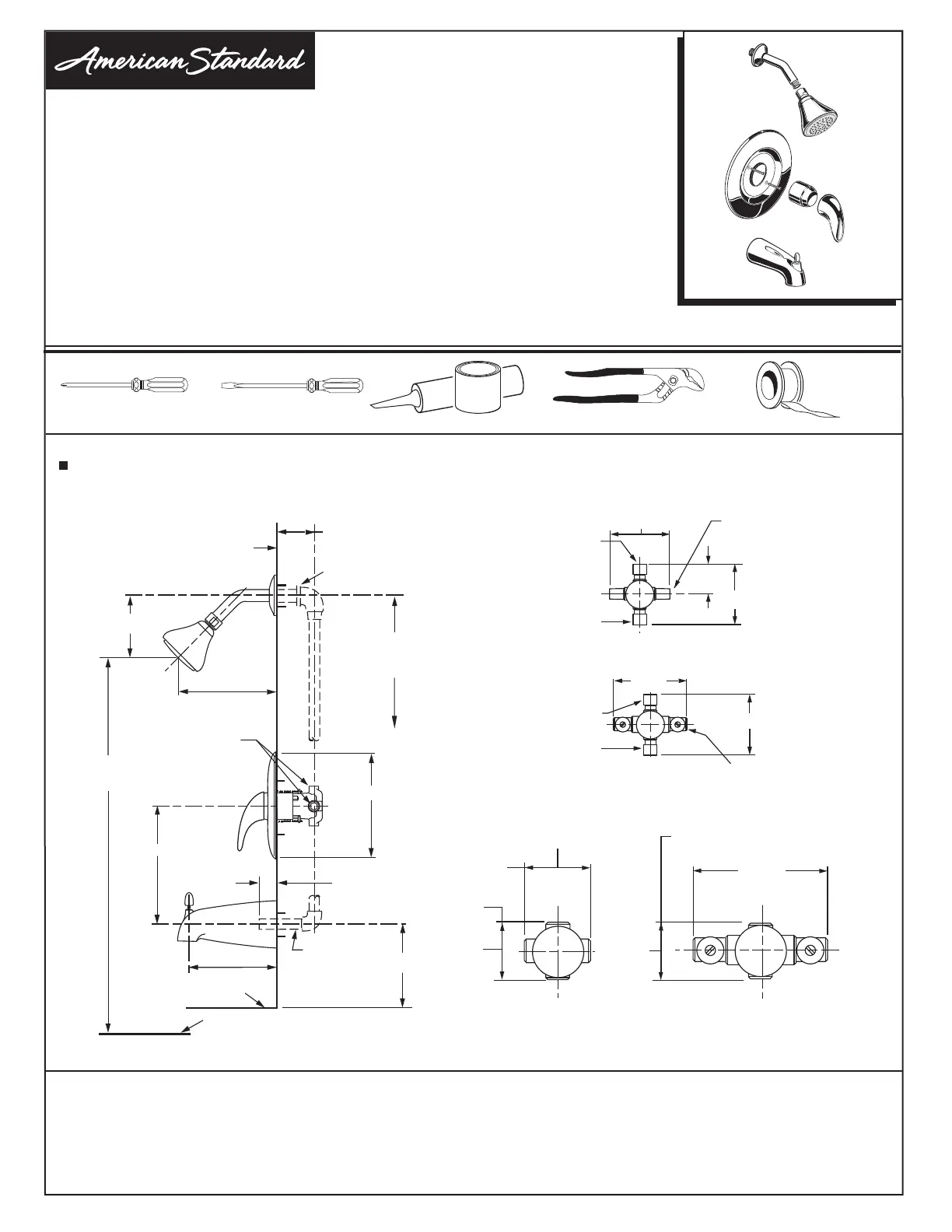

ROUGHING-IN DIMENSIONS
FINISHED WALL
4"
TOP OF TUB RIM
BOTTOM OF TUB
74" FOR HEAD
CLEARANCE
4-1/4" REF.
18" OPTIONAL
5-1/2" REF.
1/2" NPT
1/2" COPPER
7-5/8”
1-1/2" REF.
6" REF.
"SEE ILLUSTRATION "
3/4"" TO 2-3/8"
SHR
TUB
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
CARE INSTRUCTIONS:
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Produktspecifikationer
| Varumärke: | American Standard |
| Kategori: | Duschsystem |
| Modell: | Reliant 3 T385501.295 |
