- 1 -

M965815 (8/17)

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2017

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is essential that the tools and materials be on hand before work is begun.

CARE AND CLEANING

Do: Simply rinse the product clean with clear water, dry with a soft cotton flannel cloth.

Do Not: Clean the product with soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.

SPECTRA+ TOUCH

™

Shower HeadFor all Models

Plumbers' Grease

Tubing Cutter

Adjustable WrenchTeon Tape

Channel Locks

Thank you for selecting American Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly-please read

these instructions carefully before you begin.

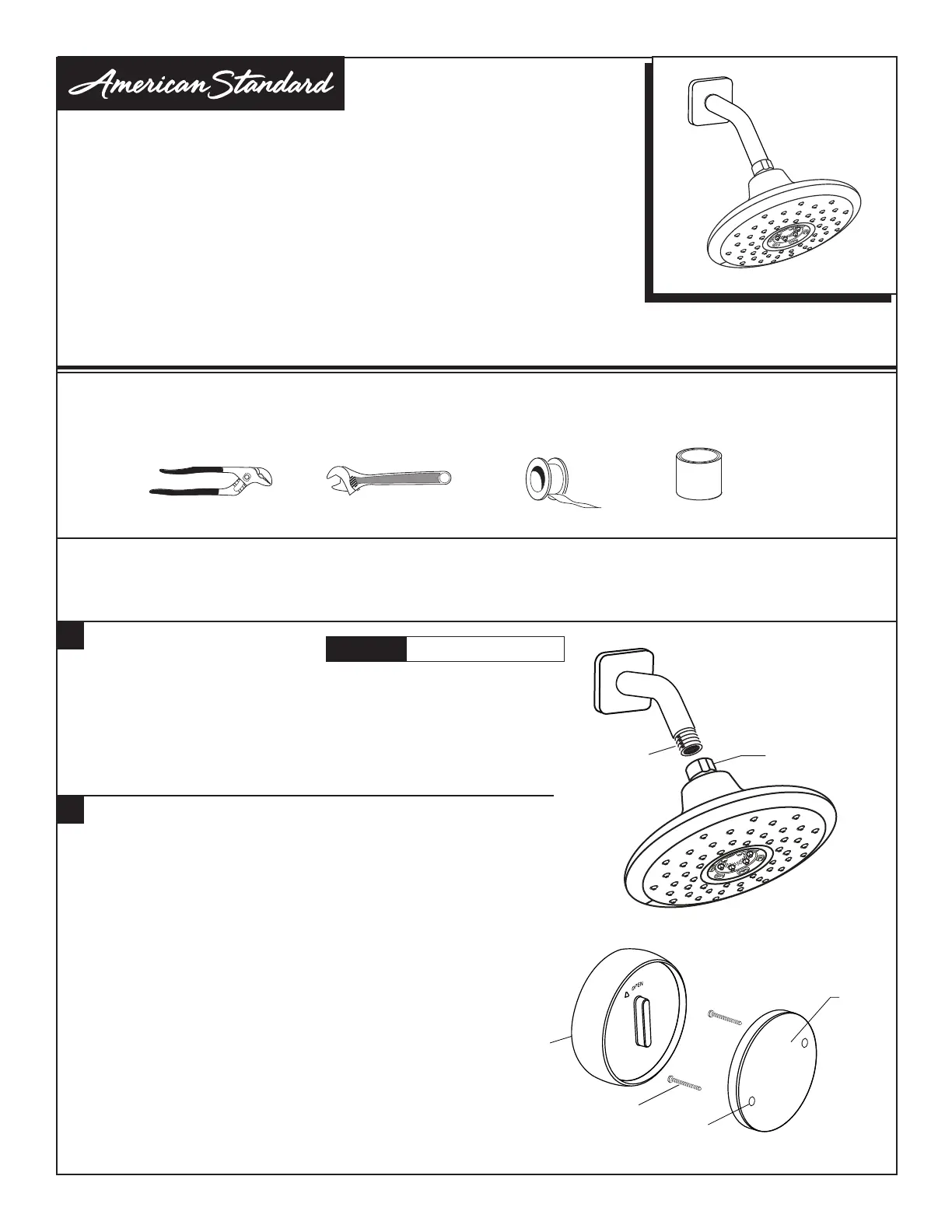

INSTALLATION

INSTRUCTIONS

1698.374

1695.374

Certied to comply with ANSI A112.18.1M

1

3

1

INSTALL SHOWER HEAD

SHOWER ARM WITH FLANGE

• Apply sealant or Teon tape to threads on SHOWER ARM (1).

• Thread SHOWER HEAD (3) onto the SHOWER ARM (1).

CAUTION

Protect finish on SHOWER HEAD

and TUB SPOUT when installing.

4

1

3

2

1a

INSTALL REMOTE (OPTIONAL)

• Identify desired remote location and wipe mounting surface

clean before installing the remote. Use the Yellow tag to

separate REMOTE BASE (1) from REMOTE FACE(4).

To install the remote follow either Option 1 or Option 2.

Option 1

• Peel the lm off of the double sided tape and install REMOTE

BASE(1) to the desired location. Once the REMOTE BASE(1)

is properly seated, install REMOTE FACE(4) by placing over

the REMOTE BASE (1) and gently pushing it forward.

Option 2

• Place REMOTE BASE (1) in the desired location and drill holes

using the HOLES (3) on the REMOTE BASE (1) as templates

and install SCREWS (2) (Make sure to not ruin the nish). Install

REMOTE FACE(4) by placing over the REMOTE BASE(1) and

gently pushing it forward.
