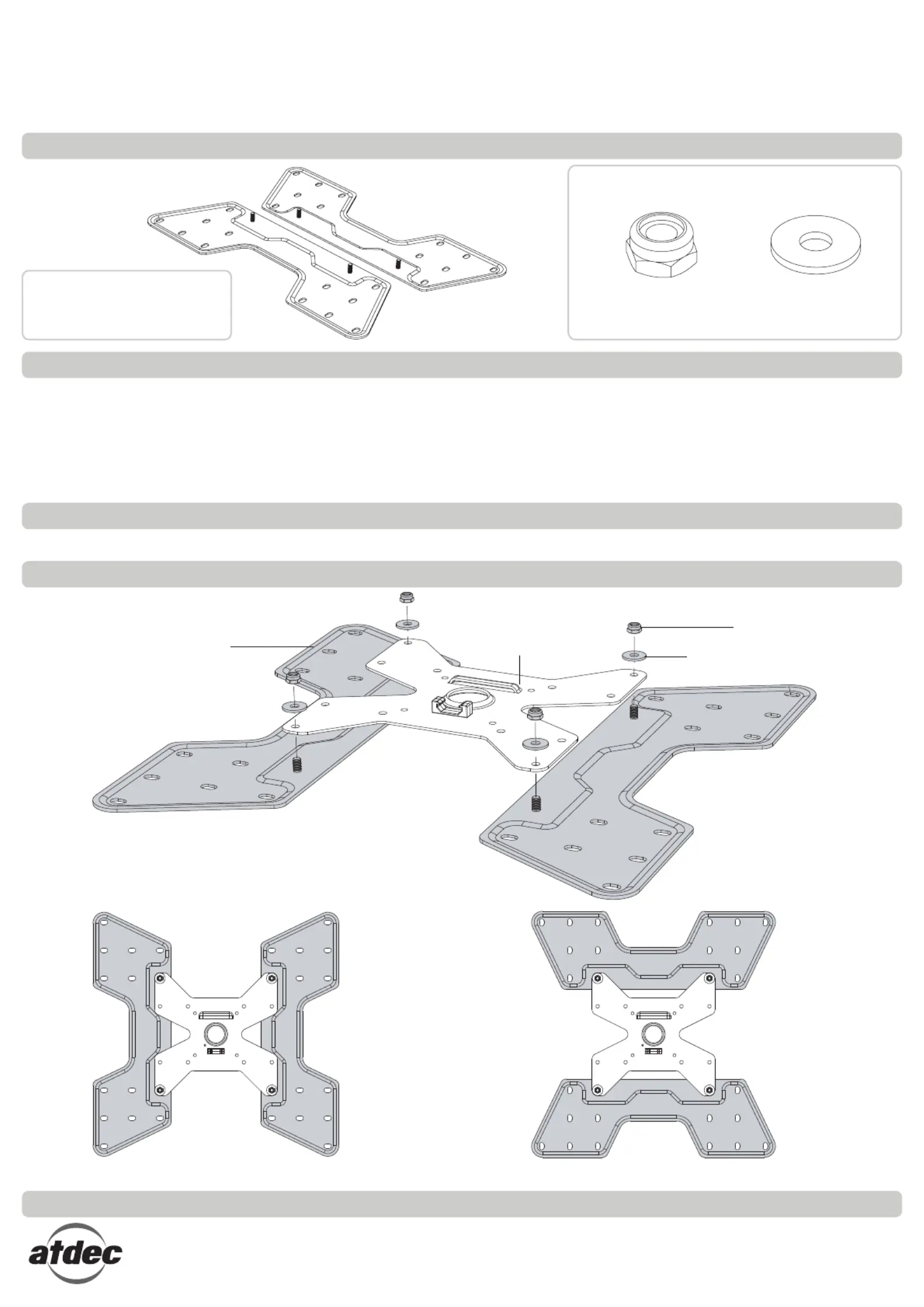

Installation Instructions

AC-AP-4040

400x400mm

Component Checklist

Hardware

IMPORTANT INFORMATION

! IMPORTANT - Install 400x400mm Adaptor Plate as per Installation Instructions.

! Compatible with Telehook:

TH-1032-VFM, TH-1040-VFM, TH-1040-CTS, TH-1040-CTL, TH-1040-CT-B2B, TH-2040-VTR, TH-2250-VTP.

This product supports a maximum load of 25kg (55lbs).

This product supports VESA mounting hole patterns: 200x300mm, 200x400mm, 300x200mm, 300x300mm,

300x400mm, 400x200mm, 400x300mm, 400x400mm (see below for Mounting Configurations).

! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

Tools Required:

10mm (

”) socket wrench

or Shifter

Step 2. Attach Adaptor Plates to Mounting Plate

Washer (x4)Nylock Nut (x4)

Adaptor Plates

(x2)

Adaptor Plate

(x2)

Mounting Plate

Nylock Nut

(x4)

Washer

(x4)

400x400mm

400x300mm

400x200mm

300x300mm

300x200mm

200x300mm

400x400mm

300x400mm

300x300mm

300x200mm

200x400mm

200x300mm

Mounting Configurations:

The Adaptor plates can be fixed vertically or horizontally.

Each configuration offers different VESA mounting hole configurations.

HORIZONTAL

VERTICAL

(most common)

INSTALLATION COMPLETE - Refer to the Telehook product Installation Instructions.

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 01.08.11 ©

Adaptor plate

Produktspecifikationer

Varumärke:	Atdec
Kategori:	Inte kategoriserad
Modell:	AC-AP-4040
Färg:	Nej
Kompatibilitet:	TH-1032-VFM\nTH-1040-VFM\nTH-2040-VTR\nTH-2250-VTP\nTH-1040-CT (L & S)\nTH-1040-CT-B2B
Maxvikt:	- kg
Produktens färg:	Svart
Material, hölje:	Metall
Monteringssätt:	Vägg
Kompatibla skärmstorlekar:	- "
Monteringsgränssnitt kompatibilitet (min):	200 x 200 mm
Monteringsgränssnitt kompatibilitet (max):	200 x 200 mm
