Sida 1/15

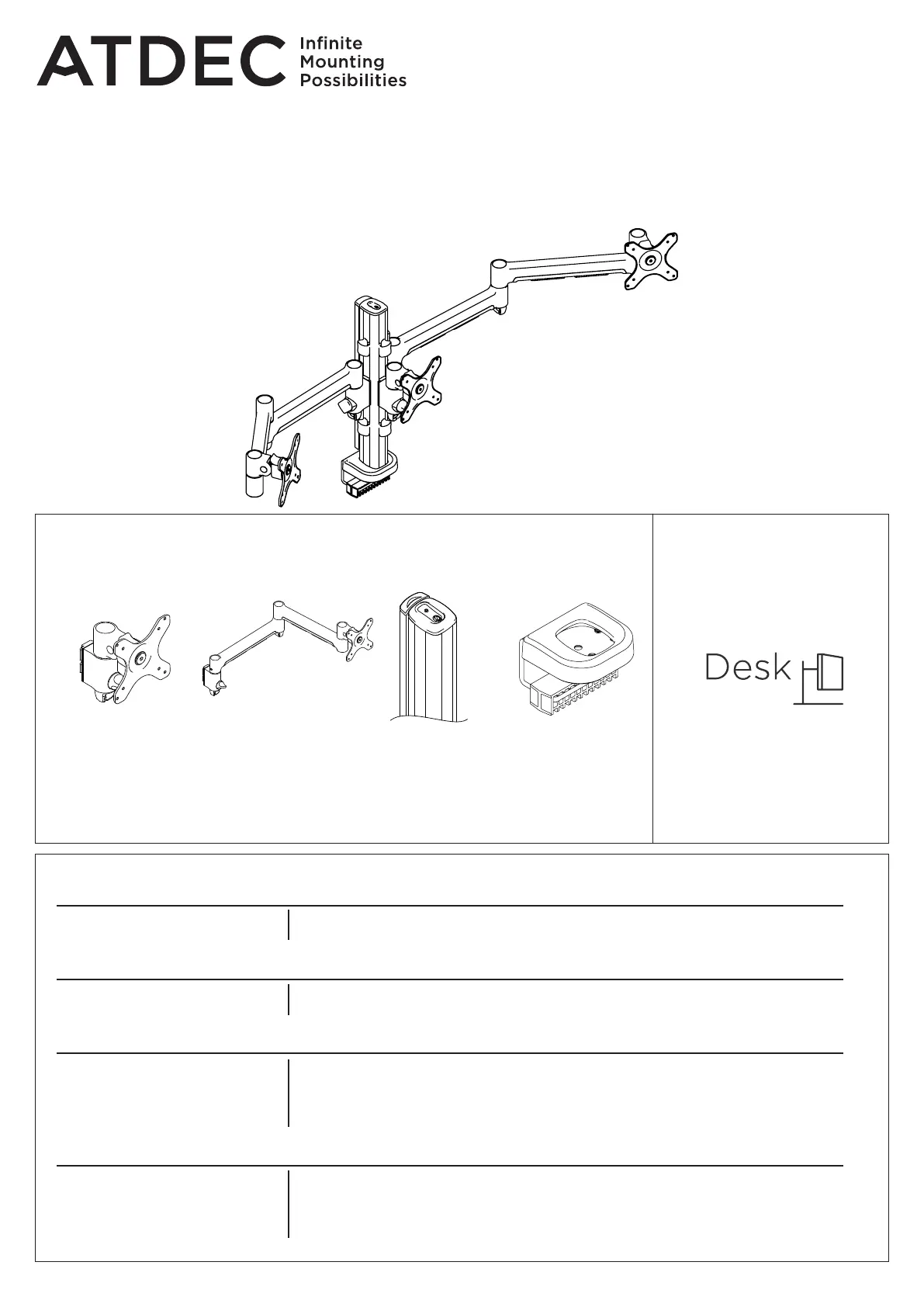

AWMS-3-137140-C | Page 1 of 15
Installation Guide
AWMS-3-137140-C
1 x 130 Arm and 2 x 710 Arm on 400 Post
with C-Clamp
COMPONENT CHECKLIST RANGE
CONTENTS
B
AWM-A71
710 Arm
(x2)
A
AWM-A13
130 Arm
(x1)
D
AWM-FC
C-Clamp
(x1)
C
AWM-P40
400 Post
(x1)
C-Clamp
Page 2
Page 3
400 Post
Page 6
Page 7
130 Arm
Page 8
Page 9
Page 10
Page 11
460 Arm
Page 12
Page 13
Page 14
Page 15
AWM-FC
Component Checklist
Clamp Installation
AWM-P40
Component Checklist
Post Installation
AWM-130
Component Checklist
Arm Installation
Monitor Installation
Cable Management
AWM-460
Component Checklist
Arm Installation
Monitor Installation
Cable Management
AWMS-3-137140-C | Page 2 of 15
AWM-FC
C-Clamp Installation Guide
COMPONENT CHECKLIST REQUIRED TOOLS
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with Atdec modular (AWM) products.
! The manufacturer accepts no responsibility for incorrect installation.
A
C Clamp Bracket
(x1)
B
C Clamp Plate
(x1)
C
Cover for Post
(x1)
D
Cover for Base
(x1)
E
4mm
Allen key
(x1)
F
5mm
Allen key
(x1)
• All tools supplied
A
C Clamp Bracket
(x1)
B
C Clamp Plate
(x1)
C
Cover for Post
(x1)
D
Cover for Base
(x1)
E
4mm Allen key
(x1)
F
5mm Allen key
(x1)
AWMS-3-137140-C | Page 3 of 15
1. C Clamp overview
2. Re-configure Clamp
1.1 Default - This is the “out of the box” configuration
MIN THICKNESS - 25mm ( 1”)
MAX THICKNESS - 33mm (15
/
16”)
MIN THICKNESS - 18mm (11/16”)
MAX THICKNESS - 25.8mm (1”)
1.2 Inverted - The C Clamp can be reconfigured for thicker surfaces
2.1 Slide pad off Invert pad Slide pad back on2.3 2.3
Fasteners
supplied
with post
Tighten
Firmly
!
3.2 Place in desired location Slide the C Clamp bracket over the plate 3.3
and position screw tips in the indents on
the base plate
Note: You may need to un-screw the set screws
out of the plate using the allen key
3.1 Attach plate to post
3. Post mount configuration
Desk Clamp
Bracket
Mounting
surface
Pad
M8 x 16mm
Set Screw
3.4 Check the set screws are mounted in position. Also check the
desk clamp bracket is positioned tight up against the mounting
surface edge
3.5 Tighten the set screws and firmly evenly on both sides of the
desk clamp bracket.
