Nylon Anchor (x2)

Dry Wall anchor (x4)

M5/6/8 Washer

(x4 each)

M5x30/16mm (x4 each)

M6x30/16mm (x4 each)

M8x30/16mm (x4 each)

Display Mounting

Screws

M4/5 Spacer (x4)

M6/8 Spacer (x4)

Wall Plate

10mm(

") Hole

Dry Wall Anchor

Dry Wall Anchor Screw

Note:

Each Dry Wall anchor should be at a

maximum distance from the next anchor point.

This is the recommended mounting pattern for

Dry Wall Anchors.

Coach Screw

Wall Plate

10mm(

") Hole

Nylon Anchor

6mm(

") Hole

Timber Stud

Wall Plate

Coach Screw

Note:

Use a stud finder to accurately locate

the centre of the stud. Ensure that all two

screws fix securely into the stud.

Hardware

Coach Screw (x2)

Components Checklist

Wall Plate

Display Bracket (x2)

IMPORTANT INFORMATION

! IMPORTANT - Install 3060 Wall Mount as per Installation Instructions.

! This product supports a maximum load of 65kg (143.3lbs).

! This product supports displays with mounting hole configurations from 100mm (4”) to 500mm (19½”) high,

and from 200mm (8”) to 810mm (32”) wide.

! The manufacturer does not accept responsibility for incorrect installation.

! Before installing this product, please check the display ventilation requirements with your

LED/LCD manufacturer.

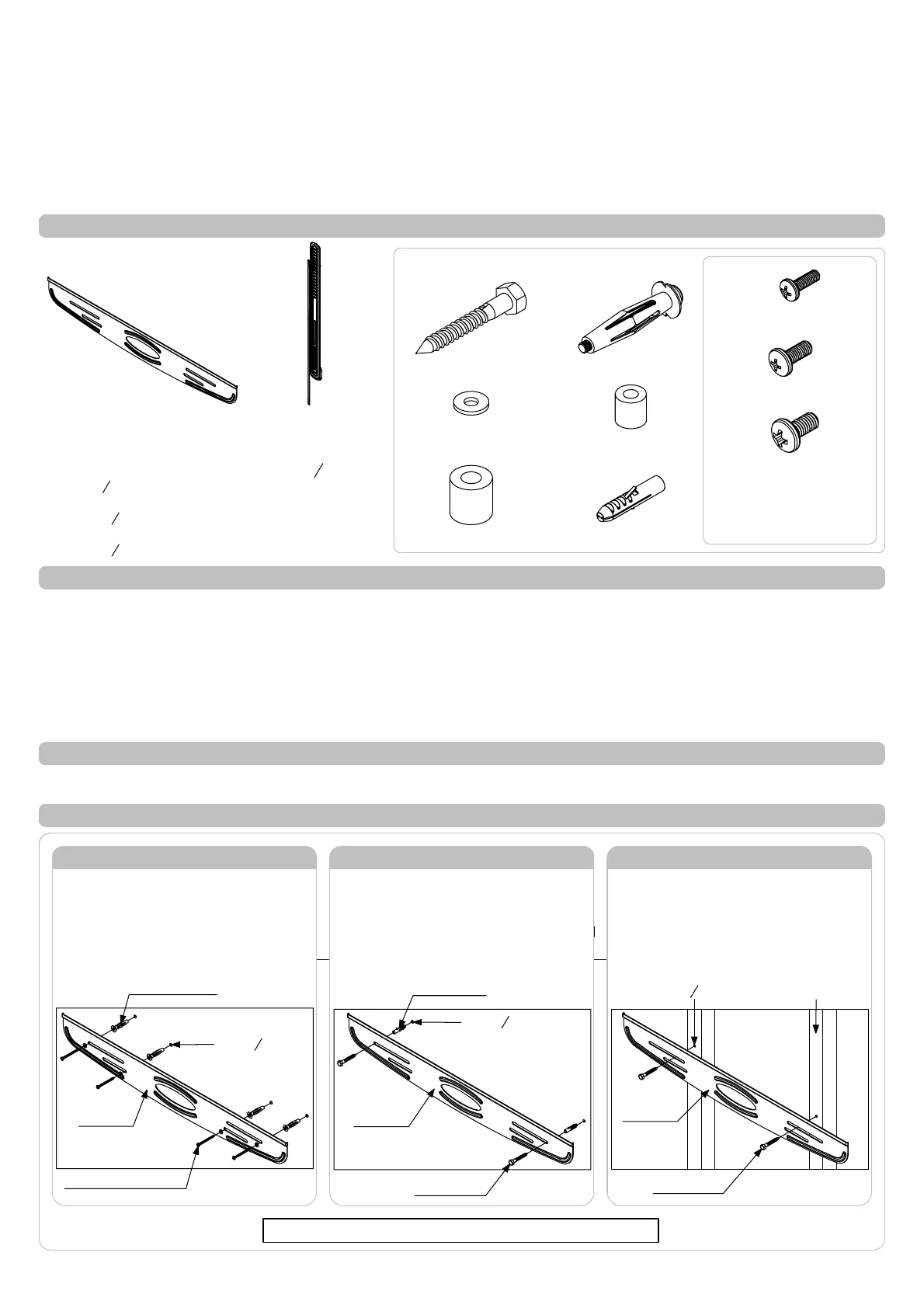

Step 1. Check Components

Step 2. Mounting the Wall Plate

10mm ( drill bit



Spirit Level



Tools Required:

Power Drill



6mm

(

drill bit



Phillips Head screwdriver 

10mm

(

masonry drill bit

Large Flat Head Screw Driver

13mm

(

Socket Wrench or Shifter



Dry Wall

Tip: Use a spirit level to ensure wall plate is horizontal.

Masonry Wall

Timber Stud

Check you have received all parts against the component checklist and Hardware above.

Installation Instructions

TH-3060-LPF

Flat Screen Wall Mount | Fixed
