Component Checklist
Coach Screw (x4)
Nylon Anchor (x4)
Washer 8.5mm(x6)
Washer 4.5mm(x4)
3mm Allen Key
M4x12mm/20mm
M5x12mm/20mm
TH-1026-CT
Ceiling Tilt Mount
IMPORTANT INFORMATION:
Step 1. Check Components
! IMPORTANT - Install 1026 Ceiling Tilt Mount per Installation Instructions.
! This product supports a maximum load of 15kg (33lbs).
! This product supports VESA mounting hole configurations 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
Display Mounting
Screw (x4 each)
Hardware
Tools Required:
Power drill
•
4.5mm (0.18”) drill bit
•
10mm (0.39”) masonry drill bit
•
Phillips head screw driver•
12mm (0.47”) socket wrench or shifter
•
•

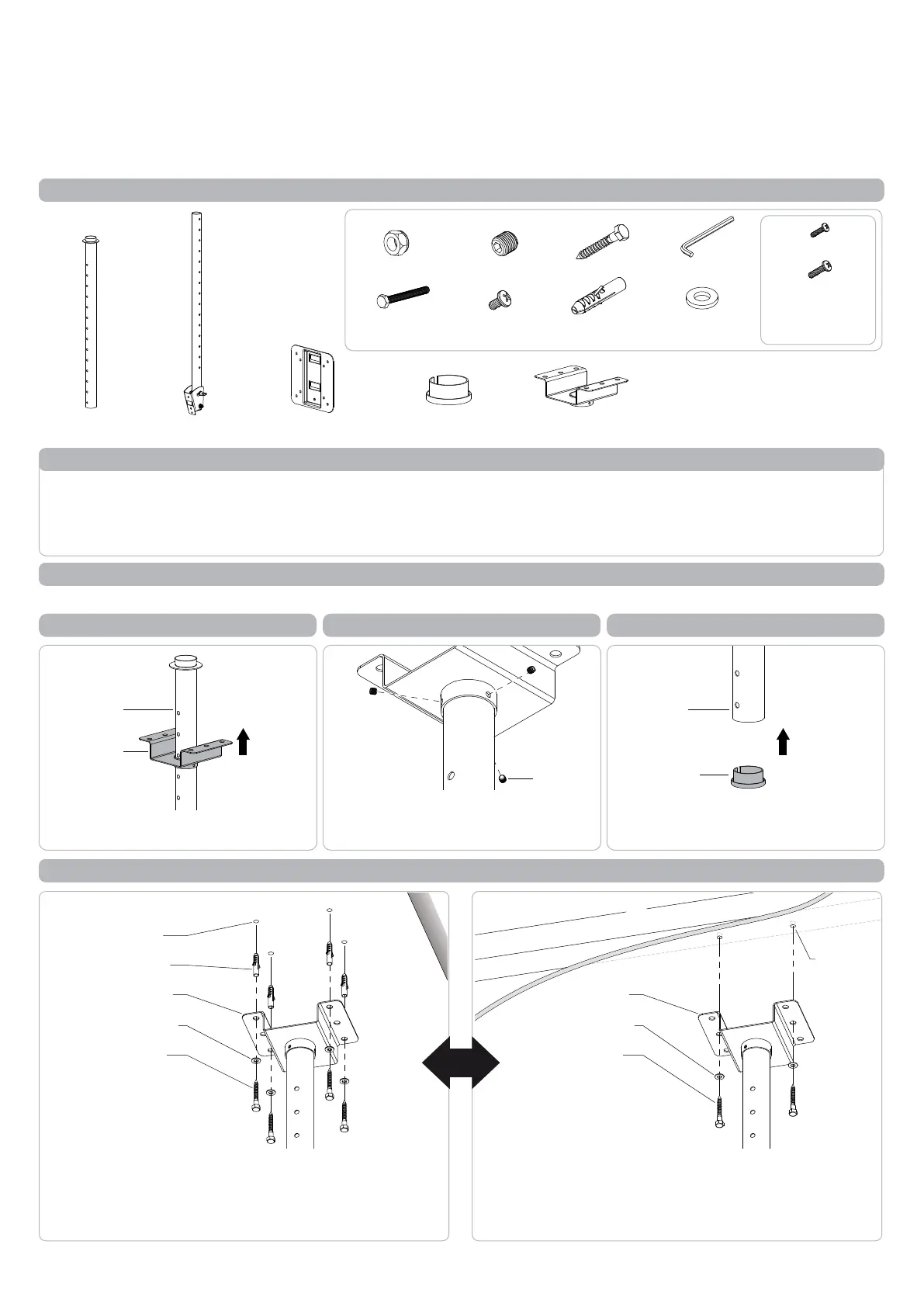

Step 2. Slide Ceiling Mount
Upper Pole Lower Pole Screen Mount Ceiling MountUpper Pole Bush
Timber Stud CeilingMasonry Ceiling
Hex-Head Screw
M8x55mm (x2)
Nyloc Hex Nut (x2)
SLIDE INSERT
Ceiling Mount
Upper Pole
Upper Pole Bush
Upper Pole
Insert Bush to the Upper Pole.
Set Screw (x3)
Set Screw
Step 3. Fix Upper Pole
Check you have received all parts against the Component Checklist and Hardware above.
Step 4. Insert Bush
Slide Ceiling Mount on to the Upper
Pole.
Drilled Hole
Nylon Anchor
Ceiling Mount
Washer 8.5mm
Coach Screw
Ceiling Mount
Washer 8.5mm
Coach Screw
- Drill four 10mm (0.39”) diameter holes, 61mm (2.4”) deep.
- Secure the mounting plate to the ceiling using the Coach
Screws and Nylon Anchors supplied.
- Drill two 4.5mm (0.18”) diameter holes, 61mm (2.4”) deep.
- Secure the mounting plate to the ceiling using the Coach
Screws supplied.
NOTE: Use a stud finder to accurately locate the centre
of the stud. Ensure that all screws fix securely into stud.
Fix Upper Pole to Ceiling Mount with
three Set Screws. Tighten using supplied
Allen Key.
M5x6mm
Security Screw
Step 5. Install Ceiling Mount to the Ceiling
OR
Drilled Hole
13mm (0.51”) socket wrench or shifter
JF
HG L E,I
K M A B
C D
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 19.04.12 ©
Step 6. Slide Lower Pole up inside Upper Pole and fix to desired height
Step 7. Attach Screen Mount to Display
Step 9.
Fix Display with Security Screw
SLIDE
Upper Pole
Lower Pole
Hex-Head
Screw
Washer 8.5mm
Nyloc Hex Nut
Slide Lower Pole up
inside Upper Pole.
Fix Lower Pole at desired
height using two hex-head
screws, two washers and two nuts.
TOP OF
DISPLAY
Back of Display
Mounting Screw
Washer 4.5mm
Screen Mount
HOOK
Step 8.
Attach Display to Lower Pole
The screen mount supports VESA
mounting hole configurations
75x75mm and 100x100mm.
Step 10.
Tilt Adjustment
Security Screw
Fix Display with supplied Security Screw
using a phillips head screw driver.
Back of Display
Step 11. Cable Management
0-15°
Installation Complete
REMOVE
Lower Pole Cap
Option 1
Option 2
Ceiling Mount
(for Option 2)
