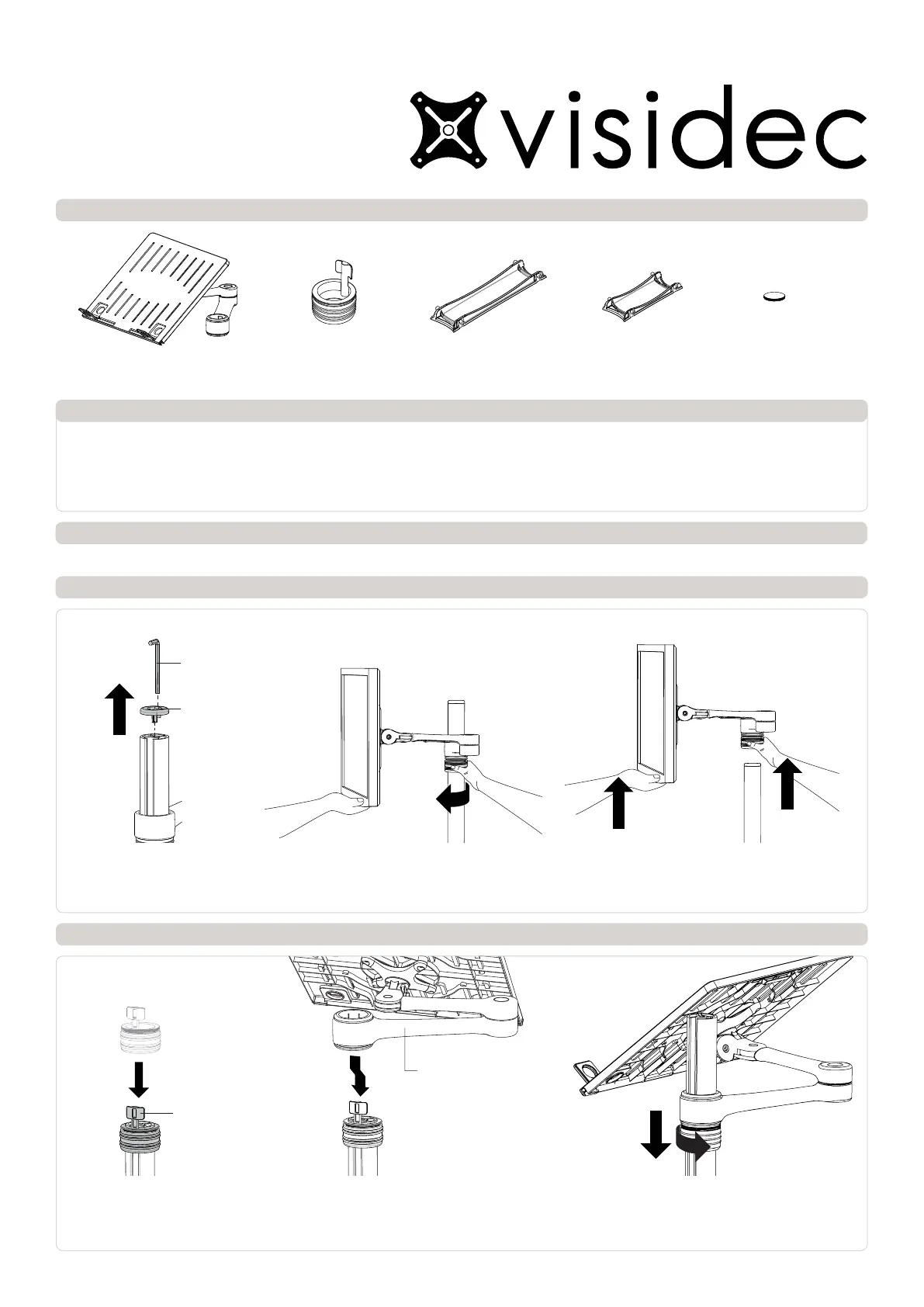

Handgrip Tab

Installation Instructions

VF-AT-NK

Component Checklist

Focus | Notebook Mount Accessory

Primary Arm

Cable Cover

Secondary Arm

Cable Cover

Hand Grip

Notebook Tray and Arm Assembly

! IMPORTANT - Install Visidec Focus Notebook Mount as per installation instruction.

! This product is designed to be used in conjunction with an external keyboard and mouse.

! To b used with existing Visidec Focus Mount.

! Visidec Focus Notebook Mount supports Notebooks up to 18”, weighing up to 8kg (17.6lbs).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check what you have received against the component checklist and hardware above.

Step 2. Remove existing Arm & Monitor from Visidec Pole (ensure monitor cables are unplugged)

Step 3. Remove existing Arm & Monitor from Visidec Pole (ensure monitor cables are unplugged)

5mm Allen Key

Notebook Tray

& Arm Assembly

Pole Top Cap

2.1 Remove Pole Top Cap

and 5mm Allen Key from

the Visidec Pole.

3.1 Slide the Handgrip onto

the top of the Visidec Pole so

the Handgrip Tab protrudes.

2.2 Whilst supporting the weight of the

Monitor, unlock the Hand Grip.

3.2 Slip the Notebook Tray & Arm

Assembly over the Handgrip Tab and

then onto the Pole.

2.3 Lift the Monitor and Focus Arm,

removing both from the Visidec Pole.

3.3 Slide the Arm Assembly and

Handgrip down the pole before locking

the Handgrip at the desired height.

Hook & Loop

Fasteners (x4 sets)

Produktspecifikationer

Varumärke:	Atdec
Kategori:	Inte kategoriserad
Modell:	VF-AT-NK
Lutningsvinkel:	10 - 35 °
Maxvikt:	17.5 kg
Vikt inkl. förpackning:	1814.36 g
Förpackningsstorlek (B x D x H):	360 x 320 x 130 mm
Kompatibla skärmstorlekar:	18 "
Höjdjustering:	340 mm
Panoreringsvinkel:	-90 - 90 °
