User Manual

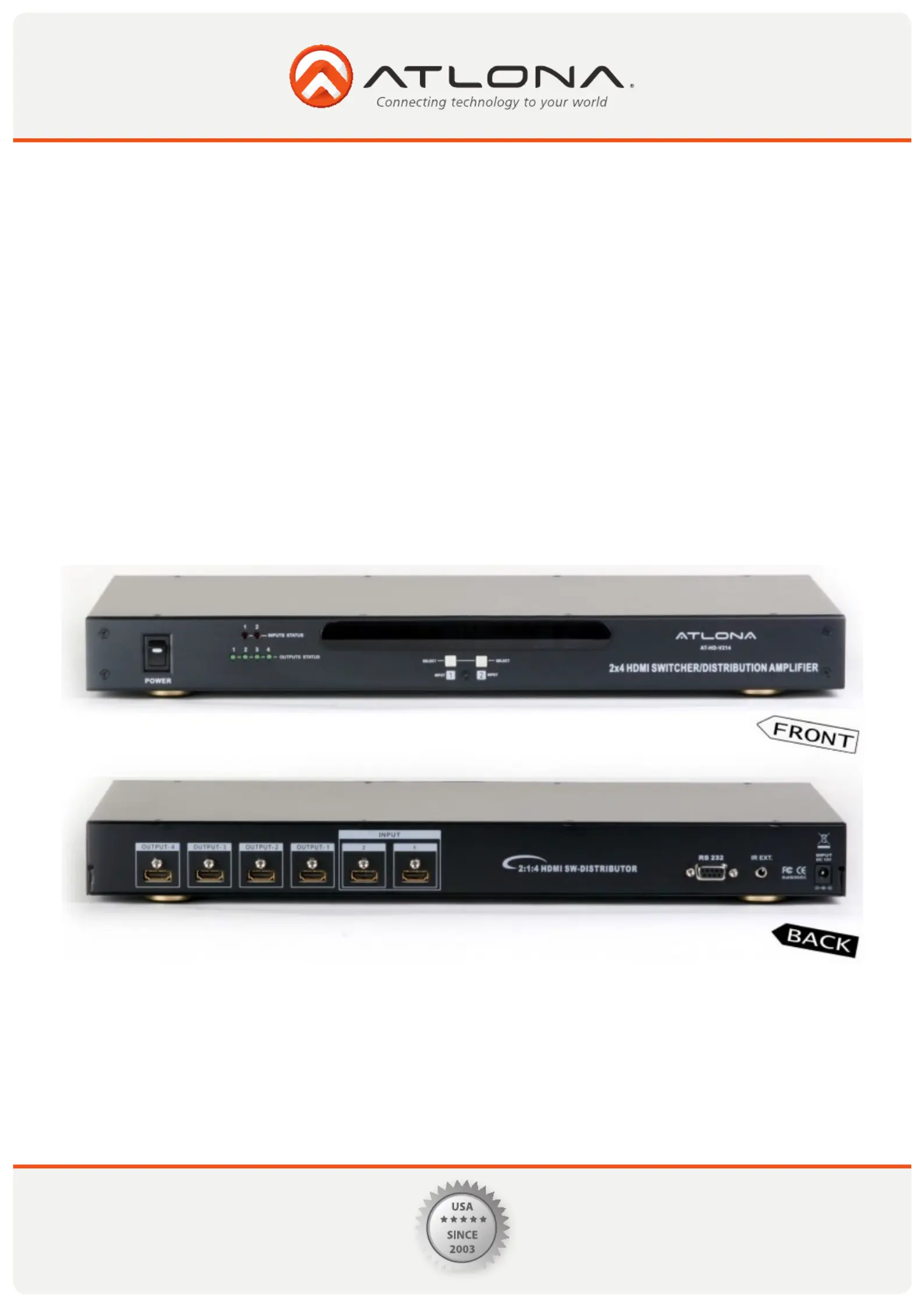

2x4 HDMI Distribution Amplifier/Switcher
AT-HD-V214
1
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Features .................................................. 2
3. Package Contents .................................................. 2
4. Specification .................................................. 3
5. Panel Descriptions .................................................. 3
5.1 Front Panel .................................................. 3
5.2 Rear Panel .................................................. 4
6. RS-232 Serial Interface .................................................. 5
6.1 RS-232 Serial Interface Connect a PC or Control System ............................ 5
6.2 RS-232 .................................................. 5
6.3 Protocol Commands .................................................. 5
7. RS-232 Protocol Commands .................................................. 6
7.1 Power Off Mode .................................................. 6
7.2 Front Panel Lock .................................................. 6
7.3 Unit Reset .................................................. 6
8. Application .................................................. 7
9. Safety Information .................................................. 8
10. Warranty .................................................. 9
11. Atlona Product Registration .................................................. 10
TABLE OF CONTENTS
2
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Congratulations on your purchase of the AT-HD-V214 Distribution Amplifier with digital audio. Your satisfaction is very
important to us. Our series of HDMI Switchers and Splitters are designed to make the use of your HDTV equipment more
comfortable, productive and affordable.
Atlona’s AT-HD-V214 is a 2x4 HDMI Distributor Amplifier/Switcher features 2 HDMI inputs and pre-emphasized 4 HDMI
outputs. This switcher supports full data rates as well as resolutions up to 1080p and PC resolution up to (1920 x 1200).
Control is provided via Front panel buttons, IR remote control or RS-232. An RS-232 interface is provided for interfacing
with a third party control system. Atlona’s distribution amplifier is the perfect device for allowing users to connect any
digital video source, such as: (DVD, Satellite, Cable Box, PC, Xbox, PS3 and more) to multiple displays. The AT-HD-V214
is basically a 1x4 hdmi splitter with a 2 x input switcher built-in. When user will switch between inputs, all the outputs
will change accordingly, they all will either show input # 1 or input # 1
• Main unit AT-HD-V214
• User’s Manual
• IR Remote Control
• 19 inch Rack Ears
• IR Extender receiver
• RS232 Cable and basic software to control the switch though the PC
• Power Supply 12VDC, (universal 100/230V)
• Supports 2x HDMI digital inputs which can be switched to 4x HDMI monitors
• Support HDMI/DVI high definition resolutions up to 1080p
• Supporting signal speeds of up to 6.75 Gbps
• Supports wide range of PC resolutions from XGA to WUXGA (640 x 480 to 1920x1200)
• Compatible with all HDMI sources and displays, including commercial LED pannels
• Supported Digital Video TMDS formats in Deep Color 12bits
• Various User controls:
•RS232
•ManualcontrolledbyFrontPanelbutton
•IRremotecontrol
INTRODUCTION
PACKAGE CONTENTS
FEATURES
