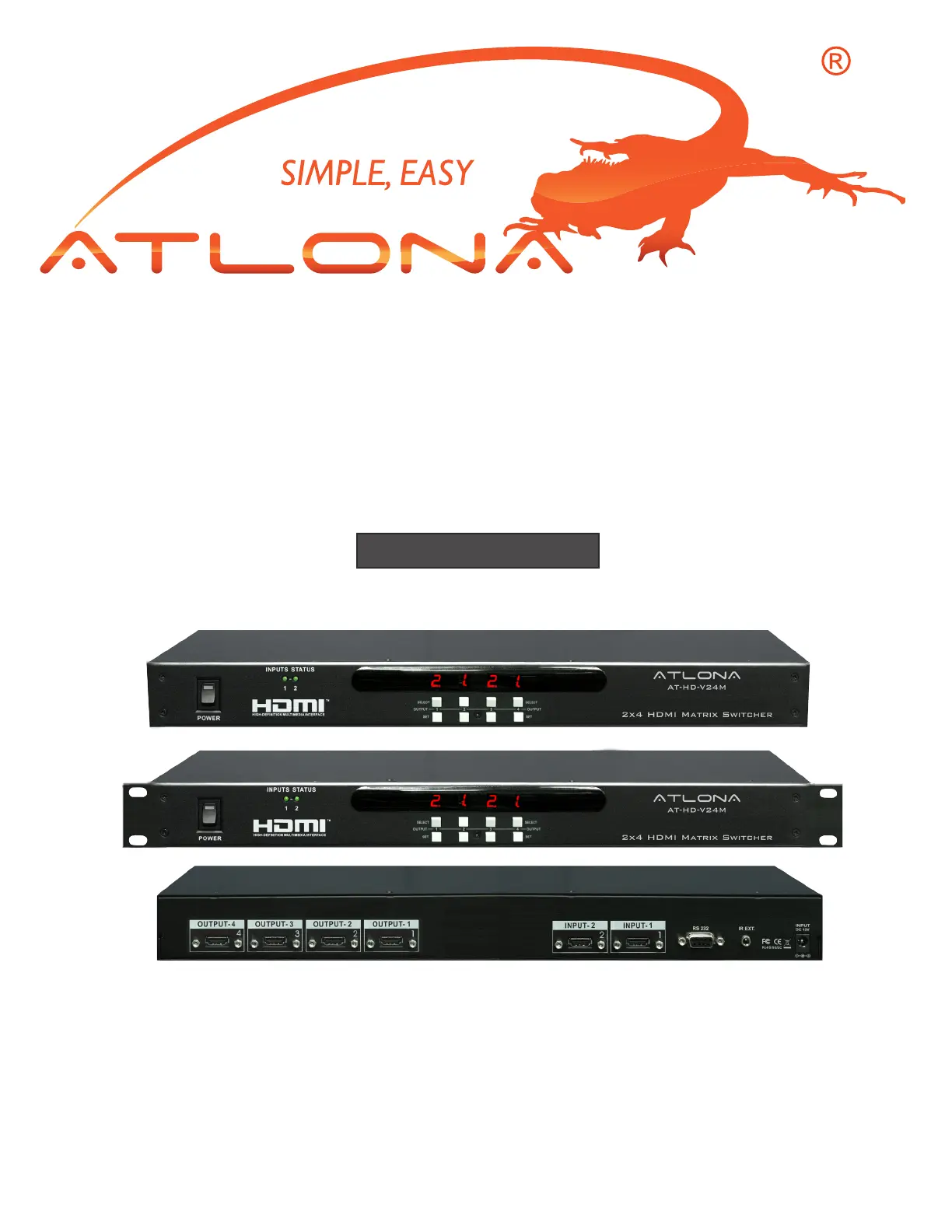

Sida 1/12
AtlonA
2x4 HDMI Matrix Switcher
AT-HD-V24M
User Manual
TABLE OF CONTENTS
1. Package Contents .................................................. 1
2. Introduction .................................................. 1
3. Features .................................................. 1
4. Specications .................................................. 2
5. Panel Descriptions .................................................. 2
5.1 Front Panel .................................................. 2
5.2 Rear Panel .................................................. 3
6. Remote Control .................................................. 3
7. IR Extender .................................................. 4
7.1 IR Extender Connection .................................................. 4
7.2 The IR Extender Components Setup .................................................. 4
8. RS-232 Serial Interface .................................................. 5
8.1 RS-232 Serial Interface Connect a PC
or Control System .................................................. 5
8.2 RS-232 .................................................. 5
8.3 Commands .................................................. 5
9. RS-232 Serial Commands .................................................. 6
9.1 Standby Mode .................................................. 6
9.2 Power Off Mode .................................................. 6
9.3 Front Panel Lock .................................................. 6
9.4 Unit Reset .................................................. 6
10. Tipical Application .................................................. 7
11. Safety Information .................................................. 8
12. Warranty .................................................. 9
13. Atlona Product Registration .................................................. 10
PACKAGE CONTENTS:
1
• 2x4 HDMI Matrix Switcher (AT-HD-V24M)
• Instruction Manual
• IR Remote Control
• Universal AC/DC power adapter: 12VDC
• 19 inch Ear mount pair
• IR Extender receiver
• RS232 package (RS232 DVD Drive & RS232 Cable)
Atlona Technologies’ AT-HD-V24M is a 2x4 HDMI Matrix Switcher with audio designed to work as
a switcher for multiple Audio/Video sources and displays. This Atlona unit is capable of switching
HDMI signals between two sources and four displays. Because it is a matrix switch, any or all of
the 2 inputs can simultaneously be switched to any or all of the outputs. This devise will support
high denition video in multiple resolutions of up to 1080p or 1920x1200. This unit has quick and
easy installation. With manual, RS232, as well as IR Remote control options, Atlona’s AT-HD-
V24M Matrix Switcher is HDCP Compliant making it is perfect for all HDMI devices, PC monitors,
Plasma TV displays and HDTVs.
• Switches HDMI Video signal with Audio between 2 sources and 4 displays.
• Matrix Switch: each input can be directed to any or all outputs at the same time
• Quick and easy installation
• HDMI digital video/audio format, DVI format and HDCP compliant
• Supports link speeds of up to . 5 Gbps6 7
• Supports wide range of PC resolutions from VGA to UXGA 1 x1200 and HDTV/DTV W 920
resolutions 480i/480p, 576i/576p, 720p, 1080i, 1080p
• Compatible with all HDMI devices, PC monitors, Plasma TV display and HDTV
• Supports Digital Video TMDS formats in Deep Color 12bits
• Support IR Remote and IR Extender with distance 300M Maximum.
• Various User Interface control:
• IR remote control
• Manual controlled by Front Panel button
• RS232 Control
• Automatically scanning input status by LED on front panel
INTRODUCTION
FEATURES:
