User Manual
Atlona HDBaseT Extender
Family

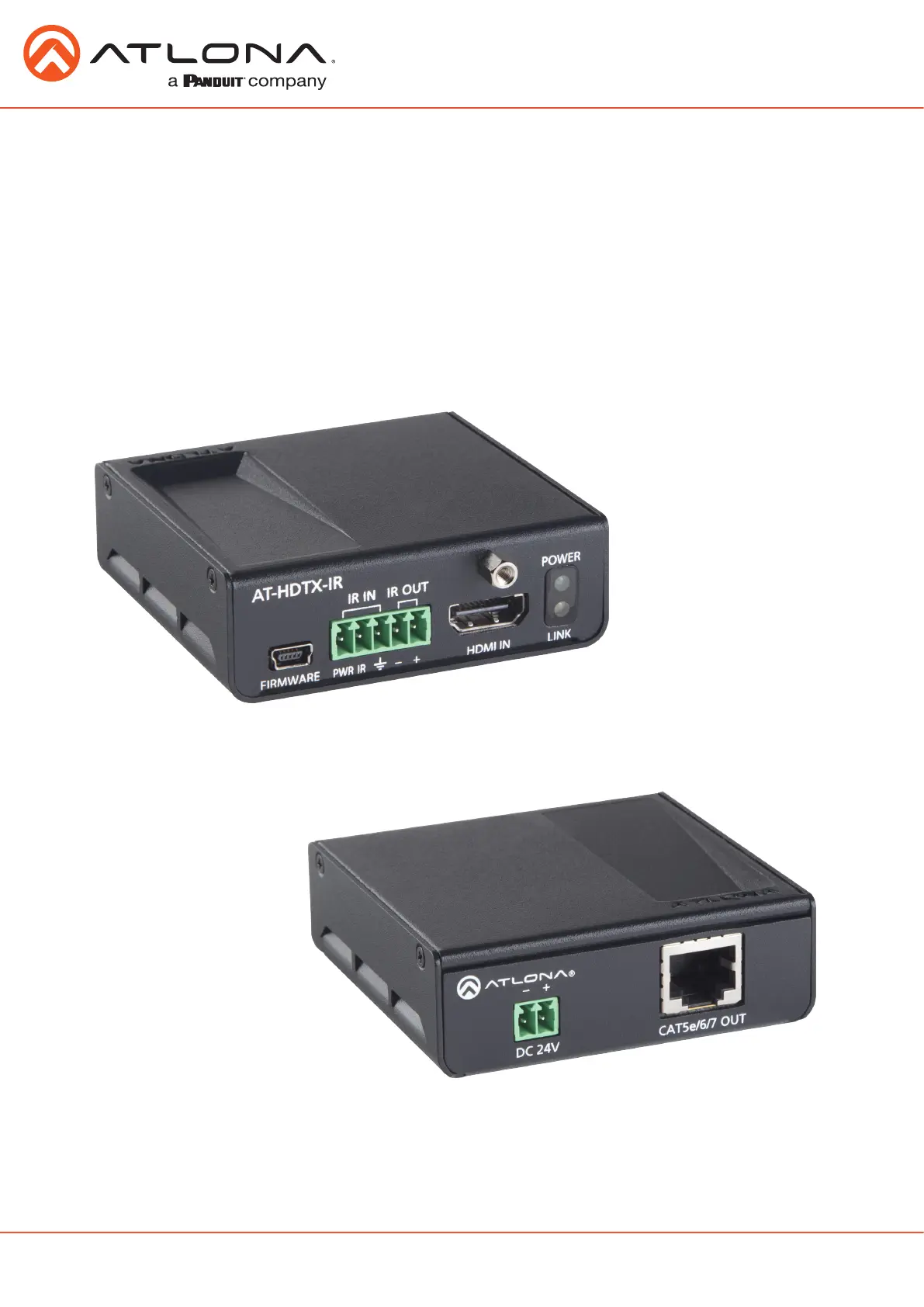

AT-HDTX, AT-HDRX, AT-HDTX-IR, and AT-HDRX-IR
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
1. Introduction ........................................................................................ 3
2. Package Contents ........................................................................................ 3
3. Features ........................................................................................ 3
4. Before You Start ........................................................................................ 3
5. Panel Descriptions
a. Front Panel ........................................................................................ 4
b. Rear Panel ........................................................................................ 4
6. Captive Screw Connection ........................................................................................ 5
7. Connection and Installation ........................................................................................ 6
8. Specifications ........................................................................................ 7
9. Safety Information ........................................................................................ 8
10. Warranty ........................................................................................ 9
11. Atlona Product Registration ........................................................................................ 10
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona HDBaseT extenders. With
pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and bi-directional IR signals over
a single category cable, the HD extenders provide affordable, high quality, solutions for your audio/
video and IR control needs.
Package Contents
Features
Before you start
• 1 x AT-HD Extender
• 1 x 24V/2.7A DC Power Supply *transmitters only*
• 2 x Female Captive Screw Connector (2 pin *power* and 5 pin *IR extenders only*)
• 1 x Pair of wall mount ears
• 1 x User Manual
• Extends IR and audio/visual content up to 230ft @ 1080p over a single category cable
• Supports 4Kx2K pass through up to 130ft
• Captive screw IR I/O ports for emitting and receiving IR control signals for use with IR remote
controls and 3rd party control boxes*
• PoCc (Power over Category cable) feature removes the need for a power supply at the receiver
• Lossy and lossless multi-channel audio formats pass through (including Dolby TrueHD and
DTS-HD Master Audio)
• Full 3D pass through
• HDCP 1.4 compliant
• Make sure when connecting the category cables a 568B termination method is used
• Avoid using patch panels and wall plates during initial set up and testing
• When installing the extenders DO NOT:
Cover the vents
Install into a wall
Install into an area without adequate air ventilation
Do not cover
venting!
