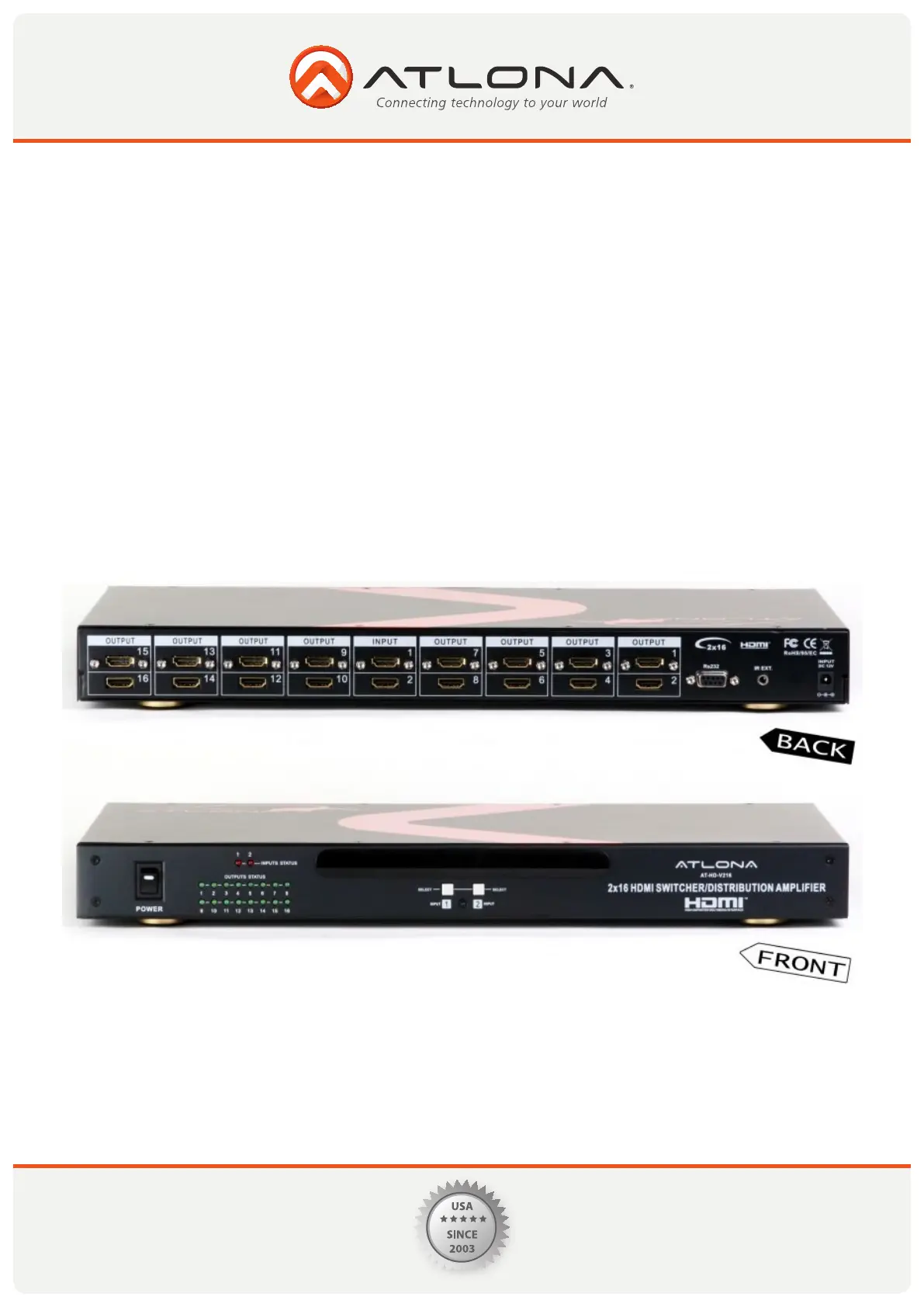

User Manual
2x16 HDMI Switcher
AT-HD-V216
1
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Features .................................................. 2
3. Specification .................................................. 2
4. Package Contents .................................................. 3
5. Panel Descriptions .................................................. 3
5.1 Front Panel .................................................. 3
5.2 Rear Panel .................................................. 4
6. Remote Control .................................................. 4
7. IR Extender .................................................. 4
7.1 IR Extender Connection .................................................. 3
7.2 The IR Extender Components Setup .................................................. 5
8. RS-232 Serial Interface .................................................. 5
8.1 RS-232 Serial Interface Connect a PC or Control System ........................... 5
8.2 RS-232 .................................................. 6
8.3 Commands .................................................. 6
9. RS-232 Protocol Commands .................................................. 6
9.1 Standby Mode .................................................. 6
9.2 Power Off Mode .................................................. 6
9.3 Front Panel Lock .................................................. 6
9.4 Unit Reset .................................................. 6
10. Applications .................................................. 7
11. Safety Information .................................................. 8
12. Warranty .................................................. 9
13. Atlona Product Registration .................................................. 10
TABLE OF CONTENTS
2
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Atlona Technologies’ AT-HD-V216 is a 2x16 HDMI Switcher designed to work as a switcher for any High Defini¬tion
Video application. With 2 HDMI Inputs and 16 HDMI Outputs, the AT-HD-V216 is capable of switching High Defini-
tion signal from two sources to sixteen displays. This switcher has multiple control options available including manual,
IR Remote, or RS232 Control. HDMI formats can reach resolutions up to 1080p or 1920x1200 and same for DVI. With
Automatic input/output HD signals detection and HDCP Compliance, Atlona’s 2x16 HDMI Routing Switcher is perfect for
all applications switching High Definition Video signals between multiple displays.
• 2x16 HDMI Switcher: 2 HDMI Output, 16 HDMI Inputs
• HDMI with HDCP Digital Video and Digital Audio
• HDMI, DVI and HDCP compliant
• Supports video bandwidth up to 6.75 Gbps (link clock rate of225 MHZ)
• Supports wide range of PC resolutions from VGA to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p,
576i/576p, 720p, 1080i,1080p and 1920x1200
• Compatible with all HDMI devices, PC monitors, Plasma TV display and HDTV
• Supports Digital Video TMDS formats in Deep Color 36bits
• Supports color depth of up to 36
• Bi-direction color space conversion(SCS) between RGB and YCBCR color spaces
• Auto-Scan input and outputs status via LED display on front panel
• Control by Select buttons on front panel, IR Remote Controller, or RS232
• IR Extenderwith 300M long distance
• Ear mount and 19 inch Rack mountable type panel
• Power supply 12V DC
• 2x16 HDMI Switcher: 2 x HDMI Input to16x HDMI Outputs
• Supports :HDMI Standard, DVI and HDCP Compliant
• Video Support: HDMI and DVI formats up to 1080p or 1920x1200.
• Audio Support: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
• Signal: TMDS Digital Video
• Compliantwith HDMI standard: HDMI and HDCP.
• HDTV Support: HDMI formats up to 1080p or 1920x1200 resolution.
• Controls: Manual or IR Remote and IR Extender (Maximum Distance 300M), or RS232
• Data Rates: 250Mbps to 6.75 Gbps.
• Pixel clocks: 25MHz to 225 Mhz.
• HDMI Cable Distance: 40ft at 6.75Gbps.
• Supports digital video standards such as: RGB/YCBCR: 24/30/36-bits; YCBCR :8/10/12/16/20/24-bits; Double data
rate interface for RGB/YCBCR: 12/15/18-bits
• Infrared frequency: 38KHz.
• Safety Approvals: CE, FCC, RoHS(2002/95/EC).
• PowerSupply: 12V DC
INTRODUCTION
