User Manual

AtlonA

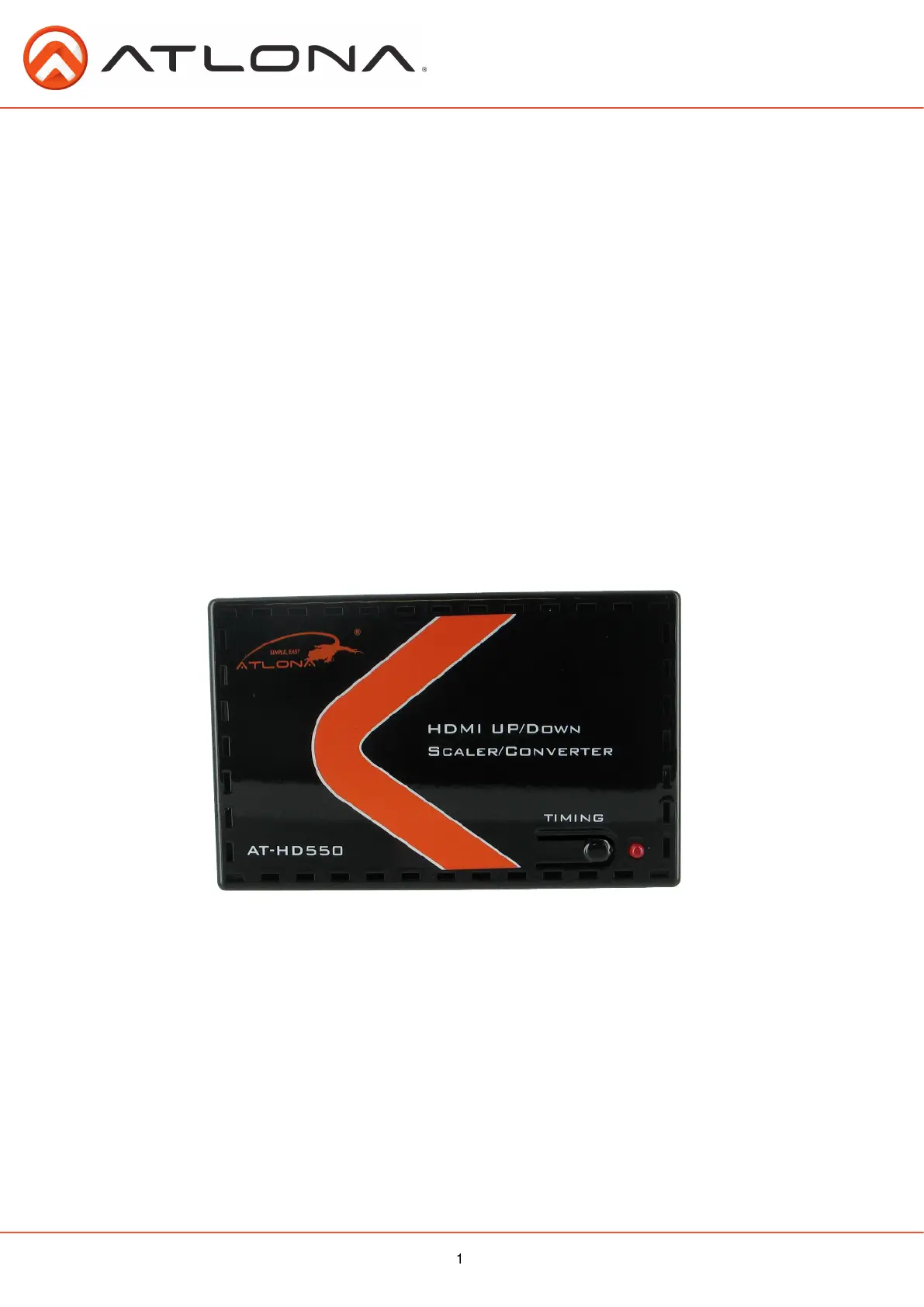

HDMI to HDMI UP/Down Converter

and Scaler

AT-HD550

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

TABLE OF CONTENTS

1. Introduction .................................................. 3

2. Applications .................................................. 3

3. Package Contents .................................................. 3

4. System Requirements .................................................. 3

5. Features .................................................. 3

6. Specication .................................................. 4

7. Hardware Description .................................................. 4

7.1. Front Panel .................................................. 4

7.2. Rear Panel .................................................. 4

7.3. Top Panel .................................................. 5

8. Connection Diagram .................................................. 5

9. Safety Information .................................................. 6

10. Warranty .................................................. 7

11. Atlona Product Registration .................................................. 8

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

INTRODUCTION

PACKAGE CONTENTS:

SYSTEM REQUIREMENTS:

APPLICATIONS:

FEATURES:

The Atlona AT-HD550 is HDMI up/down converter/scaler is designed to allow user match the native resolution

of the display. HD550 is mainly designed to be used in conjunction with HDMI Matrix Switchers, HDMI Distribu-

tion Ampliers, etc… as some displays within the installation might not support as high of a resolution as other

displays and in order to keep high resolution to the displays that can accept it, the HD550 needs to be attached

to the displays that can’t do it in order to down convert to an acceptable resolution. The supported output resolu-

tions are 1280x800, 1366x768, 1920x1200 and 720p/1080p. The AT-HD550 will accept all incoming resolutions

from 640x480 to 1920x1200 and 480p to 1080p. This unit allows the user to change the resolution of their video

signal with a variety of output resolutions and adjust for the best picture quality.

• HDMI to HDMI scaler box

• 5V DC power adaptor (universal)

• Operation Manual

Input source equipment and output HD display with HDMI connection cables.

• Retail store demo room set-up

• Home video sources displaying on a HDTV

• Low resolution content video or images displaying on a HDTV

• Situations where the incoming video signal needs to match the native resolution of the display

• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant

• HDCP compliant

• Supports HDMI v1.3 with up top 36-bit deep color mode

• Support HD resolution input: 640x480 ~ 1920x1200 480p@60, 720p@60, 1080p@60

• Support HD resolution output: 1280x800, 1366x768, 1920x1200, 720p, 1080p

• Auto –Detection and Hot plug

• Interlaced to progressive conversion with various picture display supplement

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Produktspecifikationer

Varumärke:	Atlona
Kategori:	Audio/video-omvandlare
Modell:	AT-HD550
Vikt:	226.8 g
Videolägen som stöds:	720p, 1080p
Certifiering:	CE/FCC/UL
HDCP:	Ja
Maximal videoupplösning:	1920 x 1200 pixlar
Modell:	1.1
Färgdjup:	36 bit
Värdgränssnitt:	HDMI
Spänning:	5 V
Produktens färg:	Svart
bruksanvisning:	Ja
AC-adapter inkluderad:	Ja
Harmonized System (HS)-kod:	85176990
Antal:	1
Utgränssnittet:	HDMI
Driftström:	1 A
