Sida 1/12

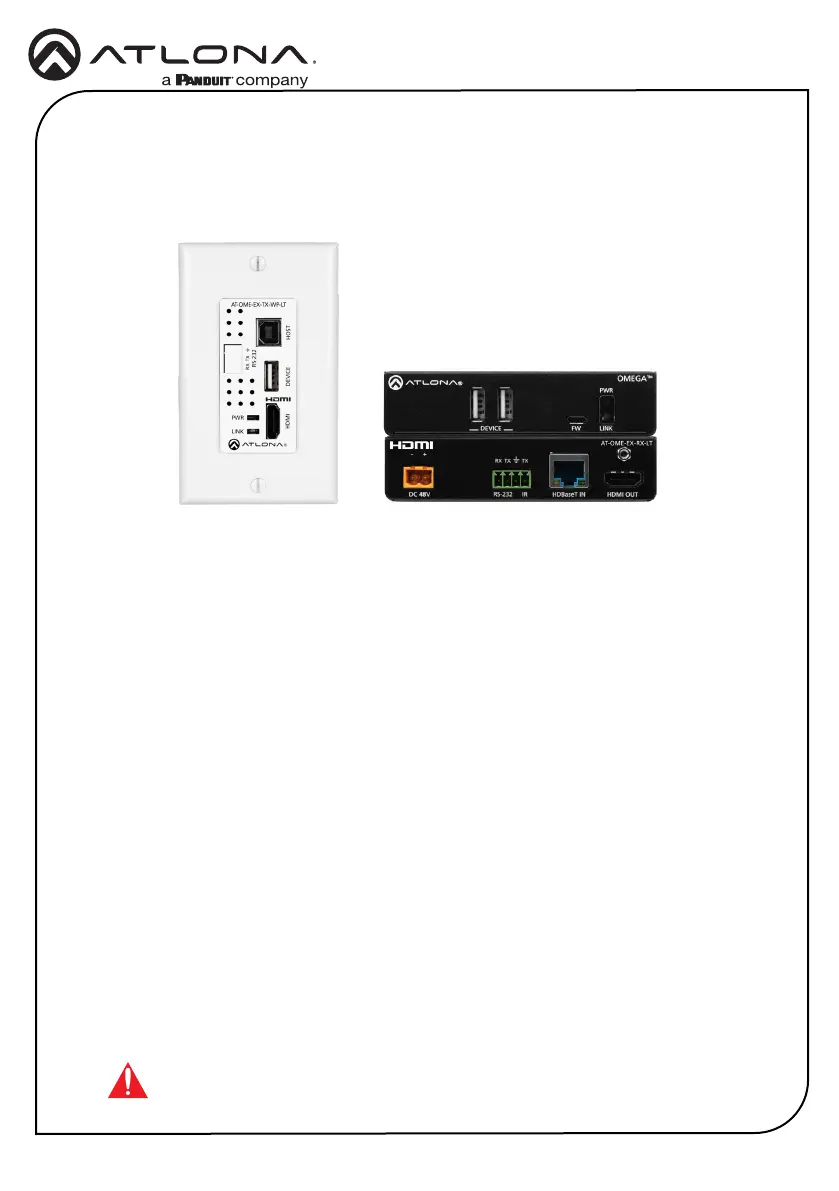

Installation Guide

AT-OME-EX-WP-KIT-LT

Omega

™

4K/UHD

Wallplate HDBaseT TX/RX for HDMI with USB

AT-OME-EX-WP-KIT-LT

The Atlona AT-OME-EX-WP-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus

embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and

up to 230 feet (70 meters) for 1080p/60 video. The transmitter features a US one-gang, wallplate

form factor, and includes interchangeable black and white wallplates and faceplates. Part of the

Omega™ Series of integration products for modern AV communications and collaboration, the

OME-EX-WP-KIT-LT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated

USB extension addresses the challenge of connecting between USB devices at remote locations,

and is ideal for software video conferencing and touch or interactive displays. The transmitter

includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone,

microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such

as a camera, soundbar, or display.

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-WP-KIT-LT for

the latest rmware updates and User Manual.

1 x AT-OME-EX-TX-WP-LT

1 x White faceplate

1 x White RS-232 cover

1 x White wallplate

1 x Black faceplate

1 x Black RS-232 cover

1 x Black wallplate

4 x Mounting screws (2x course thread, 2x ne

thread)

1 x 3-pin captive screw connector

1 x Installation Guide

1 x AT-OME-EX-RX-LT

1 x 4-pin captive screw connector

2 x Mounting plates

4 x Mounting screws

1 x 48 V DC power supply

Package Contents

Installation Guide

AT-OME-EX-WP-KIT-LT

HDBaseT

OUT

LINK

PWR

HDMI DEVICE HOST

RX TX

RS-232

AT-OME-EX-TX-WP-LT

HDBaseT

OUT

LINK

PWR

HDMI DEVICE HOST

RX TX

RS-232

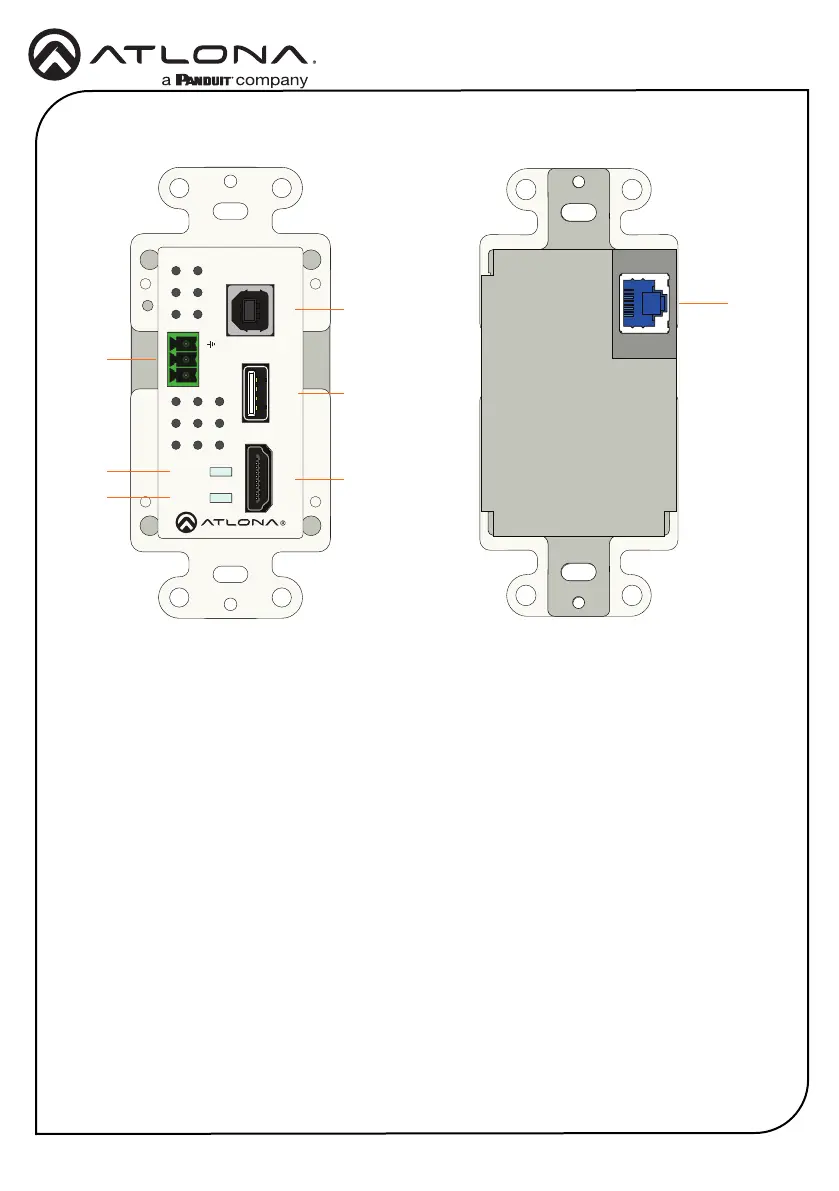

AT-OME-EX-TX-WP-LT

1 HOST

Connect a USB cable from the computer

to this port.

2 RS-232

Connect an RS-232 control system to this

port. Connect the included 3-pin captive

screw connector to this receptacle. Refer

to AT-OME-EX-TX-WP-LT RS-232 (page

4) for more information. Note that this

port is covered by a plate and must be

removed to expose the RS-232 port.

3 DEVICE

Connect a USB device, such as a

speakerphone, to this port. This port

provides 2.5 W of power.

4 PWR

This LED indicator glows solid green when

the unit is powered. Refer to AT-OME-EX-

TX-WP-LT LED Indicators (page 8) for

more information.

5 HDMI

Connect an HDMI cable from this port to a

UHD/HD source.

6 LINK

This LED indicator glows solid amber to

indicate that the HDBaseT signal integrity

is good. Refer to AT-OME-EX-TX-WP-

LT LED Indicators (page 8) for more

information.

7 HDBaseT OUT

Connect a category cable from this port

to the HDBaseT IN port of the AT-OME-

EX-RX-LT.

AT-OME-EX-TX-WP-LT

Front Rear

Installation Guide

AT-OME-EX-WP-KIT-LT

FWHOST

OMEGA

DEVICE

PWR

LINK

OMEGA

DEVICE

PWR

LINK

HDMI OUTHDBaseT IN

RX TXTX

RS-232 IR

AT-OME-EX-RX-LT

DC 48V

AT-OME-EX-TX-LT

HDMI INHDBaseT OUT

RX RXTX

RS-232 IRTEST

FWHOST

OMEGA

DEVICE

PWR

LINK

OMEGA

DEVICE

PWR

LINK

HDMI OUTHDBaseT IN

RX TXTX

RS-232 IR

AT-OME-EX-RX-LT

DC 48V

AT-OME-EX-TX-LT

HDMI INHDBaseT OUT

RX RXTX

RS-232 IRTEST

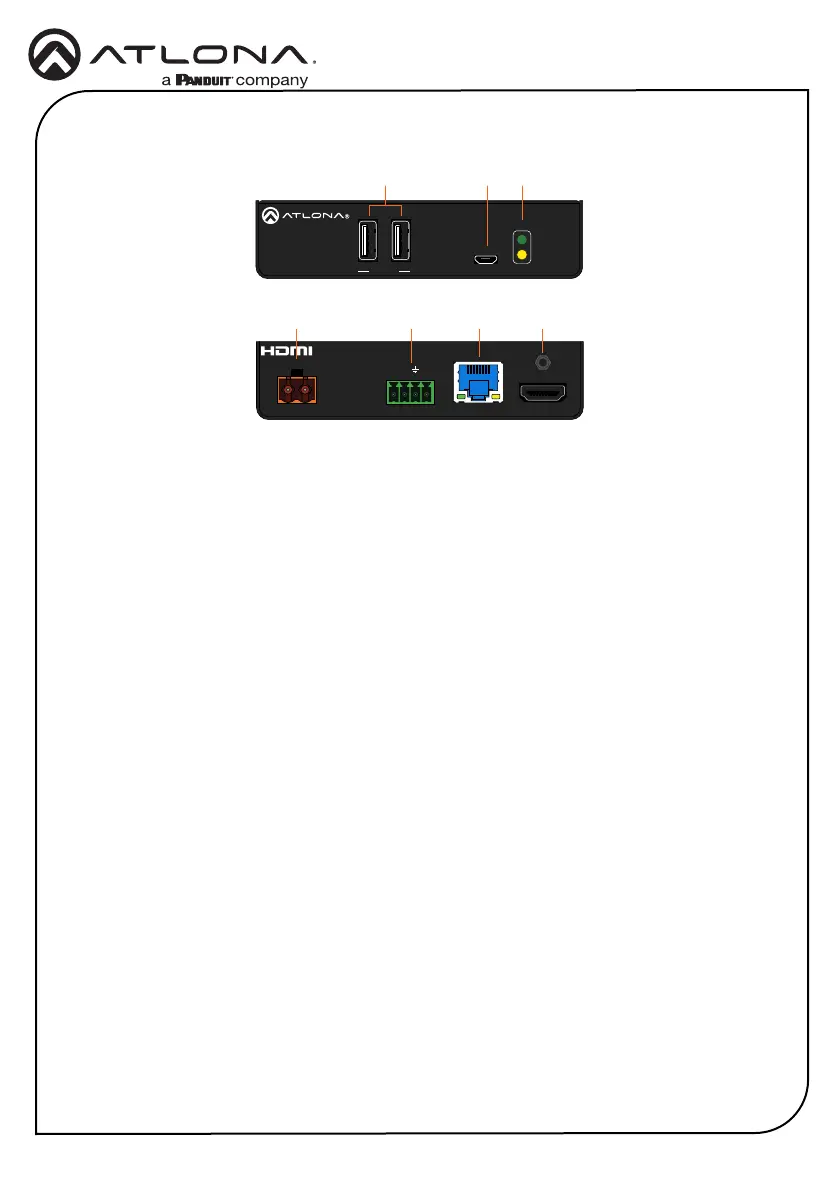

1 DEVICE

Connect up to two USB 2.0 devices (e.g. mouse, keyboard, etc.) to these ports.

These ports provide 2.5 W per USB device.

2 FW

Not used. When updating the AT-OME-EX-TX-WP-LT, the AT-OME-EX-RX-LT will also be

updated. Note that both units must be connected using the HDBaseT ports.

3 PWR / LINK

The PWR LED indicator will glow green when the AT-OME-EX-RX-LT is powered. The LINK

LED indicator glows yellow when a solid link is established between the AT-OME-EX-TX-

WP-LT and AT-OME-EX-RX-LT. Refer to AT-OME-EX-RX-LT LED Indicators (page 9) for

more information.

4 DC 48V

Connect the included 2-pin captive screw connector from this receptacle to the power

supply. This connection supplies power to the AT-OME-EX-TX-WP-LT. Refer to AT-OME-

EX-RX-LT Power (page 5) for more information.

5 RS-232 / IR

Connect the included 4-pin captive screw connector to this receptacle. Refer to AT-OME-

EX-RX-LT RS-232 and IR (page 5) for more information.

6 HDBaseT IN

Connect a category cable from this port to the HDBaseT OUT port of the AT-OME-EX-TX-

WP-LT. The AT-OME-EX-TX-WP-LT is powered by the AT-OME-EX-RX-LT over HDBaseT.

7 HDMI OUT

Connect an HDMI cable from this port to the display (sink) device.

AT-OME-EX-RX-LT

Front

Rear

54 6

2 3

Produktspecifikationer

Varumärke:	Atlona
Kategori:	Audio/video-omvandlare
Modell:	AT-OME-EX-WP-KIT
Vikt:	180 g
Bredd:	45.8 mm
Djup:	67 mm
Höjd:	103.5 mm
LED-indikatorer:	Ja
Ljudformat som stöds:	LPCM, PCM
Videolägen som stöds:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximal upplösning:	4096 x 2160 pixlar
HDCP:	Ja
HDMI-version:	2.0
Grafikupplösningar som stöds:	2048 x 1080,3840 x 2160,4096 x 2160
Modell:	Sändare och mottagare för AV-utrustning
Färgdjup:	24 bit
USB-anslutning:	USB Type-A, USB Type-B
RJ-45 utgångsportar:	1
HDCP-version:	2.2
HDBaseT-port:	Ja
Kabeltyper som stöds:	Cat5e, Cat6, Cat6a, Cat7
Produktens färg:	Black, White
Antal USB-portar:	2
Strömförbrukning (vanlig):	11.18 W
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
Anslutningsteknologi:	Kabel
Strömkälla av typen:	USB
Maximal överföringshastighet avstånd:	100 m
HDMI-in:	1
RS-232-ingångar:	1
