Sida 1/12

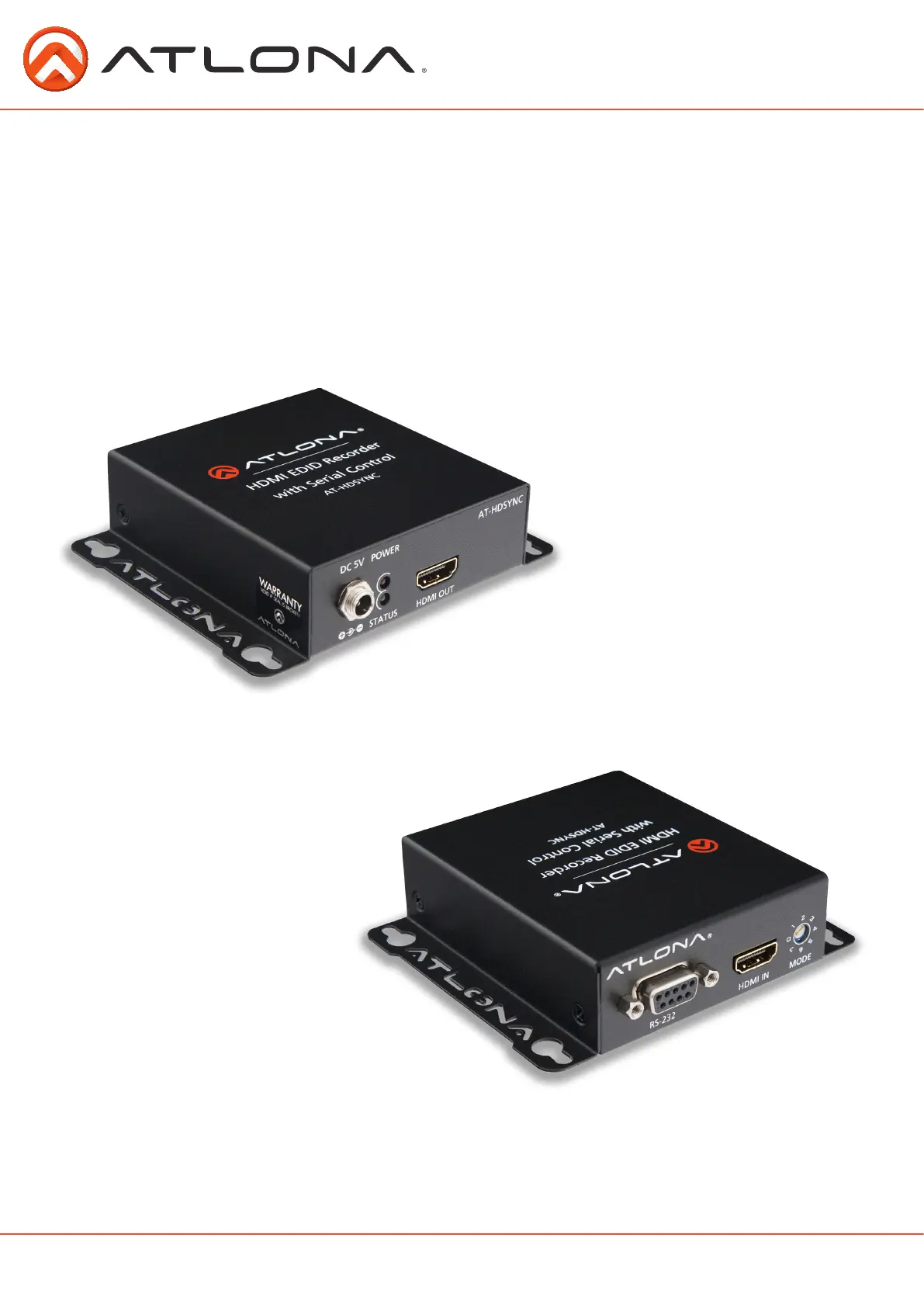

User Manual

Atlona HDMI Recorder

and Hot Plug Emulator

AT-HDSync

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

1. Introduction ................................................................................... 3

2. Package Contents ................................................................................... 3

3. Features ................................................................................... 3

4. Panel Descriptions

a. Front Panel ................................................................................... 4

b. Rear Panel ................................................................................... 4

5. Software

a. Set up ................................................................................... 5-6

b. Read EDID ................................................................................... 6

c. Save EDID ................................................................................... 6

d. View/Analyze EDID ................................................................................... 6-7

e. Load/Edit/Write ................................................................................... 7

6. Firmware Update ................................................................................... 7

7. Specifications ................................................................................... 8

8. Safety Information ................................................................................... 9

9. Warranty ................................................................................... 10-11

10. Atlona Product Registration ................................................................................... 11

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Table of Contents

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Introduction

Read, copy and replicate almost any EDID with the AT-HDSync. With built in EDID memory the

HDSync is perfect for large installations where EDID issues usually occur. Simply learn the display’s

EDID, place the HDSync in the line next to the source and watch HDCP and EDID problems

disappear. The Atlona HDMI Recorder and Hot Plug Emulator is an easy and affordable solution for

some of the most common installation problems out there.

Package Contents

Features

• 1 x AT-HDSync unit

• 1 x 5V DC power supply unit

• 1 x Software CD

• 1 x User manual

• Able to read and store the EDID of a display

• 6 built in EDIDs to ensure the correct resolutions and audio are passed through

• Nonvolatile EDID memory - will keep the saved EDID information even after power loss

• Built in hot plug emulator with the ability to boot your source directly from the HDSync

• Comes with software for the ability to analyze, save, and troubleshoot EDID

• Easy firmware upgrading through RS-232

• HDCP Compliant

Produktspecifikationer

Varumärke:	Atlona
Kategori:	Audio/video-omvandlare
Modell:	AT-HDSYNC
Bredd:	91 mm
Djup:	80 mm
Höjd:	27 mm
Videolägen som stöds:	1080p
Maximal videoupplösning:	1920 x 1200 pixlar
Värdgränssnitt:	1 x HDMI, 1 x RS-232
Bandbredd:	6.75 Gbit/s
Driftspänning:	5 V
Produktens färg:	Black, Red
bruksanvisning:	Ja
Utgränssnittet:	1 x HDMI
Driftström:	3 A
