User Manual
Atlona HDBaseT
Wall Plate Receivers

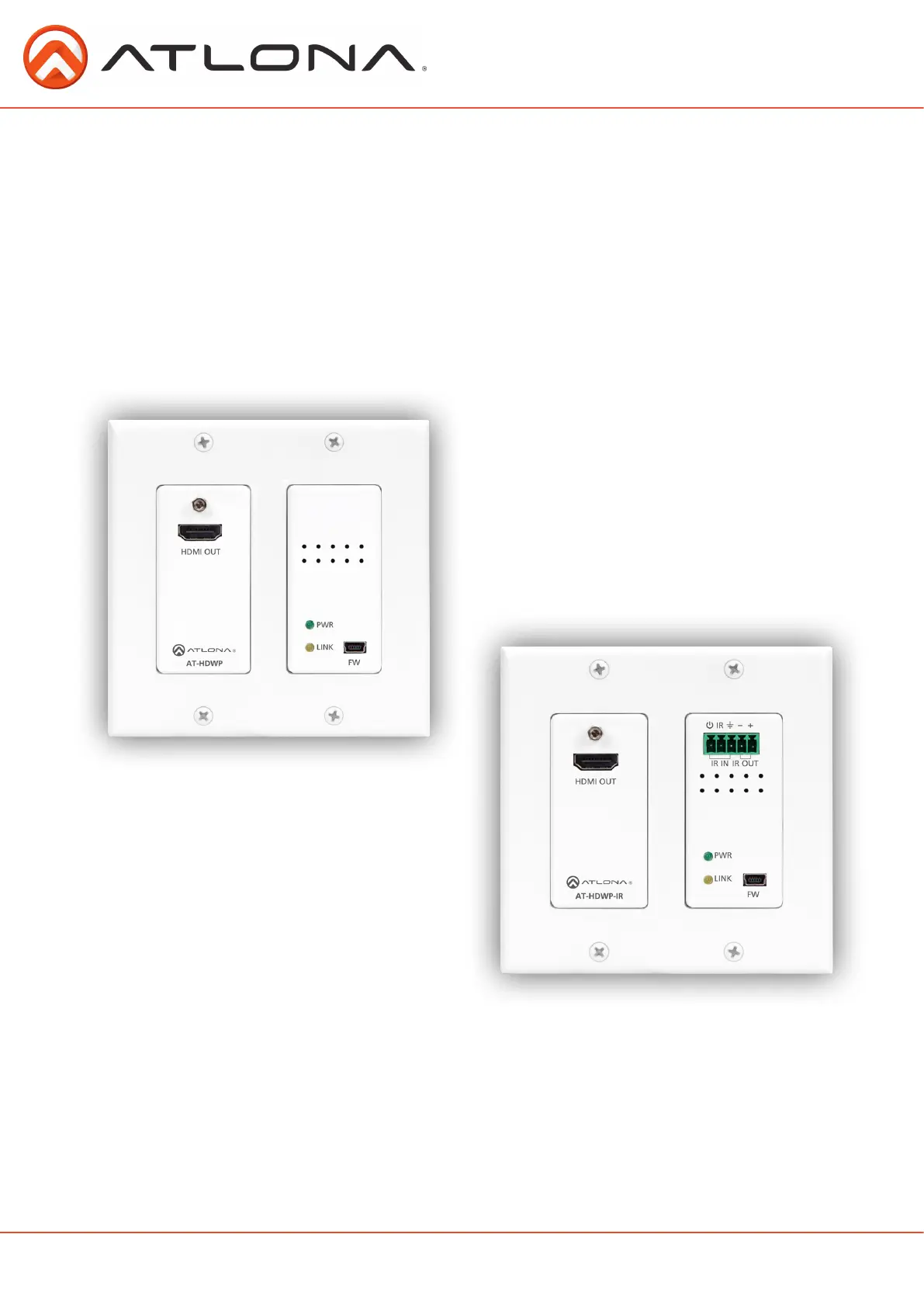

AT-HDWP, AT-HDWP-IR
AT-HDWP
AT-HDWP-IR
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
1. Introduction ................................................................................... 3
2. Package Contents ................................................................................... 3
3. Features ................................................................................... 3
4. Panel Descriptions ................................................................................... 4
5. Electrical Box ................................................................................... 4
6. Wall plate installation ................................................................................... 5-6
7. Captive Screw ................................................................................... 7
8. Connection ................................................................................... 8-10
9. Specifications ................................................................................... 11
10. Safety Information ................................................................................... 12
11. Warranty ................................................................................... 13-14
12. Atlona Product Registration ................................................................................... 14
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona HDBaseT Wall Plate
Receivers. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and
bi-directional IR* signals over a single category cable, the HD extenders provide affordable, high
quality, solutions for your audio/video and IR* control needs.
Package Contents
Features
• 1 x AT-HDWP Receiver
• 1 x Decora® Faceplate
• 1 x Female Captive Screw Connector (5 pin*)
• 4 x 5/16” Phillips head screws for electrical box
• 4 x 5/16” PK/20 screws for the face plate
• 1 x IR Emitter (HDWP-IR only)
• 1 x IR Receiver (HDWP-IR only)
• 1 x User Manual
• Extends IR and audio/visual content up to 230ft @ 1080p over a single category cable
• Supports 4Kx2K pass through
• Built to be hidden, the wall plate form allows the receiver to be hidden behind wall mounted TVs
• USB updating for easy, in the field, firmware updates
• Captive screw IR I/O ports for emitting and receiving IR control signals for use with IR remote
controls and 3rd party control boxes (HDWP-IR only)
• PoCc (Power over Category cable) feature removes the need for a power supply when paired with
a compatible transmitter. (Ex. HDTX, HDTX-IR, PRO3HD44M, etc.)
• Lossy and lossless multi-channel audio formats pass through (including Dolby TrueHD and
DTS-HD Master Audio)
• Full 3D pass through
• HDCP compliant
* IR extender versions only
