User Manual

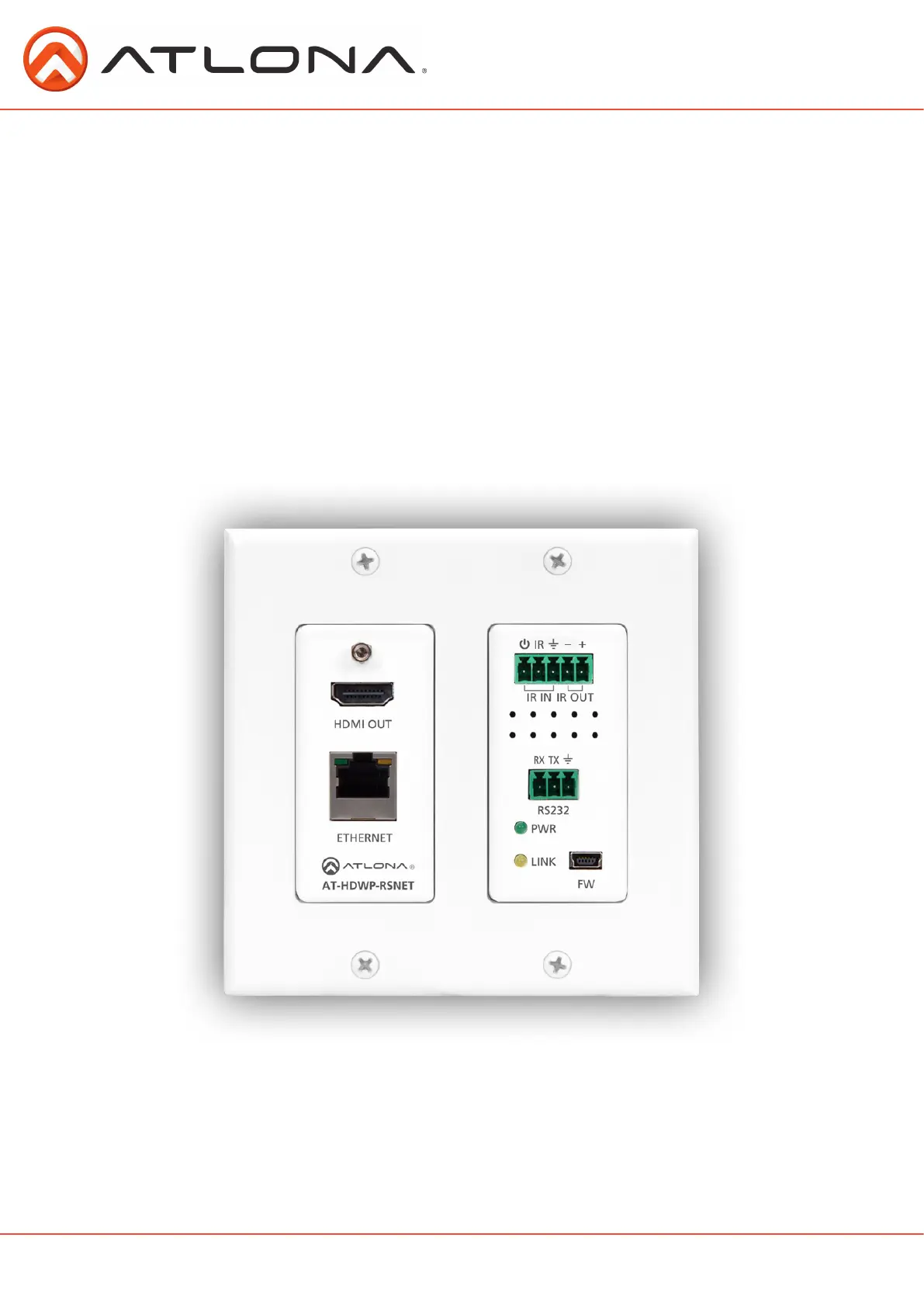

Atlona HDBaseT Wall Plate
Receiver w/RS-232, IR, and
Ethernet
AT-HDWP-RSNET
2
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction ................................................................................... 3
2. Package Contents ................................................................................... 3
3. Features ................................................................................... 3
4. Panel Descriptions ................................................................................... 4
5. Electrical Box ................................................................................... 4
6. Wall plate installation ................................................................................... 5-6
7. Captive Screw ................................................................................... 7
8. Connection ................................................................................... 8-9
9. Specifications ................................................................................... 10
10. Safety Information ................................................................................... 11
11. Warranty ................................................................................... 12-13
12. Atlona Product Registration ................................................................................... 13
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Go the distance of up to 328ft (100m) at 4Kx2K with the Atlona HDBaseT Receiver Wall Plate.
With pass through support of up to 4Kx2K, IR, RS-232, Ethernet, as well as lossy and lossless audio
signals over a single category cable, the HDWP-RSNET provides an affordable high quality solution
for your audio/video and control needs.
Package Contents
Features
• 1 x AT-HDWP-RSNET
• 2 x Female Captive Screw Connector (3 pin: RS-232 and 5 pin: IR)
• 4 x 5/16” Phillips head screws for the electrical box
• 4 x 5/16” PK/20 screws for the face plate
• 1 x Decora® Face Plate
• 1 x IR Emitter
• 1 x IR Receiver
• 1 x User Manual
• Extends IR, RS-232, Ethernet, and audio/visual content up to 328ft over a single category cable
• Supports resolutions up to 4Kx2K (four times 1080p) or 1920x1200 on pass through
• Built to be hidden, the wall plate form allows the receiver to be hidden behind wall mounted TVs
• USB updating for easy, in the field, firmware updates
• Captive Screw connectors for RS-232 and IR for better connection reliability and wire
management.
• IR ports for emitting and receiving IR control signals for use with IR remote controls and 3rd party
IR controller boxes
• Bi-directional Ethernet pass through for smart TVs, AVRs, and other Internet devices
• PoCc (Power over category cable) from compatible transmitters (Ex. AT-HDTX-RSNET)
• Lossy, and lossless multi-channel audio formats pass through (including Dolby TrueHD and
DTS-HD Master Audio)
• Full 3D pass through
• HDCP compliant
