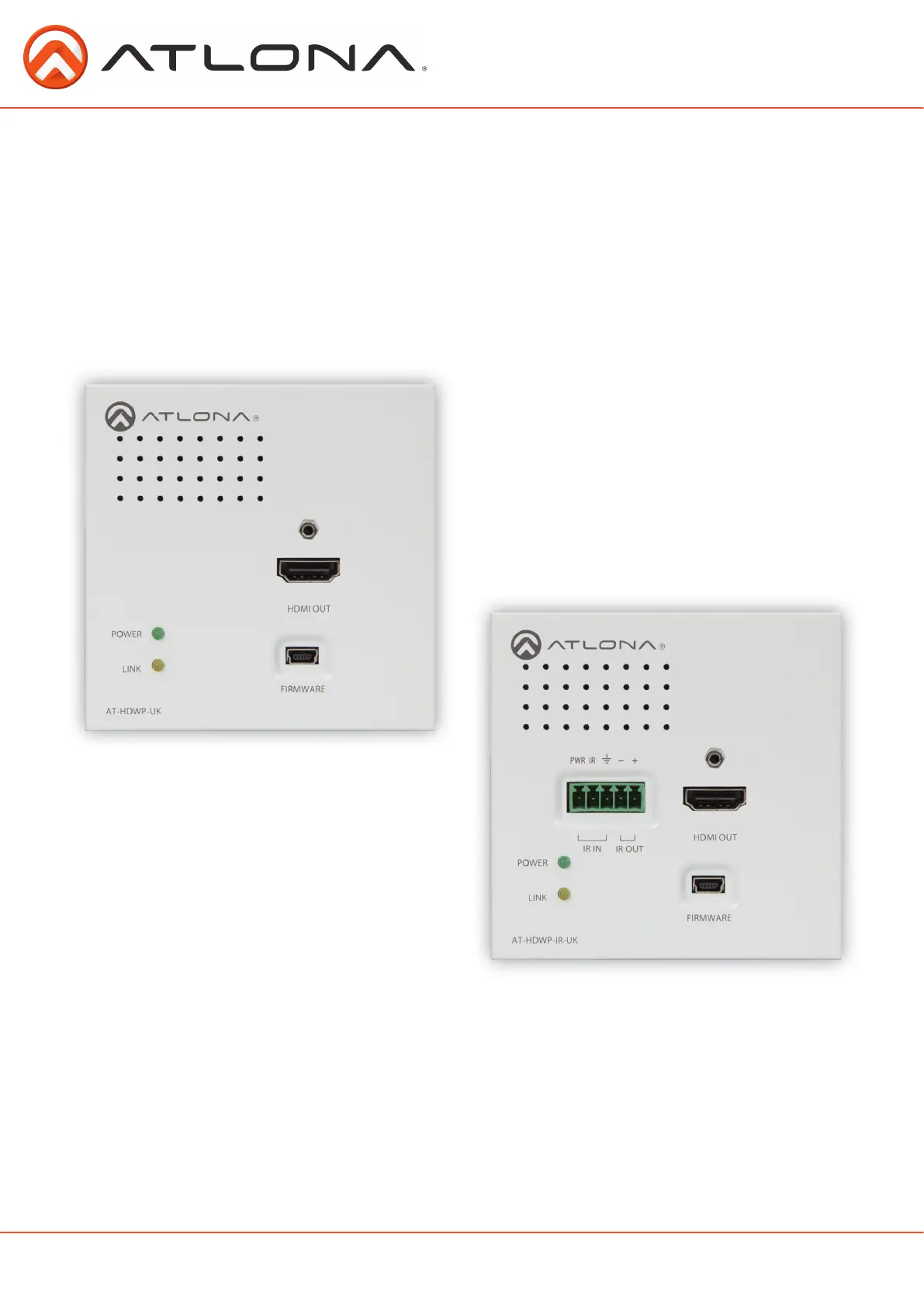

User Manual

Atlona UK HDBaseT

Wall Plate Receivers

AT-HDWP-UK, AT-HDWP-IR-UK

AT-HDWP-UK

AT-HDWP-IR-UK

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

1. Introduction ................................................................................... 3

2. Package Contents ................................................................................... 3

3. Features ................................................................................... 3

4. Panel Descriptions ................................................................................... 4

5. Electrical Box ................................................................................... 4

6. Wall plate installation ................................................................................... 5-6

7. Captive Screw ................................................................................... 7

8. Connection ................................................................................... 8-10

9. Specifications ................................................................................... 11

10. Safety Information ................................................................................... 12

11. Warranty ................................................................................... 13-14

12. Atlona Product Registration ................................................................................... 14

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Table of Contents

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Introduction

Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona UK HDBaseT Wall Plate

Receivers. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and

bi-directional IR* signals over a single category cable, the HD extenders provide affordable, high

quality, solutions for your audio/video and IR* control needs.

Package Contents

Features

• 1 x AT-HDWP-UK Receiver

• 1 x Male Captive Screw Connector (5 pin - HDWP-IR-UK only)

• 2 x 30mm screws for the electrical box

• 4 x 4mm screws for the face plate

• 1 x IR Emitter (HDWP-IR-UK only)

• 1 x IR Receiver (HDWP-IR-UK only)

• 1 x User Manual

• Extends IR* and audio/visual content up to 230ft @ 1080p over a single category cable

• Supports 4Kx2K pass through up to 130ft

• Built to be hidden, allowing the receiver to be hidden behind a wall mounted TV

• USB updating for easy, in the field, firmware updates

• Captive screw IR* I/O ports for emitting and receiving IR control signals for use with IR remote

controls and 3rd party control boxes (HDWP-IR only)

• PoCc (Power over Category cable) feature removes the need for a power supply when paired with

an Atlona compatible HDBaseT transmitter, matrix, or distribution amplifier.

(Ex. HDTX, HDTX-IR, PRO3HD44M, AT-HDCAT-4, etc.)

• Lossy and lossless multi-channel audio formats pass through (including Dolby TrueHD and

DTS-HD Master Audio)

• Full 3D pass through

• HDCP compliant

* IR extender version only
