ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ CONVERTER
DAC100 Sig
ATOLL ELECTRONIQUEPage 5Page 4

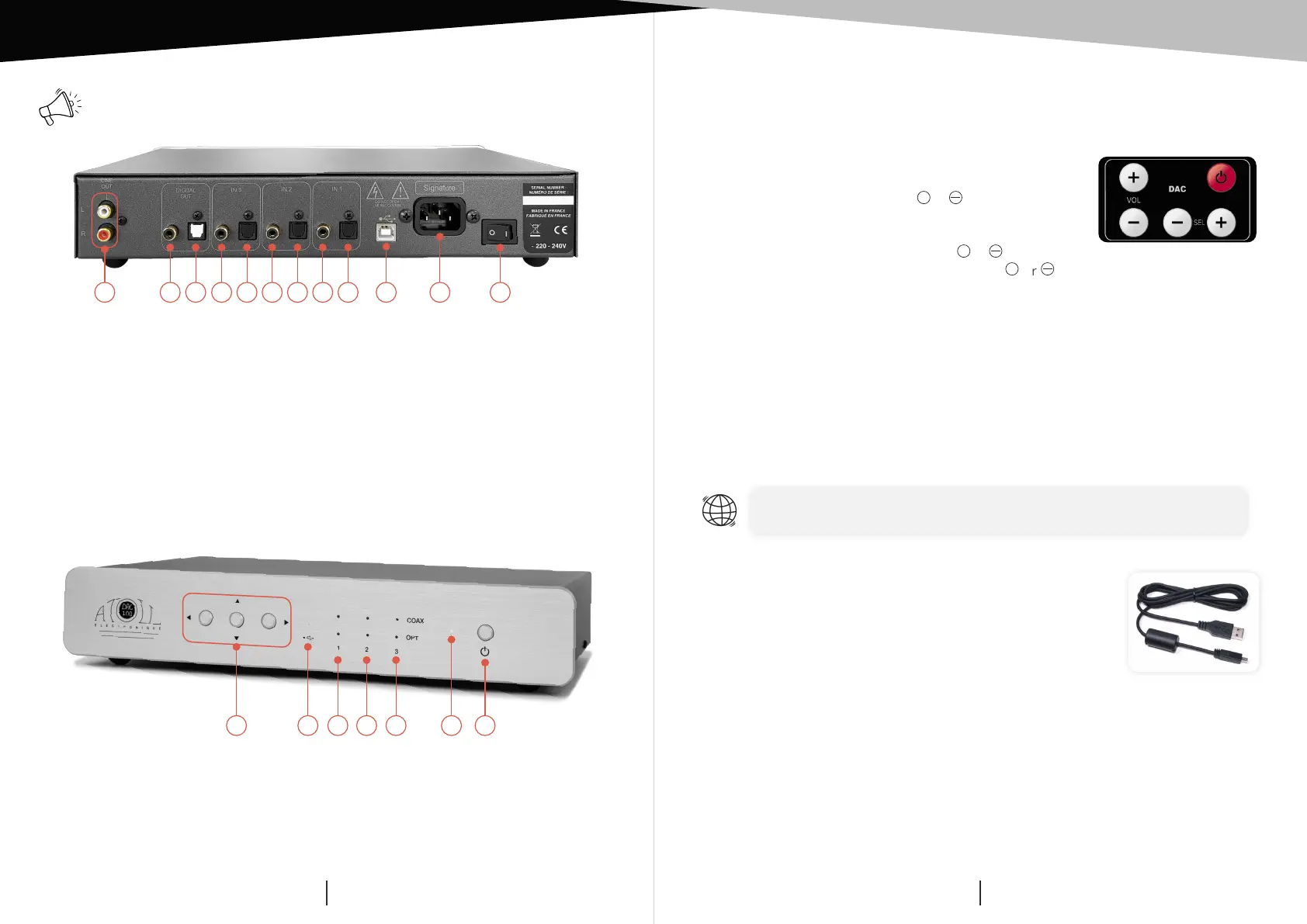

1) Analog output (Left & Right).
2) Digital output (coaxial).
3) Digital output (optical).
4) Input #3 (coaxial).
5) Input #3 (optical).
6) Input #2 (coaxial).
7) Input #2 (optical).
8) Input #1 (coaxial).
9) Input #1 (optical).
10) USB Input (B type).
11) General power plug.
12) ON/OFF Switch.
CONNECTINGREMOTE CONTROL
DETAILS OF FUNCTIONS
Reminder: do not make any connections when your device is turned on.
13) Inputs selection keys.
14) USB input indicator signal.
15) Input 1 indicator signal (coax. or optical).
16) Input 2 indicator signal (coax. or optical).
Note: Digital outputs (optical & coaxial) receives reformatting datas in both directions: optical
to coaxial and/or coaxial to optical. Similarly, inputs data on USB input are redirected to the
digital outputs.
The converter DAC100 Signature can be used with the ATOLL remote control that will
let you:
– Put ON/OFF the converter.
– Select the sources: with keys SEL
+
&, you can select
the different inputs.
– Adjust the volume level: with keys VOL
+
&, you can
attenuate the level to 0 : while pressing the keys
+
or , led
indicator (17) twinkles.
Putting the converter in Stand-by mode will not change the
sound level. This level will be reinitialized at its highest level
if the converter is switsh off (11).
Your appliance is equipped with a High-Res. asynchronous USB Input (B type). It will
be possible to use it only when you’ll have downloaded the appropriate driver on your
computer. This driver can be freely downloaded on our website at the page:
You will find attached an explanatory guide on how to install
this driver.
This driver is not required for Macintosh computers.
In order to avoid problems with high quality format transfers
(24 bits / 192 kHz or DSD), it is recommended to use a USB
connection cable with ferrite.
USB INPUT
ACCEPTED FORMATS
• Accepted format on optical and coaxial Inputs: 16-24 bits (32 kHz, 44,1 kHz,
48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and 192 kHz).
• Accepted format on USB Input:
– DSD: DSD64 and DSD128.
– PCM: 16-24 bits (44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and
192 kHz).
13141516171819
17) Input 3 indicator signal (coax.
or optical).
18) Stand-by indicator signal.
19)ON/OFF key.
123468579121110
https://www.atoll-electronique.com/en/xmos-specific-driver-usb/
