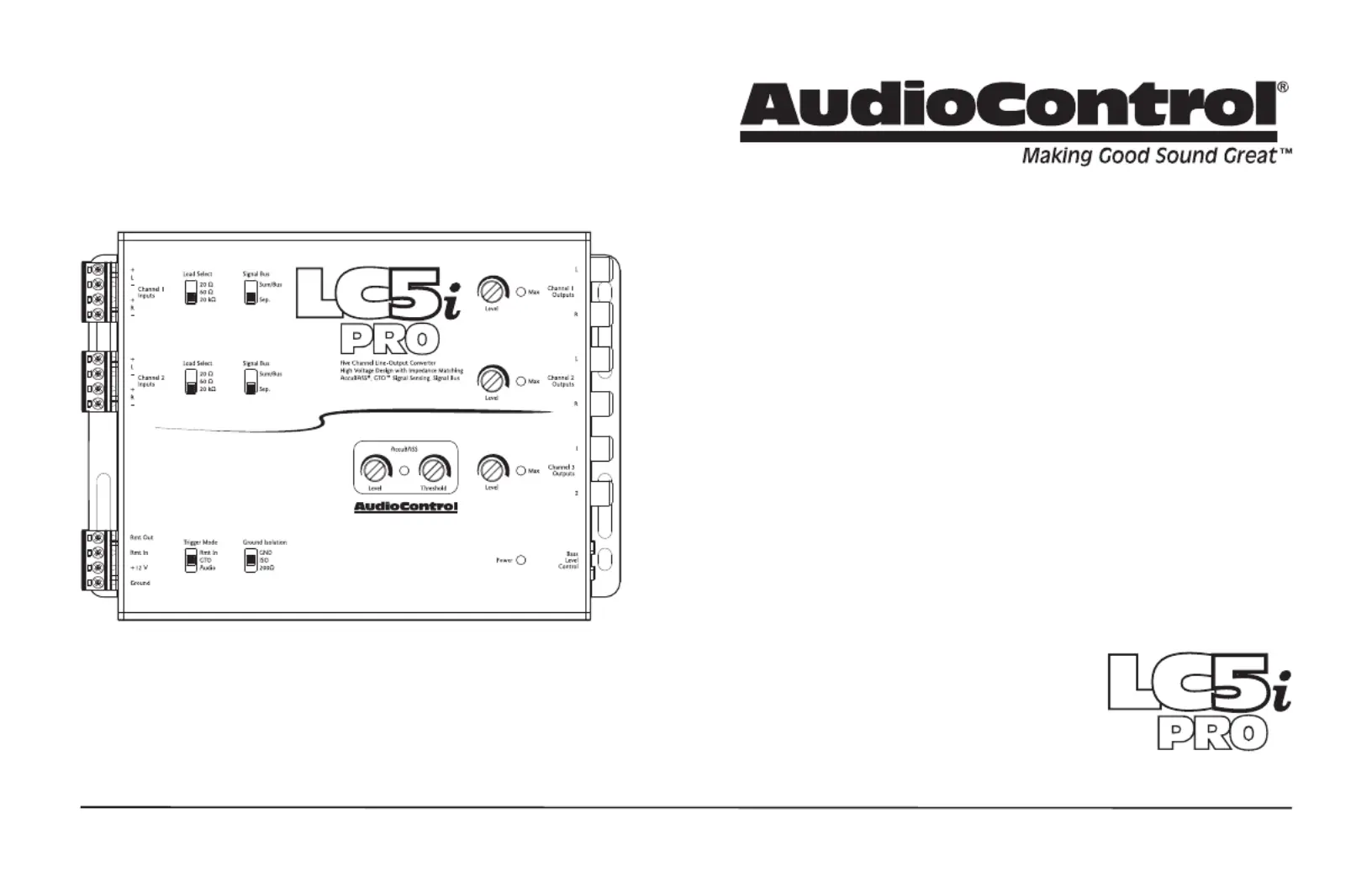

FIVE CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS®
Quick Start Guide
Features
• Four channels of active speaker level inputs (up to 40V input
handling)
• Variable outputs with discrete level controls
• AccuBASS® processing for correction of bass roll-off
• Internal channel summing
• Load Selection Switch
• GTO
TM
Signal Sensing
• Audio Sense turn-on
• Ground Isolation Switch
• ACR-1 dash remote included
• Fun for all ages
2
Quick Start Guide
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not submerge this apparatus in water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as mufflers, silencers, exhaust
pipes, or other apparatus (including amplifiers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualified
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and ground wiring of sufficient size to ensure adequate
current to the device. For the LC5i PRO, this means 16-14 gauge wire.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specified by the manufacturer.
13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged, objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. A 2 amp fuse is recommended on the +12V power wire.
15. Not tested for use in outer space.
16. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.

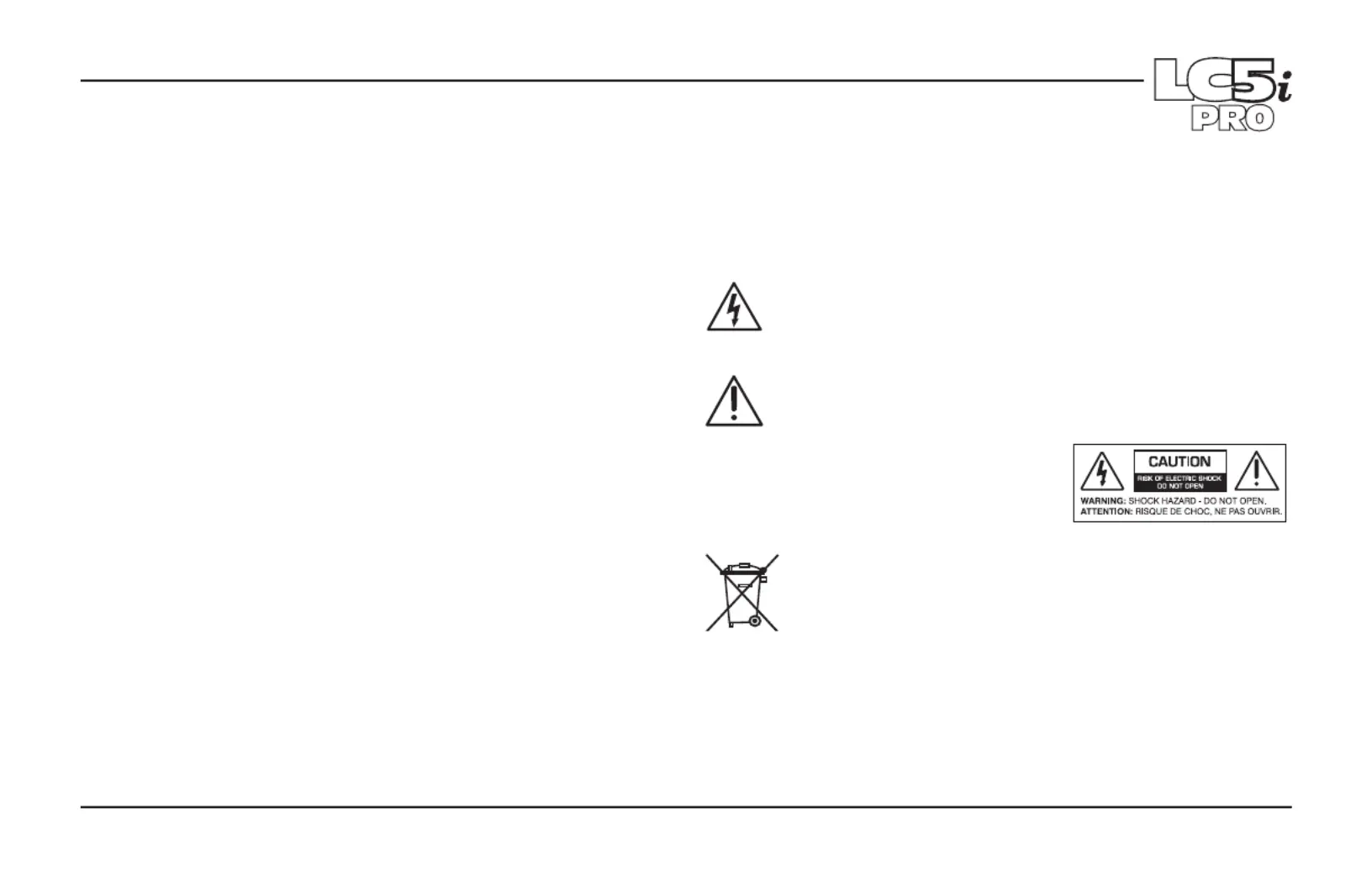

The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus. There are no
user-serviceable parts inside. Refer servicing to
qualified personnel.
Recycling notice: If the time comes and this apparatus has fulfilled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
3
Quick Start
Since some of you hyper-excited enthusiasts will want to install your LC5i
PRO on your own, here are a few general steps to get you up and running.
You should also refer to the additional sections of this manual for more
information and installation examples.
1. LC5i PRO is active and REQUIRES CONSTANT +12V POWER
2. Pick a suitable mounting location that will provide access to the controls
and connections. Protect the LC5i PRO from heat, moisture, and dirt.
3. Use the integrated mounting brackets to mount the LC5i PRO.
4. Before drilling holes, take every precaution to prevent damage to fuel
lines, power and other electrical wiring, hydraulic brake lines, and other
systems that might compromise vehicle safety.
5. When making connections, designate red RCA plugs as right, and
designate white, black, or gray plugs as left.
6. Connect the +12V input terminal of the unit to the +12V terminal on the
vehicle battery (or distribution block) using 16 to 14 AWG.
7. Connect the Ground terminal of the unit to the Ground/Negative
terminal of the battery (or distribution block) using the same gauge wire
as the +12V power wire.
8. For +12V remote turn on the Trigger Mode switch must be set to “Rmt In”.
Connect the Remote In (Rmt In) terminal of the unit to a remote turn-on
switch. Alternately, use GTO™ Signal Sense or Audio Sense to trigger the
unit on without a remote wire.
9. Connect the speaker outputs of your factory head unit or amplifier to the
Speaker Level Inputs on the LC5i PRO.
10. Run the ACR-1 remote wire to the front of your vehicle.
11. Connect the Channel Output RCAs to your aftermarket amplifier.
12. Connect the Remote Out (Rmt Out) to your aftermarket amplifier.
13. Adjust the input gain using the Output Level knobs.
14. Adjust AccuBASS using the AccuBASS Threshold and Level knobs.
15. Enjoy the drive!
