USER MANUAL
AXIS P3363–V
About this Document
This manual is intended for administrators and users of the AXIS
P3363–V Fixed Dome Network Camera, and is applicable to firmware
5.40 and later. It includes instructions for using and managing the
product on your network. Previous experience of networking will be of
use when using this product. Some knowledge of UNIX or Linux-based
systems may also be beneficial, for developing shell scripts and
applications. Later version s of th is do cument will be posted to the Axis
website, as required. See also t he product’s on line help, a v a ila ble via
the web-based interface.
Liability
Every care has been taken in the preparation of this manual. Please
inform your local Axis office of any inaccuracies or omissions. Axis
Communications AB cannot be held responsible for any technical or
typographical e rrors and reserves the right to make changes to the
product and manuals without prior notice. Axis Communications AB
makes no warranty of any kind with regard to the material c ontained
within this document, including , but not limited to, the impli e d
warranties of me rchantability and fitness for a particular purpose. Axis
Communications AB shall not be liable nor responsib le for incidental or
consequential damages in connection with the furnishing, performance
or use of th is material. This product is only to be used for its intended
purpose.
Intellectual Property R ights
Axis AB has intellectua l property rights relating to technology embodied
in the product described in this document. In particular, and without
limitation, these intellectu al property rights may include one or more
of the patents listed at http://www.axis.com/patent.ht m and one or
more additional patents or pending patent applications in th e US and
other countries.
This product conta ins licensed third-party software. Se e the menu item
“About” in the product’s user interface for more information.
This product contains source code copyright Apple Computer,
Inc.,underthetermsofApplePublicSourceLicense2.0(see
http://www.opensource.ap ple.com/apsl). The source c ode is available
from http://developer.apple.com/darwin/projects/bonjou r/
Equipment Modifications
This equipment must be installed and u sed in strict accordance with the
instructions given in the user documentation. This equipment contains
no user-ser viceable components. Una uthorized equipm e nt changes or
modifications will invalidate a ll applicable regulatory certifications
and approvals.
Trademark Acknowledgments
Apple, Boa, Bonjour, Ethernet, Internet Explorer, Linux , Microso
ft,
Mozilla, Real, SMPTE, Qui ckTime, UNIX, W indows, Windows Vista and
WWW are registered tradema rks of the respective holders. Java and
all Java-based trademarks and logos are trademarks or registe
red
trademarks of Oracle and/or its affiliates. UPnP
TM
is a cer tification
mark of the UPnP
TM
Implementers Corporation.
Support
Should you require any technical assistance, please contact your Axis
reseller. If your questions cannot be answered immediately, your
reseller will forward your queries throu
gh the appropriate channels to
ensure a rapid response. If you are connected to the I nternet, you can:
• download user documentation and software updates
• find answers to resolved problems in the FAQ database. Search
by product, category, or phrase
• report problems to Axis support staff by logging in to your private
support area
• chat with Axis sup port staff (selected countries only)
• visit Axis Support at www.axis.com/techsup/
Electromagnetic Com patibility (EMC)
This equipment has been designed and tested to fulfill applicable
standards for:
• Radio frequency emiss
ion when installed according to the
instructions a n d used in it s intended environm en t.
• Immunity to electrical and electromagnetic phenomena when
installed accor
ding to the instructions and used in its intended
environment.
USA
This equipment has been tested using a shielded network cable (STP)
and found to com p ly with the limits for a Clas s B d igital device,
pursuant to part 15 of the FCC Rules . These limits are designed
to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipme nt into an outlet on a circuit different from
that to which the receiver is co nnected.
• Consult the dealer or an experienced radio/TV technician for help
Canada
This Class B d igita l apparatus complies w ith Canadian ICES-003.
This product fulfills the requirements for immunity according to
EN 61000-6-1 residential, commercial and light-industry environments.
This product fulfills the requirements for immunity according to
EN 61000-6-2 industrial environments.
This product fulfills the requirements for immunity according to
EN 55024 office and commercial environm en ts.
Australia/New Zealand
This digital equipme nt fulfills the requirements f or RF emission
according to the Class B limit of AS/NZS CISPR 22.
Japan
この装置は、クラスB 情報技術装置です。この装置は、家庭
環境で使用することを目 的としていますが、この装置がラジ
オやテレビジョン受信機に近接して使用されると、 受信障
害を引き起こすことがあります。 取扱説明書に従って正し
い取り扱いをして下さい。

AXIS P3363–V
Table of Contents
HardwareOverview .......................................... 4
Connectors .................................................... 4
LEDIndicators .................................................. 5
AccessingtheProduct ....................................... 7
AccessfromaBrowser ........................................... 7
AccessfromtheInternet .......................................... 8
SettheRootPassword ........................................... 8
TheLiveViewPage .............................................. 9
MediaStreams ............................................. 12
HowtoStreamH.264 ............................................ 12
MJPEG ........................................................ 12

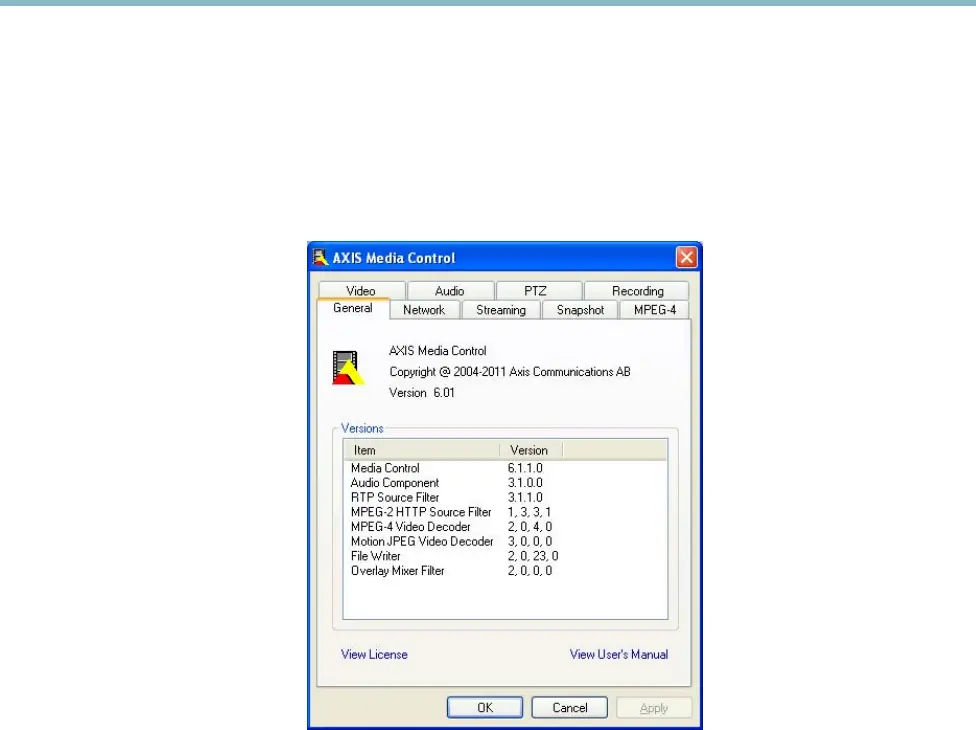

AXISMediaControl(AMC) ........................................ 12
AlternativeMethodsofAccessingtheVideoStream .................... 13
AccessingAudioStreams ......................................... 14
SettingUptheProduct ...................................... 15
BasicSetup .................................................... 15
VideoandAudio ............................................ 16
VideoStream ................................................... 16
Stream Profiles ................................................. 17
CameraSettings ................................................ 17
ViewArea ..................................................... 19
Overlay ........................................................ 20
PrivacyMask ................................................... 21
Focus & Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
AudioSettings .................................................. 22
AudioClips .................................................... 23

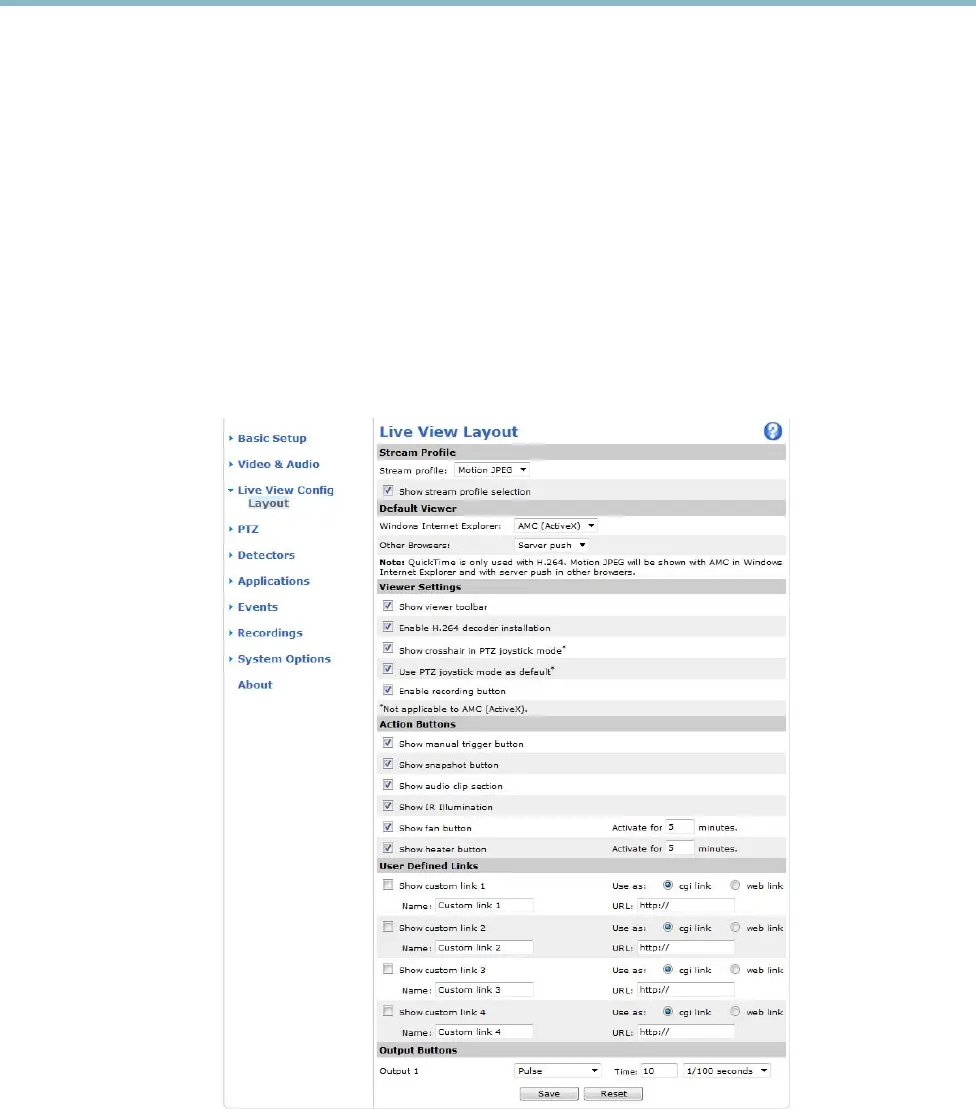

Live View Con fig ............................................ 24
PTZ(PanTiltZoom) ......................................... 26

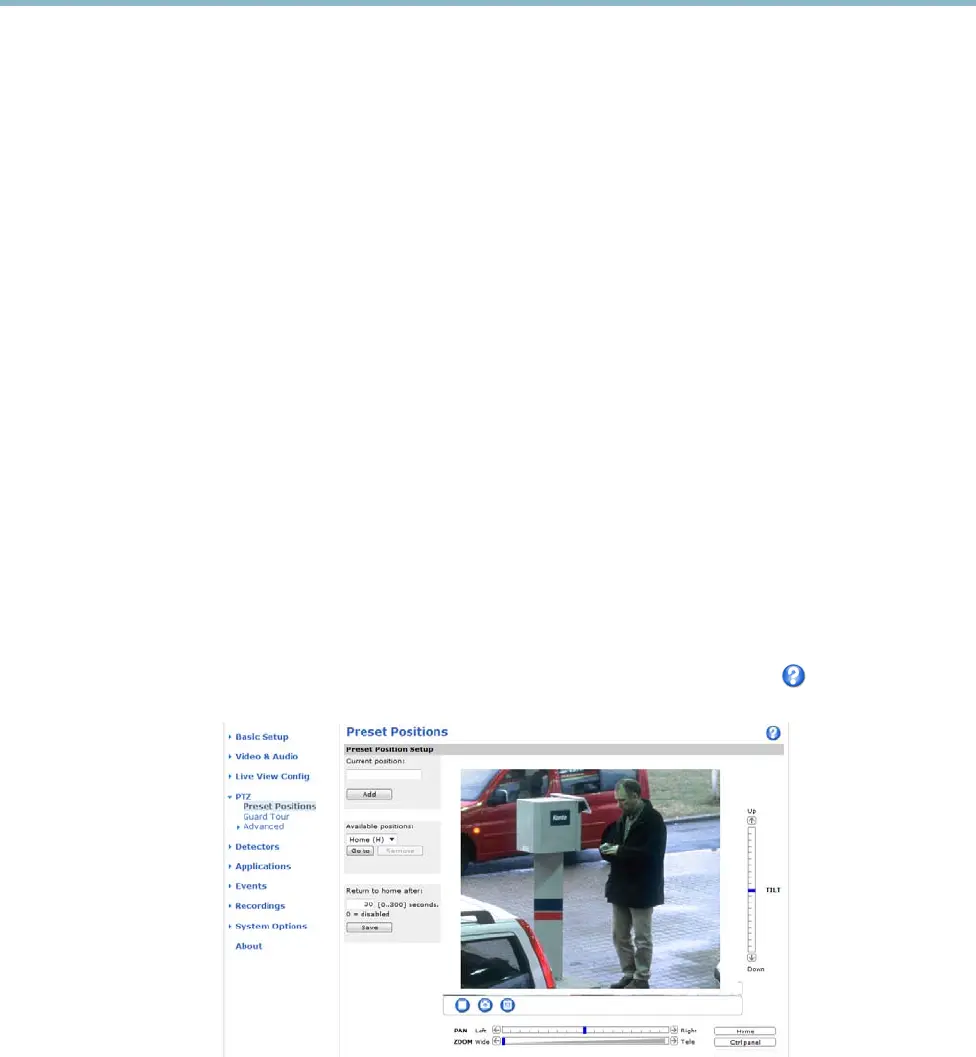

PresetPositions ................................................. 26
GuardTour ..................................................... 26
Advanced ...................................................... 27
Detectors .................................................. 28
CameraTampering .............................................. 28

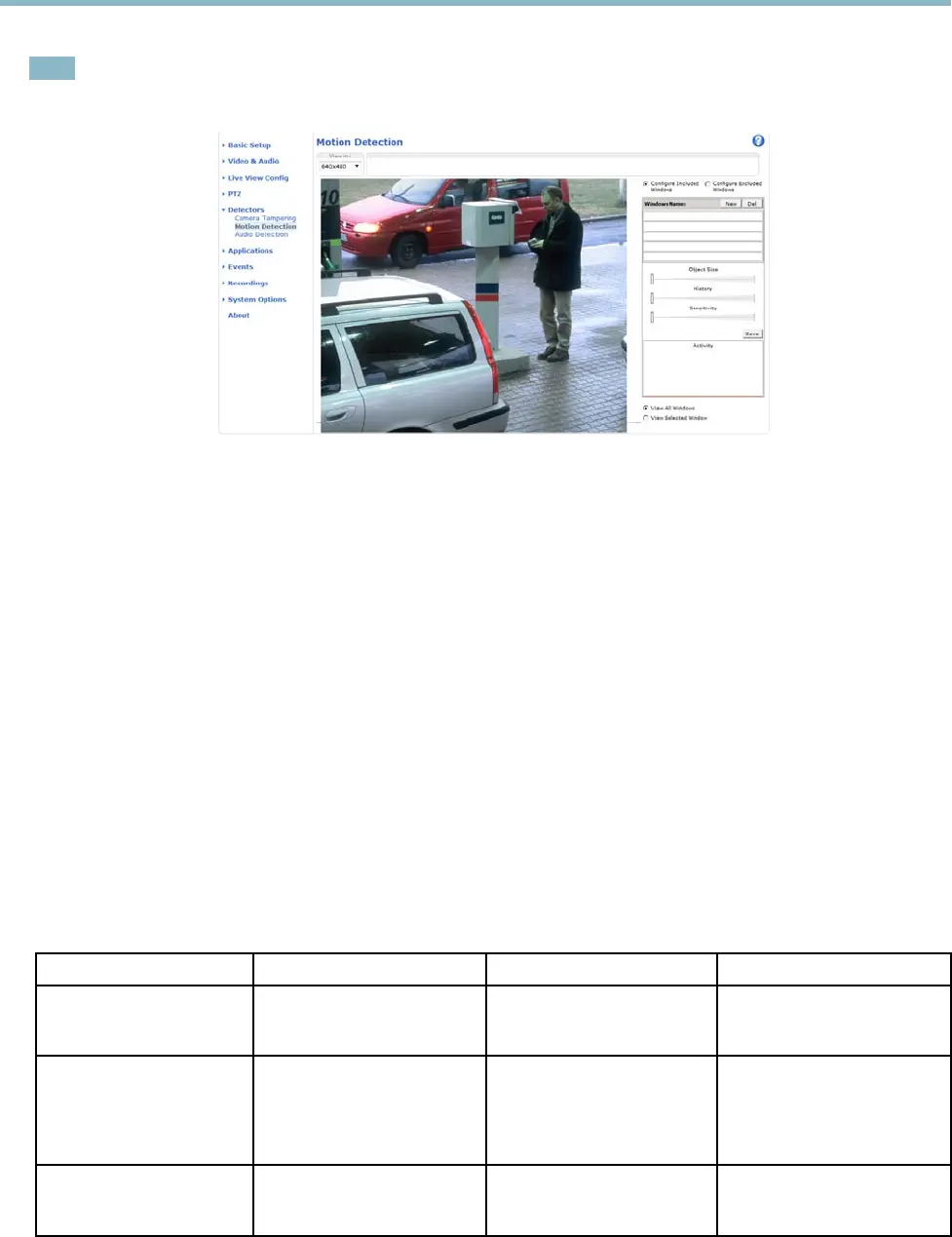

MotionDetection ............................................... 28
AudioDetection ................................................ 30
Applications ............................................... 31
Events .................................................... 32
SettingUpanActionRule ........................................ 33
Recipients ..................................................... 34
Schedules ...................................................... 34
Recurrenc
es ....................................................
34
Recordings ................................................. 36
RecordingList .................................................. 36
ContinuousRecording ............................................ 36
SystemOptions ............................................. 38
Security ....................................................... 38
Date&Time .................................................... 41
Network ....................................................... 42
Storage ....................................................... 46
Ports&Devices ................................................. 47
Maintenance ................................................... 48
Support ....................................................... 48
Advanced ...................................................... 49
ResettoFactoryDefaultSettings ................................... 49
Troubleshooting ............................................ 51
CheckingtheFirmware ........................................... 51
UpgradingtheFirmware .......................................... 51
EmergencyRecoveryProcedure .................................... 51
Symptoms,PossibleCausesandRemedialActions ..................... 52
Technical Specifications ...................................... 56
PerformanceConsiderations ....................................... 58
3

AXIS P3363–V
Hardware Overview
Hardware Overview
2
1
3 4 5 6 7
8 9
11
10
12
13
1.
Camera unit
2.
Network connector (PoE)
3.
Audio out
4.
LED indicators
5.
Audio in
6.
I/O connector
7.
Control button
8.
Fan output connector
9.
SD memory card slot
10.
Network cable
11.
Camera unit
12.
Dome cover
13.
Tamper-proof screws
Connectors
For technical specifications, see
page 56
.
4

AXIS P3363–V
Hardware Overview
Network connector - RJ-45 Ethernet connector. Supports Power over Ethernet (PoE).
NOTICE
Due to local regulations or the environmental and electrical conditions in which the product is to be used, a shie lde d
network cable (STP) may be appropriate or required. Any network cables that a re routed in outdoor environments or similar
shall be shielded (STP) and intended for their specific use. Make sure that the network switch is properly grounded . See
Electromagnetic Compatibility (EMC)
for regulatory requirements.
Audio in (pink) - 3.5 m m input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal).
Audio out (green) - 3.5 mm output for audio (line level) that can be connected to a public address (PA) system or an a ctive speaker
with a built-in amplifier. A stereo connector must be used for audio out.
SD card slot - A standard or high-capacity SD card (not included) can be used for local recording with removable storage.
NOTICE
To prevent corruption of recordings, the SD card should be unmounted before removal. To unmount, go to Setup > System
Options > Storage > SD Card an d click Unmount.
Control button - The control button is used for:
• ConnectingtoanAXISVideoHostingSystemservice.See
page 42
. T o connect, press and hold the button for about
1 second until the Status LED flashes green.
• ConnectingtoAXISInternetDynamicDNSService. See
page 43
. To connect, press and hold the button for
about 3 seconds.
• Resetting the prod uct to factory default settings. See
page 49
.
I/O terminal connector - U se in applications for e.g. motion detection, event triggering, time lapse r ecording and alarm notifications.
In addition to an auxiliary pow e r and a GND pin, the I/O terminal connector provides the interface to:
• Digital output — For connecting external devices such as relays and LEDs. Connecte
d devices can be activated by
the VAPIX® Application Programming Interface, output buttons on the Live View page or by an Action Rule. The
output will show as active (shown under System Options > Ports & Devices) if the alarm d evice is a ctivate d.
• Digital input — A n alarm input for connecting devices that can toggle between an open and closed circuit, for
example: PIRs, doo r/w indow contacts, glass break
detectors, etc. When a signal i s received the state changes and
the input becomes a ctive (shown under System Options > Ports & Devices).
LED Indicators
LED
Color
Indication
Green
Steady for connection t
o a 100 MBit/s network. Flashes for network activity.
Amber
Steady for connection to a 10 MBit/s network. Flashes for network activity.
Network
Unlit No network connectio n.
Green Steady green for normal operation.
Amber
Steady during startup and when restoring settings.
Status
Red
Slow flash for failed upgrade.
Green
Normal o p er ation.
Power
Amber
Flashes green/amber during firmware upgrade.
5

AXIS P3363–V
Hardware Overview
Note
• The Status LED can be configured to be unlit during normal operation. To configure, go to Setup > System Options >Ports
& Devices >L ED . See the online help for more information.
• The Status LED can be configured to flash while an event is active.
• The Status LED can be configured to flash for identifying the unit. This can be done under Setup > System Options >
Maintenance.
6

AXIS P3363–V
Accessing the Product
Accessing the Produc t
To install the Axis product, refer to the Installation G uide supplied with the product.
The product can be used with most operating systems and browsers. The recommended browsers are Interne t Explorer with Windows,
Safari with Macintosh and Firefox with other operating systems. See
Technical Specifications, on page 56
.Toviewstreamingvideoin
Internet Explorer, allow installation of AXIS Media Control (AMC ) whe n prompted.
Note
• Q uickTime
TM
is also supported for viewing H.264 streams and for audio.
• If your computer restricts the use of additional software components, the product can be configured to use a Java
applet for viewing Motion JPEG.
Access from a Browser
1. Start a browser (Internet Explorer, F irefox, Safari).
2. Enter the IP address or host name of the Axis product in the browser’s Location/Address field. To access the product from a
Macintosh computer (Mac O S X), click on the Bonjour tab and s elect the product from the drop-down list.
If you do not know the IP address, use AXIS IP U tility to locate the product on the network. For more inf orm a tion on how to
discover and assign an IP address, refer to the Installation Guide.
3. Enter your user name and password. If this is the first tim e the product is accessed, the root pas sw ord must first be
configured; for instructions see
Set the Root Password, on page 8
.
4. The product’s Live View page appears in your browser.
Note
The controls a nd layout of the Live View page m ay have been customized to me et s pecific installation require m ents and
user preferences. Consequently, some of the examples and functions featured h ere may diffe r from those displayed in
your ow n Live View page .
7

AXIS P3363–V
Accessing the Product
Access from the Internet
Once connected, the Axis product is accessible on your local network (LAN). To access the product from the Internet you m ust
configure your network router to allow incoming data traffic to the product. To do this, enable the NAT-traversal feature, which
will attempt to automatically configure the router to allow access to the product. This is enabled from Setup > System Options >
Network > TCP/IP Advanced.
For more information, please see
NAT traversal (port mapping) for IPv4, on page 44
. See also AXIS Internet Dynamic DNS Service at
www.axiscam.net For Technical notes on this and other t opics, visit the Axis Support web at www.axis.com/techsup
Set the Root Password
To gain access to the A xis product, you must set the password for the default administrator user root. This is done in the Configure
Root Password dialog , which appears when the product is accessed for the first time .
To prevent network eavesdropping, the root password can b e set via an encrypted HTTPS connection, which requires an HTTPS
certificate. HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt traffic between web browsers and servers. The
HTTPS certificate ensures encrypted exchange of information.
To set the password via a standard HTTP connection, enter it directly in the first dialog.
To set the p assword via an encrypted HTTPS connection, follow these steps:
1. Click Create self-signed certificate.
2. Provide the requested information and click OK.Thecertificate is created and the pa sswo rd can now be set securely. All
traffic to and from the product is encrypted from this point on.
3. Enter a pa ssw ord and then re-enter to confirm the spelling. C lick OK. The password has now been confi gured.
Note
• The default administrator user name root is permanent and cannot be deleted.
• If the password for root is lost, the product m ust be reset to the factory default settings. See
Reset to Fa ctory Default
Settings, on page 49
.
Set Power Line Frequency
Power line frequency is set the fir st time the Ax is product is accesse d and can only be change d from P la in Con fig(see
page 49
)
or by resetting the pro duct to factory default.
8

AXIS P3363–V
Accessing the Product
Select the power line frequency (50 Hz or 60 Hz) used at the location of the Axis product. Selecting the wrong frequency may cause
image flickeriftheproductisusedinfluorescent light environments.
When using 50 Hz, the maximum frame rate is limited to 25 fps.
Note
Power line frequency is different in different geographic regions. In the Americas, 60 Hz is usually used; most o ther pa rts of
the world use 50 Hz. Local variations m ay apply, always check with the local authorities.
TheLiveViewPage
The controls and layout of the Live View page may have been customized to meet specific installation requirements and user
preferences. Consequently, some of the examples and functions featured here may differ from those displayed in your own Live View
page. The following provides an overview of each available control.
Controls on the Live View Pa ge
Click View size to scale the image down to 800 pixels w ide or to full scale. Only available in MJPEG.
The Stream Profi le drop-down list allow s you to select a customized or pre-pro g ram m ed stream profile . Stream
profiles are confi gured under Video & Audio > Stream Profiles.See
Stream Profiles, on page 17
.
Click Pulse to activate the output for a defined period of time, such as switching on an external light for 20 seconds.
Click the Active/Inactive buttons to manually start and stop a connected device — e.g. switch an external light
on and off.
The Manual Trigger button can trigger an event directly from the Live View page. The bu
tton is configured under
Live View Config > Action Buttons.
Click Snapshot to save a snapshot of the video image. Right-click the video i m age to save it in JPEG format on your
computer. This button is primarily intended for use when the AXIS Media Control vie wer toolbar is not available.
Enable this button from Live View Confi g>ActionB
uttons.
The Audio clip drop-down list allow
s you to play an audio clip from the Live View page. Select the audio
clip and click the Play button.
AXIS Media Control viewer toolbar
The AXIS M ed ia Control viewer toolbar is available in Inte rnet Explorer only. See
AXIS Media Control (AMC), on page 12
for more
information. The tool
bar d isplays the following buttons:
The Play button connects to the Axis product and starts playing a media stream.
The Stop button stops the media stream.
9

AXIS P3363–V
Accessing the Product
The Snapshot button takes a snapshot of the video image. The locationwheretheimageissavedcanbespecified
in the AMC Control Panel.
Click the View Full Screen button and the video image will fill the entire screen. Press ESC (Escape) on the computer
keyboard to cancel full screen view.
The Record button is used to record the current video stream . The location where the recording is saved can be specified
in the AMC Control Panel.
AMC Audio Controls
AMC audio buttons control the speakers and microphone connected to the client computer. The buttons are only visible when
audio is enabled.
Speaker button — Click to turn the speakers on or off.
Microphone button – Click to mute or unmute the microphone. In Simplex - Network Camera speaker only m ode,
click this button to stop sending audio to the product.
Use the slider to control the volume of the speakers and the microphone.
Half-duplex mode
The Talk/Listen button is used to switch between sending and receiving audio. The button can be configured
from the Audio tab in the AMC Control panel:
• Push-To-Talk mode: Click and hold the button to talk/send . Release the button to listen.
• Toggle m od e: Click once to switch be twe en talking and listening.
Simplex – Network Camera speaker only mode
To send audio, the Talk and Microphone buttons must both be enabled. Click either button to stop audio
transmission.
PTZ Controls
The Live View page also displays Pan/Tilt/Zoom (PTZ) contro ls. The a dministrator can enable/disable controls for specified users under
System Options > Security > Users.
Note
These controls are available if dig ital PTZ is e nable d in the s e lecte d view are a, see
View Area, on p age 1 9
.
Click the Emulate joystick mode button and click in the image to move the camera view in the direction of the
mouse pointer.
Click the Center mode button and click in the image to center the camera view on that position. The center mode
button could also be used to zoom in on a specific a re a. Click in the i m age and dr ag to draw a recta n gle surrounding
theareatobemagnified. To zoom out, rotate the m ouse wheel.
Click the Ctrl panel button to open the PTZ control panel which provides additional PTZ controls.
User-defined buttons can also appear in the Control panel. See
Controls, on page 27
.
Select a PTZ preset position to steer the c am era view to the saved position. See
Preset Positions,
on page 26
.
10

AXIS P3363–V
Accessing the Product

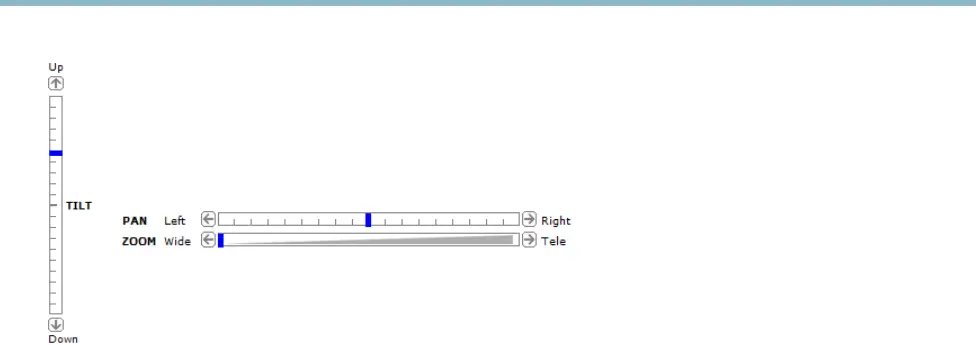

Pan and Tilt bars – Use the arrows to pan and tilt the camera vi ew , or click on a position on the bar to steer the
camera view to that position.
Zoom bar – Use the arrows to zoom in and out, or click on a position on the bar to zoom to that position.
The PTZ controls can be disabled under PTZ > Advanced > Controls,see
Controls, on pa ge 27
.
11

AXIS P3363–V
Media Streams
Media Streams
The Axis product provides several audio and video stream formats. Your requirements and the properties of your network will
determine the type you use.
The Live View page in the product provides access to H.264 and Motion JPEG video streams, audio streamsandtothelistofavailable
stream profiles. Other applications and clients can access video and audio streams directly, without going via the Live View page.
How to Stream H.264
The video compression standard H.264 makes good use of bandwidth, and can provide high quality vid eo streams at less than 1 Mbit/s.
Deciding which combination of protocols and methods to use depends on your viewing requirements, and on the properties of
your network. The a vailable options in AXIS Media Control are:
Unicast RTP
This unicast method (RTP over UDP) is used
for l ive unicast video, esp ecia lly wh en it is
important to always have an up-to-date video
stream, even if some images are dropped.
RTP over RTSP
This unicast method (RTP tunneled over RTSP)
is useful as it is relatively simple to configure
firewallstoallowRTSPtraffic.
RTP over RTSP over H TTP
This unicast method can be used to traverse
firewalls. Firewalls are commonly configured to
allow the HTTP protocol, thus allowing RTP to
be tunneled.
Unicasting is used for video-on-demand
transmission so that there is no video traffic
on the network until a client connects and
requests the stream.
Note that there are a maximum of 20
simultaneous unicast connections.
Multicast RTP
This method (RTP over UDP) should be used for live multicast video. The video stream is alwa ys
up-to-date, even if some images are dropped.
Multicasting provides the most e ffi cient usage of bandwidth when there are large numbers of
clients viewing simultaneously. A multicast cannot however, pass a network router unless the
router is confi gured to a llow this. It is not possible to multicast over the Internet, for example.
Note also that all multicast viewers count as one unicast viewer in the maximum total of 20
simultaneous connections.
AXIS Media Control negotiates with the A xis product to d etermine the transport protocol to use. The order of priority, listed in the
AMC Co n trol Panel, can be changed and the options disabled, to suit specific requirements.
Note
H.264 is licensed technology. The Axis product includes one H.264 viewi n g client license. Install ing additional unlicensed
copies of the client is prohibited. To
purchase additional license s, conta c t your Axis reseller.
MJPEG
This format uses s tandard JPEG still images for the video stream. These images are then displayedandupdatedataratesufficient
to create a stream that shows constantly updated motion.
The Motion JPEG stream uses considerable amounts of b andw idth, but provides excellent image qualityandaccesstoeveryimage
contained in the stream. The recommended method of accessing Motion JPEG live vid eo from the Axis product is to use the AXIS
Media Control in Intern et Explorer in Wind ow s.
AXIS Media Control (AMC)
AXIS Med ia Control (AMC) in Internet Exp lorer in W indows is the recomm e nded method of accessing live vide o from the Axis product.
12

AXIS P3363–V
Media Streams
TheAMCControlPanelcanbeusedtoconfigure various video and audio settings. Please see the AXIS Media C ontrol User’s
Manual for more information.
The AMC Control Panel is automatically installed o n first use, after which it can be configured. Open the AMC Control Panel from:
• Windows Control Panel (from the Start menu)
• Alternatively, right-click the video image in Internet Explorer and click Settings.
Alternative Methods of Accessing the Video Stream
You can also access video and images from the Axis product in the follow ing ways:
• Motion JPEG server push (if s upported by the client, Firefox, for example). This option maintains an open HTTP connection
to the browser and sends data as and when required, for as long as required.
• Still JPEG images in a browser.Enterthepathhttp://<ip>/axis-cgi/jpg/image.cgi
• Windows Media Player. This requires AXIS Media Control and the H.264 decoder to be installed. The following paths
can be used:
- Unicast via RTP: axrtpu://<ip>/axis-media/media.amp
- Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp
- Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp
• QuickTime
TM
. The following paths can be used:
- rtsp://<ip>/axis-media/media.amp
- rtsp://<ip>/axis-media/media.3gp
13

AXIS P3363–V
Media Streams
Note
• <ip>= IP addess
• The Axis product supports QuickTime 6.5.1 and later.
• Q uickTime adds latency to the video stream.
• It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee
this.
Accessing Audio Streams
The Live View page provides access to audio through AXIS Me dia Control; in addition audio c an be accessed in the following ways:
• VAPIX® Application Programming Interface (API) For more information, visit www.axis.com/developer
• Windows Media Player supports simplex audio. The following paths can be used:
- Unicast via RTP: axrtpu://<ip>/axis-media/media.amp
- Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp
- Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp
• QuickTime
TM
supports G.711 and AA C audio encod ing. The following paths can be used:
- rtsp://<ip>/axis-media/media.amp
- rtsp://<ip>/axis-media/media.3gp
•TheJava applet supports simplex a udio with G.711 encoding.
14

AXIS P3363–V
Setting Up the Product
Setting Up the Product
The Axis product can be configured by users with administrator or ope ra tor rights . Click Setup in the top right-hand corner of
theLiveViewpage.
• Administrators have unrestricted access to all settings.
• Operators have access to all settings except System Optio ns
See also the online help .
Basic Setup
Basic Setup provides shortcuts to the settings thatshouldbemadebeforeusingtheAxisproduct:
1. Users. See
page 38
.
2. TCP/IP. See
page 42
.
3. Date & Time. See
page 41
.
4. Video Stream. See
page 16
.
5. Focus & Zoom. See
page 21
.
6. Audio Settings. See
page 22
.
The Basic Setup menu can be disabled from System Options > Security > Users.
15

AXIS P3363–V
Video and Audio
Video and Audio
The video and audio settings can be used to optimize vide o a nd audio quality. You can configure the following:
• Video stream settings. See
page 16
.
•Streamprofiles. See
page 17
.
• Camera settings. See
page 17
.
•Viewarea.See
page 19
.
• Overlay image. See
page 20
.
•Privacymask.See
page 21
.
• Focus and zoom. See
page 21
.
• Audio settings. See
page 22
.
• Audio clips. See
page 23
.
Video Stream
You can de fine the following video strea m settings from Video & Audio > Video Stream:
•Image.See
page 16
.
• H.264. See
page 17
.
•MJPEG.See
page 17
.
You can modify the image resolution and compression, and rotate the image fro m the Image tab (Video & Audio > Video Stream).
The im ag e can also be mirrore d from the Ima ge tab.
16

AXIS P3363–V
Video and Audio
Image Appearance
Increasing the Color level increases the color saturation. The value 100 gives maximum color saturation. The value 0 gives a
black and white image.
The image Brightness can be adjusted in the range 0–100, where a higher value prod uces a brighter image.
Increasing the Sharpness can increase b andw idth usage. A sharper im age might increase image noise especially in lo w light
conditions. A lower setting reduces image noise, but the whole image will appear less sharp.
The Contrast changes the relati ve difference betwee n light and dark. It can be adjusted using the s lidebar.
White Balance
White balance is used to make colors in the im age appear the same regardle ss of the color temperature of the light source. The Axis
product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light
source f rom the drop-down list. For a description of each avai lable setting, see the online help
.
The white balance window is enabled for the Autom atic and Automatic outdoor options that appear in the White balance drop-down
list. Select one of the options from the drop-down list to set the w hite balance windo w properties. Select Automatic to use the
default settings for the Automatic and Automatic outdoor options (in the W hite balance drop-down list). Select Custom to manually
set a refer ence window for white balan ce in the view area.
Wide Dynamic Range
Wide dynamic range (Dynamic Contrast) can impro ve the exposure when there is a considerable contrast between light and dark
areas in the image. Enable WDR in intense backlight conditions. Disable WDR in low light conditions f or optimal exp osure .
Note
This setting is only possible w hen u s i ng autom atic exposure control.
Exposure Settings
Configure the exposure settings to suit the image qu ality requirements in relation to l
ighting, frame rate and bandwidth
considerations.
Exposure value - Click in the bar to fine-tune the exposure.
Exposure control - These settings is used to adapt to the amount of light used. Automatic is the default settings can be used in most
situations. T he shutter speed is autom a ti cally set to prod uce optimum image quality. Flicker-free 50 or 60 Hz is used to remove
flicker which can be caused by fluorescent and oth
er light sources. The Hold current option locks the current exposure settings.
Enable Backlight compensation - Enable t
his option if a bright spot of light, for example a light bulb, causes other areas in
the image to appear too dark.
Exposure zones - This settings determines which part of the image is used to calculate the exposure. For most s ituations, the Auto
setting can be used. For particular requirement, select a predefined area.
Shutter & Gain
The shutter and gain settings affect the amount of m otion blur and noise in the im ag e. To adapt to different lighting, availa ble
storage space and bandwidth, it is o ften necessary to prioritize either low motion blur or low noise. The Axis pro duct allow s
using differ
ent prioritization i n n ormal light and in l ow light.
Shutter
speed is related to the amount of time the shutter is opened and is measured in seconds (s). A slow shutter speed allows
more light to reach the sensor and can help produce a brighter image in low light situations. On the other hand, a slo w shutter
speedcancausemovingobjects to appear blurry.
Set Shutter to
• Auto to set the shutter speed automatically. If required, use Max shutter to limit the shutter speed to prevent the frame
rate from being reduced. For example, to get 30 fps, set Max shutter to 1/30.
18

AXIS P3363–V
Video and Audio
• Fixed to use a fixed shutter speed.
Gain, measured in decibel (dB), is the amount of amplification applied to the image. A high gain may provide a better image in low
light situations but w ill increase the amount of image noise.
Set Gain to
• Auto to set the gain automa tically. If required, use Max gain to lim it the applied gain.
• Fixed to use a fixed g ain.
When Shutter and Gain are both set to Auto, i t is possible to set the Priority between low motion blur and low noise m anually and to
use a different Priority in Normal Light and in Low Light.
Example
Consider an area where people or vehicles move during the day, but where there should be no mo vements during night. To be able to,
for example, recognize faces or license plates, move the normal light priority slider toward low m otion blur . At nig h tti m e, mo tion
detection is mo re important than identification. Motion blur is acceptable and since low light can cause a lot of noise, move
the low light priority slider toward low noise.
Example
If storage space or bandwidth is lim ited , try using a lower gain. This w ill reduce image noise and produce smaller image file s.
Iris adjustment
Select Enable automatic iris adjustment to automatica lly com p ensate for changing light conditions . This option is not avai lable
if a fixed iris is used.
Use the Iris adjustment slider to set the preferred F-value. The scale represents the amount the iris is open. If set to 0, the iris
is opened as much as possible. If set to 100, the iris is closed as much as p ossible. The actual F-value is shown below the
slider. If a utom atic iris adjustm ent is enabled, the iris will stay at this position as long as light conditions are favorab le . If light
conditions change, the iris will adjust itself to the best iris settings. If a utom atic
iris adjustment is disabled, the iris will lock on
the set position regardless of light conditions
Day/Night
The IR cut filter pr eve n ts infra re d (IR ) light from reaching the imag e se n
sor. In poor lighting conditions, for example a t nig ht, or
when using an IR lamp, set the IR cut filter to Off. This increases light sens itivity and allows the product to “see” infrared lig ht. The
image is shown in black and white w hen the IR cut filter is off.
If using automatic Exposure control,settheIRcutfilter to Auto to automatica lly switch between On and Off accordingtothe
lighting conditions.
The Day/Night shift level bar helps d
etermine whe n the camera will shift from day mode to night mode. Normally, the cam era
automatically changes mode from day to night when
very dark (level 100 in the s lide r). By setting Day/Night shift level to a
lower value, the ca m era will change to night mod e earlier.
View Area
A view area is a cropped par t of the full view. The view area is tre ate d as a video source in Live View and has its own video
stream and PT
Zsettings.
When se
tting up a view area it is re com m e nde d tha t the video stream resolution is the same size as or s m a ller than the view area
size. Se tting the vide o stream resolution larger than the view area size imp lie s digitally scaled up video after sensor capture,
requiring more band wid th without a dding image information.
To enable a view a rea, go to Video & Audio > Camera Settings and select Enable View Area.
To configure the view area:
1. Go to Video & Audio > View Area.
19

AXIS P3363–V
Video and Audio
2. Select an Aspect ratio and a Video stream resolution.
3. Use the mouse to move and resize the view area.
4. Select Enable PTZ to enable digital PTZ for the view area.
5. Click Save to save the settings.
Tip:
• The PTZ functionality is useful during installation o f the Axis product. Use a view area to crop out a specificpartof
the full view.
Overlay
Overlays are used to provide extra information, for example for forensic video analysis or duri n g product installation and
configuration. Overlays are superimposed over the video stream.
An overlay text can display the current da te and time, or a text string. When using a text string, mod ifiers can be used to display
information such as the cur rent bit rate or the cur re nt frame r ate. For information about a vailable modifiers, see
File Namin g &
Date/Time Form ats
in the online h e lp .
To enab le overlays:
1. Go to Video & Audio > Video Stream and select the Image tab.
2. To include an overlay image, select Include overlay image at the coordinates. The overlay image must first be uplo aded to
the Axis product, see
Overlay Image
.
3. To includ e date and time, s elect Include date and Include time.
4. To include a text string, select Include t ext and enter the text in the field. Modifiers can be used, see
File Naming &
Date/Time Formats
in the online he lp .
5. Select the text color, the text background color and the position of the overlay.
6. Click Save.
Tomodifythedateandtimeformat,gotoSystem Options > Date & Time.See
Date & Time, on page 41
.
Overlay Image
An overlay image is a static
image superimposed over the video stream. The image, for example com pany logo, is used to provide
extra information or to mask a part of the image.
To use an overlay image, the image must first be uploaded to the Axis product:
1. Go to Video & Audio > Overlay Image.
2. Click Browse andbrowsetothefile.
3. Click Upload.
4. Select the image to use from the Use overlay image list.
5. Click Save.
To display the overlay image:
1. Go to Video & Audio > Video Stream and select the Image tab.
2. Under Overlay Settings,selectInclude overlay image at the coordinates and enter the X and Y coordinates.
20

AXIS P3363–V
Video and Audio
3. Click Save.
For information about supported image formats, see the online help
.
Privacy Mask
A privacy mask is an area of s olid color that prohibits users from viewing parts of the monitored area. Privacy masks cannot be
bypassed via the VAPIX® Application Programming Interfa ce (API).
The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and
indicates i f they are enabled.
You can add a new mask, re-size the mask with the mouse, choo se a color for the mask, and give the mask a n ame.
For more information, see the online help
Important
Adding many privacy masks may affect the product’s performance.
Focus & Zoom
Focus and zoo m should only be configure d w hen installing or reinstalling the product. For installation instructions , refer to the
product’s Installation Guide.
To set focus and zoom:
1. Install the camera as describe d in the Installation Guide.
2. Go to Video & Audio > Focus & Zoom.
3. On the Basic tab, set the zoom level using the slider. The buttons < and > m ove the zoom position one step in either
direction. The buttons << and >> move the zoom position in m ultiple steps in either direction.
4. Click Perform auto focus to focus the cam era automatically.
5. If more adjustments are needed, go to the Advanced tab.
Note
• C hanging the zoom level moves the focus position. Focus should always be adjusted after changing the zoom.
• Movements in front of the camera should be avoided during a utomatic focusing.
The Pixel counter shows the number of pixels in an area of the image and can be used to ensure that the size of the image
fulfills certai
n requirements, for example for face recognition. Use the m ouse to move and resize the pixel counter, or enter the
number of pixels in the Width and Height fields and click Apply.
On the Advanced tab, focus can b e adjusted m a nually:
1. Click Open iris to ope n the iris to its maximum position. This gives the smallest depth of field and pr ovides the best
conditions for focusing.
2. Focus is set in the Focus window. Use the m ouse to move and resize the focus window.
3. Set the zoom level using the slider and click Perform a uto focus to focus the camera automatically.
4. Click in the Focus position bar to focus on a desired location. The buttons < and > move the focus position one step in
either direction. The buttons << and >> move the focus position in multiple steps in either direction.
5. When satisfied, click Ena ble iris to enable the iris.
21

AXIS P3363–V
Video and Audio
Audio Settings
The audio functionality for each video stream is enabled under Video & Audio > Video Stream > Audio.
Audio Channels
Select the type of audio transmission from the Audio mode: drop-down list (Video & Audio> Audio Settings). The different types are:
Full duplex - Simultaneous two-way audio allowing you to transmit and receive audio (talk and listen) at the same time. There is no
echo cancellation; if feedback loops appear, try moving the microphone or the speaker.
Half-duplex - Au dio can b e transmitted in both directions between the Axis pro duct and the client computer, b ut only in one
direction at a time. You must actively receive so und using the Talk/Listen button visible in the Live View page (see
AXIS Media
Control viewer toolbar
). In Push-To-Talk mode, click and hold the button to speak and release it when done. In Toggle mode, click
once to switch between speaking and listening. The Talk/Listen mode is configured from the Audio tab in the AM C control panel
(see A X IS Media Contro l on
page 12
).
Simplex - Network Camera speaker only - Audio is transmitted from the client to the Axis product and played by the speaker
connected to the product. To send audio, the Talk and Microphone buttons in the AMC toolbar must both be enabled. Click either
button to stop audio transmission.
Simplex - Network Camera microphone only - Audio captured by the microphone connected to the Axis product is transmitted from
theproducttooneormoreclients.
For more information ab ou t these settings, please see the on lin e help
.
Audio Input
An external microphone or a line source can be connected to the product’s Audio-in connector. Confi gure the audio input settings
under Video & Audio > Audio Settings.
Note
The internal microphone is used by default; the external microphone is used when conn
ected. It is possible to disable the
internal microphone by connecting a plug to the mic input.
Source - Select Microphone for an external microphone or Line for a Line in device, e.g. an audio mixer for multiple microphones or
a microphone with a built-in amplifier.
Microphone power - The Enable microphone power option provides DC power for an external micro phone. Microphone power should
only be used with microphones that have no battery and when using the internal microphone. This setting should not be enabled
when using a dynam ic or ba ttery powered microphone. Microphone power will not h arm the microphone; if you are uncertain, try
switching it off and on. To use a professional microphone requiring 48V phantom p ower, you need an external power supply and a
balanced-unbalanced converter (audio transformer) in between.
Input gain - Control the volume (dB Full Scale) of the audio input. If the sound is too low, choose a higher dB, to amplify the
sound. If the sound is too high, choose a lower dB. The Level bar gives a visual representation of the audio signal level in dB
relative to the full-sc
ale i nput level.
• Green — the signal is at a good level.
• Yellow — the signal is becoming distorted.
• Red — the signal is distorted.
Encoding - Select digital a udio encoding format.
• AAC requires a license for both encoding and decoding. AAC is the least complicated and most widely used codec.
If achieving the best possible audio quality is a priori ty, AAC is the r ecomm ended codec to use. A n A AC license
is included in the Axis product.
22

AXIS P3363–V
Video and Audio
• G711
• G726
Sample rate - The number of times per second the sound is sampled. A higher sample rate will provide b ette r a udio quality, but
also requires a greater bandwidth.
Bit rate - Set the required bit rate depend ing on the selected encoding. A higher bit rate will give better audio quality. A lower bit
rate may have latency or delay, but will require less bandwidth.
For more information about these settings, p lease see the online help
.
Audio Output
An external speaker can be co nnected to the product’s Audio-out connector (a built-in amplifier is required for this). The output can
be connected to another a mplifi er with speakers. A stereo connector must be used for the audio out.
Configure the audio output settings under Video & Audio > Audio Settings.
Output gain - Control the volume (dB Full Scale) of the line audio output. If the sound is too low, choose a higher dB. If the
sound is too high, choose a lowe r dB.
Audio Clips
An audio clip is a sound file that can be playe d either when an event occurs or manually from the Live View pa ge . Audio clips can
be uploaded to the product or recorded by a microphone connected to the product.
You can add, play, dow nload, modify and remove audio clips from Video & Audio > Audio Clips. For more information see the
online help
.
Note
Audio clips cannot be used if the prod uct’s audio functionality is enabled. The audio functionality is enabled o n the Audio
tab under Video & Audio > Video Stream.
23

AXIS P3363–V
Live View Config
Live View Config
You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of
theLiveViewpage.
•StreamProfile. See
page 17
.
• Default Viewer for Browser. See
page 24
.
• Viewer Setting s. See
page 25
.
• Action Buttons. These are the buttons described in
Controls on the Live View Page, on page 9
.
•UserDefined Links. See
page 25
.
• Output Buttons. See
page 25
.
Default Viewer for Browsers
From Live View Config > Default Viewer select the default method for viewing video images in your browser. The product attempts
to show
the video images in the selected video format and viewer. If this is not possible, the product overrides the settings and
selects the best available combination.
24

AXIS P3363–V
Live View Config
Browser Viewer Description
AMC
Recommended viewer in Internet Explorer (H.264/Motion JPEG)
QuickTime
H.264
Java applet
A slow er imaging a ltern ative to AMC (Motion JPEG). Requires one of the
following installed on the client:
• JVM (J2SE) 1.4.2 or higher
• JRE (J2SE) 5.0 or higher
Windows Internet Explorer
Still image Displays still images only. Click the Refresh button in you r browser to view a
new image
Server Push
Recommended viewer for other browsers (Motion JPEG).
QuickTime
H.264
Java applet
A slower imaging alternative to Server Push (Motio n JPEG only).
Other browsers
Still image Displays still image s only. Click the Refresh button in your browser to view a
new image
For m ore i nform a tion, please see the online help .
Viewer Settings
Options for the viewer are configured under Live View Config > Viewer Settings.
•TheShow viewer toolbar option will display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the
video image in your browser.
• H.264 decoder installation. The administrator can disable installation of the H.264 decoder included with AXIS Me dia
Control. This is used to prevent installation of unlicensed copies. Further decoder licenses can be purchased from your
Axis reseller.
•SelectShow crosshair in PTZ joystick mode to enable a cros s that will indicate the center of the image in PTZ joystick mode .
•SelectUse PTZ joystick mode as default to enable joystick mode. The mode can be changed temporarily from the PTZ
control panel.
• You can enable recording from the Live View page. The recording s are saved to the location specified in the AM C Control
Panel. See
AXIS Media Control (AMC), on page 12
.
User Defined Links
To display user-defined links in the Live View page, select the Show custom link option, give the link a name and then enter the URL
to link to. When defi ning a web link do not rem ove the 'http://' from the U RL address. Custom links can be used to run scripts or
activate external devices connected to the product, or they can link to a web page . Custom links defined as cgi links will run the
script in the background, in a hidden frame. Defining the link as a web link will open the l ink in a ne w window.
Output Buttons
An output on the Axis product can be controlled directly from the Live View page, by e nabling the display of output buttons. To
display the output buttons in the Live View page, select the type of control to use for the port from the drop-dow n list under
Live View Config > Output Buttons:
• Pulse a ctivates the output for a definedperiodoftime. Thepulsetimecanbe set as short as 1/100 second, and as
long as 60 seconds
• Active/Inactive displays two buttons (on/off). The output ports must fi rst be configured under System Options> Ports &
Devices > I/O Ports .See
I/O Ports, on page 47
.
25

AXIS P3363–V
PTZ (Pan Tilt Zoom)
PTZ (Pan Tilt Zoom)
The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view a reas,
see
View Area, on page 19
.
Preset Positions
A preset position is a predefined view that can be used to quickly steer the camera to a specific l ocation. Preset positions can
be accessed in several ways:
• By selecting the preset from the Preset positions drop-down list in the Live View Page.
• When setting up action rules. See
page 32
.
• When setting up Guard Tour. See
page 26
.
To add a preset position:
1. Go to PTZ > Preset Positions.
2. Use the pan, tilt and zoom controls to steer the camera view to the desired position.
3. Enter a descriptive name in the Current position field.
The product can be configured to return to the Home position when the PTZ functionality has been inactive for a spe cified length
of time. Enter the length of time in the field and click Save. Set the time to zero to prevent the product from automatically
returning to the H o me position.
To include the preset position name in the overlay text, go to Video & Audio,selectInclude overla y text and enter the modifier #P in
the field. For more information about modi fiers, see
File N am ing & Date/T
ime Formats
in the online h e lp .
Guard Tour
A guard tour displays the video s tre am from different pre set positions, one-by-one, in a predetermined order or at random and for
c
onfigurable time periods. The enabled guard tour will keep running after the user has logged off or closed the browser.
Toaddaguardtour:
1. Go to PTZ>GuardTourand click Add.
2. Enter a descriptive name.
26

AXIS P3363–V
PTZ (Pan Tilt Zoom)
3. Specify the pause length between runs.
4. Select an available preset position and click Apply.
5. Specify the View Time in seconds or minutes.
6. Specify the View Order or select the Random view order option.
7. Click Save.
To modify or remove guard tours, go to PTZ>GuardTour, select the guard tour in the Guard T our List and click Modify/Remove.
For m ore information see the online help
.
Advanced
Limits
Define the pan, tilt, zoom and focus limits for the Axis p roduct. Movements to the left and right, up and down, can be restricted to
narrow the area under surveillance.
Move speed sets the speed of the camera’s pan and tilt movements. The default setting is ma ximum speed.
When using a joystick (or emulating one with the mouse) the Enable proportional speed setting can be used to reduce the maximum
pan/tilt movem ent speed, i.e. the spee d the ca mer a view moves at when the joystick is pushed all the way out in a ny direction. This is
useful then the view is zoomed in on an object.
See the online help for more information.
Controls
Panel Shortcut Command Buttons can be configured to provide direct access to comm ands issued via the VAPIX® Application
Programming Interface. The buttons w ill be displayed i n the PTZ con
trol panel, which is available in the Live View page through
the Ctrl panel button, see
page 10
.
27

AXIS P3363–V
Detectors
Detectors
Camera Tampering
Camera Tampering can generate an alarm whenever the cam e ra is repositioned, or w hen the lens is covered, sprayed or severely
defocused. To send an alarm, for example an email, an action rule m ust be set up.
To configure tampering:
1. Go to Detectors > Camera Tampering.
2. Set the Minim um duration, that is, the time that must elaps e before an alarm is generated. This can hel p prevent f als e
alarms for known conditions that affect the image.
3. Select Alarm for dark images if an alarm should be ge n e rate d if lights are dimmed or turned off, or if the lens is sprayed,
covered, or rendered severely out of focus.
4. Click Save.
To con figure the product to send an alarm when tampering occurs:
1. Go to Events > Action Rules.
2. Click Add to set u p a new action r ule.
3. Enter a Name fo r t he action rule.
4. Under Condition,selectDetectors from the Trigger list.
5. Select Tampering from the list of detectors.
6. Optionally, select a schedule and set additional conditions.
7. Select the action. To send an em ail, select Send Notification a
nd select a Recipient from the lis t of d e fined recipients.
Note
The While the rule is active option under Duration cannot be used with camera tampering, since camera tampering does not
have a duration and once it has been t riggered it will not automatically return to its untriggered state.
For more information on actions rules, see
Events, on page 32
.
Motion Detection
Motion detection is used to generate an alarm whenever movement starts or stops in the camera view.
Motion detection is configured by defining up to 10 Include and Exclude w ind ows:
• Include w indows —define areas where motion should be detected
• Exclude windows —define areas within an Include window that should be ignored (areas outside Include windows
are automatically ignored).
For instructions, see
Set Up Motion Detection Windows, on page 29
.
To control the number of motion det ection alarms, the parameters Object Size, History and Sensitivity can be adjusted. See
Motion
Detection Parameters, on page 29
.
Once motion detection windows are configured, the Axis p roduct can be configured to perform actions when mo tion is detected.
Possible actions include uploading images and start recording. F or more information, see
Setting Up an Action Rule, on page 33
.
28

AXIS P3363–V
Detectors
Note
Using the motion detection feature may decrease the product’s overall performance.
Set Up Motion Detection Windows
To set up a motion dete ctio n Include Window, follow these instructions :
1. Go to Detectors > Motion Detection.
2. Select the Configure Included Windows option and click New. Select the new window in the list of windows and enter
a descriptive name.
3. Adjustthesize(dragthebottomright-handcorner)andthepo sition (click on the text at the top and dra g to the desired
position) of the window .
4. Adjust the Object Size, History and Sensitivity profile sliders (see
Motion Detection P ara meters
for details). Any detected
motion within an active window is indicated by red peaks in the Activity window.
5. Click Save.
To exclude parts of the include window, select the Configure Excluded Windows and position the exclude window w ithin the
include window.
To delete an include or exclude window, select the window in the list of windows and click Del.
Motion Detection Parameters
The parameters controlling motion detection are described in the tab le below:
Parameter
Object Size
History
Sensitivity
Description
Object size relative to w indo w
size.
Object memory length.
Difference in luminance
between background and
object.
High level (100%)
Only very large objects trigger
motion detection.
An object that appears in
the window triggers motion
detection for a long time
before it is considered as
non-moving.
Ordinary colored objects on
ordinary background s trigger
motion de
tection.
Medium level (50%)
Ala
rge difference in luminance
is required to trigge r mo tion
detection.
29

AXIS P3363–V
Detectors
Low level (0%)
Even very small objects trigger
motion detection.
An object that appears in
the window triggers motion
detection only for a very short
time before it is considered as
non-moving.
Only very bright objects on
a dark backgro und trigger
motion detection.
Recommen d ed values
5–15% 60–90% 75–95%
Default values
15% 90% 90%
Note
• To trigger on small objects or movements, use several small motion detection windows rather than o ne large w indow
and select a low object size.
• To avoid triggering on small objects, select a high object size.
• If no objects should appear in the Include Window, select a high history level. This will cause motion detection to
trigger as long as the object is present in the window.
• To only detect flashing light, select a low sensitivity. In other cases high sensitivity is recommende d.
Audio Detection
The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold
value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.
1. Go to Detectors > Audio Detection.
2. Set the audio alarm level and click Save.
3. Go to Events > Action Rules and set up an action rule, see
Setting Up an Action Rule, on pa
ge 33
.
Detected audio is indicated by colored peaks in the Activity indicator. An eve
nt is triggere d when detected audio ris es above or falls
below the threshold value, w hich is represented by the bar.
30

AXIS P3363–V
Applications
Applications
Third party applications can be u ploa ded to a nd insta lle d on the Axis product. For information about available applications,
downloads, trials and licenses, go to www.axis.com/applications
To upload an application, go to A pplica tions > Overview, click Brow se to locate the file and then c lick Upload Package. Click on the
uploaded application’s name to open the menu options Settings, License and About.Forconfiguration instructions, please refer to
the documentation provided with the application.
Most applications nee d a license to run. To install the license, select the License menu option. If the product is connected
to the Internet, Automatic Installation appears in the web page. If the prod uct is not connected to the Internet, go to
www.axis.com/ applications to acquire a License key. You will need a license code and the product’s serial number (found on the label
and under System Options > Support > System Overview) to receive a licens e key.
Installed Applications lists installed applications w ith information about the version and the vendor , the status of the application
(running or not running), and information about the license.
Use the Start and Stop buttons to start and stop the application.
To generate a log file f or the application, select the application and click Log.
Note
It is recommended to run one application at a time. Avoid running applications when motion detection is active.
31

AXIS P3363–V
Events
Events
The Axis product can be configured to perform actions when different even ts occur, for e xample, start a record ing wh e n motion is
detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.
Available Action Rule triggers and conditions include:
• Applications — use installed applications to trigger the rule, see
Applications, on page 31
.
• Detectors
- Audio Detection — trigger the rule when audio is detected, see
Audio Detection, on page 30
.
- Day/Night Mode — trig ger the r ule w hen the product switches b etw een day mode (IR cut filter on) and night
mode (IR cut filter off). This can for example be used to control an external infrared (IR) light connected
to an output port.
- Motion Detection — trigger the rule when motion is detected, see
Motion Detection, on page 28
.
- Tampering — trigger the rule when tampering is d ete cted, see
Camera Tampering, on page 28
.
• Hardware
- Network — trigger the rule if network connection is lost o r restored. This can for example be u sed to start
recording to the SD card.
- Temperature — trigger t he rule if the tempe ra ture falls outside or inside the operating range of the product. This
canforexamplebeusedtosendmaintenancenotifications.
• Input Signal
- Digital Input Port — trigger the rule when an I/O port receives a signal from a connected device, see
I/O
Ports, on page 47
.
- Manual T rigger — trigger the rule using the Manual Trigger button in the Live View page, see
Controls on the
Live View Page, on page 9
. This can for example be used to va
lidate actions during product installation
and configuration.
• PTZ
- Moving — trigger the rule when the camera view moves due to a PTZ operation. This can for example be used
as an additi onal condition to prevent an action rule triggered by motion detection to record video while the
camera view moves due to a
PTZ operation.
- Preset Reached —tr
igger the r ule w he n the came ra stops at a preset position. This can be for example be used
with the Send Images action to upload im ages from the p reset position.
• Storage
- Available — trigger the rule when the storage device is unmounted or removed. This can for example be
used to send maintenance notifications.
- Full — trigger the rul e w he n the storage device is full . Under normal op eration, the oldest r ecordings will be
overwritten to prevent the storage device from becoming full.
- Locked — trigger the rule if the storage device is locked (write protected).
• System
- System Initializing — trigger the rule when the p roduct is being started. This can for exam p le be used to s end a
notification when the product restarts.
• Time
32

AXIS P3363–V
Events
- Recurrence — trigger the rule periodically, see
Recurrences, on page 34
. This can for example be used to
upload an image every 5 minutes.
- Use Schedule — trigger the rule according to the s elected schedule, see
Schedules, on page 34
.
Available actions include:
• Day/Night Vision Mode —setdaymode(IRcutfilter on) or night mode (IR cut filter off).
• Output Port — a ctivate an I/O port to control an external device.
• Play Audio Clip —see
Audio Clips, on page 23
.
• PTZ Control
- Preset Position — go to a preset position.
- Guard Tour — start a guard tour, see
Guard Tour, on page 26
.
• Record Video — record video to a selected storage.
• Send Images —sendimagestoarecipient.
• Send Notifications —sendanotification message to a recipient.
• Status LED — flash the LED indicator. This can fo r example be used to validate triggers such as motion detection during
product installation and configuration.
Setting Up an Action Rule
An action rule defines the conditions that must be met for the product to perform an action, for examp le record video or send email
notifications. If multiple conditions are defined, all must be met to trigger the action.
The following example describes how to set up an action rule to record video to a network share if there is movement in the
camera’s field of view.
Set up motion detection and add a network share:
1. Go to Detectors > Motion Detection and configure a motion detection window, see
page 29
2. Go to System Options > Storage and set up the network share, see
page 47
.
Set up the action rule:
1. Go to Events > Action Rules and click Add.
2. Select Enable rule and enter a d escriptive name for the rule.
3. Select Detectors from the Trigger drop-down list.
4. Select Motion Detection from the drop-down list. Select the motion detection window to use.
5. Optionally, select a Schedule and Additional conditions,seebelow.
6. Under Actions, select Record Video from the Type d rop-down list.
7. Select a Stream profile and configure the Duration settings as describ ed below.
8. Select Network Share from the Storage drop-down list.
To a dd additional criteria, select the Additional conditions option and a dd additional triggers. To prevent an action from being
triggered repeatedly, a Wait at least tim e can be set. Enter the time in hours, minutes and seconds, d uring w hich the trigger
should be ignored be fore the action rule can be activated again.
33

AXIS P3363–V
Events
The recording Duration of some actions can be set to include time immediately before and after the event. Select Pre-trigger time
and/or Post-trigger time and enter the number of seconds. When W h ile the rule is active is enabled and the action is triggered
again during the post-trigger time, the recording time will be extended w ith another post-trigger time period.
For m ore information, see the online help
.
Recipients
Recipients receive media files and notification messages . The following r ecipi ents are available:
Recipient Use with action
Email
Send Images
Send Notification
FTP
Send Images
HTTP
Send Images
Send Notification
Network Share Send Images
TCP Send Notification
To add a recipient:
1. Go to Events > Recipients and click Add.
2. Enter a descriptive name
3. Select a recipient Type.
4. Enter the information needed for the recipient type.
5. Click Test to test the connection to the recipient.
6. Click OK.
Schedules
Schedules ca
n b e used as action rule trigg ers o r a s additional conditions, for example to record video if motion is detected outside
office hours. Use one of the predefined schedules or create a new schedule as described below.
To create a new schedule:
1. Go to Events > Schedules and click Add.
2. Enter a descriptive name and the information needed for a daily, w ee kly, m onthl y or y ea rly schedule.
3. Click OK.
To use the schedule in an Action Rule, select the schedule from the Schedule drop-down list in the Action Rule Setup page.
Recurrences
Recurrences are use d to trigger Action Rules repea tedl y, for ex amp le every 5 minutes or e very hour.
To set up a recurrence:
1. Go to Events > Recurrences and c lick Add.
34

AXIS P3363–V
Events
2. Enter a descriptive name and recurrence p atter n.
3. Click OK.
To use the recurrence in an Action Rule, first select Time from the Trigger drop-down list in the Action Rule Setup page and
then select the recurrence from the second drop-down list.
To modify or remove re curre nces , select the r ecurrence in the Recurrences List and c lick Modify or Remove.
35

AXIS P3363–V
Recordings
Recordings
TheAxisproductcanbeconfigured to record video continuously or according to an action rule:
• To start a continuous recording, see
page 36
.
• To set up action rule s, see
page 33
.
• To access recordings, see
Recording List, on page 36
.
•Toconfigure camera controlled storage , see
Storage, on page 46
.
Recording List
Recorded videos are listed on the Recordings > List p age. The list shows each recording’s start date and time, duration and the
event that triggered the recording.
To play or download a recording, follow these steps:
1. Go to Recordings > List.
2. Use the filte r to narrow the list of recordings. Enter the desired fil ter criteria and click Filter. Som e filters may take
a long time to complete.
3. Select the recording.
4. Click Play to play the recording, or click Download to download the recording.
Multiple recordings can be downloaded at the same time. Select the recordings and click Download. The downloaded file is a zip file
containing a minimum of three files, of which the Matroska (mkv) filesaretheactualrecordings. The recordings are time-stamped
with the date and time they were dow nloaded (that is, not the date the
recordings were m a de ).
Note
To play recordings in Windows Media Player, AXIS Matroska File Splitter must be ins talle d. AXIS Matroska File Splitter
can be do wnloaded from www.axis.com/techsup/software
For de tai led recording and video in forma tion, select a recording a nd click Properties.
To remove a recording, select the recording and click Remove.
Continuous Recording
The Axis product can be configured to continuously save video to a storage device. See
Storage, on page 46
for m ore information
about s torage devices. To prevent the d isk from becoming full, it is recom mended to configure the disk to automatically remove
old recordings.
To start a continuous recording, follow these steps:
1. Go to Recordings > Continuous.
2. Select Enabled.
3. Select type of storage device from the Disk list.
4. Select a Stream profile to use for continuous recordings.
5. Click Save to save and start the recording.
36

AXIS P3363–V
System Options
System Options
Security
Users
User access control is enabled by default and can be configured under System Options > Security > Users. An administrator can
set up other users by giving them user names and passwords. It is also possible to allow a nonymous viewer login, which means
that anybody may access the Live View page.
The u se r list displays authorized users and user groups (access levels):
Viewer - A ccess to the Live View page
Operator - Access to the Live View page and to all settings except System Options
Administrator - Unrestricted access to all settings; can add, modify and remove other users.
Under HTTP/RTSPPasswordSettings, select the type of password to allow. You may need to allow unencrypted passwords if there
are viewing clients that do not support encryption, or if you upgraded the firmware and existing clients support encryption but need
to log in again and be configuredtousethisfunctionality.
Under User Settings, select the Enable anonymous viewer login option to allow anonymous users access to the Live View page.
Select the Enable anonymous PTZ control login to allow anonymous users access to the PTZ controls.
Deselect the Enable Basic Setup option to hide the Basic Setup menu. Basic Setup provides quick access to settings that should be
made before using the Axis product.
ONVIF
ONVIF (Open Network Video Interface Forum) is a global interface standard that m a kes it easier for e n d us er s, integrators, consu lta n ts ,
and manufactur ers to take advantage of the possibiliti es offered by network video technology. ONVIF enables interoper abli ty between
different vendor products, increased flexibility, red
uced cost and future-proof systems.
By creating a user y ou automa ticall
y e nable ONVIF communication. Use the user name and password with all ONVIF communication
with the product. For more information see www.onvif.org
IP Address Filter
IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are
allowed or denied acces
s to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
The administr
ator can add up to 256 IP address entries to the list (a single entry can contain multiple IP a ddre sses ).
HTTPS
The Axis product supports encrypted browsing using HTTPS. This is configured on the System Options > Security > HTTPS page.
A self-s igned c ertificate can be used until a Certificate Authority-issued certificate has been obtained. Click Create self-signed
certificate to install a self-signed certificate. Although self-signed certificates are free and offer some protection, true security is only
implemented after the installation of a signed certificate issued by a Certificate Authority.
To obtain a signed c e rtificate from an issuing Certificate Authority, click Create Certificate Request. When the signed certifica te
is returned, click Install signed certificate to import the certificate. The properties of any certificate request currently resident in
the pro duct or installed can be viewed by clicking Properties.
To enable HTTPS in the Axis product, the HTTPS Connection Policy must be set for each user group.
For more information, see the online help
.
38
