AXA2B-FD1 AXA2B-FD1
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
AXA2B-FD1 AXA2B-FD1
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
REV. 6/03/2025 REV. 6/03/2025
© COPYRIGHT 2025 METRA ELECTRONICS CORPORATION © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com Integrate • AxxessInterfaces.com
REV. 6/03/2025 REV. 6/03/2025
© COPYRIGHT 2025 METRA ELECTRONICS CORPORATION © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com Integrate • AxxessInterfaces.com
• Must be used with Ford radio replacement interface
• Designed for amplified systems
• Add-on interface for Metra’s 99-5834CH & 99-5841B dash kits
• Retains the Bang & Olufsen
®
amplifier with A2B2 input in select Ford
F-150 trucks
• Retains Sony
®
amplifier with A2B input in select Ford Fusion vehicles
• Retains balance
• Micro “B” USB updatable
• Must be used with Ford radio replacement interface
• Designed for amplified systems
• Add-on interface for Metra’s 99-5834CH & 99-5841B dash kits
• Retains the Bang & Olufsen
®
amplifier with A2B2 input in select Ford
F-150 trucks
• Retains Sony
®
amplifier with A2B input in select Ford Fusion vehicles
• Retains balance
• Micro “B” USB updatable
• Must be used with Ford radio replacement interface
• Designed for amplified systems
• Add-on interface for Metra’s 99-5834CH & 99-5841B dash kits
• Retains the Bang & Olufsen
®
amplifier with A2B2 input in select Ford
F-150 trucks
• Retains Sony
®
amplifier with A2B input in select Ford Fusion vehicles
• Retains balance
• Micro “B” USB updatable
• Must be used with Ford radio replacement interface
• Designed for amplified systems
• Add-on interface for Metra’s 99-5834CH & 99-5841B dash kits
• Retains the Bang & Olufsen
®
amplifier with A2B2 input in select Ford
F-150 trucks
• Retains Sony
®
amplifier with A2B input in select Ford Fusion vehicles
• Retains balance
• Micro “B” USB updatable
INTERFACE FEATURES
INTERFACE FEATURES
INTERFACE FEATURES
INTERFACE FEATURES
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
TOOLS REQUIRED
TOOLS REQUIRED
TOOLS REQUIRED
TOOLS REQUIRED
APPLICATIONS
APPLICATIONS
APPLICATIONS
APPLICATIONS
• AXA2B-FD1 harness
• AXA2B-FD1 harness
• AXA2B-FD1 harness
• AXA2B-FD1 harness
INTERFACE COMPONENTS
INTERFACE COMPONENTS
INTERFACE COMPONENTS
INTERFACE COMPONENTS
FORD
Bronco Sport .......................2021-2023
EcoSport (Harman) ............. 2018-2019
Edge (Sony) ........................ 2019-2023
Escape (Sony) .....................2017-2023
Expedition (Sony) ...............2018-2023
F150 (Bang & Olufsen) ....................2018-2023
F-150 (2 Buttons Above Radio) ... 2017-2020
Fusion (Sony) ..................... 2017-2020
LINCOLN
Continental (Harman Revel/Ultima)... 2019-2023
MKZ (Harman Revel).............2017-2020
Navigator (14/20-Speaker)...2018 -2023
Nautilus (10-Speaker)...........2019-2023
FORD
Bronco Sport .......................2021-2023
EcoSport (Harman) ............. 2018-2019
Edge (Sony) ........................ 2019-2023
Escape (Sony) .....................2017-2023
Expedition (Sony) ...............2018-2023
F150 (Bang & Olufsen) ....................2018-2023
F-150 (2 Buttons Above Radio) ... 2017-2020
Fusion (Sony) ..................... 2017-2020
LINCOLN
Continental (Harman Revel/Ultima)... 2019-2023
MKZ (Harman Revel).............2017-2020
Navigator (14/20-Speaker)...2018 -2023
Nautilus (10-Speaker)...........2019-2023
FORD
Bronco Sport .......................2021-2023
EcoSport (Harman) ............. 2018-2019
Edge (Sony) ........................ 2019-2023
Escape (Sony) .....................2017-2023
Expedition (Sony) ...............2018-2023
F150 (Bang & Olufsen) ....................2018-2023
F-150 (2 Buttons Above Radio) ... 2017-2020
Fusion (Sony) ..................... 2017-2020
LINCOLN
Continental (Harman Revel/Ultima)... 2019-2023
MKZ (Harman Revel).............2017-2020
Navigator (14/20-Speaker)...2018 -2023
Nautilus (10-Speaker)...........2019-2023
FORD
Bronco Sport .......................2021-2023
EcoSport (Harman) ............. 2018-2019
Edge (Sony) ........................ 2019-2023
Escape (Sony) .....................2017-2023
Expedition (Sony) ...............2018-2023
F150 (Bang & Olufsen) ....................2018-2023
F-150 (2 Buttons Above Radio) ... 2017-2020
Fusion (Sony) ..................... 2017-2020
LINCOLN
Continental (Harman Revel/Ultima)... 2019-2023
MKZ (Harman Revel).............2017-2020
Navigator (14/20-Speaker)...2018 -2023
Nautilus (10-Speaker)...........2019-2023
A2B Amplifier Retention Interface
Fits Select Ford Models 2017-2023
A2B Amplifier Retention Interface
Fits Select Ford Models 2017-2023
A2B Amplifier Retention Interface
Fits Select Ford Models 2017-2023
A2B Amplifier Retention Interface
Fits Select Ford Models 2017-2023
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
AXA2B-FD1 AXA2B-FD1
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
AXA2B-FD1 AXA2B-FD1
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
REV. 6/03/2025 REV. 6/03/2025
© COPYRIGHT 2025 METRA ELECTRONICS CORPORATION © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com Integrate • AxxessInterfaces.com
REV. 6/03/2025 REV. 6/03/2025
© COPYRIGHT 2025 METRA ELECTRONICS CORPORATION © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com Integrate • AxxessInterfaces.com
Connections & Installation
• Unplug the main harness from port “A” in the touchscreen display, then connect the
AXA2B-FD1 harness in between.
• Connect the AXA2B-FD1 harness to the AXA2B-FD1 interface.
• Connect the Gray (right) and White (left) RCA jacks to the front full range outputs from
the aftermarket radio.
• Connect the Blue/White wire from the AXA2B-FD1 harness to amp turn-on.
• Tape off and disregard the Blue/Red wire.
Testing
• Cycle the ignition on and test the installation for functionality.
Note: Fade control will be lost.
• Locate the amp gain between the two connectors. Adjust the gain as needed to bal-
ance the level between the woofers and tweeters.
• If the level isn’t the same from all speakers, follow the instructions below to correct
the issue.

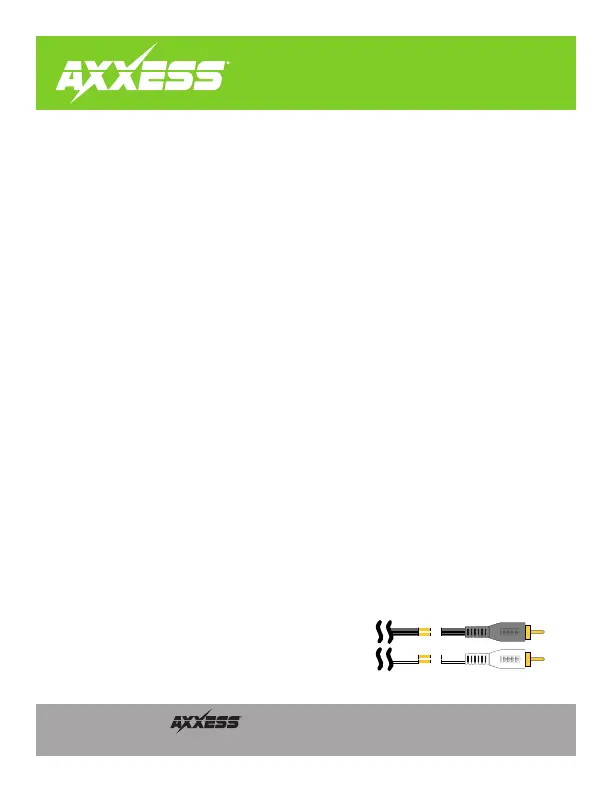

• Cut the RCA jacks off to expose the speaker wires inside.
•
Connect the following wires to the front speaker outputs from the aftermarket radio
:
Connections & Installation
• Unplug the main harness from port “A” in the touchscreen display, then connect the
AXA2B-FD1 harness in between.
• Connect the AXA2B-FD1 harness to the AXA2B-FD1 interface.
• Connect the Gray (right) and White (left) RCA jacks to the front full range outputs from
the aftermarket radio.
• Connect the Blue/White wire from the AXA2B-FD1 harness to amp turn-on.
• Tape off and disregard the Blue/Red wire.
Testing
• Cycle the ignition on and test the installation for functionality.
Note: Fade control will be lost.
• Locate the amp gain between the two connectors. Adjust the gain as needed to bal-
ance the level between the woofers and tweeters.
• If the level isn’t the same from all speakers, follow the instructions below to correct
the issue.
• Cut the RCA jacks off to expose the speaker wires inside.
•
Connect the following wires to the front speaker outputs from the aftermarket radio
:
Connections & Installation
• Unplug the main harness from port “A” in the touchscreen display, then connect the
AXA2B-FD1 harness in between.
• Connect the AXA2B-FD1 harness to the AXA2B-FD1 interface.
• Connect the Gray (right) and White (left) RCA jacks to the front full range outputs from
the aftermarket radio.
• Connect the Blue/White wire from the AXA2B-FD1 harness to amp turn-on.
• Tape off and disregard the Blue/Red wire.
Testing
• Cycle the ignition on and test the installation for functionality.
Note: Fade control will be lost.
• Locate the amp gain between the two connectors. Adjust the gain as needed to bal-
ance the level between the woofers and tweeters.
• If the level isn’t the same from all speakers, follow the instructions below to correct
the issue.
• Cut the RCA jacks off to expose the speaker wires inside.
•
Connect the following wires to the front speaker outputs from the aftermarket radio
:
Connections & Installation
• Unplug the main harness from port “A” in the touchscreen display, then connect the
AXA2B-FD1 harness in between.
• Connect the AXA2B-FD1 harness to the AXA2B-FD1 interface.
• Connect the Gray (right) and White (left) RCA jacks to the front full range outputs from
the aftermarket radio.
• Connect the Blue/White wire from the AXA2B-FD1 harness to amp turn-on.
• Tape off and disregard the Blue/Red wire.
Testing
• Cycle the ignition on and test the installation for functionality.
Note: Fade control will be lost.
• Locate the amp gain between the two connectors. Adjust the gain as needed to bal-
ance the level between the woofers and tweeters.
• If the level isn’t the same from all speakers, follow the instructions below to correct
the issue.
• Cut the RCA jacks off to expose the speaker wires inside.
•
Connect the following wires to the front speaker outputs from the aftermarket radio
:
• Gray: Right +
• Gray/Black: Right -
• White: Left +
• White/Black: Left –
• Gray: Right +
• Gray/Black: Right -
• White: Left +
• White/Black: Left –
• Gray: Right +
• Gray/Black: Right -
• White: Left +
• White/Black: Left –
• Gray: Right +
• Gray/Black: Right -
• White: Left +
• White/Black: Left –
