AXTC-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/9/24 INSTAXTC-FD1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & PARTS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications ...........................................................2
Connections ............................................................3
Programming .........................................................4
Troubleshooting.....................................................5
Ford/Mazda/Mercury SWC (Steering Wheel
Control) and Data Interface 2007-2022
APPLICATIONS
•
Provides accessory power (10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
• Micro-B USB updatable
• Includes 5V factory amplifier
step-down

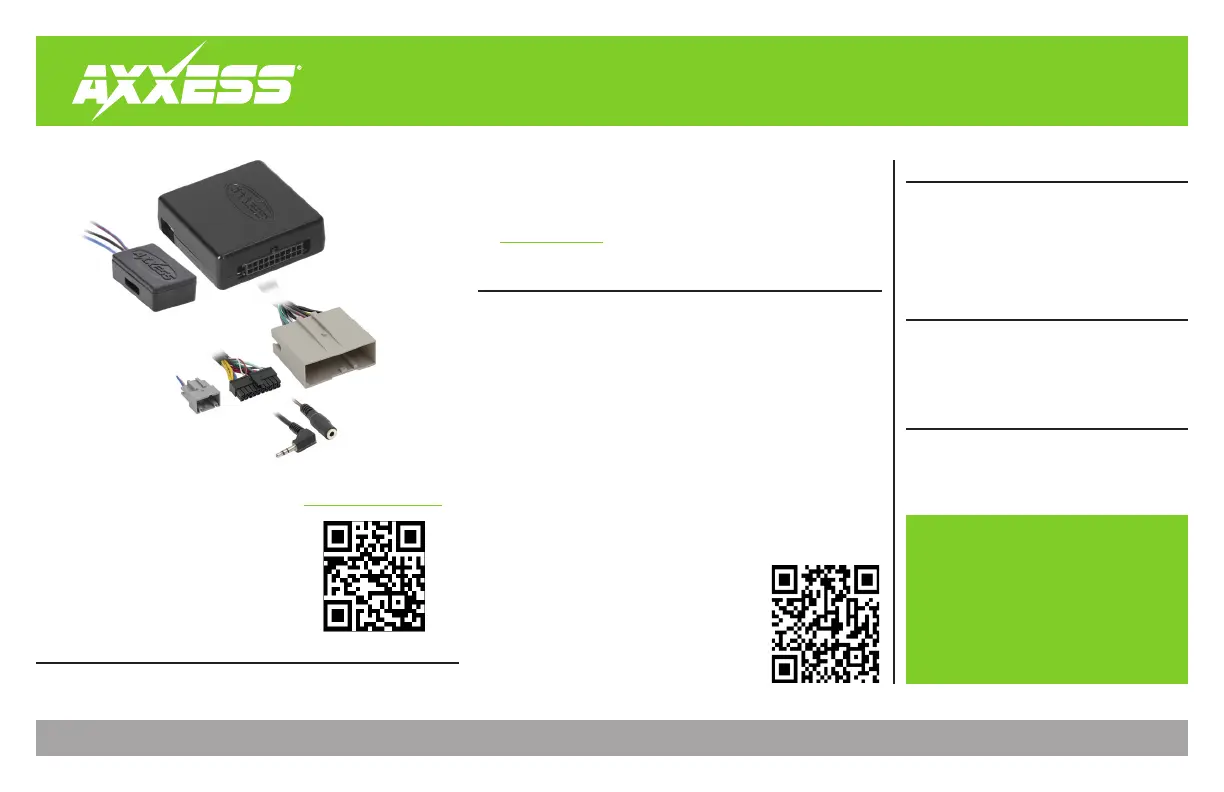

• AXTC-FD1 interface • AXTC-FD1 harness
• 3.5mm adapter
• LD-AFDI-5V amplifier step-down
See inside front cover
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-
date vehicle specific applications.
Product Info
www.MetraOnline.com
MetraOnline.com may be used to assist with dash
assembly instructions. Simply enter your Year,
Make, Model vehicle into the vehicle fit guide and
look for the Dash Kit Installation Instructions.
2
APPLICATIONS
Ford SWC*
Edge ................................................. 2007-2008 (auto)
Edge .................................................. 2009-2010 (auto)
Escape ............................................... 2008-2012 (auto)
E series (with AM/FM/CD/SYNC) ..... 2014-2020 (tap)
Expedition .........................................2007-2013 (auto)
F-150 Base (1) .............................................2013 (tap)
F-150 (2) ........................................... 2009-2014 (tap)
F-150 (2) ...........................................2009-2010 (auto)
F-250/350/450/550 (Base) (1) ................. 2016 (tap)
F-250/350/450/550 (2) .....................2011-2016 (tap)
F650/750 (w/CD) ...............................2016-2022 (tap)
Focus .................................................. 2008-2011 (auto)
Fusion ................................................2010-2012 (auto)
Mustang (3) .....................................2008-2014 (auto)
Mazda SWC*
Tribute ...............................................2008-2011 (auto)
Mercury
Mariner...............................................2008-2011 (auto)
Milan ...................................................2010-2011 (auto)
(1) Without 8.4” color screen. XL models must have a CD player
(2) XL models must have a CD player
(3) Late 2008 build date
*SWC Programming Sequence
(auto) Do nothing, the interface will auto program
(tap) Tap the Volume Up button to program the interface
Produktspecifikationer
| Varumärke: | Axxess |
| Kategori: | ej kategoriserat |
| Modell: | AXTC-FD1 |
