Sida 1/8

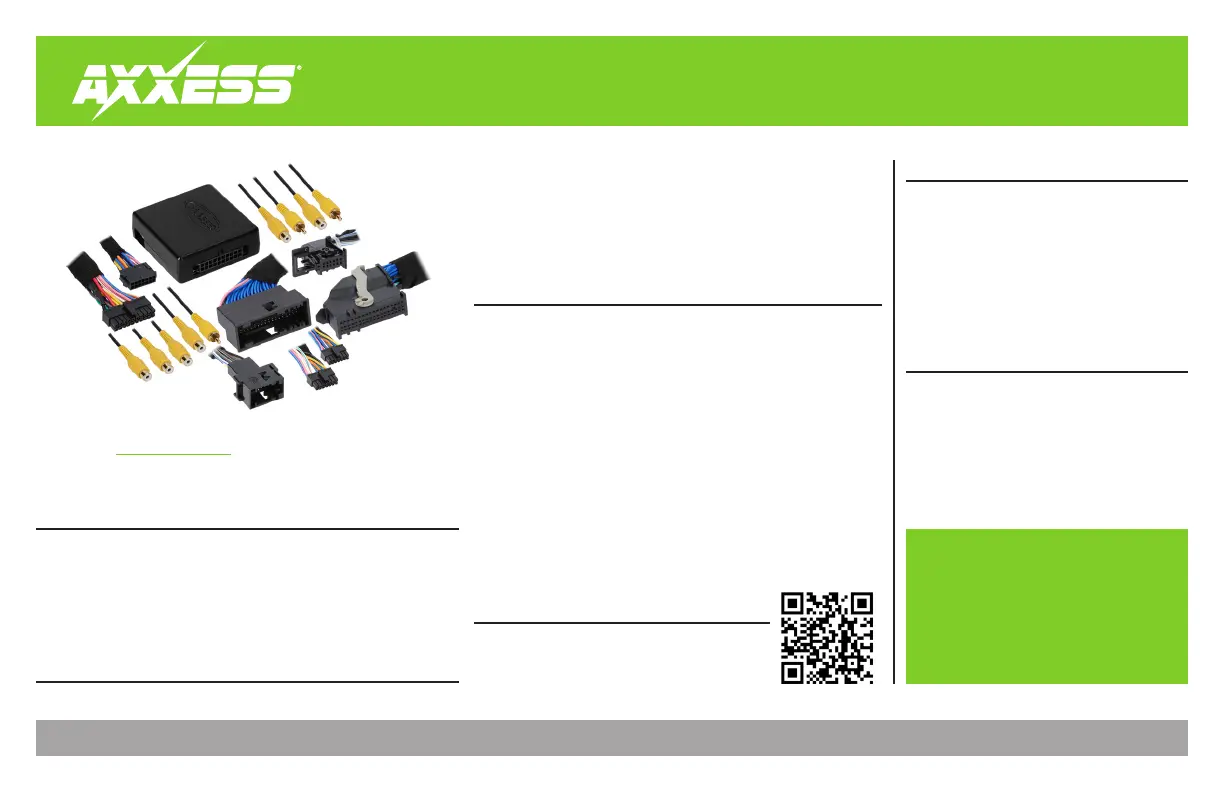

AXAC-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 9/12/25 INSTAXAC-FD1
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Applications ...........................................................2
Configuration ..................................................... 2-5
Connections ............................................................ 6
Installation .............................................................7
Programming .........................................................7
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured through the
Axxess Updater program)
•
Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• 4 programmable camera control wires (configured through the Axxess
Updater program)
•
Can also be manually controlled and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
Update Cable: AXUSB-MCBL (sold separately)
Supplemental Harness*:
AX-ADDCAM-FDSTK (sold separately)
Axxess Updater Program
*2014-Up models with 4.2-inch display screen only
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
Camera Data Interface w/Pre-Wired Harness
Fits Select Ford Models 2011-2023*
*With either a 4.2-inch, 6.5-inch, or 8-inch display screen
Note: Only compatible with NTSC cameras.
APPLICATIONS (see next page)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Product Info
2
CONFIGURATION

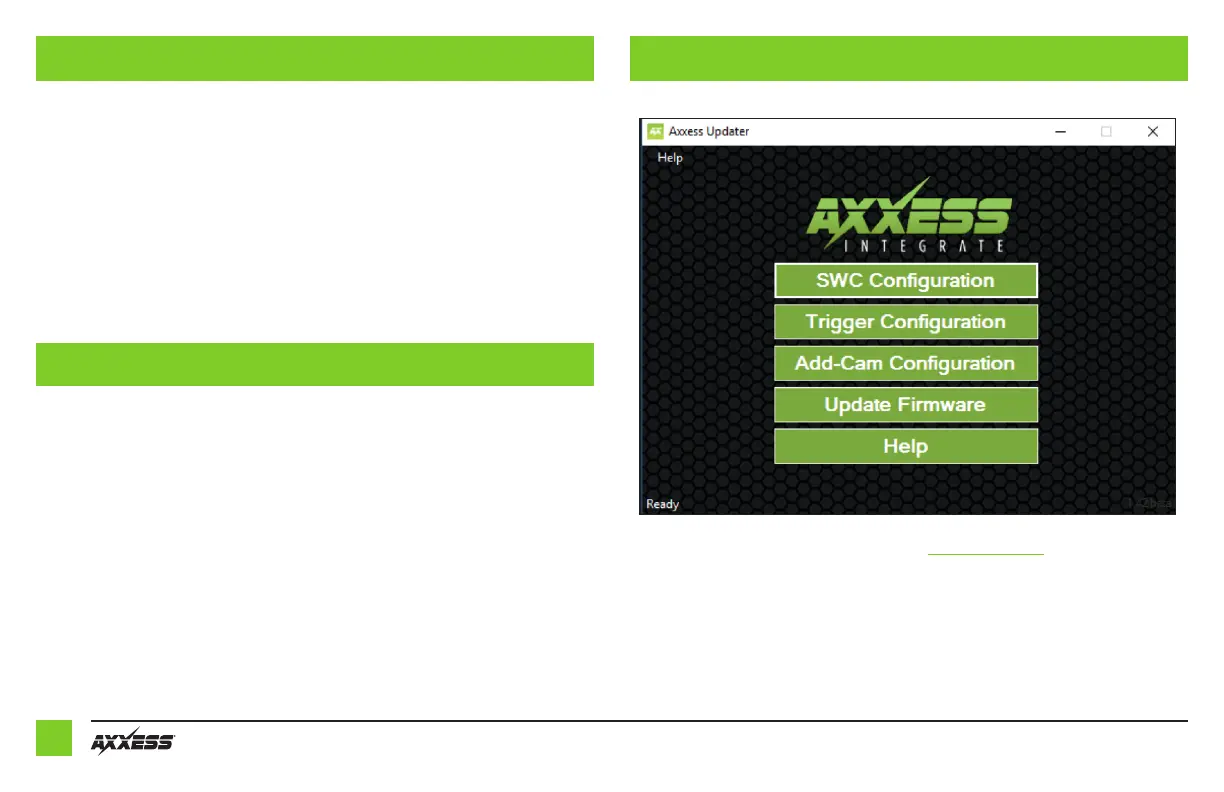

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word “Ready” is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-FD1 is a camera switching interface that provides:
• A front camera, and/or side cameras that can be added to the factory radio.
• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.
• Automatic camera function, no human interaction is required, unless desired.
• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.
Note: Axxess recommends cameras from the iBEAM product line for best results.
APPLICATIONS
Ford
Bronco Sport ................................................................................. 2022-2023
Bronco ............................................................................................ 2022-2023
Escape 4.2” / 8” (or 6.5”) Display Models ................................... 2013-2022
Edge 4.2” / 8” (or 6.5”) Display Models ...................................... 2011-2020
F-150/250 4.2” / 8” (or 6.5”) Display Models ............................. 2013-2020
Focus 4.2” / 8” (or 6.5”) Display Models ..................................... 2012-2018
Fusion 4.2” / 8” (or 6.5”) Display Models ................................... 2013-2019
Maverick 4.2” / 8” (or 6.5”) Display Models ............................... 2022-2023
Mustang ......................................................................................... 2015-2023
Ranger 4.2” / 8” Display Models ................................................. 2019-2023
Transit 4.2” / 6.5” Display Models ............................................... 2014-2018
Transit Connect 4.2” / 8” (or 6.5”) Display Models .................... 2015-2018
