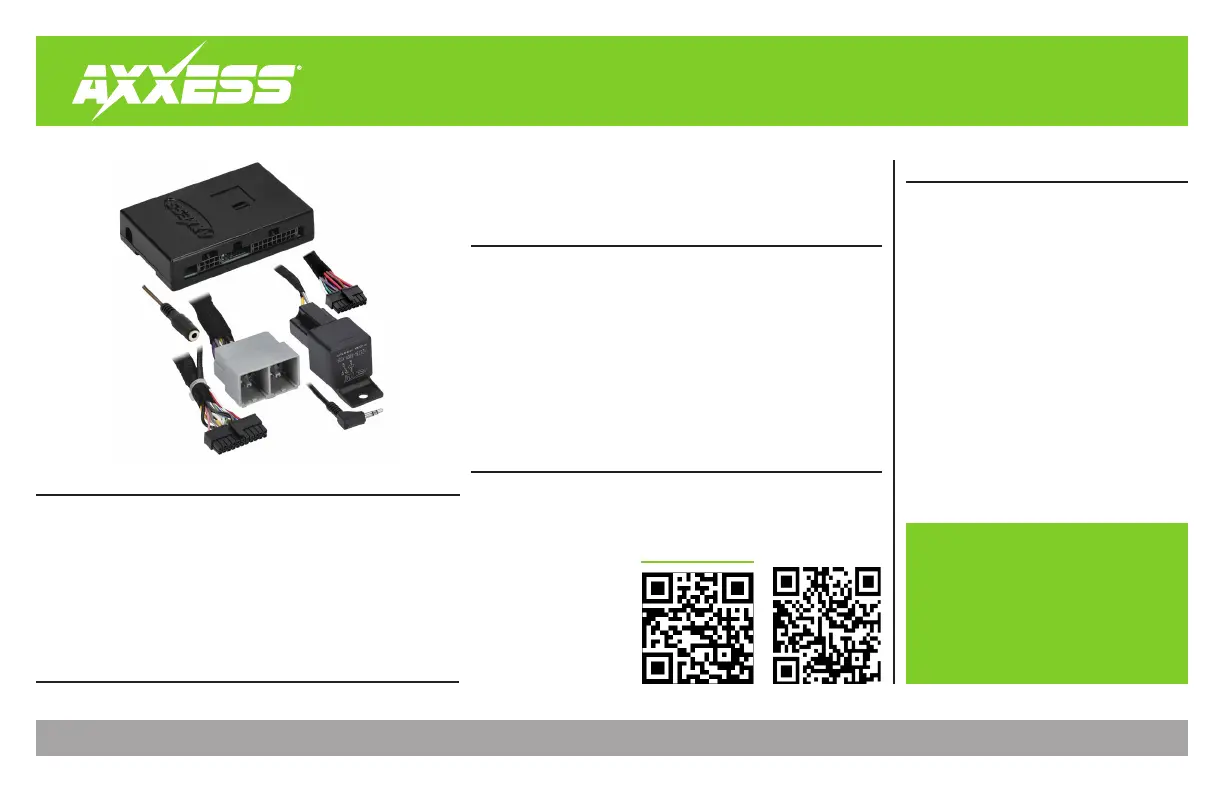

Sida 1/8
AX DIS -GMLN31
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/1/24 INSTAXDIS-GMLN31
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Applications ...........................................................2
Connections ........................................................ 2-3
3.5mm Jack Steering Wheel Control Retention
....3
Installing the AXDIS-GMLN31 ................................. 4
Programming the AXDIS-GMLN31 ......................... 4
Steering Wheel Control Settings (SWC)........... 5-7
LED Feedback .......................................................5
Changing Radio Type ..........................................5
Remapping the
SWC
............................................... 6
Dual Assignment Instructions......................... 7-8
Troubleshooting.....................................................8
GM Data Interface with SWC 2019-2023
•
Non-amplified models only
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Rearview camera retention
• Retains balance and fade
• Micro-B USB updatable
• AXDIS-GMLN31 interface • AXDIS-GMLN31 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector w/stripped leads
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun
• Tape • Small flat-blade screwdriver
• Connectors (example: butt-connectors, bell caps, etc.)
Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
Product Info
www.MetraOnline.com
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter
your Year, Make, Model
vehicle into the vehicle fit
guide and look for the Dash
Kit Installation Instructions.
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
APPLICATIONS (see next page)
2
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire
• Tape off and disregard the following (5) wires, they will not be used in this application:
Blue/White, Green, Green/Black, Purple and Purple/Black.
APPLICATIONS
Chevrolet
Camaro (IOR)*† .................................2019-2023
Cheyenne (IOR) † ..............................2019-2021
Colorado (IOR) ...................................2019-2022
Cruze ........................................................... 2019
Equinox (IOR) † ..................................2019-2023
Malibu (IOR) † ....................................2019-2022
Silverado (IOR) † ...............................2019-2021
Sonic...................................................2019-2022
Chevrolet (Cont.)
Spark (IOR) ........................................2019-2022
Trax (IOR) ......................................... 2017-2020
Trax (no RPO) ....................................2021-2022
GMC
GMC Acadia (IOR) .............................2020-2022
Canyon (IOR) .....................................2019-2022
Sierra 1500 (IOR) † .............................2019-2021
Terrain (IOR) † ...................................2019-2022
*No Backup Camera Retention
†For extension, use AXEXH-GM31
