Sida 1/4
AXDI-FOC
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/20/24 INSTAXDI-FOC
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Cutting tool
• Tape
• Crimping tool
•
Connectors (i.e. butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections: LD-FD212 Harness .......................... 2
Installation ............................................................ 3
Programming ........................................................ 3
Fits Ford Focus* Data Interface 2012-2018
*with factory 4.2” screen
•
Designed for both amplified and non-amplified models
•
Provides accessory power (12-volt 10-amp)
•
Retains R.A.P. (Retained Accessory Power)
•
Provides NAV outputs (parking brake, reverse, speed sense)
•
Pre-wired AXSWC harness (AXSWC sold separately)
•
Retains balance and fade
•
Micro “B” USB updatable
• AXDI-FOC interface
• LD-FD212 harness
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
www.MetraOnline.com
MetraOnline.com may be used to assist with dash assembly
instructions. Simply enter your Year, Make, Model
vehicle into the vehicle fit guide and look for the Dash Kit
Installation Instructions.
2

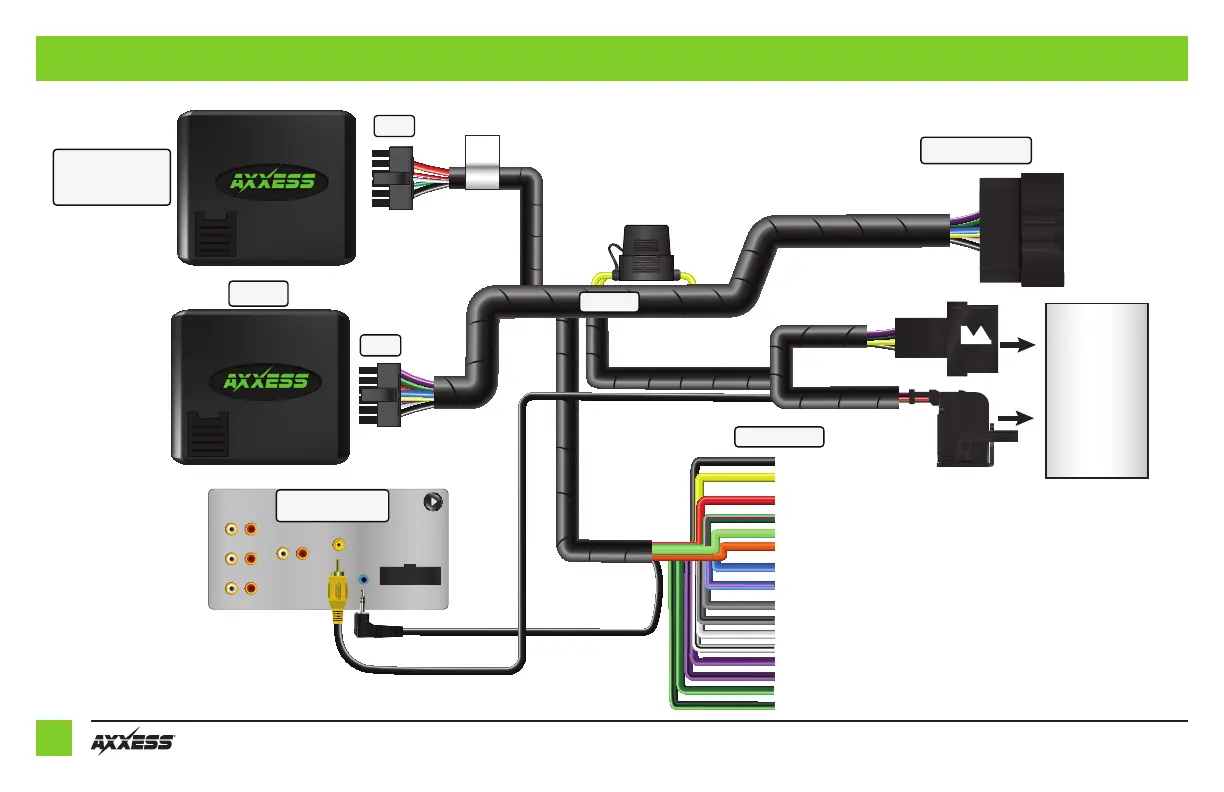

CONNECTIONS: LD-FD212 DIAGRAM
Radio Connections
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue - Power Antenna
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Vehicle Connectors
LD-FD212
12-Pin
To
SWC
12-Pin
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
Interface
Steering Wheel
Control (AXSWC)
(Sold Separately)
OE
Screen
Location
To
Radio
