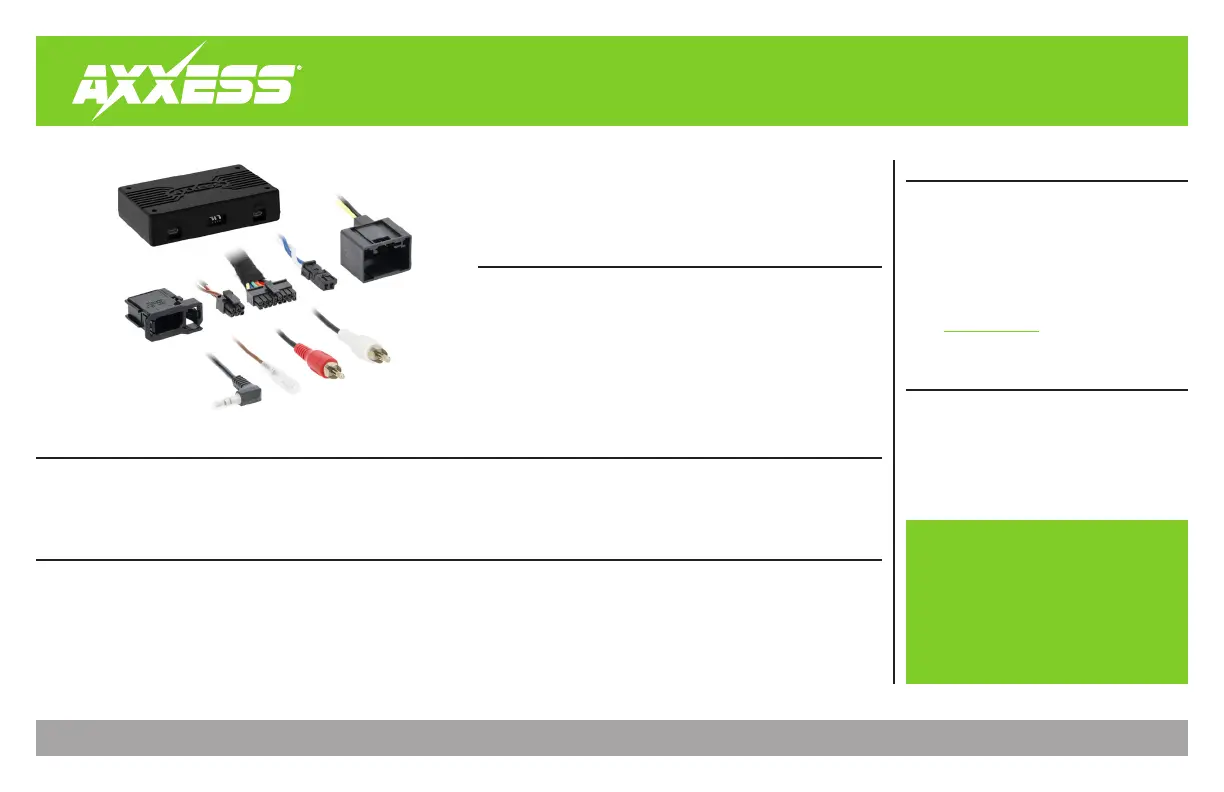

AXDIS-MB132
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-MB132
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors (example: butt
connectors, bellcaps, etc.)
• Solder gun, solder, heat shrink
• Tape • Zip-ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-MB132 Harness .............2
Steering Wheel Control Chart (SWC) ...................3
Installing the Fiber Optic Cable.............................4
Installing the AXDIS-MB132 Interface ................... 5
Mercedes (with MOST 25 amplifier)
Data Interface with SWC 2002-2011
INTERFACE FEATURES
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
•
Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
APPLICATIONS
US Applications: Mercedes
E Class (W211) .........................................................................2003-2008
CLS (W219) ...............................................................................2006-2011
SLK (R171) ................................................................................. 2005-2011
World Applications: Mercedes
E Class (W211) ..........................................................................2002-2009
CLS (W219) ...............................................................................2004-2010
SLK (R171) .................................................................................2004-2010
With OEM Navigation
• AXDIS-MB132 interface
• BLK-AXDIS-MB132 harness
• Steering wheel control harness
INTERFACE COMPONENTS
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
2

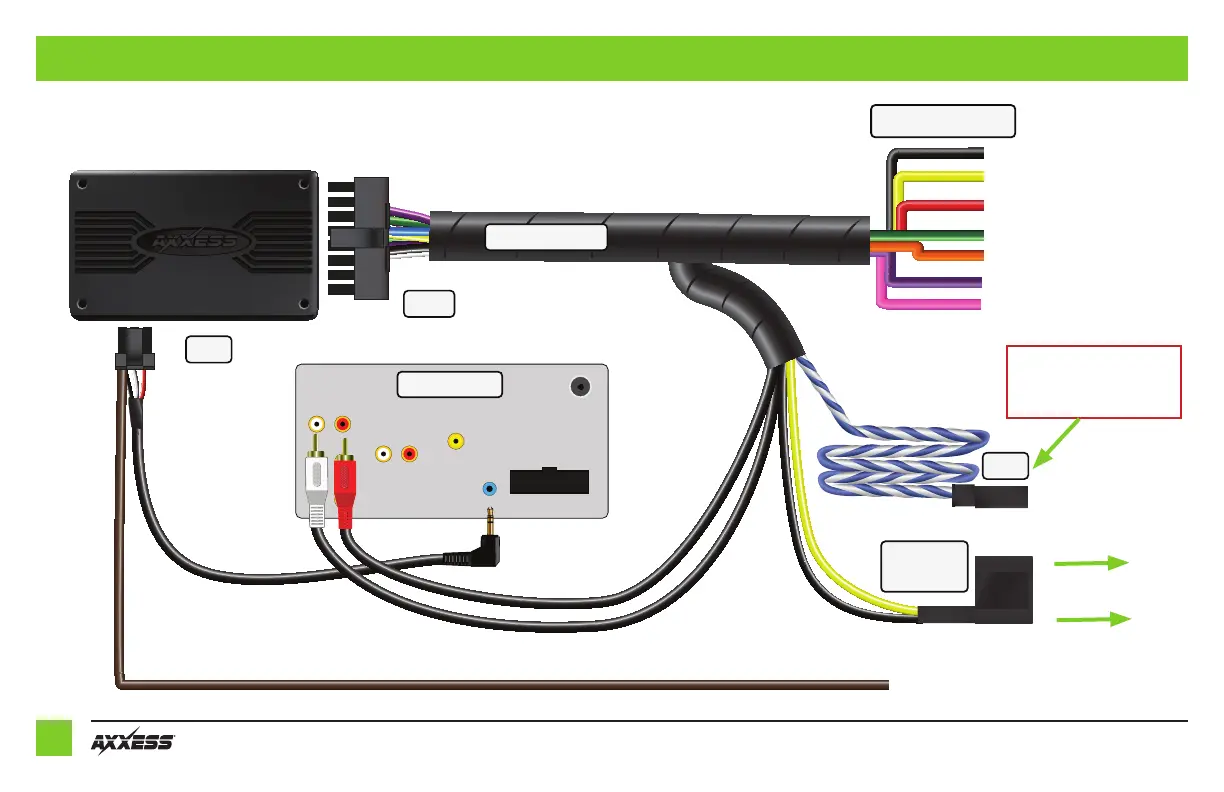

CONNECTIONS: BLK-AXDIS-MB132 HARNESS
Front
Rear
Sub
AUX-IN
Rear View
SWC
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Purple - E-Brake
Pink - VSS
6-Pin
2-Pin
Vehicle
Connectors
16-Pin
Radio Connections
BLK-AXDIS-MB132
Aftermarket Radio
Brown - Wired SWC
“Kenwood/JVC”
Refer to step 6 on page 5,
Figure B, for CAN junction
block connection
To Vehicle
