AXDSPX-TY1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/13/25 INSTAXDSPX-TY1
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Multimeter
TABLE OF CONTENTS
Installation & Installation Options ........................2
Connections ........................................................3-4
Mobile App: Quick Setup ................................... 5-6
Specifications ......................................................... 7
INTERFACE COMPONENTS
• AXDSPX-TY1 interface
• AXDSPX-TY1 interface harness
• AXDSPX-TY1 vehicle T-harness
• Bass knob
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES

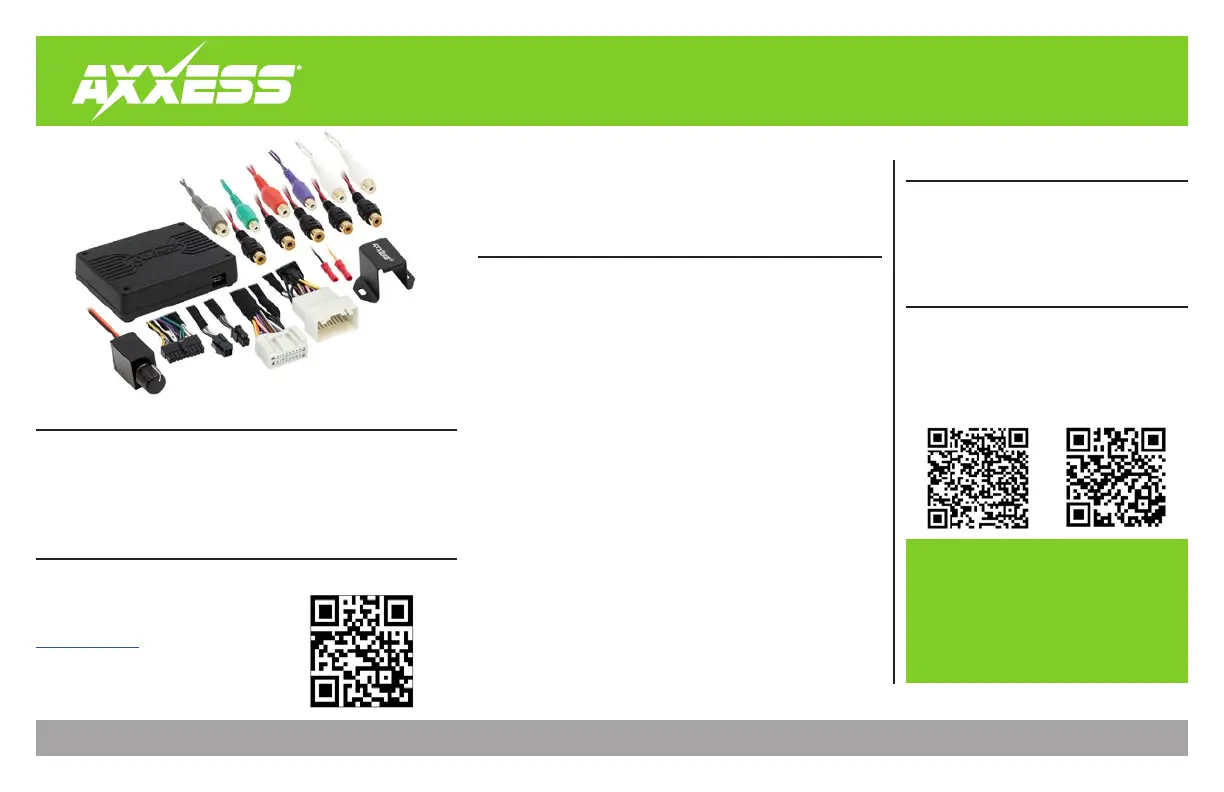

DSP Data Interface with Pre-Wired Harness
Fits Select
Lexus/Toyota Models
2001-2015
• Designed for amplified systems
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each
channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Clipping detection and limiting circuits
• Bass knob included
• Settings adjusted wirelessly in the free AX-DSP-XL app available
for smartphones and tablets
• Easy behind the radio installation
• Can be used with factory and aftermarket radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app
• Micro “B” USB updatable
APPLICATIONS
Visit AxxessInterfaces.com for current application list
For Dash Disassembly Instructions, refer to
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
Download AX-DSP-XL App
iOS
®
12.1 or higherAndroid™ 9 or higher
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to an amplified factory system. (Refer to Page 3)
Adding a full-range amplifier and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system.* (Refer to Page 4)
*
The factory amp must be bypassed/unplugged.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. Install the AXDSPX-TY1 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. Plug the AXDSPX-TY1 vehicle T-harness to the AXDSPX-TY1 interface.
4. Plug the AXDSPX-TY1 interface harness to the AXDSPX-TY1 interface.
5.
Download and install the
AX-DSP-XL app for your smart device
.
6. Open the app then select the Bluetooth Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to Page 5 for more information.
7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down**
button to save the configuration. Refer to Page 6 for more information.
8. Connect the amp turn-on wire.
9. Adjust the settings in the app as desired. Press the Lock Down** button to save any
new configurations.
* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra
Radio Install kits.
** Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS I N S TALLATIO N
