AXDSPX-VW1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/13/25 INSTAXDSPX-VW1

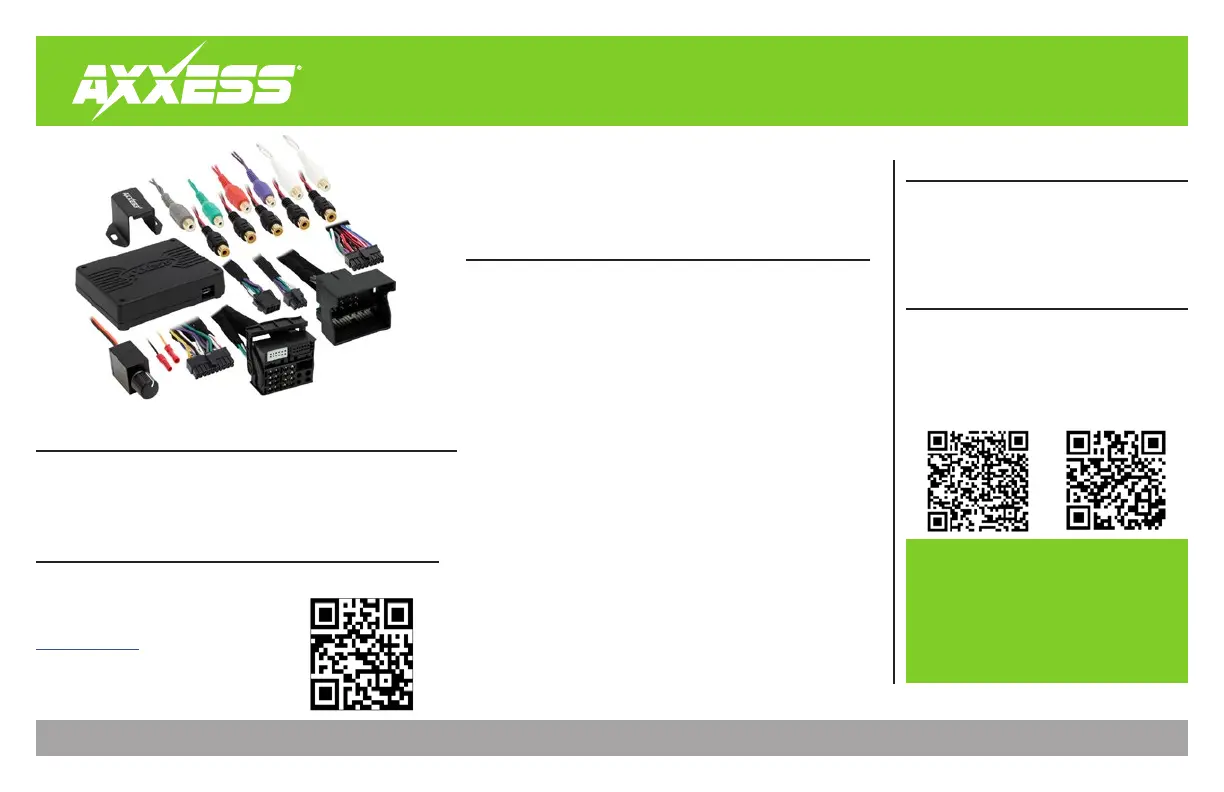

INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
• AXDSPX-VW1 interface
• AXDSPX-VW1 interface harness
• AXDSPX-VW1 vehicle T-harness • Bass knob
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TABLE OF CONTENTS
Installation & Installation Options ........................2
Connections ........................................................3-4
Mobile App: Quick Setup ................................... 5-6
Specifications ......................................................... 7
INTERFACE FEATURES
DSP Data Interface with Pre-Wired Harness
Fits Select Volkswagen Models 2002-2017
• Designed for non-amplified systems
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each
channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Clipping detection and limiting circuits
• Bass knob included
• Settings adjusted wirelessly in the free AX-DSP-XL app available
for smartphones and tablets
• Easy behind the radio installation
• Can be used with factory and aftermarket radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app
• Micro “B” USB updatable
APPLICATIONS
Visit AxxessInterfaces.com for current application list
For Dash Disassembly Instructions, refer to
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
Download AX-DSP-XL App
iOS
®
12.1 or higherAndroid™ 9 or higher
*Excludes models equipped with a Fender sound system
2
Adding a sub to a factory system:
This feature offers the ability to add a subwoofer to a factory system. (Refer to Page 3)
Adding a full-range amp & sub to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system. (Refer to Page 4)
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio*, then unplug all connectors.
2. Install the AXDSPX-VW1 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. Plug the AXDSPX-VW1 vehicle T-harness to the AXDSPX-VW1 interface.
4. Plug the AXDSPX-VW1 interface harness to the AXDSPX-VW1 interface.
5. Download and install the
AX-DSP-XL app for your smart device.
6. Open the app then select the Bluetooth Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to Page 5 for more information.
7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down**
button to save the configuration. Refer to Page 6 for more information.
8. Connect the amp turn-on wire.
9. Adjust the settings in the app as desired. Press the Lock Down** button to save any
new configurations.
* For dash disassembly instructions, refer to metraonline.com Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under
Metra Radio Install kits.
** Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS I N S TALLATIO N
