Sida 1/8

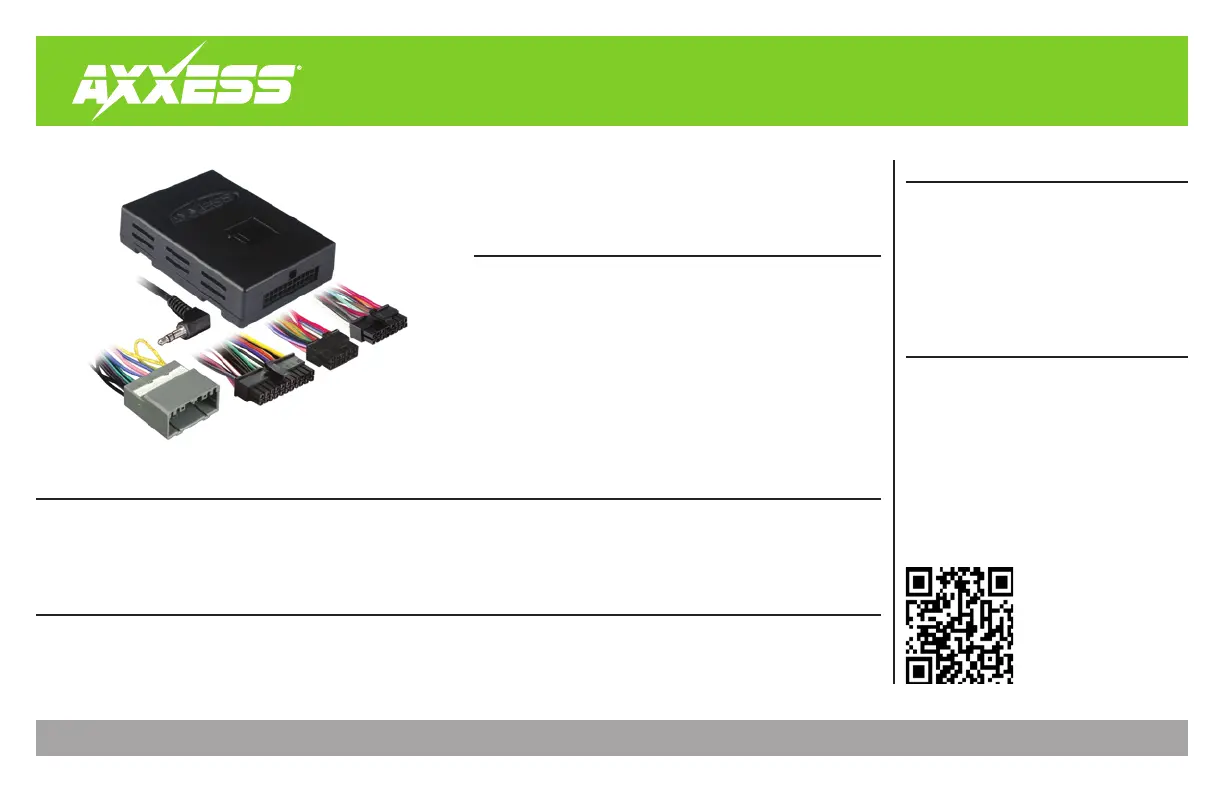

AXTO-CH2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 8/27/25 INSTAXTO-CH2
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
• AXTO-CH2 interface
• AXTO-CH2 harness
• 16-pin harness
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Audio level adjustment.........................................3
Data Interface with Data Signal Turn-On
Fits Chrysler Models 2003-2008
APPLICATIONS
• Designed for amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Adjustable gain control for overall volume
• Retains balance and fade
• High level speaker input
• Micro “B” USB updatable
CHRYSLER
Pacifica 2003-2008
DODGE
Ram 1500 2003-2004
Ram 2500/3500 2003-2005
2
CONNECTIONS
From the 16-pin harness to the aftermarket radio, connect the:
• Red wire to the accessory wire.
• Blue/White wire to the amp turn on wire.
• Gray wire to the front right positive speaker output.
• Gray/Black wire to the front right negative speaker output.
• White wire to the front left positive speaker output.
• White/Black wire to the front left negative speaker output.
• Purple wire to the rear right positive speaker output.
• Purple/Black wire to the rear right negative speaker output.
• Green wire to the rear left positive speaker output.
• Green/Black wire to the rear left negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Blue/Pink wire to the VSS/speed sense wire.
• Green/Purple wire to the reverse wire.
• Light Green wire to the parking brake wire
• Tape off and disregard the following (2) wires, they will not be used in this application:
Brown, Orange/White
From the AXTO-CH2 harness to the aftermarket radio, connect the:
• Black wire to the ground wire.
• Yellow wire to the battery wire.
• Orange wire to the illumination wire (if applicable).
12-pin AXSWC harness & 3.5mm jack:
• The 12-pin AXSWC harness & 3.5mm jack is to be used with the AXSWC (sold separately) to
retain steering wheel audio controls. If the AXSWC is not being used, disregard this harness.
If it is to be used, refer to the AXSWC instructions for radio connections and programming.
Disregard the harness that comes with the AXSWC.
