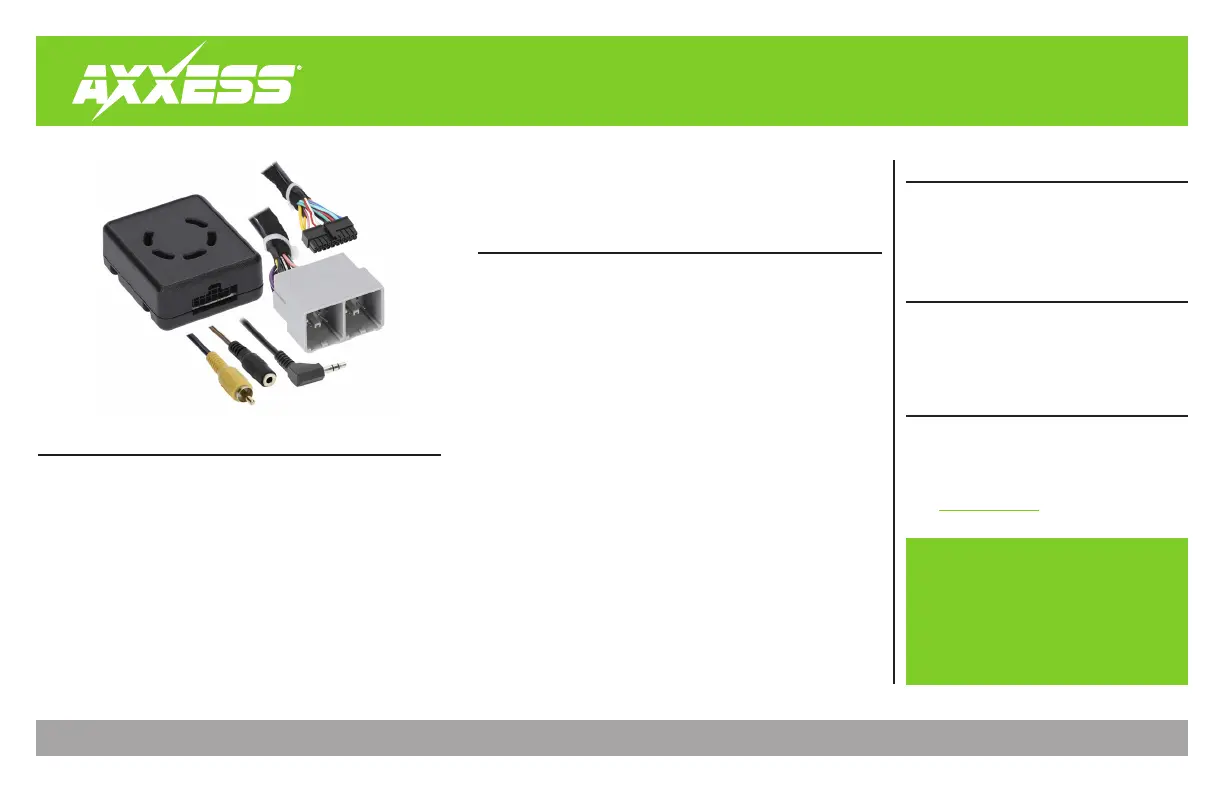

AXTC-LN31
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 8/15/25 INSTAXTC-LN31
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting.....................................................4
Data Interface with SWC
Fits Select GMC Models 2017-2023
APPLICATIONS
• AXTC-LN31 interface
• AXTC-LN31 harness
• 3.5mm adapter
* For extension, use AXEXH-GM31
Note: The radio code can be found in the Service Parts Identification Label
located: Glove box – Equinox/Terrain
10R only (see note) - Camaro/Canyon/Colorado/Malibu/Sierra/Silverado
Note: Newer model GM vehicles are transitioning to a QR style label.
If the Service Parts Identification Label is not located where listed, reference the
Vehicle Certification Label on the inside of the driver’s door opening for the QR code.
Chevrolet
Camaro (IOR)* ........... 2019-2023
Cheyenne (IOR)* ........2019-2021
Colorado (IOR) ........... 2019-2022
Equinox (IOR)* .......... 2019-2023
Malibu (IOR)* ............. 2019-2022
Silverado (IOR)* ......... 2019-2021
Sonic ..........................2019-2020
Spark (IOR) ................ 2019-2022
Chevrolet (Cont)
Trax ........................... 2021-2022
Trax (IOR) .................. 2017-2020
GMC
Acadia (IOR) ..............2020-2022
Canyon (IOR) ............. 2019-2022
Sierra (IOR)* ...............2019-2021
Terrain (IOR)* ............ 2019-2022
•
Designed for non-amplified models, or when bypassing a factory amplifier
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Built-in features like SWC & Auto-Detect
• Auto-detect feature - automatically detects the vehicle type, radio
connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Designed to work with a major radio brands
• Can be manually programmed for most vehicles
• Retains settings, even after battery disconnection
• Retains warning chimes through onboard speaker
• Retains factory backup camera if equipped
• Retains balance & fade
• Micro “B” USB updatable
2

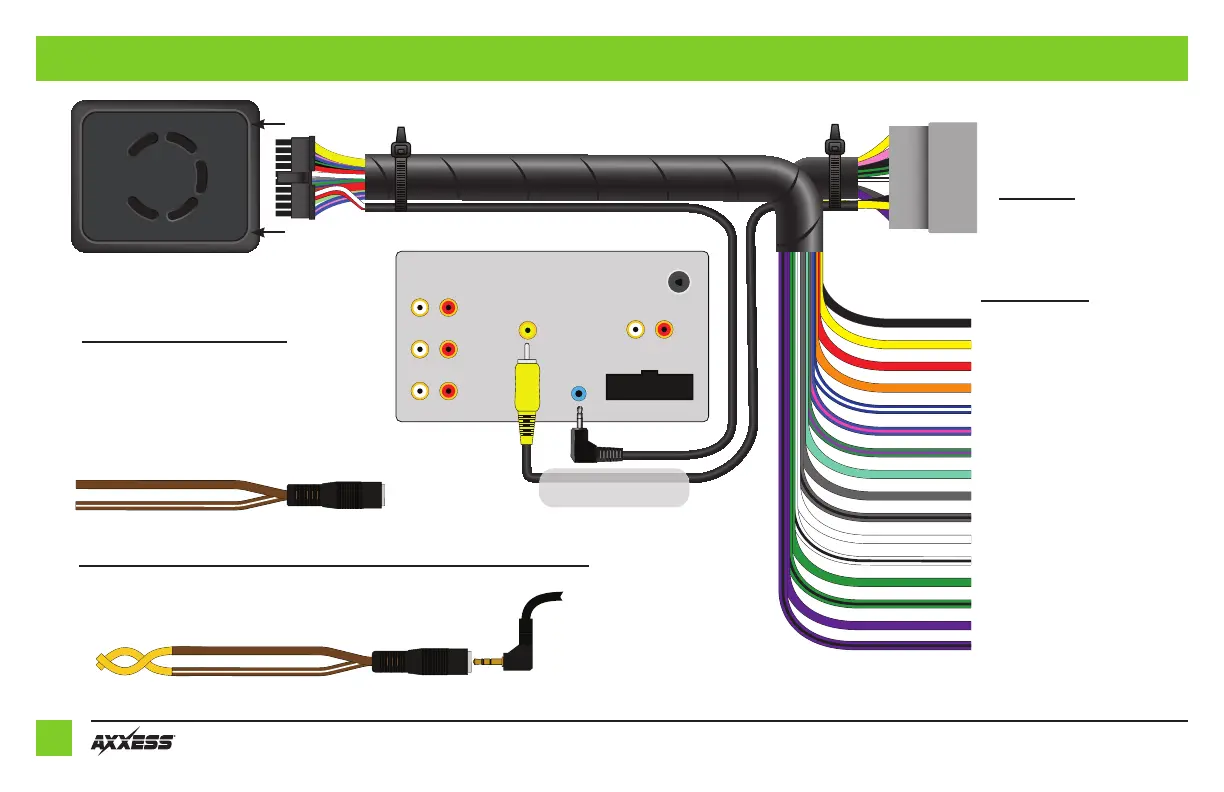

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
Yellow RCA - Rear View
3.5mm Adapter : For vehicles with
Steering wheel controls, or aftermarket
radios with a wire for SWC
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-LN31 Harness
3) Program the AXTC-LN31 per the instructions on page 3. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White- Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
