AX-LOC6.6-PRO
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 1/16/25 INSTAX-LOC6.6-PRO
TABLE OF CONTENTS
Quick Start Guide
Things to Know .................................................2
Quick Reference ................................................3
Feature Breakdowns .............................................4
Internal Jumper .....................................................5
Input/Output Setting Switches .............................6
Connections/Setup ................................................7
Diagrams ...........................................................8-12
6 Channel High Level Input w/Summing ......... 8
4 Channel High Level Input/6 Ch. Summed ....9
4 Channel High Level Input/6 Ch. Output ..... 10
2 Channel High Level Input/6 Ch. Output ...... 11
Multi-Function Remote ........................................12
Gain Setup
Basic Setup .......................................................13
Advanced Setup ..............................................13
Specifications ....................................................... 14
Premium Advanced LOC
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones
Multi-Function Remote with 6 ft Cable

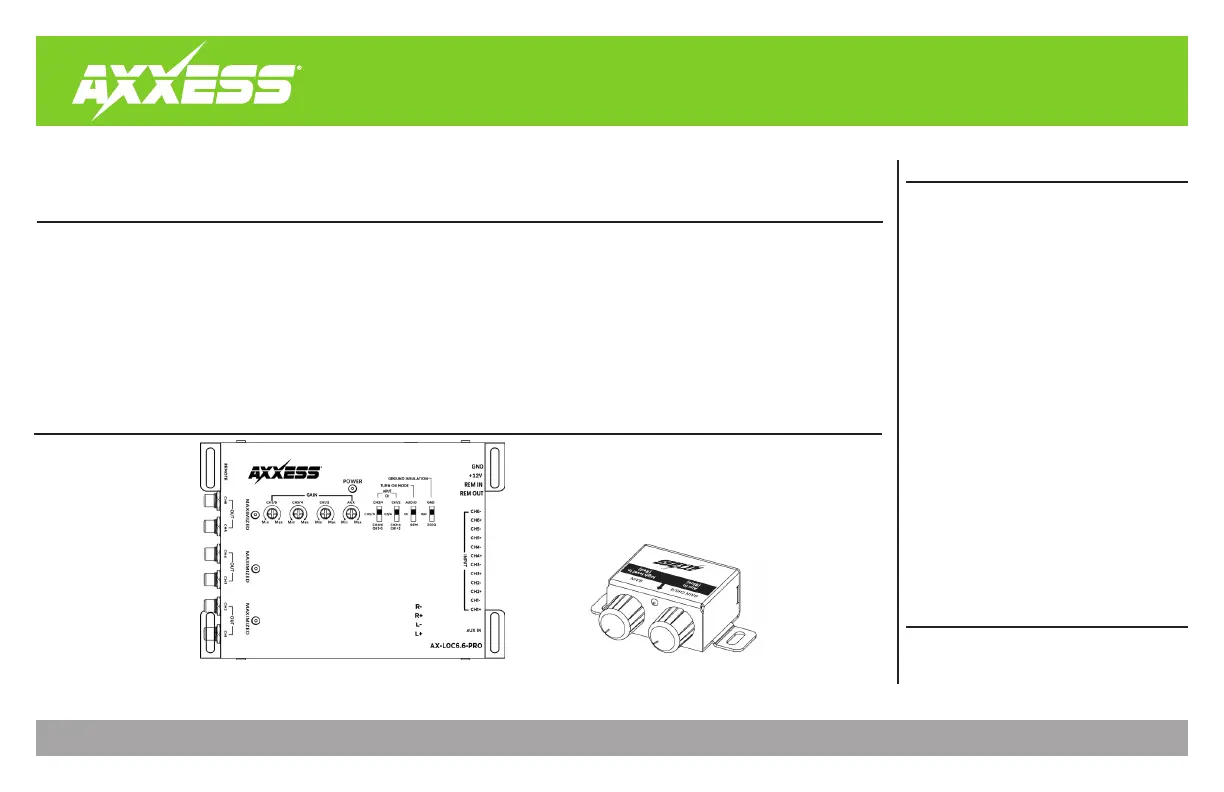

AX-LOC6.6-PRO Line Out Converter (LOC)
COMPONENTS
AX-LOC6.6-PRO
Introducing the Axxess AX-LOC6.6-PRO! This advanced LOC is a game-changer for your vehicle’s audio system. With its powerful audio processing
capabilities, it takes your music to a new level. The AX-LOC6.6-PRO enables seamless integration by summing OEM audio signals, delivering a
full-range output that captures every detail and nuance of your favorite tracks. Experience enhanced clarity, depth, and balance as you enjoy your
music like never before. Elevate your driving experience with the Axxess AX-LOC6.6-PRO and immerse yourself in the true essence of high-
quality sound. Upgrade your car audio system today and unleash the full potential of your music!
2
THINGS TO KNOW
1. This is an active LOC and MUST have constant 12 volt and a good ground to operate
properly. Having a poor ground can induce noise into your system, use the same
gauge wire as the 12 volt line.
2. The AX-LOC6.6-PRO enables connections for up to six channels of speaker-level input
from the source. It supports input signals ranging from 2Vrms to 20Vrms, resulting
in an RCA output that can range from a maximum to minimum gain of up to 10Vrms.
However, in cases where factory amplifiers generate signals exceeding 20Vrms or if
the AX-LOC6.6-PRO’s output is too high for the connected aftermarket amplifier(s)
even with all gains at minimum, internal jumpers (Figure A) are available.
These jumpers allow for the reduction of input sensitivity range by half (-6dB),
accommodating input signals from 4Vrms up to 40Vrms.
3. The 3.5mm auxiliary input jack allows you to connect portable devices and other low-
level sources using an adapter. It can be selected as a separate source via the remote
or programmed as the primary source for standalone systems. Input signals from
0.5Vrms to 5Vrms produce up to 10Vrms RCA output at the maximum to minimum
gain setting. The input is differential by default but can be set to unbalanced using
internal jumpers (BAL/UNBAL) if required.
4. When ready to mount your LOC check under your selected mounting location to make
sure it is clear of any wiring harnesses, fuel or brake lines or anything else that may
affect the vehicle safety.
QUICK START GUIDE

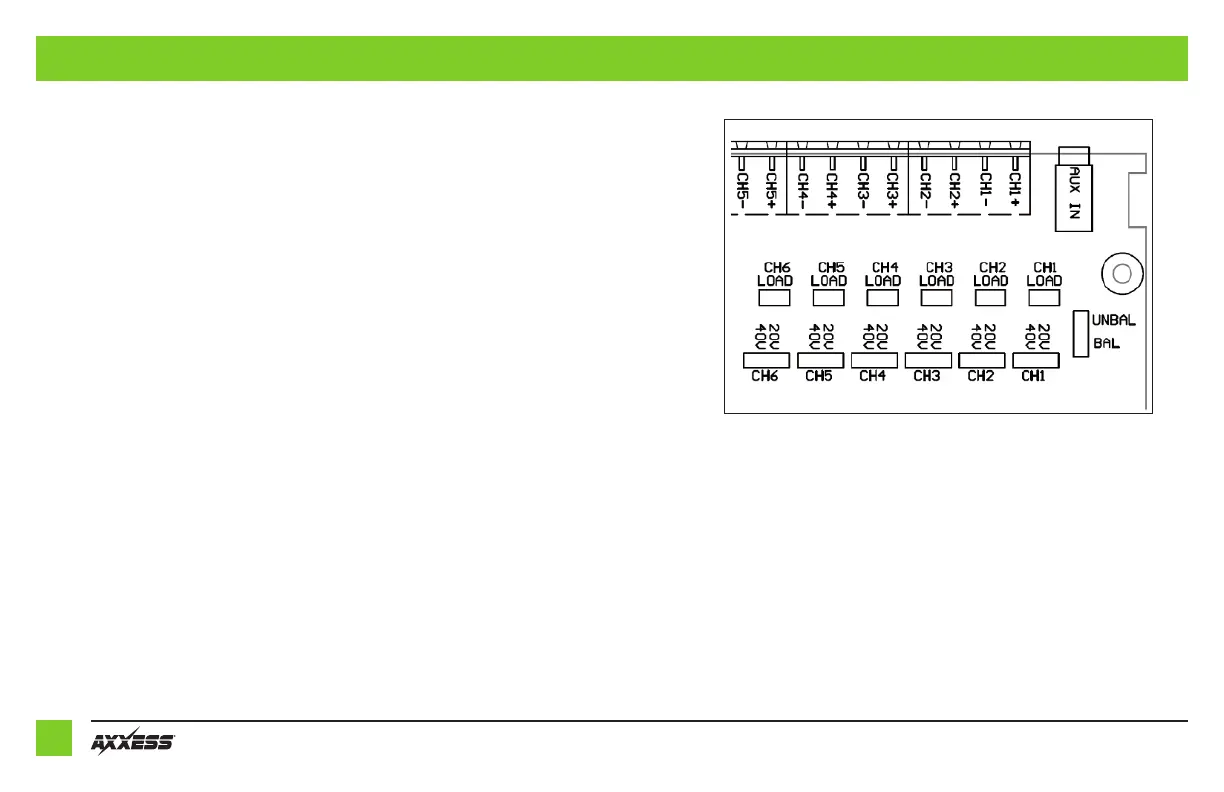

Figure A
