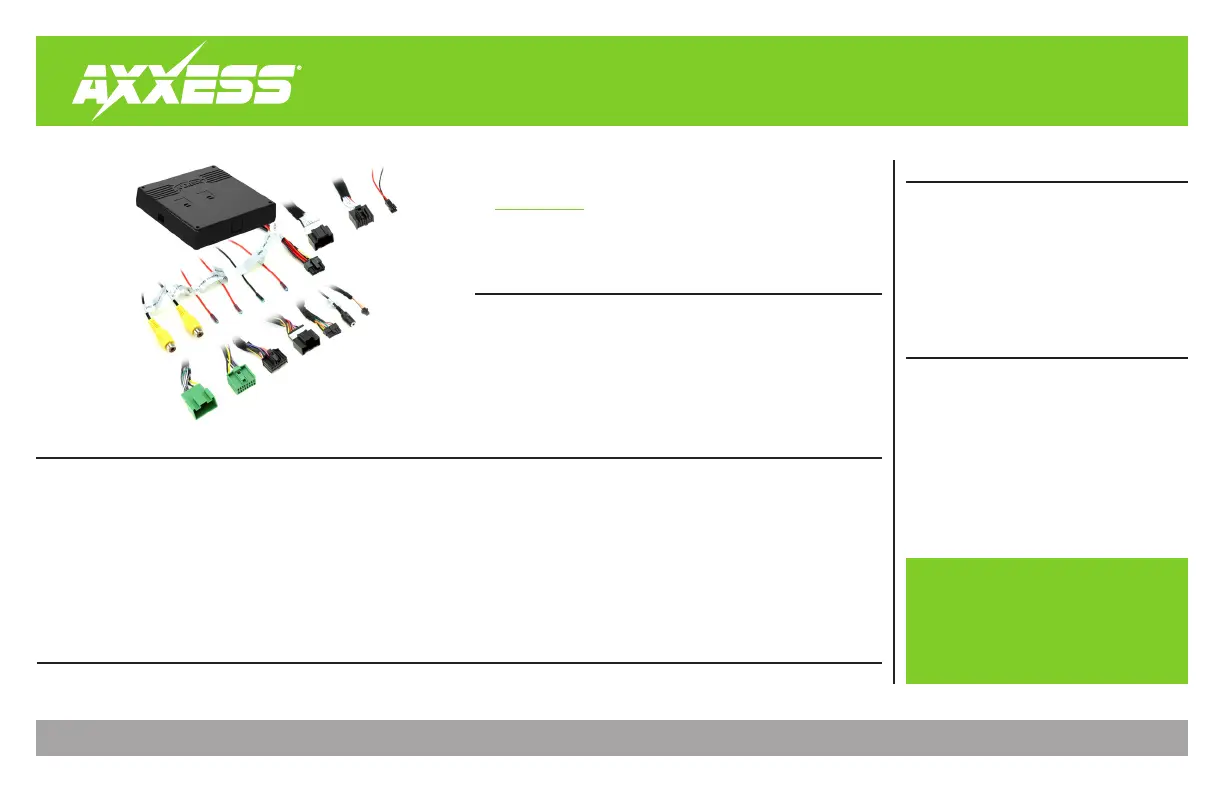

AXFRC-GM2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 10/20/21 INSTAXFRC-GM2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.)
or
• Solder gun, and solder, heat shrink
• Tape
• Zip-tie
TABLE OF CONTENTS
Connections ............................................................2
Configuring the AXFRC-GM2 ..................................3
Installation .............................................................4
User guide ..............................................................5
GM HDMI and Camera Interface 2013-Up
Provides front and rear camera inputs to the factory radio
Provides an HDMI input to the factory radio
(AXHDM-1M cable sold separately)
USB Micro B updatable
AXFRC-GM2 interface
AXFRC-GM2 harness
6-pin to USB cable
LVDS (video) to USB cable
10-pin harness with RCA jacks
3.5mm extension cable
APPLICATIONS
See inside front cover
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
